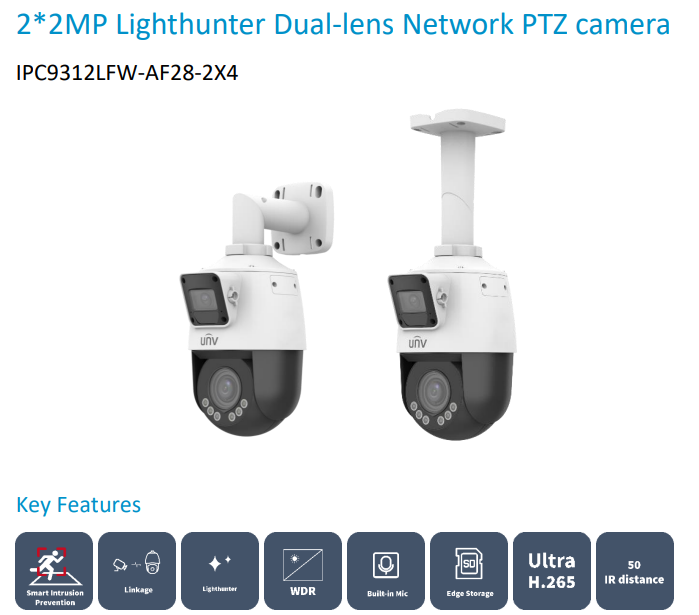

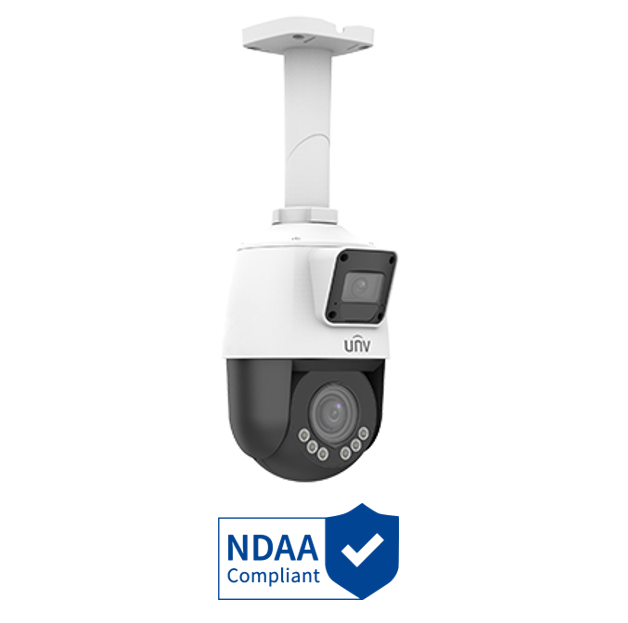

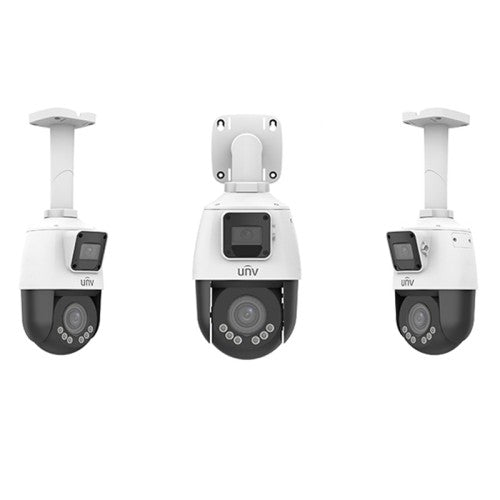

Uniview Easy Series 2x2MP Dual-Lens PTZ IP Camera (Model: IPC9312LFW-AF28-2X4)

The Uniview Easy Series IPC9312LFW-AF28-2X4 is a robust, dual-lens 2MP PTZ (Pan-Tilt-Zoom) camera that combines both fixed and motorized lenses for a versatile and highly effective surveillance solution. This camera integrates LightHunter technology to deliver exceptional image clarity in low-light environments, coupled with 120dB WDR for high-quality images in challenging lighting conditions. With its 50m IR+ White LED illumination, this camera ensures reliable 24/7 monitoring, even in total darkness. The PoE+ compatibility and IP66 rating make it an ideal choice for both indoor and outdoor installations.

Key Features:

• Dual-Lens Integration: Features a fixed 2.8mm lens and a motorized 2.8~12mm zoom lens with 4x optical zoom for detailed viewing and flexibility in monitoring wide and specific areas.
• 2MP High Definition: Captures crisp 1920x1080 resolution at 25fps, providing clear images with excellent detail.
• LightHunter Technology: Maximizes image clarity in low-light environments, ensuring superior performance even in challenging lighting conditions.
• 120dB WDR (Wide Dynamic Range): Handles high contrast lighting environments effectively, ensuring clear image capture even in scenes with bright lights or shadows.
• 50m IR + White LED Illumination: Provides reliable night vision with both infrared and white LED lighting, covering a distance of up to 50 meters (164 feet).
• Smart Intrusion Prevention: Includes advanced motion detection features such as cross-line detection, intrusion detection, and area monitoring to minimize false alarms.
• Built-in Microphones & High-Power Speaker: Supports two-way audio for clear communication, with better sound performance.
• IP66 Weatherproof Rating: Suitable for outdoor use, providing protection against dust and rain.
• PoE+ or DC12V Power: Flexible power options with PoE+ (IEEE 802.3at) for simplified installation or traditional 12VDC.
• Edge Storage: Supports micro SD cards up to 256GB for local storage.
• Flexible Mounting: Supports both ceiling mount and wall mount installations.

Specifications:

• Sensor: 1/2.8" 2MP CMOS sensor
• Lens Type: 2.8mm fixed lens + 2.8-12mm motorized lens
• Optical Zoom: 4x motorized zoom (PTZ lens)
• Minimum Illumination: Color: 0.002 lux (F1.6, AGC ON), 0 lux with IR and white LED
• Shutter Speed: Auto/manual, 1 ~ 1/100000s
• IR Range: Up to 50m (164 feet) for clear night vision
• Wavelength: 850nm (IR) with warm light illumination (up to 10m)
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate: Main Stream: 1080P (1920*1080), Max 25fps
• Storage: Supports micro SD cards up to 256GB; ANR, NAS (NFS) network storage
• Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, SMTP, FTP, UPnP, HTTP, HTTPS, SNMP, and more
• Audio Compression: G.711U, G.711A
• Pan & Tilt: Pan range: 0°~345°, Tilt range: -10° ~ 100°, Preset speed: 40°/s
• Power Supply: PoE+ (IEEE 802.3at) or 12VDC; Max 16W
• Ingress Protection: IP66 rated, suitable for outdoor use
• Operating Temperature: -20°C to 60°C (-4°F ~ 140°F), Humidity: ≤95% RH
• Dimensions:
  • Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”)
  • Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
• Weight: 1.03kg (2.27lbs)

What's in the Box:

• 1 x Uniview Easy Series 2x2MP Dual-Lens PTZ IP Camera (IPC9312LFW-AF28-2X4)
• 1 x Mounting Bracket (Wall or Ceiling)
• 1 x Power Adapter (if not using PoE)
• 1 x User Manual

Warranty:

• 24 Months Warranty for reliable product performance and support.

This dual-lens PTZ camera from Uniview offers a powerful and versatile solution for security, with features that enhance surveillance capabilities and ensure clarity in various environments. Whether you're monitoring a large area or focusing on specific details, the Uniview Easy Series Dual-Lens PTZ Camera delivers superior quality and performance.

Datasheet
