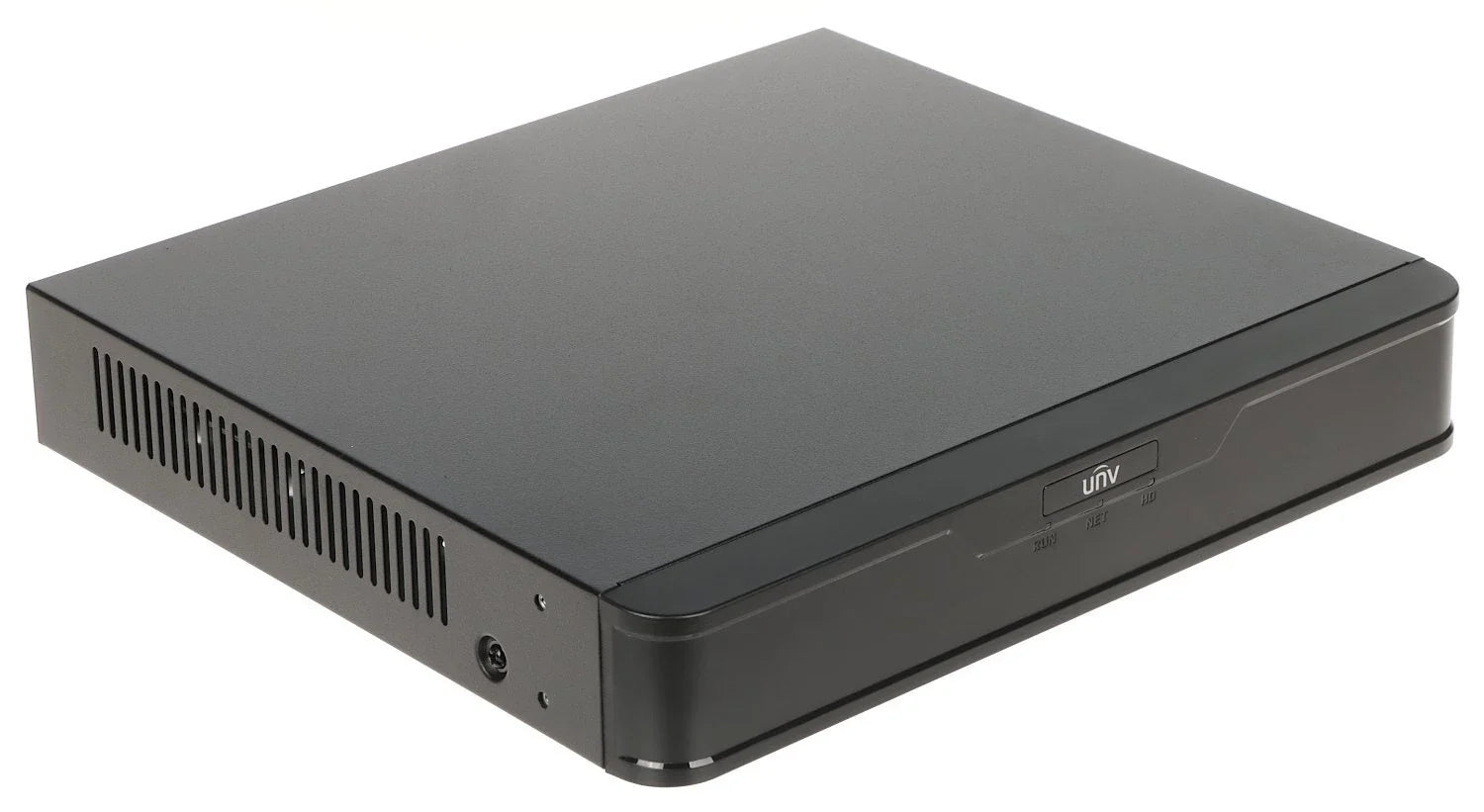

UNIVIEW EASY 4 Channel NVR with 4x PoE Ports Ultra 265/H.265/H.264 – NVR301-04X-P4 (Replaced by *New NVR301-04B-P4-IQ) Prime Series

Streamline your surveillance system with the UNIVIEW EASY 4CH NVR, offering seamless recording and connectivity in a compact and reliable package. With advanced features and robust specifications, this network video recorder is designed for easy integration and optimal performance in both residential and commercial settings.

Key Features:

• 4-Channel Input: Support for up to four IP camera connections, ensuring comprehensive coverage for your security system.
• Ultra High-Resolution Recording: Records in stunning 4K (up to 8MP) resolution for superior image quality, with flexible resolutions down to 720p for versatile setup options.
• ONVIF Compatibility: Integrates effortlessly with third-party IP cameras that support ONVIF Profile S, Profile G, and Profile T, ensuring broad compatibility with various camera brands.
• 4x PoE Ports: Powers up to four IP cameras directly through PoE (Power over Ethernet), eliminating the need for additional power supplies or cables.
• High Bandwidth: Supports 80Mbps incoming bandwidth and 64Mbps outgoing bandwidth to handle multiple camera streams without compromising performance.
• Expandable Storage: Includes 1 SATA HDD port, supporting drives up to 6TB for ample video storage capacity, ensuring your recordings are safe and accessible.
• Multiple Video Outputs: Supports both HDMI and VGA outputs, with simultaneous output for multi-display setups. HDMI supports up to 4K resolution for crystal-clear video.
• VCA Detection: Advanced video content analysis (VCA) features such as face detection, intrusion detection, cross-line detection, and more for intelligent surveillance.
• Easy Cloud Upgrade: Supports cloud upgrades, ensuring that your NVR is always up to date with the latest software and features.
• Intuitive Playback: Synchronous 4-channel playback for seamless review of multiple camera feeds at once.
• (Choose your own HDD below)

Technical Specifications:

• Input Channels: 4 IP video inputs

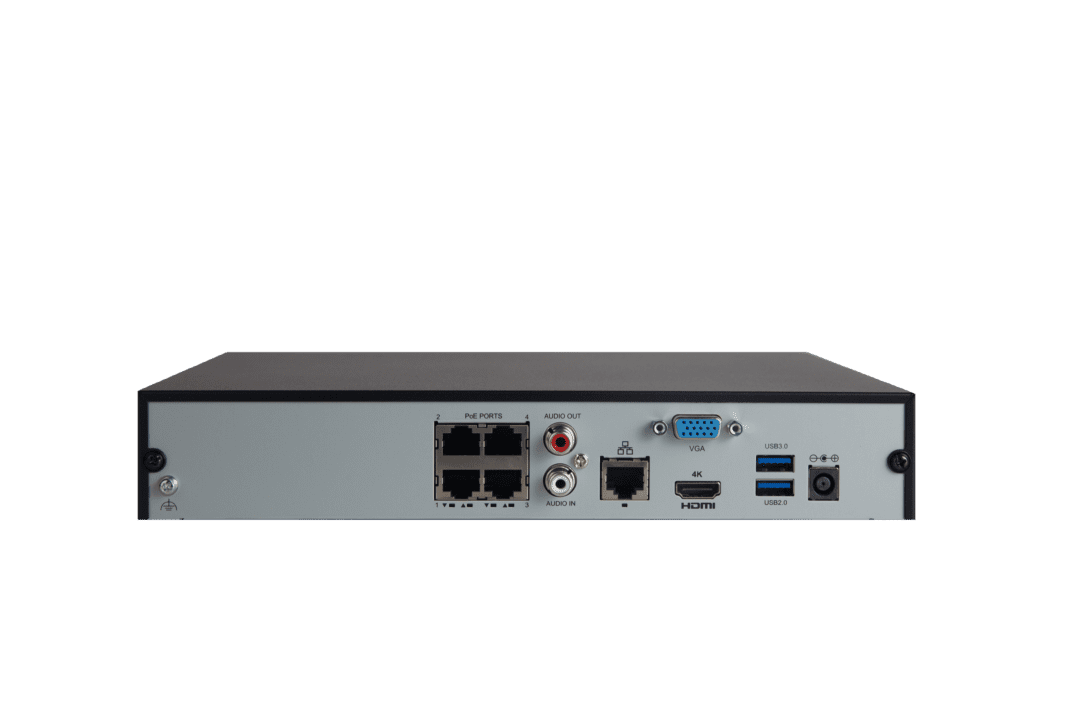

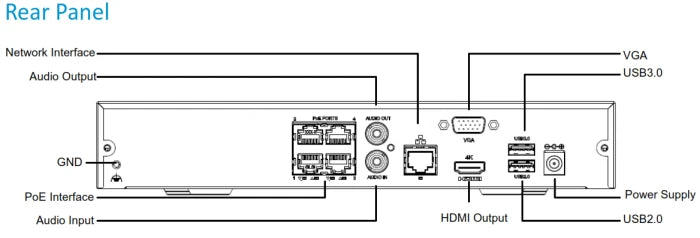

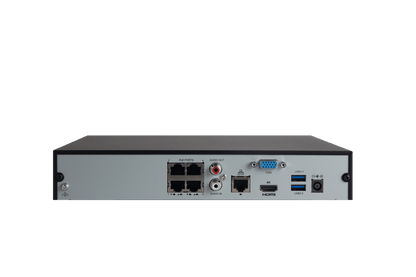

• Output: HDMI (3840x2160 at 30Hz) / VGA (1920x1080p at 60Hz)
• Recording Resolutions: 4K, 5MP, 4MP, 1080p, 960p, 720p, D1, CIF
• Decoding Format: Ultra 265, H.265, H.264
• Liveview/Playback Resolution: Up to 4K (2 x 4K at 30fps, 3 x 5MP at 30fps, 4 x 4MP at 30fps)
• Audio Output: 1-ch, RCA
• Hard Drive: 1 SATA interface, supports up to 6TB per HDD
• Power Supply: 48V DC (Max 9W power consumption without HDD)
• PoE Power: Max 30W per port, total 54W
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
• Weight: 1kg (2.20 lb) without HDD
• Dimensions: 260mm x 240mm x 47mm (10.2" x 9.4" x 1.9")

What's in the Box:

• 1 x UNIVIEW EASY 4CH NVR (Model: NVR301-04X-P4)
• 1 x Power Adapter
• 1 x Quick Start Guide
• 1 x Mouse
• 1 x USB Cable
• 1 x Network Cable
• 1 x Mounting Kit (for wall or rack installation)

Warranty:

• 24-Month Warranty: Backed by a 2-year manufacturer warranty, offering peace of mind for your purchase.

Whether you're upgrading an existing system or setting up a new surveillance network, the UNIVIEW EASY 4CH NVR offers reliable performance, high-definition recording, and flexible connectivity, making it an ideal choice for businesses and homes alike.

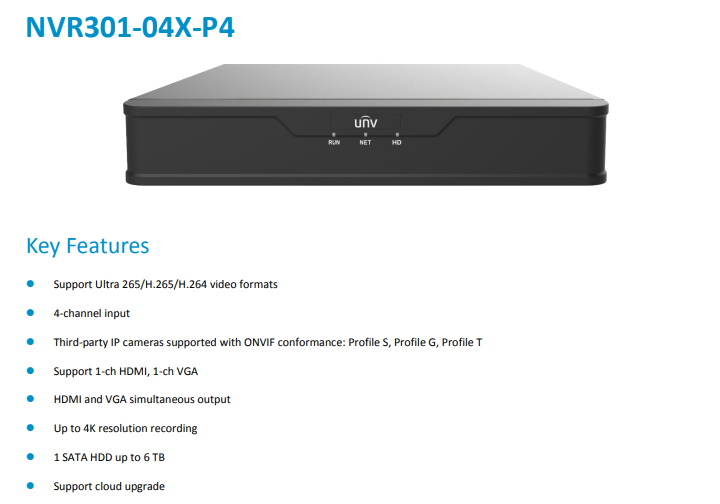

Datasheet
