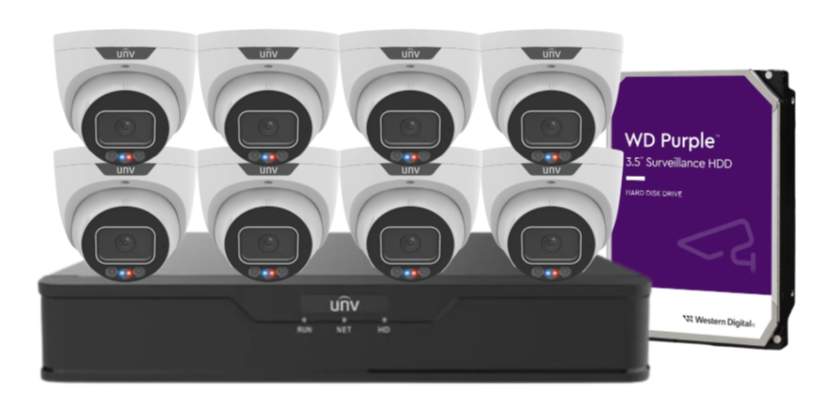

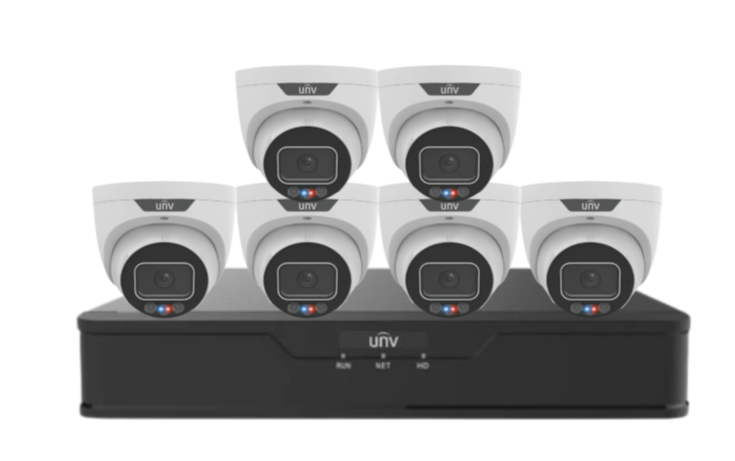

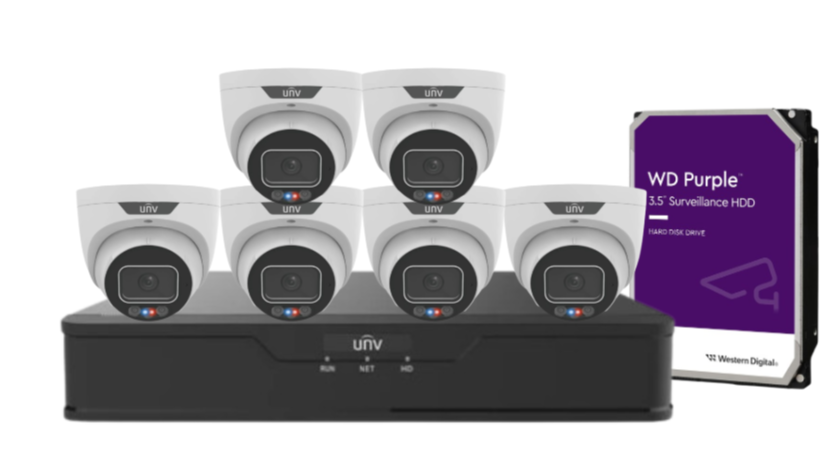

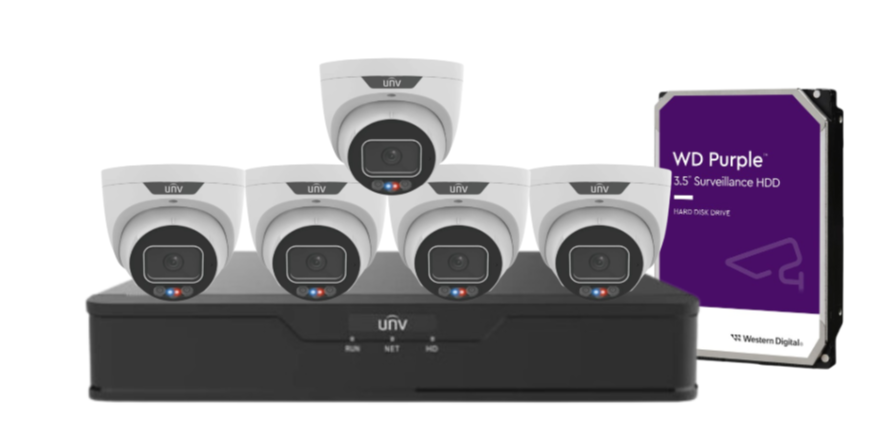

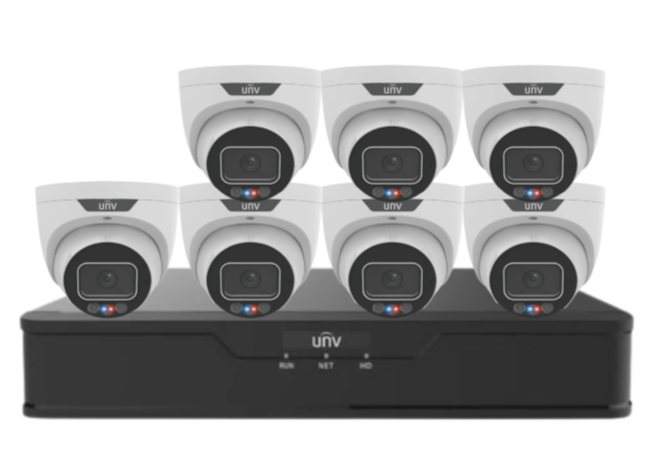

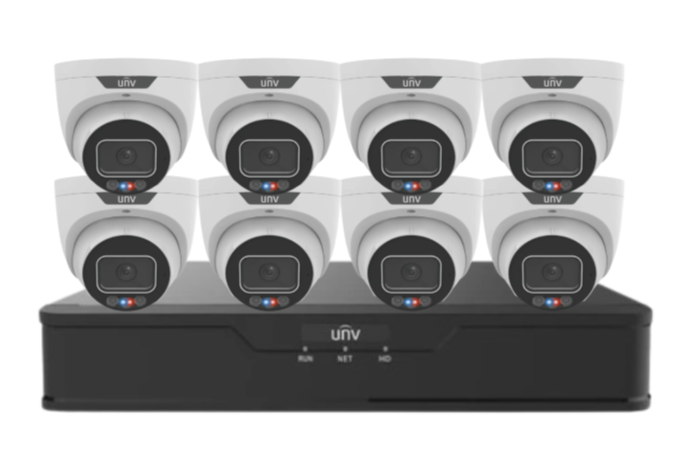

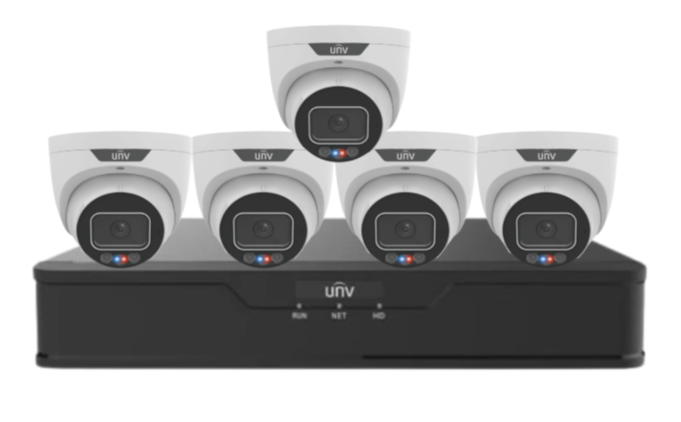

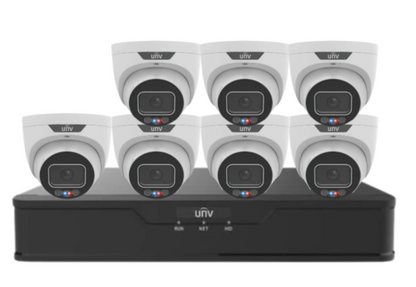

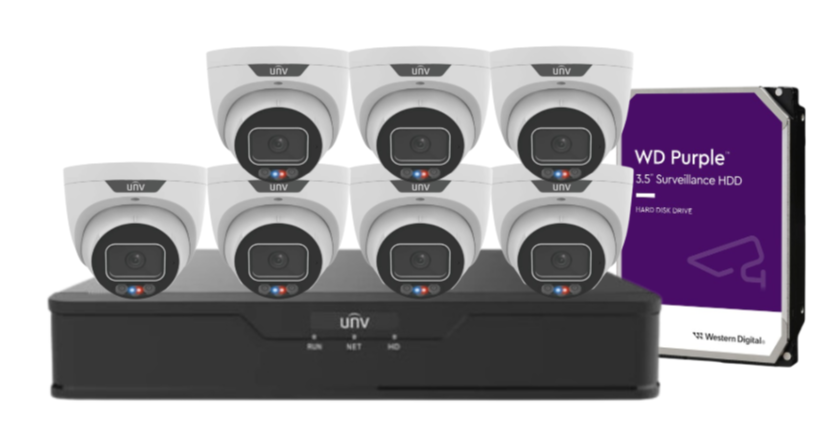

Uniview 8MP CCTV Kit – Up to x8 Cameras with 8-Channel NVR and HDD (8MP Triguard Series IPC3638SS-ADF28KMC-I )

Ensure powerful, ultra-HD surveillance for medium-scale security environments with the Uniview 8MP CCTV Kit, equipped with up to eight 8MP Triguard Turret Fixed IP Cameras and the high-performance 8-channel Uniview NVR301-08B-P8-IQ. This comprehensive kit delivers premium video clarity, active deterrence features, advanced AI analytics, and robust night vision, all in a plug-and-play configuration powered by PoE technology.

Perfectly suited for commercial buildings, large homes, and retail premises, this system supports real-time remote monitoring, intelligent perimeter protection, and edge storage, backed by true WDR imaging and built-in audio communication for complete situational awareness.

What's Included in the Box

• Up to 8 x Uniview 8MP Triguard Turret Fixed CCTV IP Cameras (Model: IPC3638SS-ADF28KMC-I1)

• 1 x Uniview 8-Channel PoE Network Video Recorder (NVR) (Model: NVR301-08B-P8-IQ)

• 1 x Disk Drive (Choose your own HDD below)

• 1 x Power Adapter

• 1 x USB Mouse

• 1 x Quick Start Guide

• 1 x Warranty Card

Main Features

Cameras – IPC3638SS-ADF28KMC-I1:

• 8MP CMOS Sensor (3840×2160): Captures crisp ultra-HD video at 30fps

• Fixed Lens: 2.8mm with 106.5° horizontal viewing angle

• Video Compression: Ultra 265 / H.265 / H.264 / MJPEG

• WDR: 130dB True Wide Dynamic Range for excellent low/high contrast balance

• Audio: Built-in microphone & speaker for two-way audio communication

• Night Vision: Smart IR up to 30m (98.4 ft)

• Deterrence Lighting: Red & blue warning LEDs

• AI Detection: Intrusion, line crossing, people counting, target classification

• Storage: Micro SD card support up to 256GB

• Weatherproof: IP67-rated housing for harsh outdoor conditions

• PoE Support: IEEE 802.3af compliant (max 10W)

NVR – NVR301-08B-P8-IQ:

• Channels: 8 IP camera inputs

• PoE: 8 × 10/100 Mbps ports (up to 30W per port)

• Decoding Support:

  • Smart Off: 2 × 12MP@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps

  • Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps

• Outputs: HDMI (4K) and VGA (1080p) simultaneous

• Compression: Ultra 265, H.265, H.264

• ANR Support: Records on SD cards during network failure and syncs to NVR afterward

• Audio: RCA in/out; supports 2-way communication

• Recording Resolution: Up to 12MP

• Remote Access: Up to 128 users via browser/app

• Storage: 1 × SATA interface, supports up to 10TB

Warranty Information

• Cameras: 3-Year Manufacturer Warranty

• NVR: 2-Year Manufacturer Warranty
  Warranty covers all manufacturer defects and hardware issues under standard use, processed through authorized Uniview centers in Australia and New Zealand.

Brand Description

Uniview is a globally respected leader in professional video surveillance. Renowned for pioneering Ultra 265 compression and offering high-performance IP solutions, Uniview provides security systems trusted by professionals in retail, government, and industrial environments.

Practical Use Scenarios

• Retail Stores: Cover storefronts, registers, and aisles with AI detection and deterrent lighting

• Warehouse & Logistics: Secure perimeters and inventory zones with high-resolution coverage

• Multi-Level Residential Homes: Monitor driveways, entrances, backyards, and internal spaces

• Educational Facilities: Protect access points and gather crowd insights

• Corporate Offices: Deter unauthorized access and maintain compliance using advanced AI surveillance

Datasheets & Downloadable Resources

• Uniview 8MP Camera Datasheet – IPC3638SS-ADF28KMC-I1

• Uniview NVR301-08B-P8-IQ Datasheet

Excellence for the Australian and New Zealand Market

• ✅ Certified to Australian and NZ Electrical Standards

• ✅ NDSS Approved: Ideal for projects requiring regulatory compliance or accessibility features

• ✅ Locally Optimized: Designed for compatibility with ANZ network configurations

• ✅ Genuine Uniview Products: Supplied via authorized distributors with complete warranty support

• ✅ Australian-Based Warranty Handling: Simplifies after-sales service and replacements

FAQs

Q1: What is the resolution of the IPC3638SS-ADF28KMC-I1SEC camera?
A1: The camera offers 8MP (3840x2160) @ 30fps resolution for ultra-HD clarity. (SKU: IPC3638SS-ADF28KMC-I1)

Q2: How many cameras can the NVR301-08B-P8-IQ support?
A2: This NVR supports up to 8 IP cameras via 8 PoE ports. (SKU: NVR301-08B-P8-IQ)

Q3: Is the system weatherproof and suitable for outdoor installation?
A3: Yes, the cameras are IP67-rated, ensuring protection from dust and heavy rain. (SKU: IPC3638SS-ADF28KMC-I1)

Q4: Can the system be monitored remotely?
A4: Absolutely. Up to 128 users can access live and recorded footage via mobile apps or browsers. (SKU: NVR301-08B-P8-IQ)

Q5: Does the camera support two-way audio?
A5: Yes, the camera features built-in mic and speaker for real-time audio communication. (SKU: IPC3638SS-ADF28KMC-I1)

Q6: What is ANR technology?
A6: ANR allows the camera to record locally during network outages and syncs the footage back to the NVR later. (SKU: NVR301-08B-P8-IQ)

Q7: What video compression formats are supported?
A7: The system supports Ultra 265, H.265, H.264, and MJPEG for optimal storage efficiency. (SKU: IPC3638SS-ADF28KMC-I1SEC / NVR301-08B-P8-IQ)

Q8: What are the warranty terms for this kit?
A8: 3-year warranty on cameras and 2-year warranty on NVR via official ANZ Uniview service partners. (SKU: IPC3638SS-ADF28KMC-I1SEC / NVR301-08B-P8-IQ)
