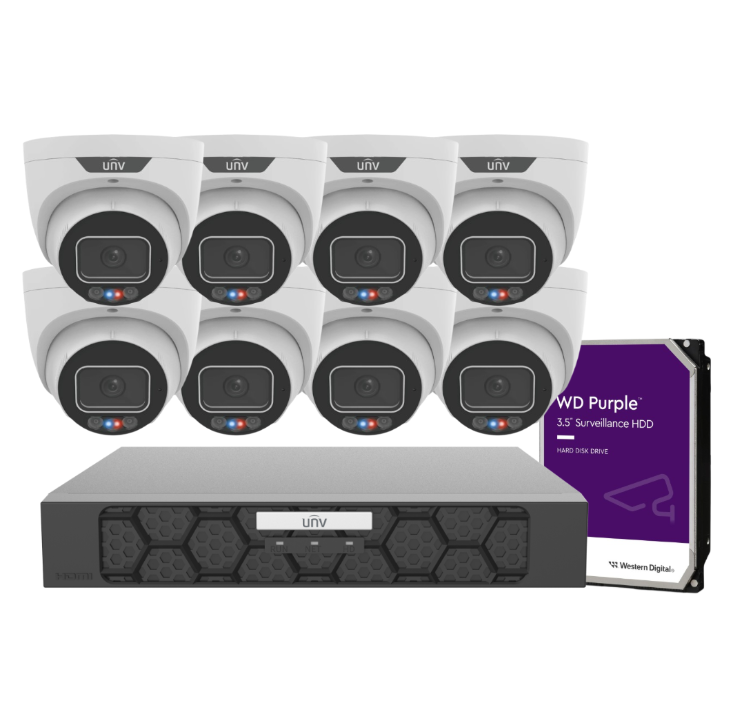

Uniview 8 MP Triguard CCTV Kit – 8× IPC3638SS‑ADF28KMC‑I1 Cameras + NVR501‑08B‑P8‑IQ 8‑Channel 4K PoE Recorder with HDD

Secure your property with precision using the Uniview 8‑Camera CCTV Kit. This all-in-one professional-grade solution features eight 8MP turret-style IP cameras paired with a powerful 8-channel NVR. Whether you’re monitoring residential premises, retail outlets, or commercial facilities, this system delivers high-resolution video, active deterrence, and AI-powered analytics for unmatched surveillance performance.

What’s Included

• 8 × Uniview IPC3638SS‑ADF28KMC‑I1 8MP Triguard turret IP cameras

• 1 × Uniview NVR501‑08B‑P8‑IQ 8-Channel PoE NVR with HDD (Choose your HDD below)

• External power adapter (DC 52 V/1.8 A)

• Installation screws & Quick Start Guide

• Manufacturer warranty & documentation

Main Features

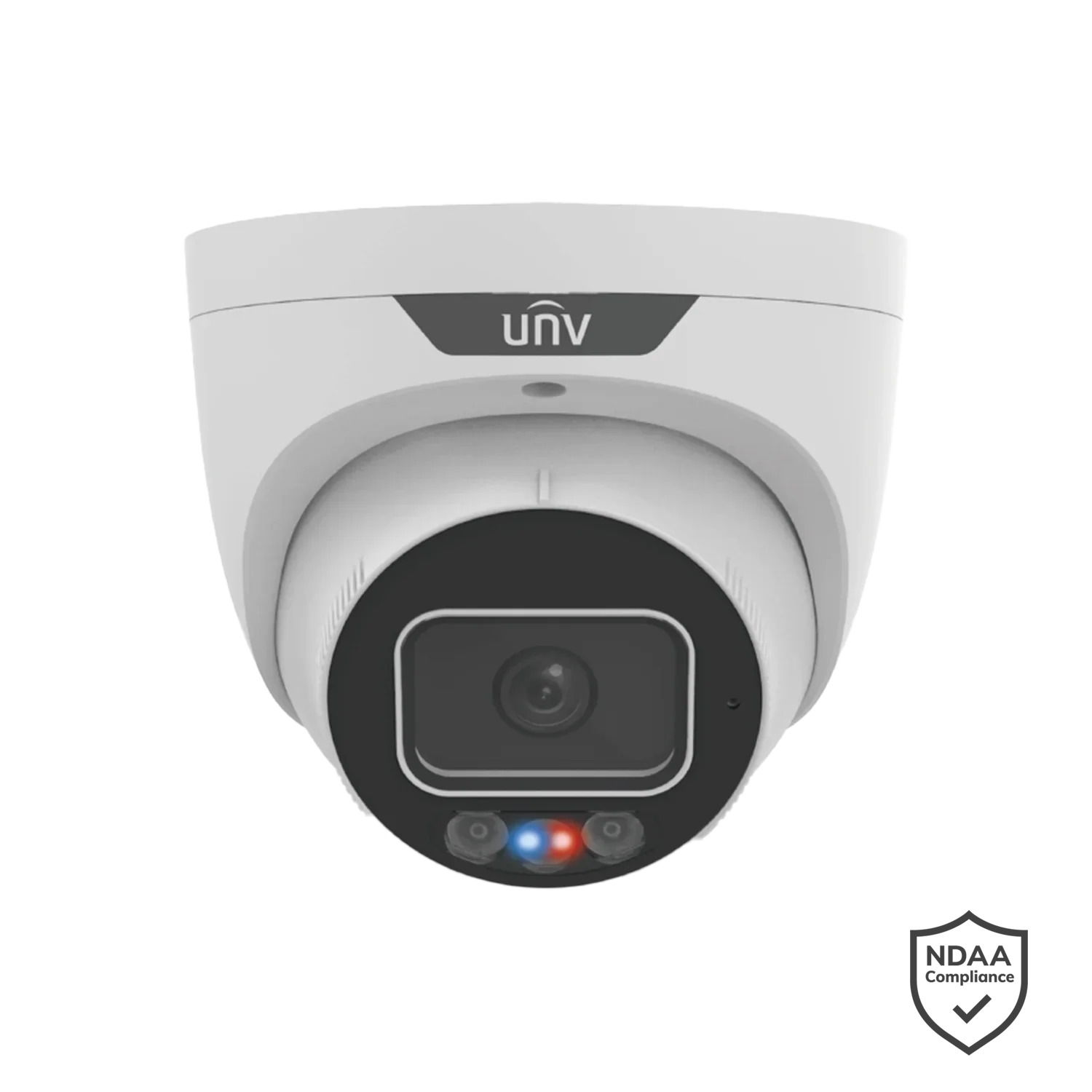

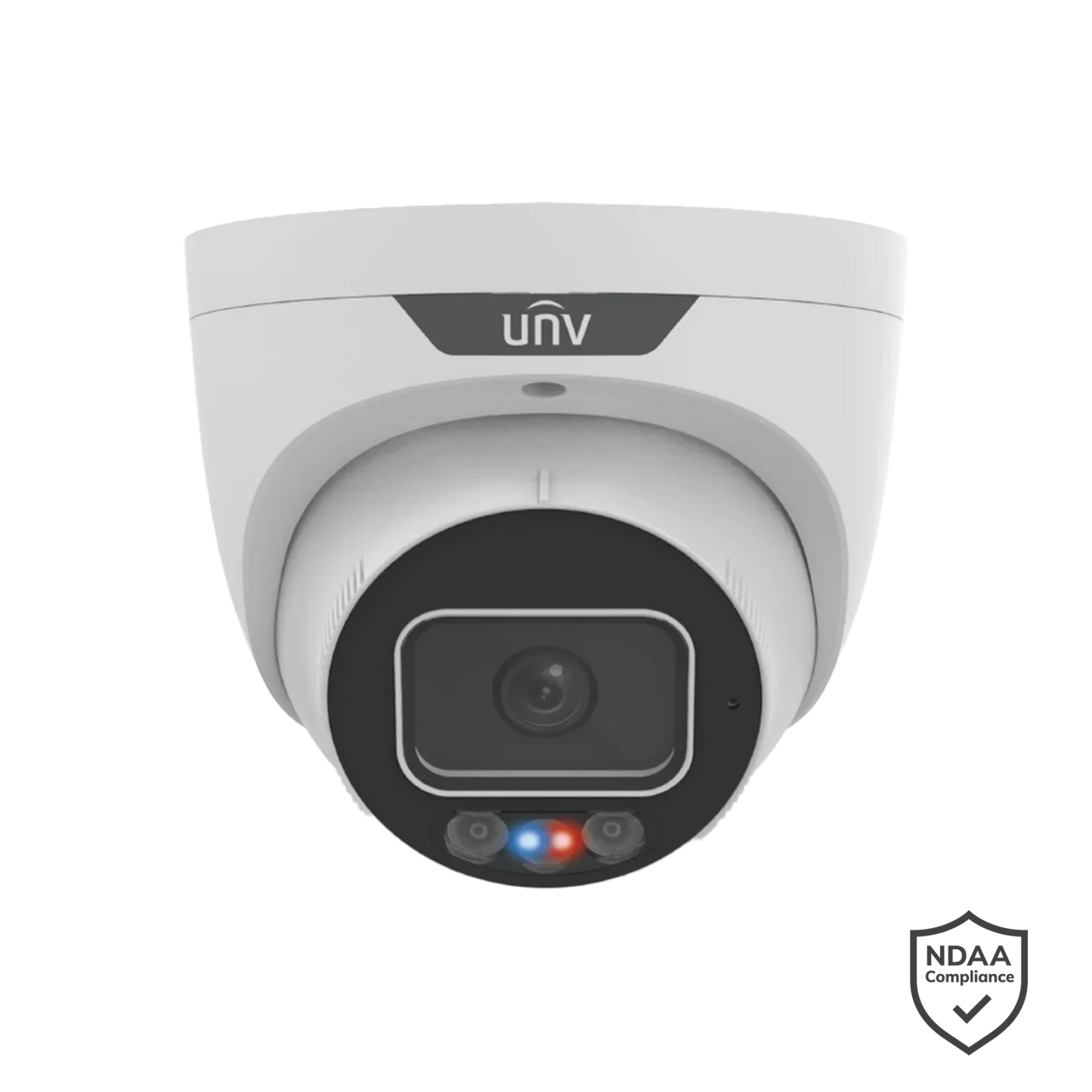

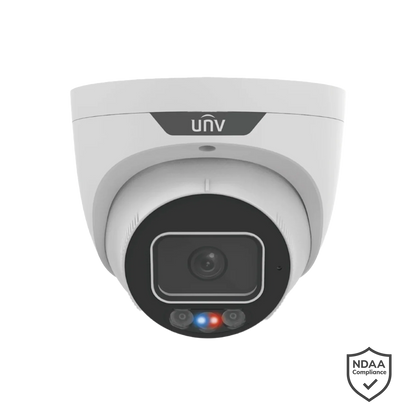

Cameras – IPC3638SS‑ADF28KMC‑I1

• 8MP CMOS sensor with 3840×2160 resolution at 30fps

• Advanced video compression (Ultra 265, H.265, H.264, MJPEG)

• 130 dB WDR, Smart IR (30 m range), red/blue strobe & loudspeaker

• Perimeter intrusion detection, crowd density monitoring, people counting

• Built-in microphone and speaker for two-way audio

• 2.8 mm lens (106.5° field of view), IP67-rated weatherproof housing

• Supports microSD storage up to 256GB

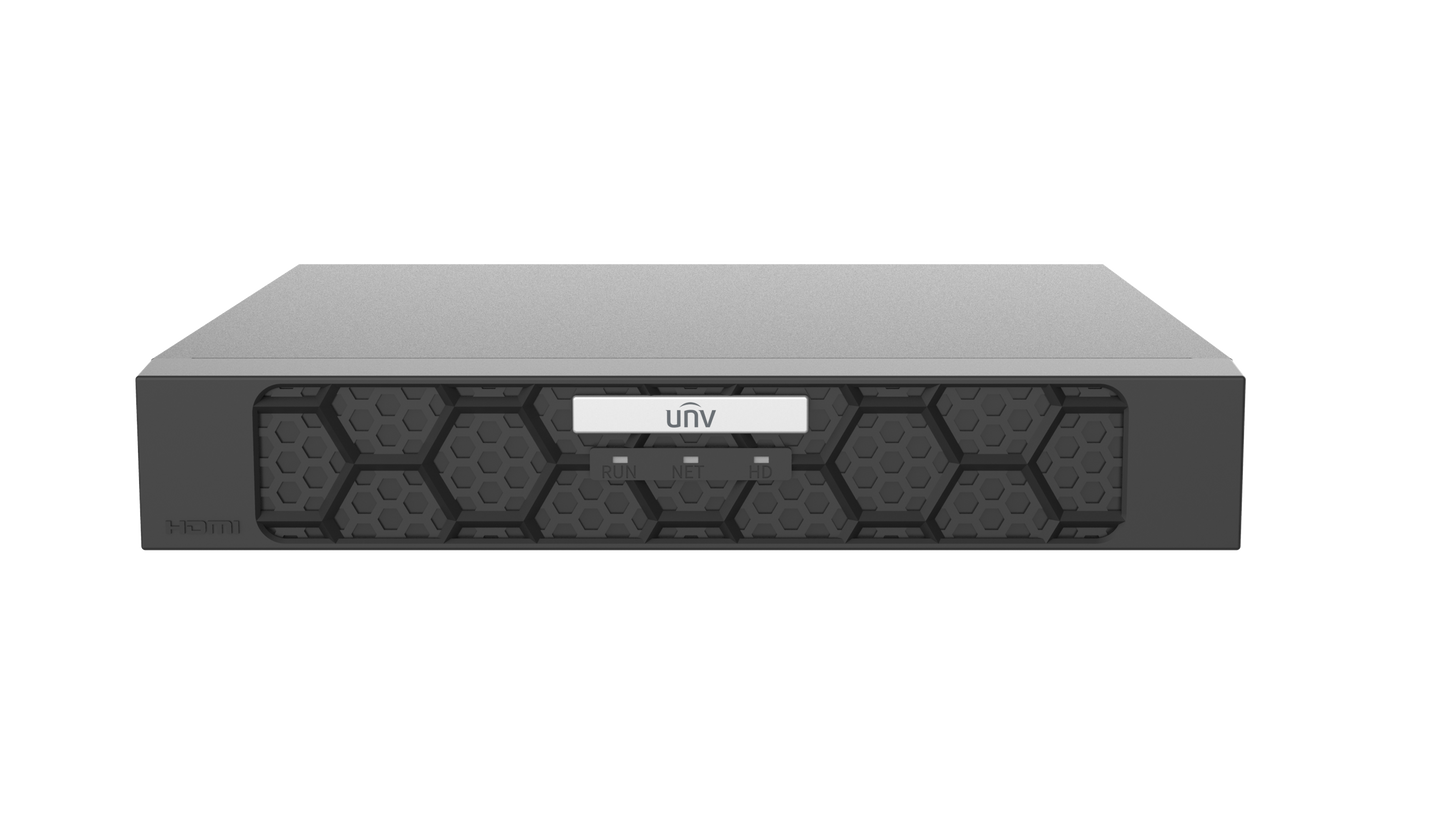

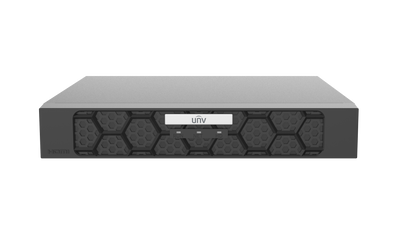

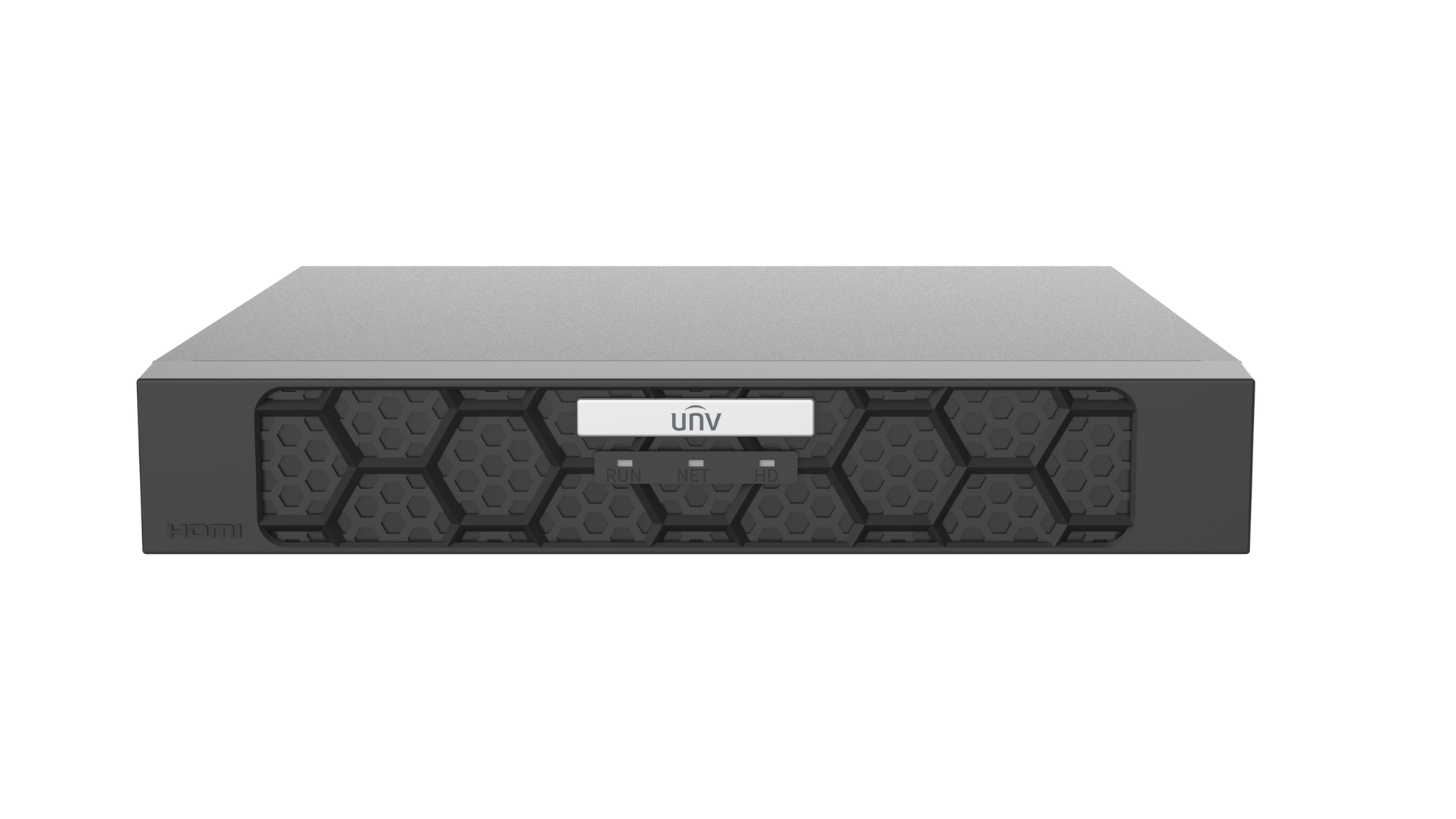

NVR – NVR501‑08B‑P8‑IQ

• 8× PoE ports (IEEE 802.3af/at), up to 75W total power

• Up to 16MP resolution recording, 4K HDMI output + VGA

• Supports face detection, vehicle/pedestrian alerts, fire/smoke monitoring

• Intelligent search: SmartSearch+, heat mapping, body/vehicle tracing

• Dual USB ports (USB2.0 front, USB3.0 rear), 1× SATA bay up to 16TB

• Compatible with ONVIF (S/G/T) and RTSP for third-party cameras

• Compact 1U chassis for efficient installation

Detailed Specifications

Warranty Information

Both the cameras and the NVR are backed by a 3-year manufacturer warranty, fully compliant with Australian Consumer Law.

Brand Description

Uniview is a global leader in smart video surveillance, recognized for its commitment to quality and innovation. Its advanced AI-powered systems are trusted across residential, commercial, and industrial applications.

SKU

CCTV-8CAM-TRIGUARD-KIT

Practical Use Scenarios

• Home Security: Monitor driveways, backyards, and entrances with night vision and alert systems

• Retail Shops: Use crowd analytics and line-crossing detection to deter theft and improve layout

• Office Surveillance: Ensure safe access management and facial recognition at entrances

• Industrial Facilities: Protect assets with heat mapping and motion-triggered recording

Datasheets & Resources

• Uniview camera

• NVR datasheets

Excellence for the Australian and New Zealand Market

• Complies with local standards and regulations (AS/NZS certified)

• Designed for environmental resilience in Australian/NZ climates

• Supplied exclusively via authorized Australian distributors

• Warranty support managed by Uniview and recognized partners

• Compatible with local NDSS and smart home systems

FAQs

Q1: What is the camera model in this kit?
A1: The camera model is IPC3638SS‑ADF28KMC‑I1.

Q2: What is the recorder included in this kit?
A2: The recorder is the Uniview NVR501‑08B‑P8‑IQ.

Q3: Does IPC3638SS‑ADF28KMC‑I1 support deterrent features?
A3: Yes, it includes red/blue warning lights and a speaker for audio deterrence—Product Code IPC3638SS‑ADF28KMC‑I1.

Q4: How much storage does NVR501‑08B‑P8‑IQ support?
A4: It supports 1 SATA HDD up to 16TB—Product Code NVR501‑08B‑P8‑IQ.

Q5: Is this system compatible with third-party IP cameras?
A5: Yes, the NVR501‑08B‑P8‑IQ is ONVIF S/G/T and RTSP compliant for multi-brand compatibility—Product Code NVR501‑08B‑P8‑IQ.

Q6: Can this system operate in extreme outdoor environments?
A6: Absolutely. IPC3638SS‑ADF28KMC‑I1 is rated for –30°C to +60°C and IP67 waterproof—Product Code IPC3638SS‑ADF28KMC‑I1.
