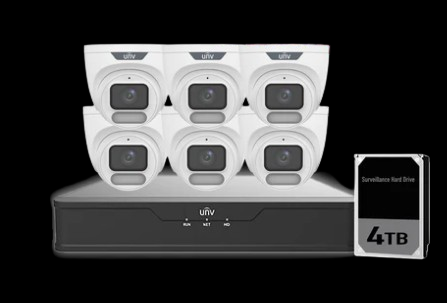

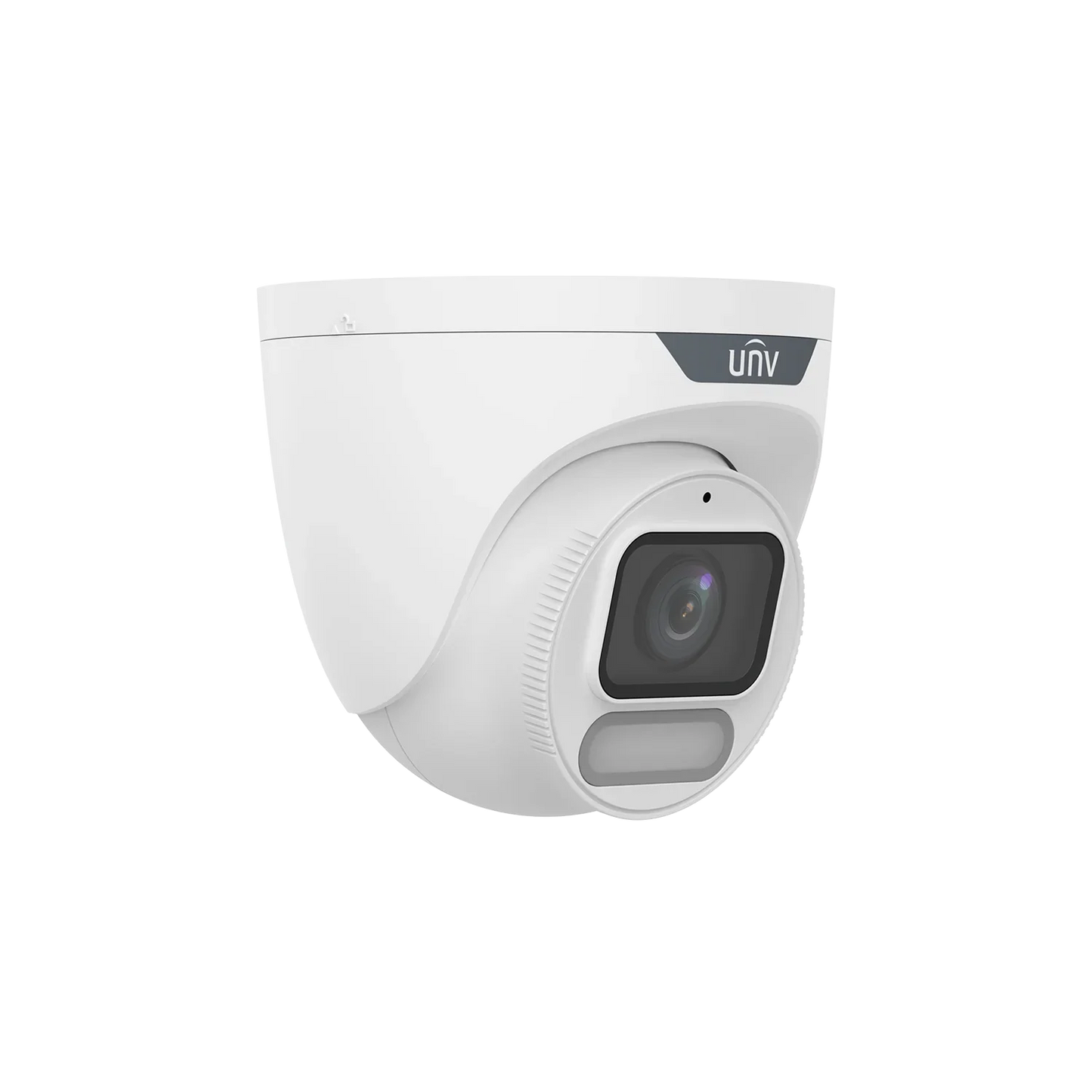

Uniview 6x OwlView 6MP CCTV IP Cameras, 8 Channel Surveillance Kit

The Uniview OwlView 6MP 8CH Kit is a robust surveillance solution tailored for medium-sized properties, businesses, and residential complexes. Featuring six advanced IPC3626LE-ADF28K-WP ColorHunter Turret Cameras and the powerful NVR501-08B-P8 8-channel NVR, this kit ensures comprehensive security coverage with superior image quality and intelligent features.

Kit Components:

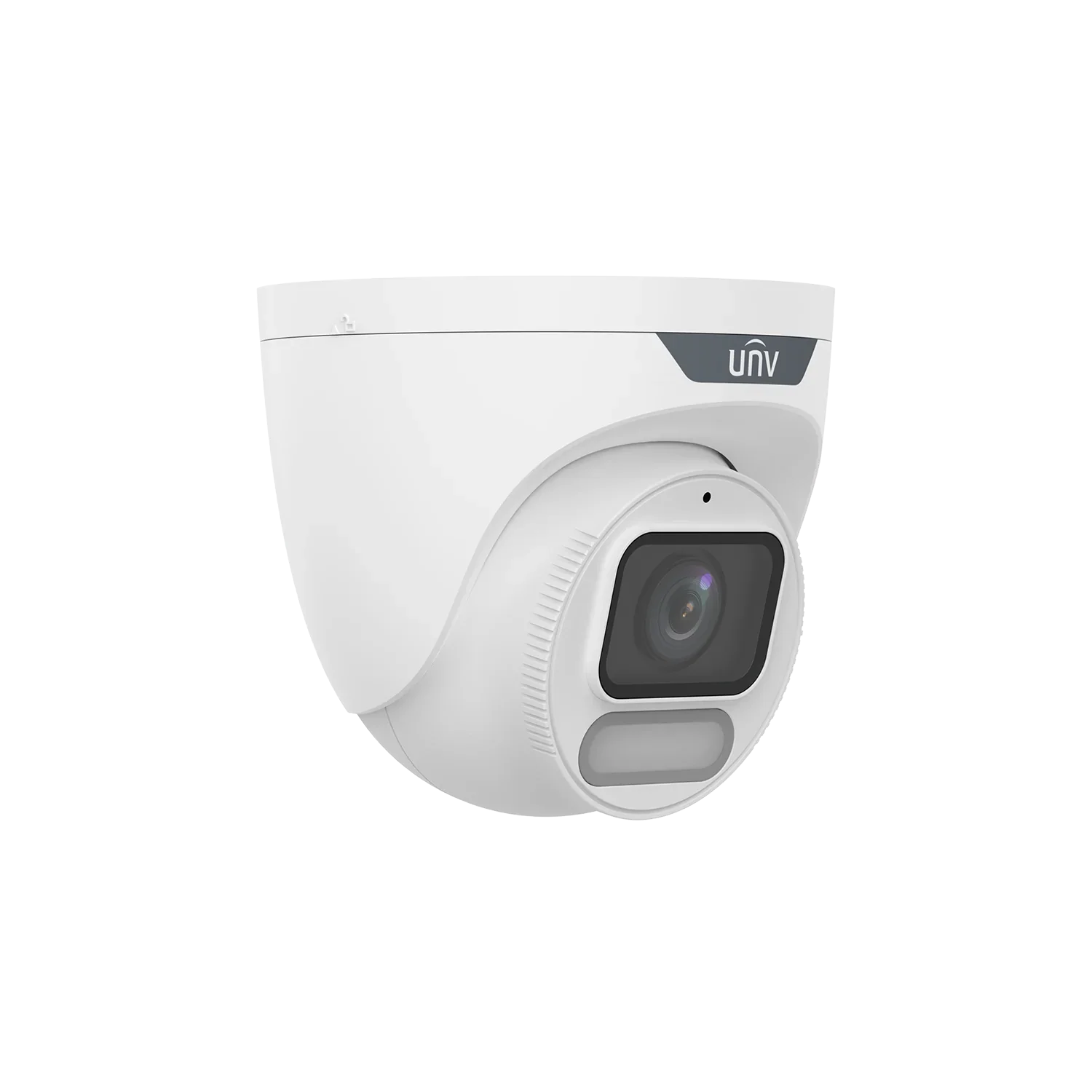

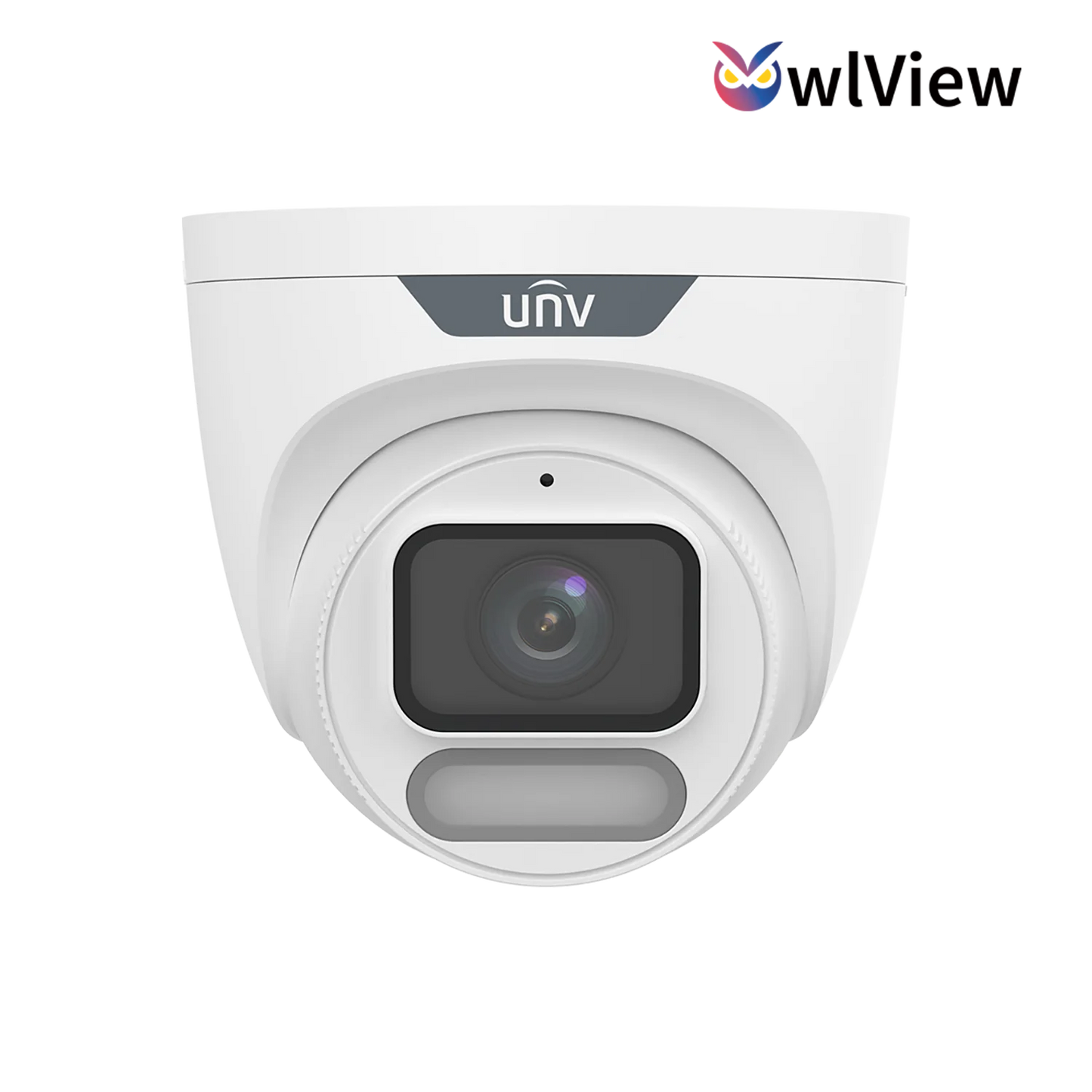

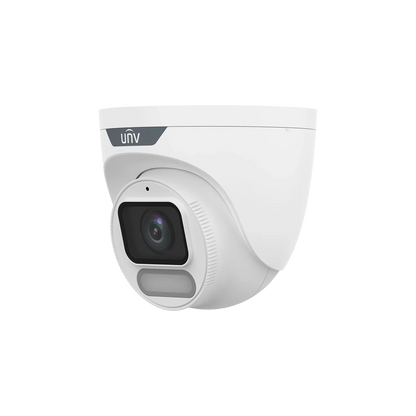

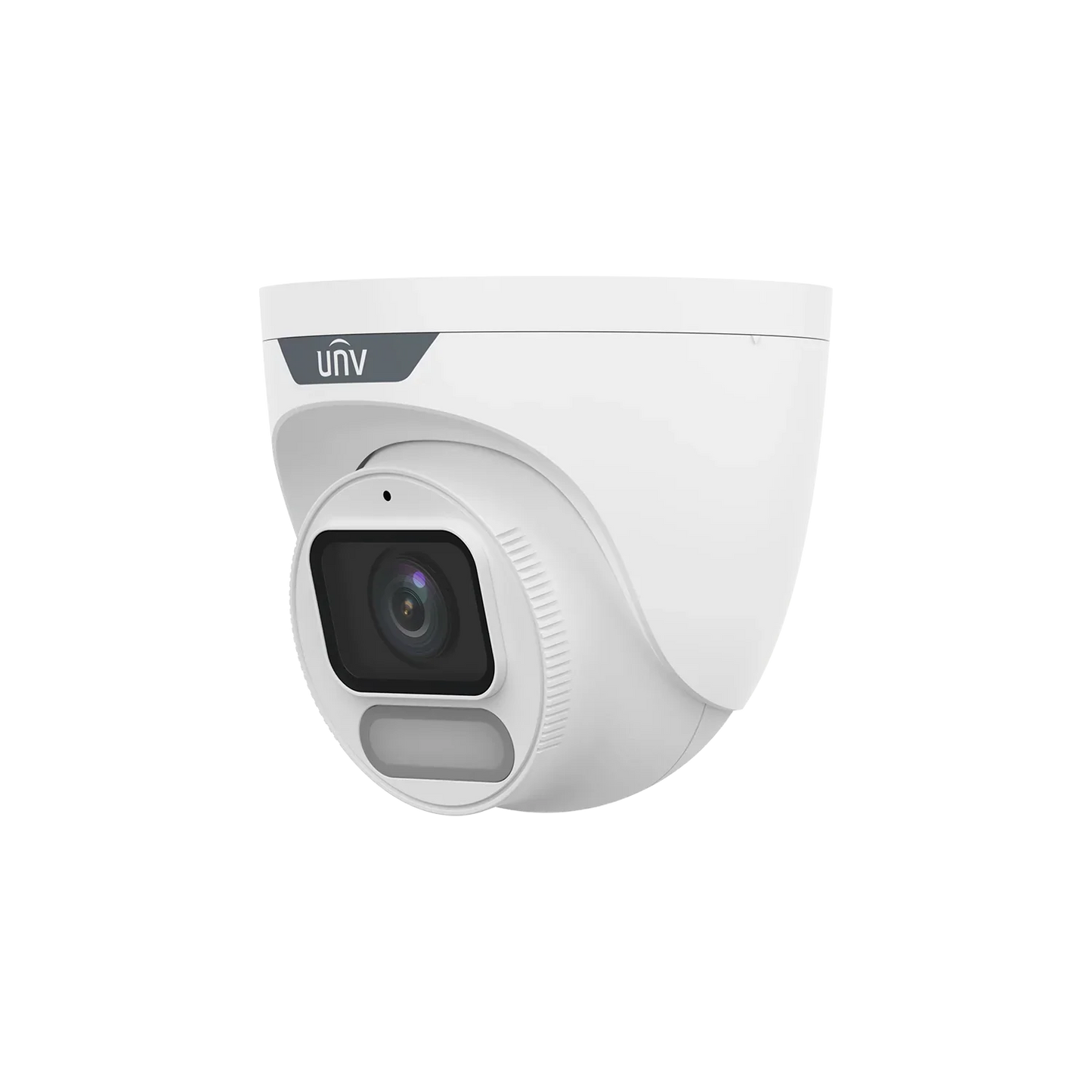

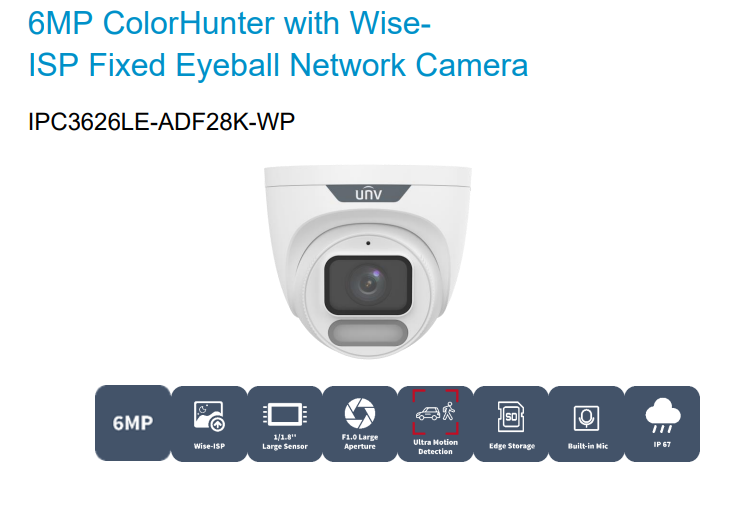

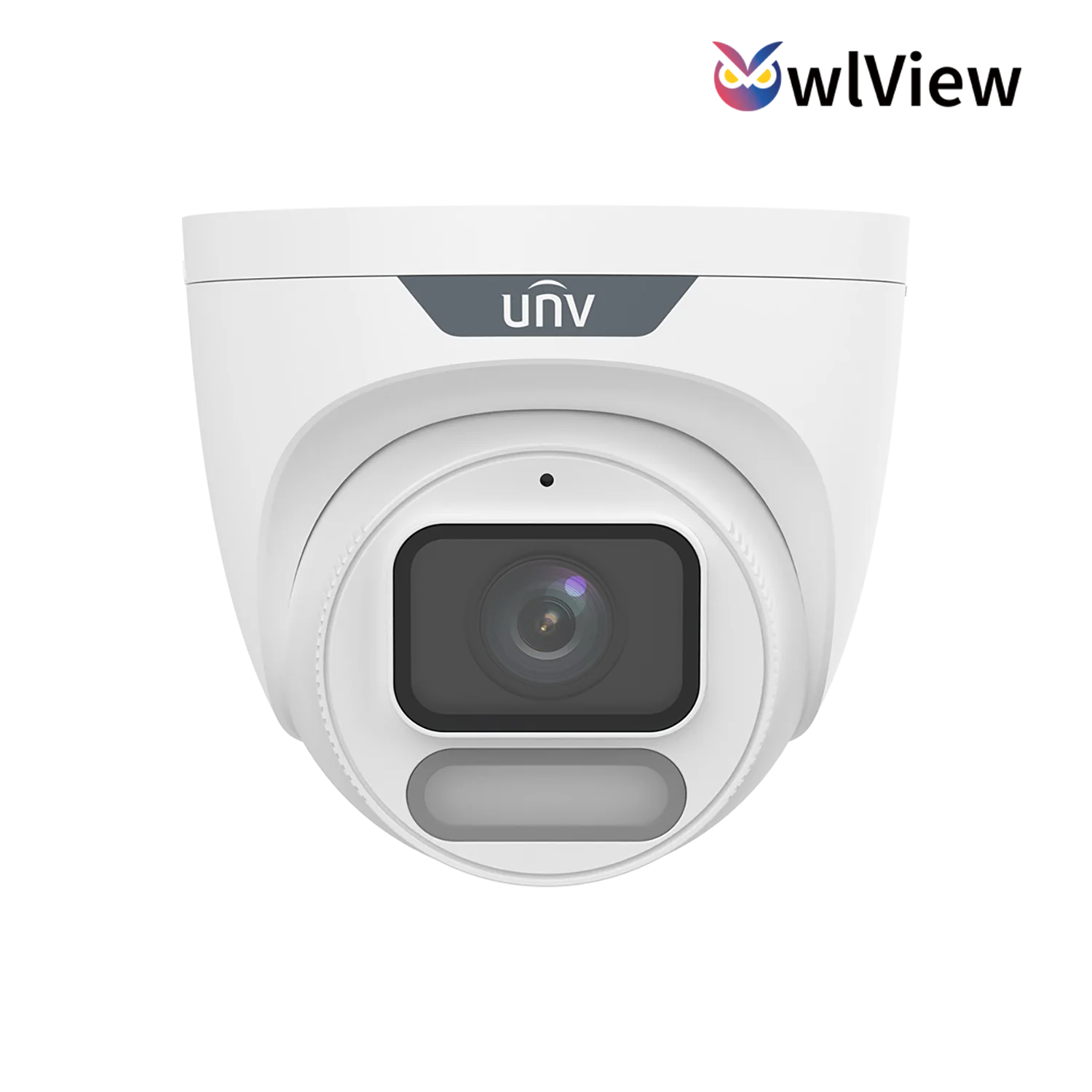

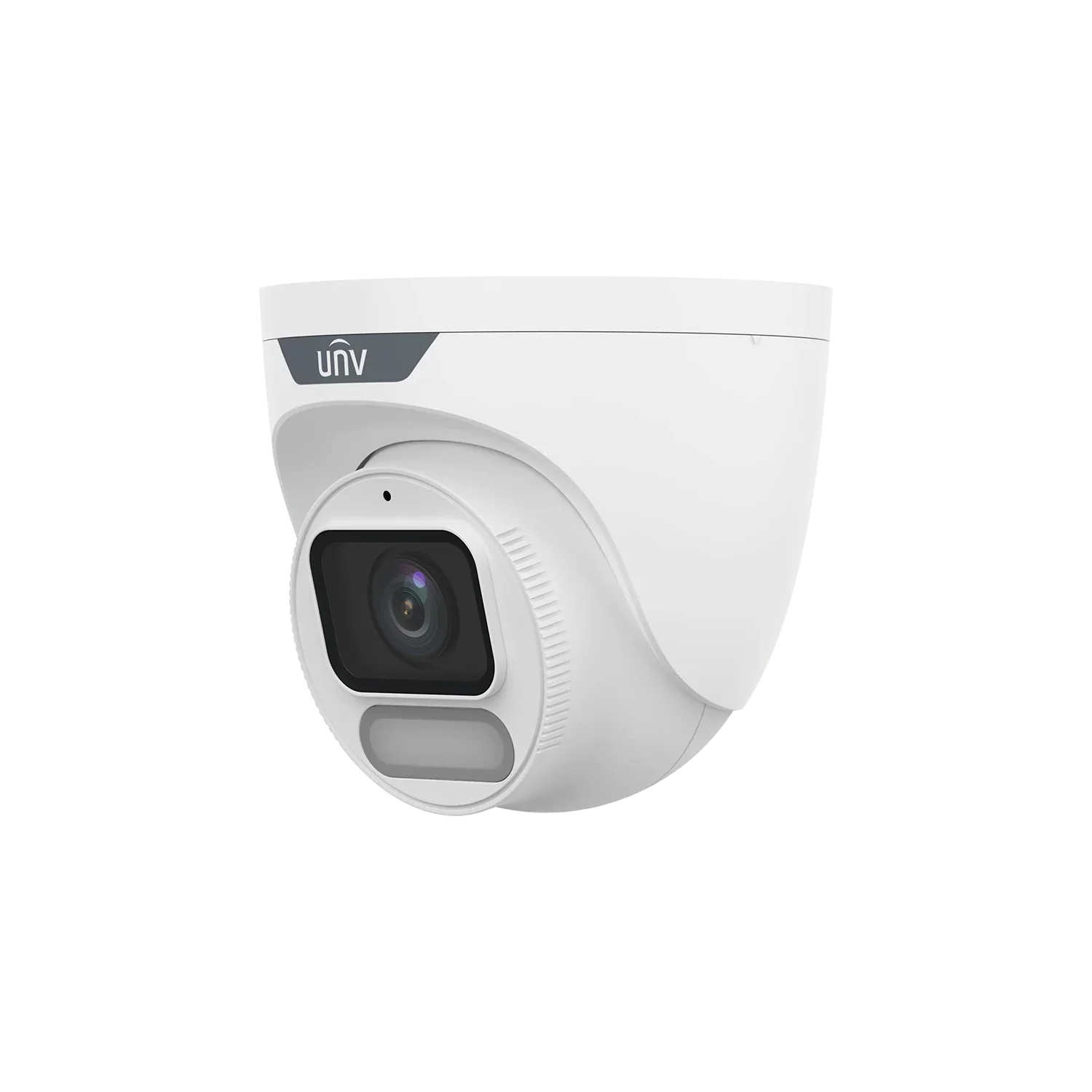

6 x IPC3626LE-ADF28K-WP 6MP Turret Cameras

• 6MP Resolution: High-definition video with resolutions up to 3072 × 2048 @ 25/20fps.
• ColorHunter Technology: Exceptional color reproduction and clarity in low-light settings, ideal for nighttime surveillance.
• Warm Light Illumination: Covers distances up to 30m (98ft), providing full-color video even in complete darkness.
• True WDR (120dB): Captures balanced images in challenging lighting conditions.
• Durable Construction: IP67-rated for protection against dust and water, with a wide operating temperature range of -30°C to 60°C (-22°F to 140°F).
• Built-in Microphone: Records clear audio to enhance video surveillance.
• Edge Storage: Supports up to 512GB MicroSD cards for local video storage.

1 x NVR501-08B-P8 (8-Channel NVR)

• Channel Support: Connects and records up to 8 IP cameras for extended surveillance.
• Integrated PoE: Powers connected cameras directly through Ethernet cables, simplifying installation.
• Storage: Pre-installed or separate with a 4TB HDD, expandable for longer recording durations.
• Dual Video Outputs: HDMI and VGA ports for monitoring on external displays.
• Smart Management: Remote access via Uniview EZStation or mobile app ensures easy system monitoring.
• Advanced Compression: Ultra 265, H.265, and H.264 reduce storage requirements without sacrificing quality.

Key Features:

Enhanced Surveillance Coverage:

• Wide Field of View: Cameras with a 2.8mm fixed lens offer excellent area coverage, reducing blind spots.
• Warm Light for Full-Color Night Vision: Improves visibility and detail recognition in low-light or no-light conditions.

Ease of Installation and Use:

• Plug-and-Play with PoE: Simplifies setup by using a single cable for power and data.
• Flexible Recording Options: Supports continuous, scheduled, or motion-detected recording.

Intelligent Security Features:

• Detection Capabilities:
  • Motion Detection, Ultra Motion Detection.
  • Intrusion and Cross Line Detection based on human body analysis.
• Remote Accessibility: Manage, view, and receive alerts from anywhere using a desktop or mobile app.

Durability and Reliability:

• Weatherproof and Rugged: IP67-rated cameras operate flawlessly in extreme weather conditions.
• Extended Operating Range: Ensures consistent performance in temperatures from -30°C to 60°C (-22°F to 140°F).

Technical Specifications:

IPC3626LE-ADF28K-WP Cameras:

• Resolution: 6MP (3072 × 2048 @ 25/20fps).
• Lens: 2.8mm fixed focal length.
• Illumination Distance: Warm light reaches up to 30m.
• Compression: Ultra 265, H.265, H.264, MJPEG.
• Protection: IP67-rated housing for outdoor use.

NVR501-08B-P8 (8-Channel NVR):

• Camera Input: 8 channels with PoE support.
• Storage: Pre-installed 4TB HDD, expandable as required.
• Compression: Ultra 265, H.265, H.264 for optimal storage utilization.
• Video Output: HDMI and VGA.
• Remote Access: Compatible with Uniview EZStation and mobile app.

Optional Accessories:

• Mounting Options:
  • TR-JB03-I-IN: Junction box for secure installations.
  • TR-WM03-D-IN: Wall mount for flexible placement.
  • TR-JB07/WM03-G-IN: Wall mount with integrated junction box.

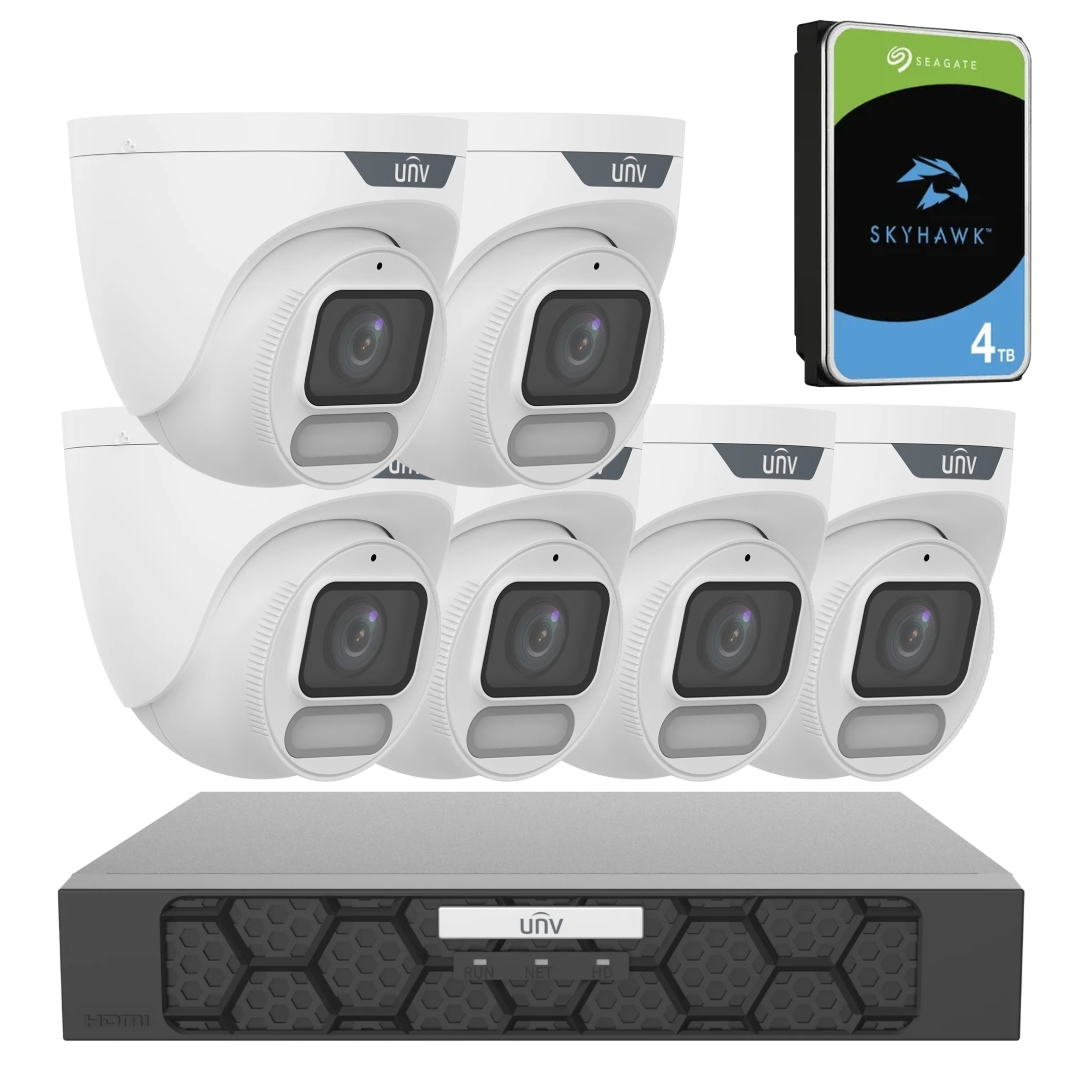

What's in the Box:

1. Six IPC3626LE-ADF28K-WP 6MP ColorHunter Turret Cameras.
2. One NVR501-08B-P8 8-Channel PoE NVR with pre-installed 4TB HDD.
3. Ethernet Cables for all cameras.
4. Power Supply and Mounting Accessories.
5. User Manual and Quick Installation Guide.

Warranty:

• 3-Year Limited Warranty on cameras and NVR for peace of mind.

The Uniview OwlView 6MP 8CH Kit delivers exceptional video quality, advanced low-light performance, and reliable operation. With its intelligent features and user-friendly setup, this kit is the perfect choice for ensuring comprehensive security in medium-sized properties or multi-zone installations.
