Uniview 6x 8MP Camera (IPC3618SB-ADF28(40)KMC-I0) + 8 Channel NVR + HHD Camera Kit (NVR301-08X-P8)

This Uniview 6-camera surveillance solution combines the precision of eight-megapixel imaging with intelligent analytics and deterrent features. The included IPC3618SB‑ADF28(40)KMC‑I0 cameras deliver unmatched security with active white light and siren alerts, smart detection zones, and integrated two-way audio. Paired with an 8-channel Uniview NVR301‑08X‑P8 supporting Ultra 265/H.265 recording and smart video analytics, this kit is ideal for mid-sized businesses, large residential sites, and commercial properties looking for proactive threat deterrence and superior image clarity.

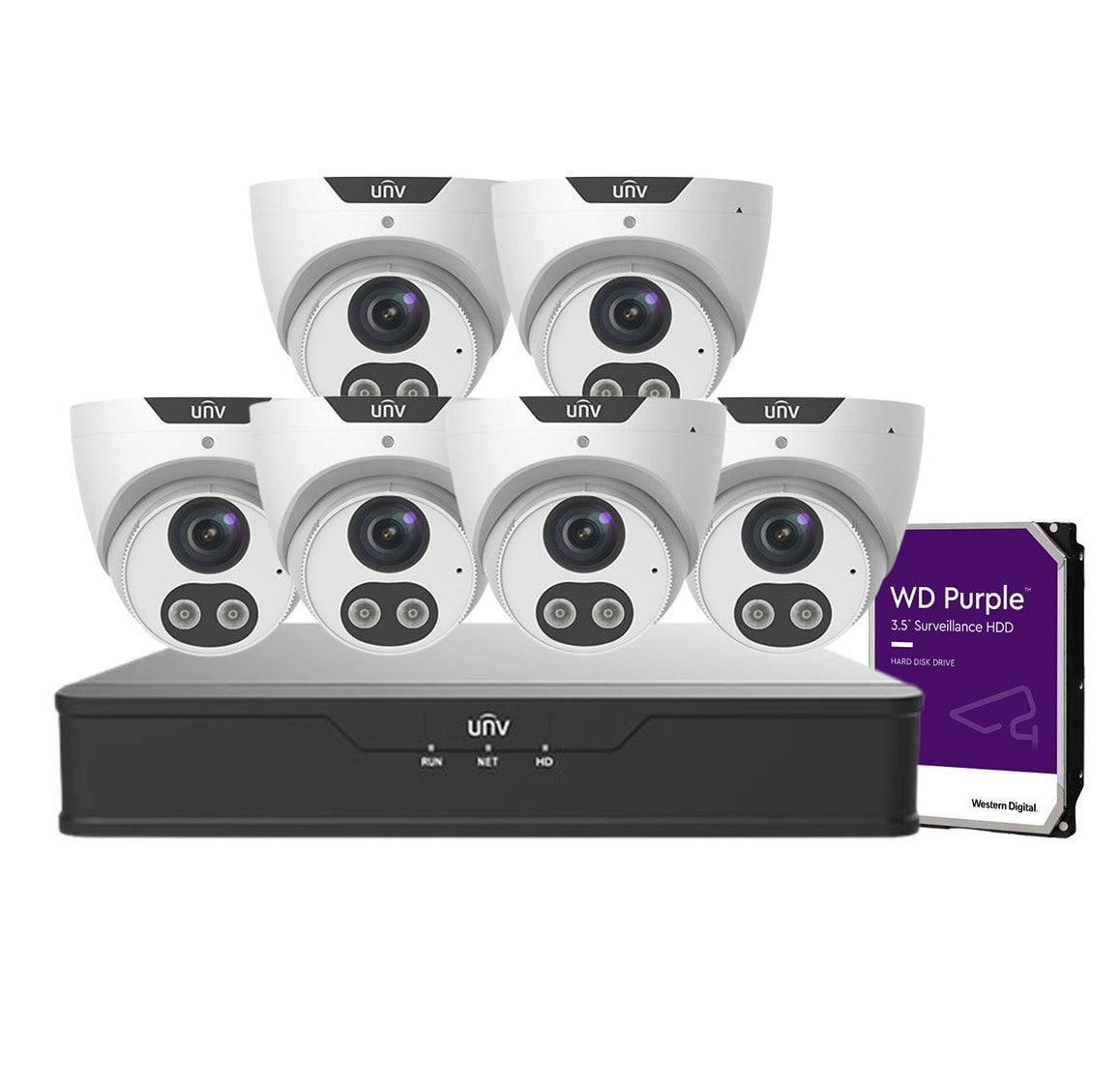

What’s Included in the Box

• 6 × Uniview IPC3618SB‑ADF28(40)KMC‑I0 Tri-Guard 8 MP Eyeball Network Cameras

• 1 × Uniview NVR301‑08X‑P8 8-Channel PoE Network Video Recorder

• Mounting accessories and setup documentation

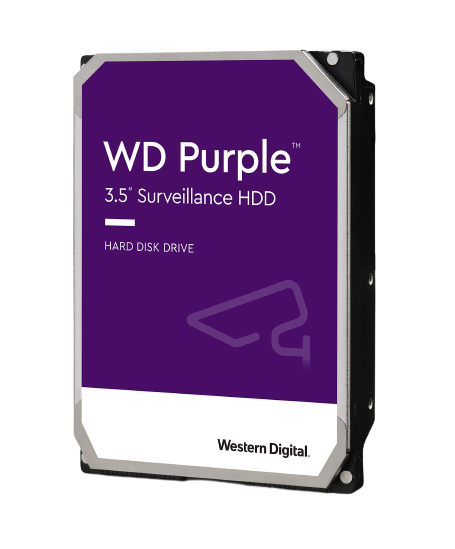

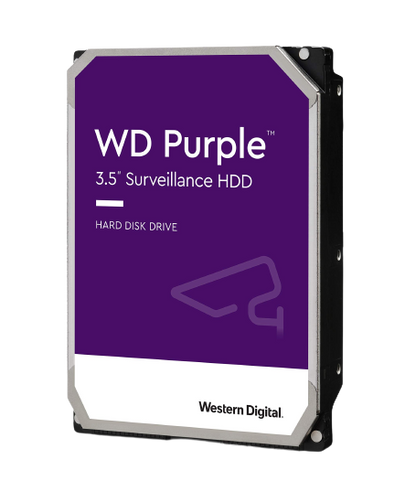

• Hard Disk Drive (HDD) for local recording

Main Features

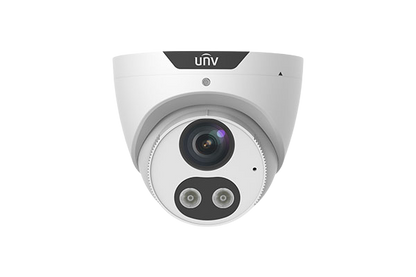

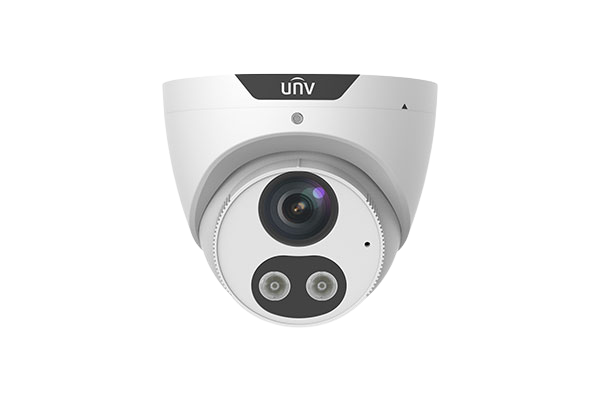

Cameras (IPC3618SB‑ADF28/40KMC‑I0)

• Ultra-clear 8MP resolution (3840×2160) at 20fps

• Active deterrence: flashing light and siren on intrusion detection

• 120dB True WDR, 30m Smart IR range

• Perimeter protection: cross-line, intrusion, enter/leave area detection

• Two-way audio via built-in mic and speaker

• 9:16 Corridor Mode, Smart IR, and digital defog

• Edge storage: MicroSD up to 256GB

• IP67 weatherproof metal + plastic construction

• Lens options: 2.8mm (106.7° H) or 4.0mm (87.5° H) field of view

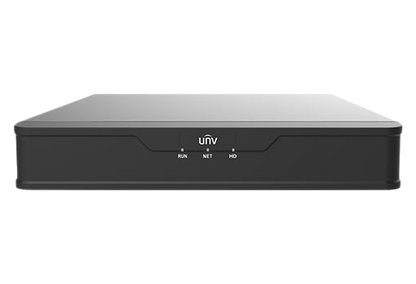

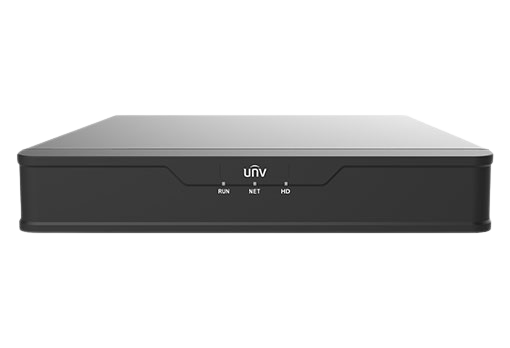

Network Video Recorder (NVR301‑08X‑P8)

• 8 PoE ports for plug-and-play camera installation

• HDMI/VGA simultaneous output; 4K HDMI resolution

• Supports Ultra 265/H.265/H.264 codecs

• 1 SATA interface, storage up to 8TB

• VCA integration with cameras for intrusion detection, people counting, and scene change alerts

• Multi-channel playback and intelligent video search

• Cloud upgrade and remote access for up to 128 users

• 75W total PoE power output; 30W max per port

Detailed Specifications

Warranty Information

This kit is covered by a comprehensive 2-year Uniview warranty through authorized ANZ distributors, with access to genuine firmware updates, service assistance, and system configuration support.

Brand Description

Uniview is a globally recognized brand in professional IP video surveillance, offering high-resolution cameras and intelligent NVRs. Their solutions provide robust performance in challenging environments, delivering superior video clarity, smart analytics, and system reliability trusted by commercial users worldwide.

SKU

UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8

Practical Use Scenarios

• Car Parks & Storage Facilities: Deter intruders using light and audio alerts while capturing license plate-level clarity.

• Shops & Cafes: Smart detection filters help distinguish customers from background motion, reducing false alerts.

• Medical Clinics & Schools: Easy to install, record, and manage footage securely with corridor mode and smart analytics.

• Home Complexes: Get reliable coverage with future-proof 8MP clarity and remote viewing capability.

Datasheets/Downloads

• IPC3618SB‑ADF28(40)KMC‑I0 Camera Datasheet


Excellence for the Australian and New Zealand Market

This security solution is certified for use in Australia and New Zealand with IP67 protection and CE, FCC, and UL compliance. All components are sourced from authorized Uniview distributors, ensuring product authenticity and local service support. Firmware updates, configuration, and warranty management are handled directly within the ANZ region.

Frequently Asked Questions (FAQs)

• Q (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Do all cameras in the kit support active deterrence?
  A (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Yes, each camera includes built-in lights and sirens that activate upon detecting intrusions.

• Q (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Can I add two more cameras to this kit later?
  A (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Yes, the NVR supports 8 channels, allowing you to connect up to two additional IP cameras.

• Q (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Is remote viewing available on mobile devices?
  A (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): Yes, use the EZView or EZLive apps on iOS/Android for full live and playback functionality.

• Q (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): What is the recommended storage size for 6 cameras?
  A (SKU UV‑KIT‑6xIPC3618KMC‑NVR301‑08X‑P8): For 24/7 recording at 8MP, a 6TB to 8TB HDD is recommended for optimal retention.
