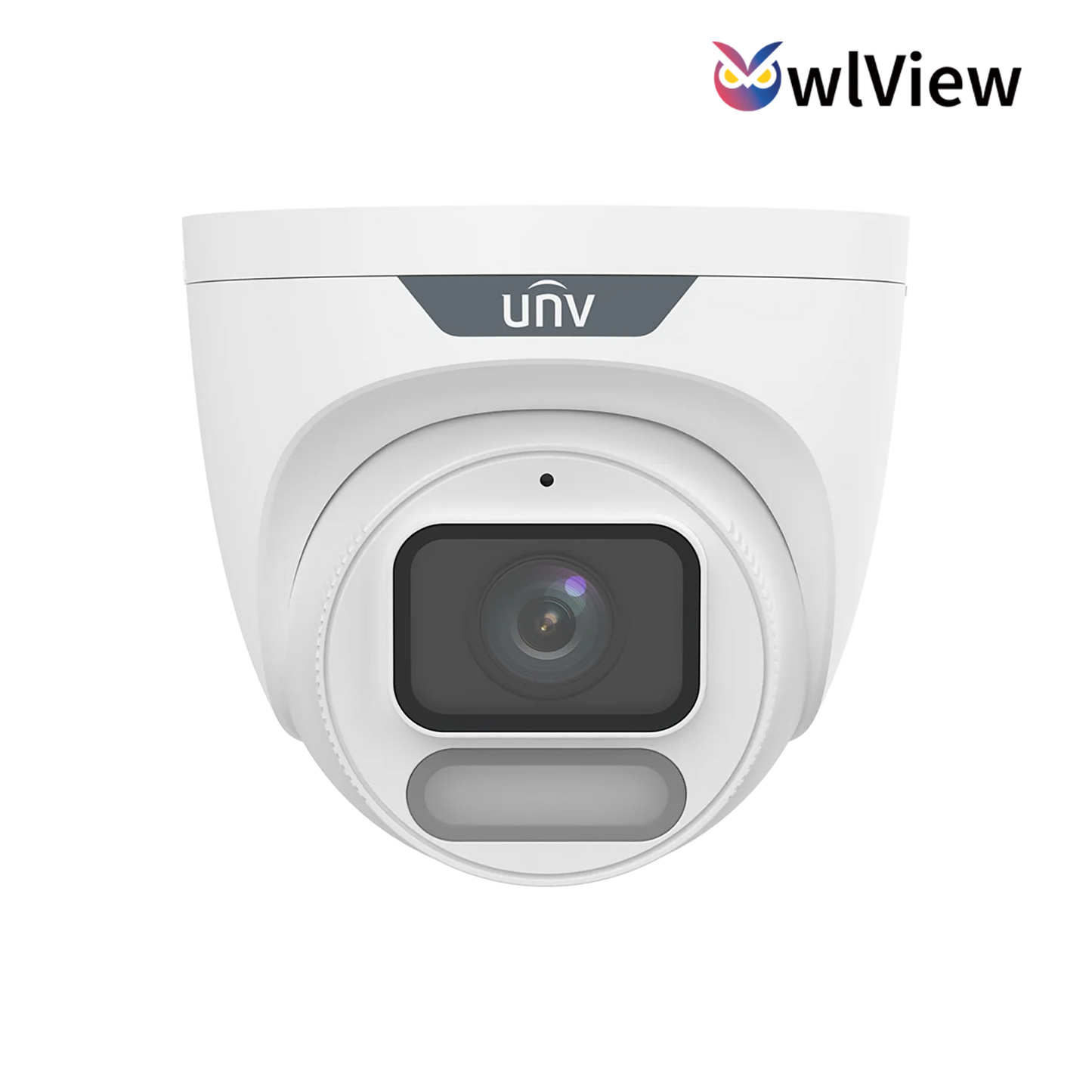

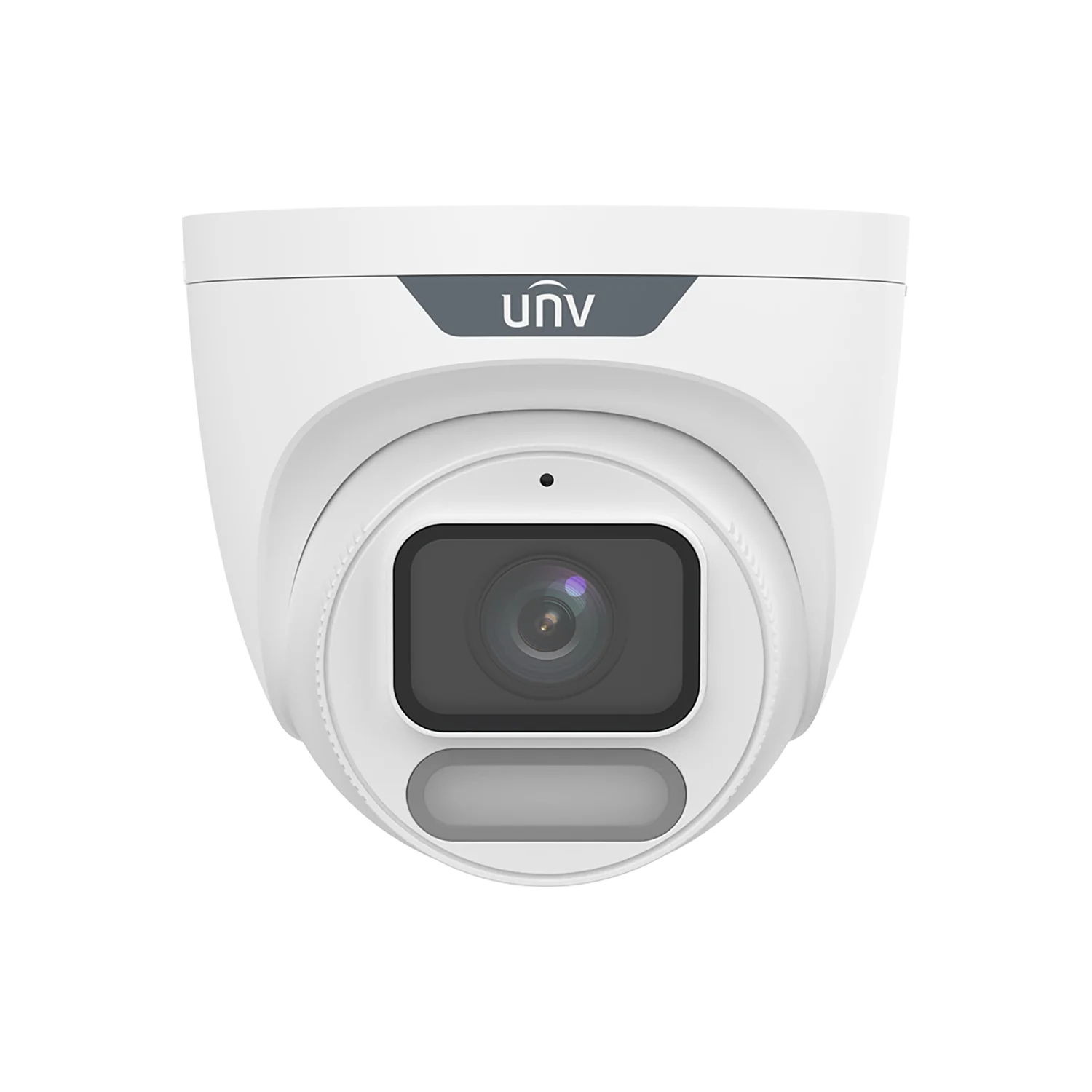

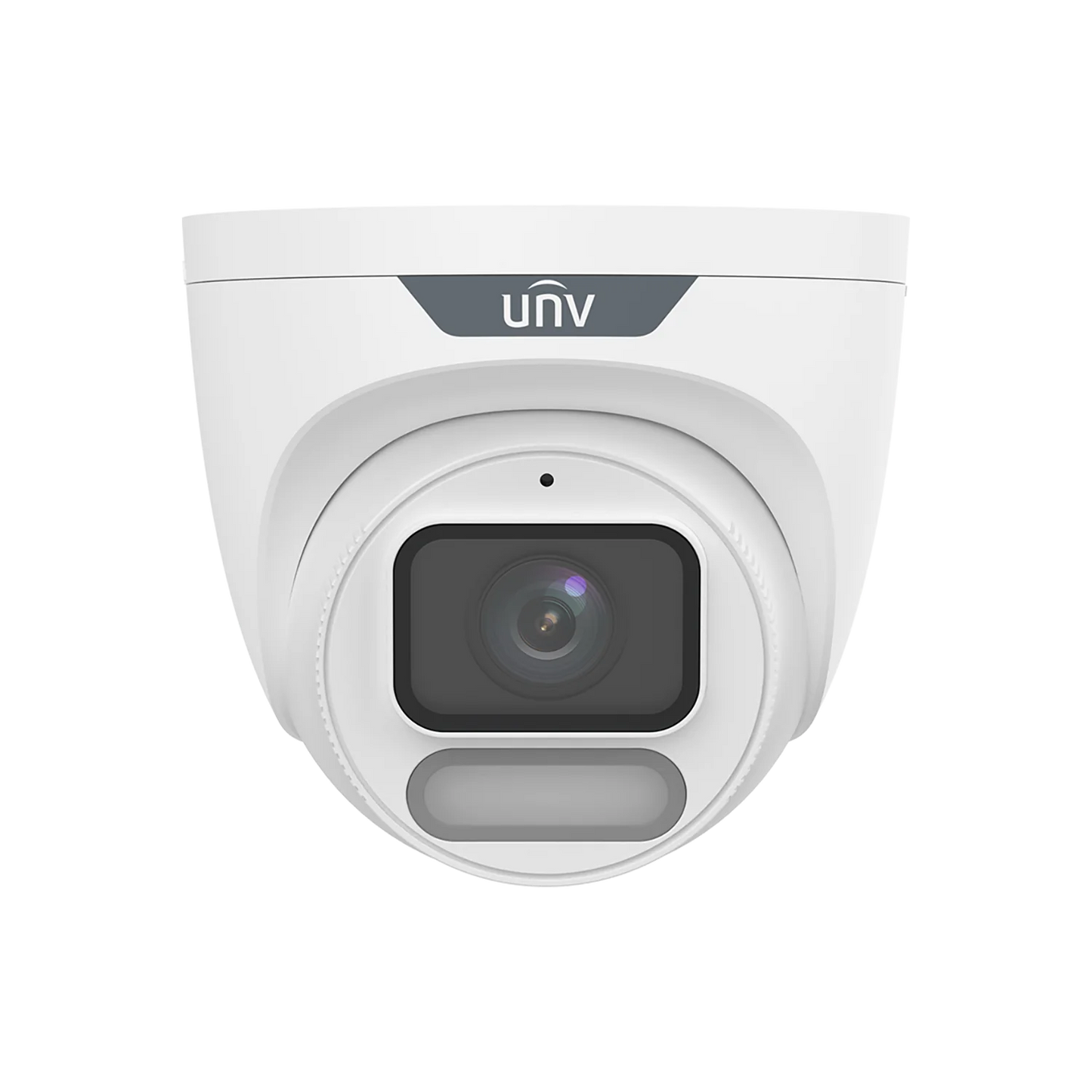

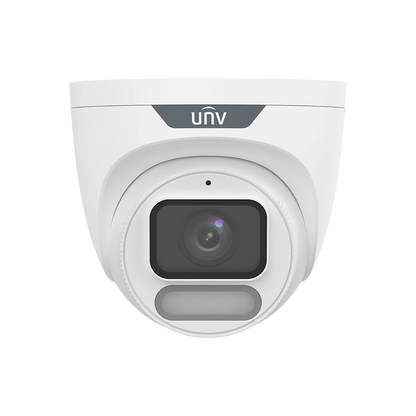

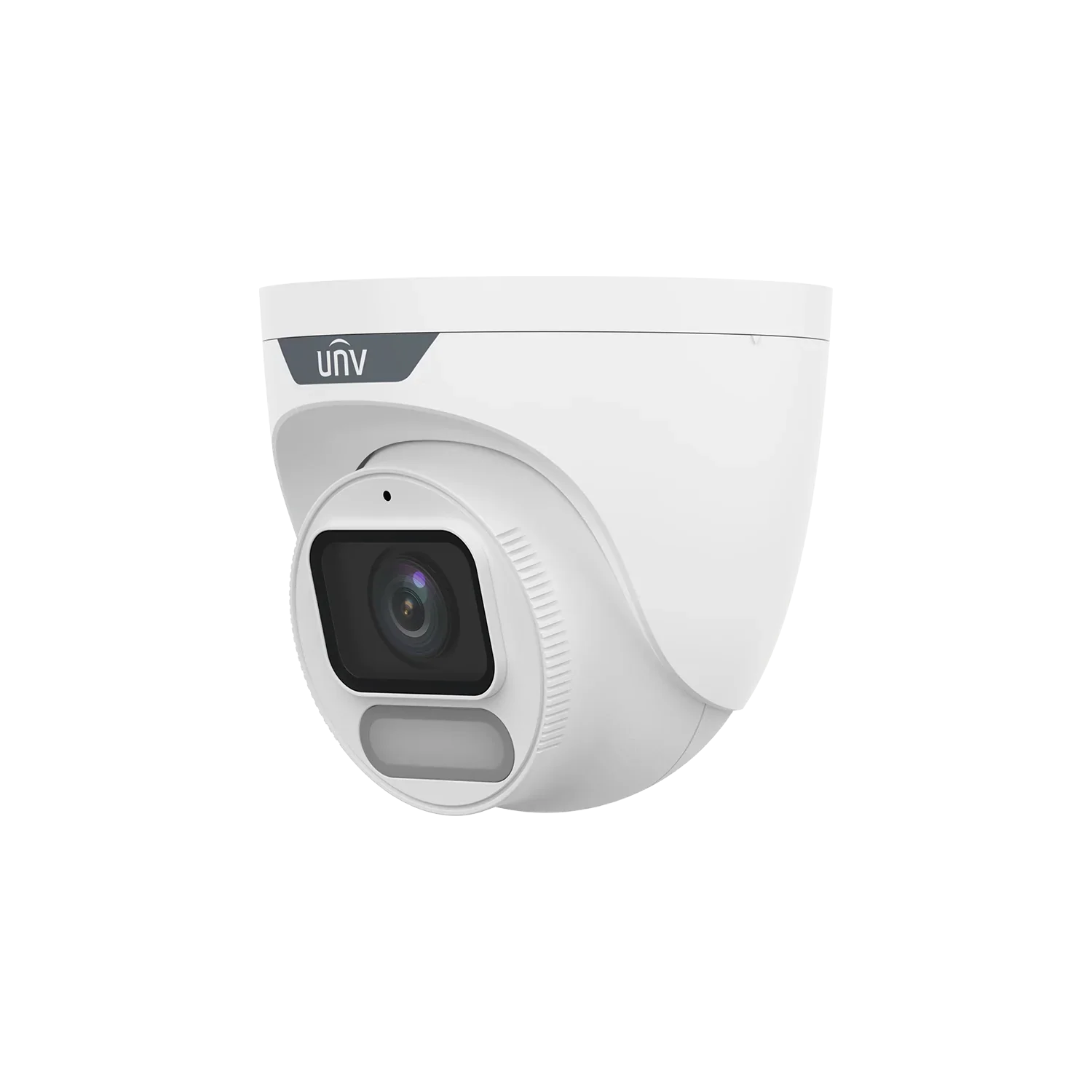

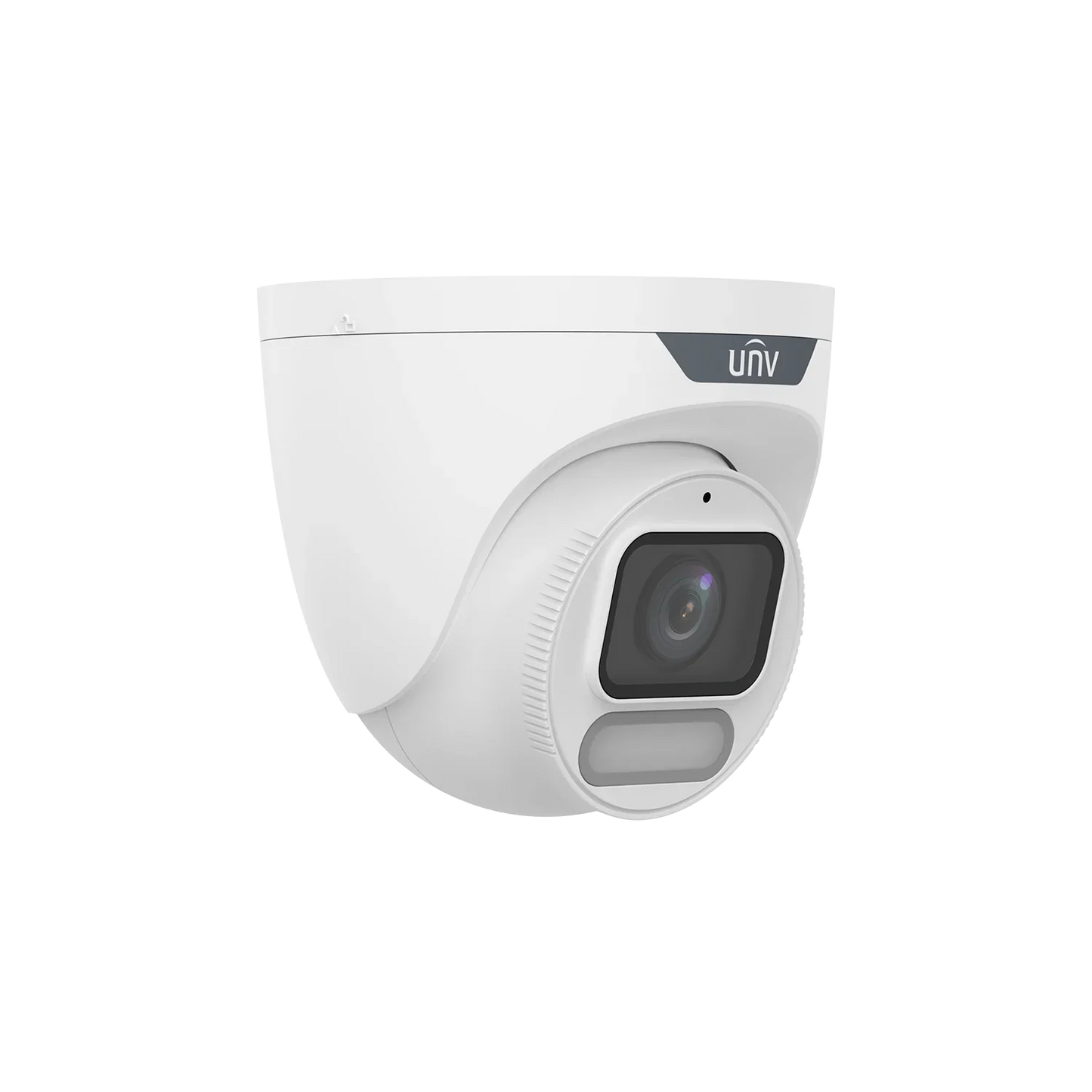

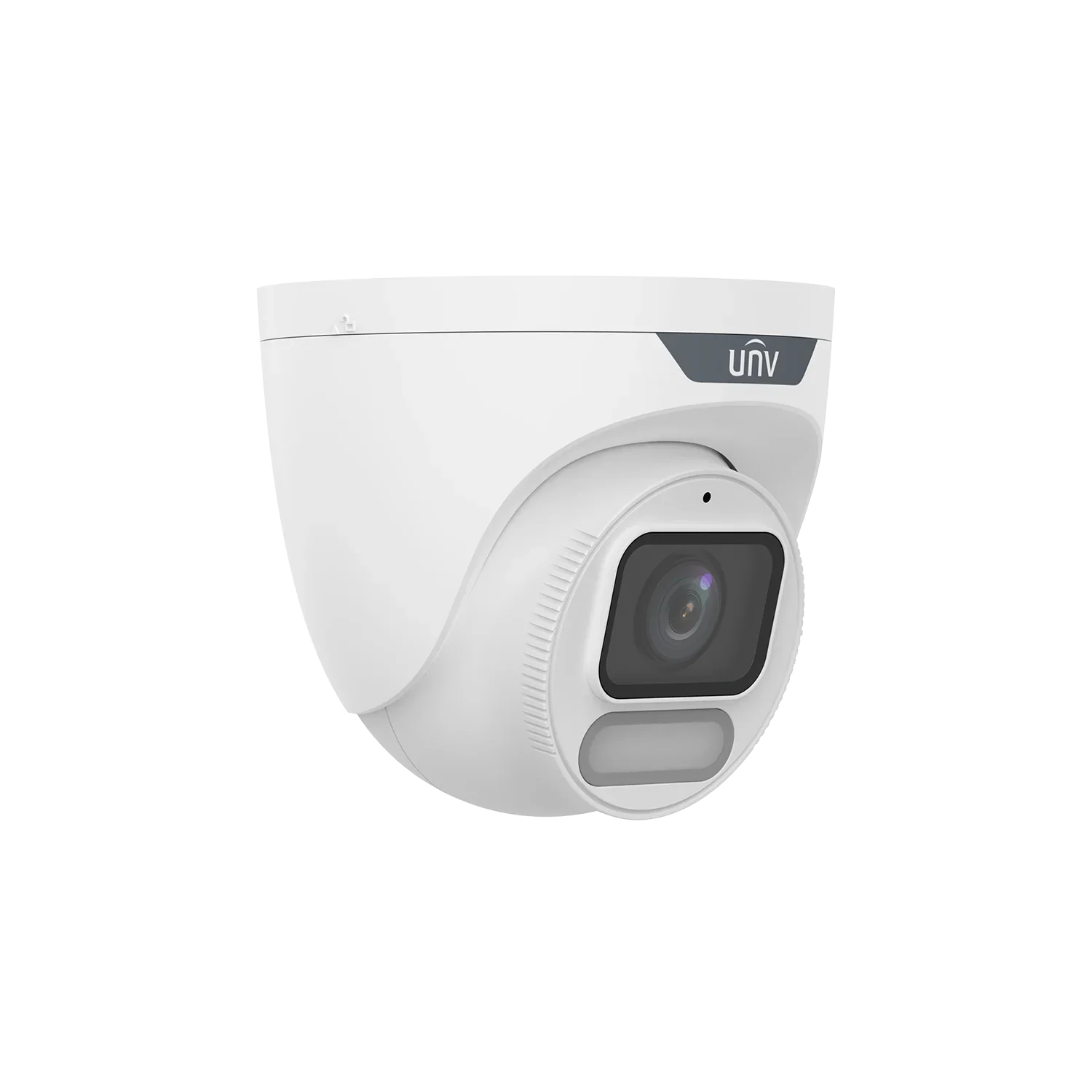

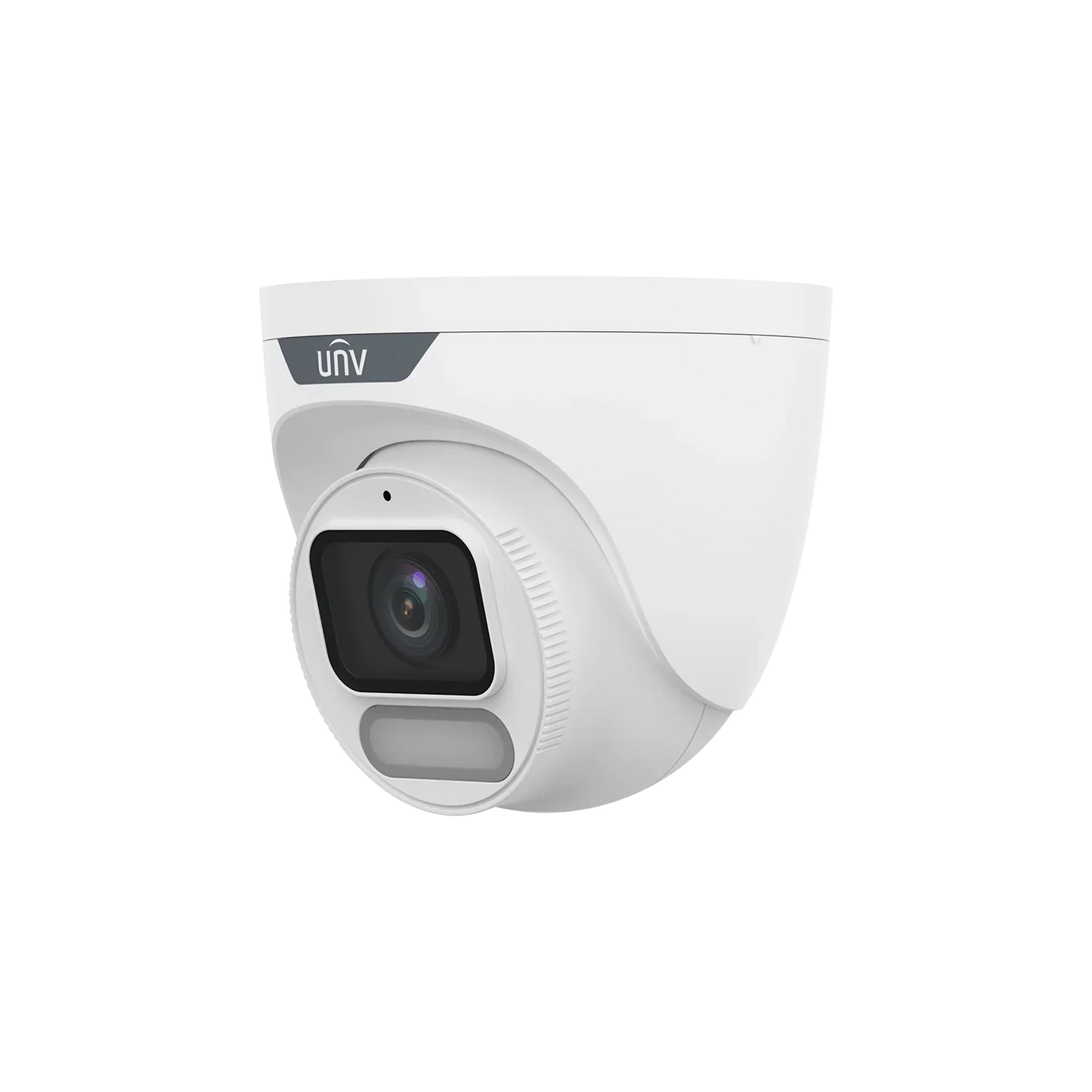

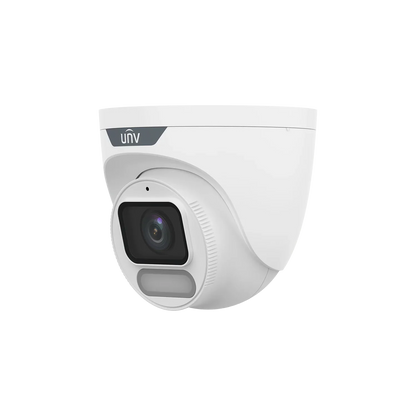

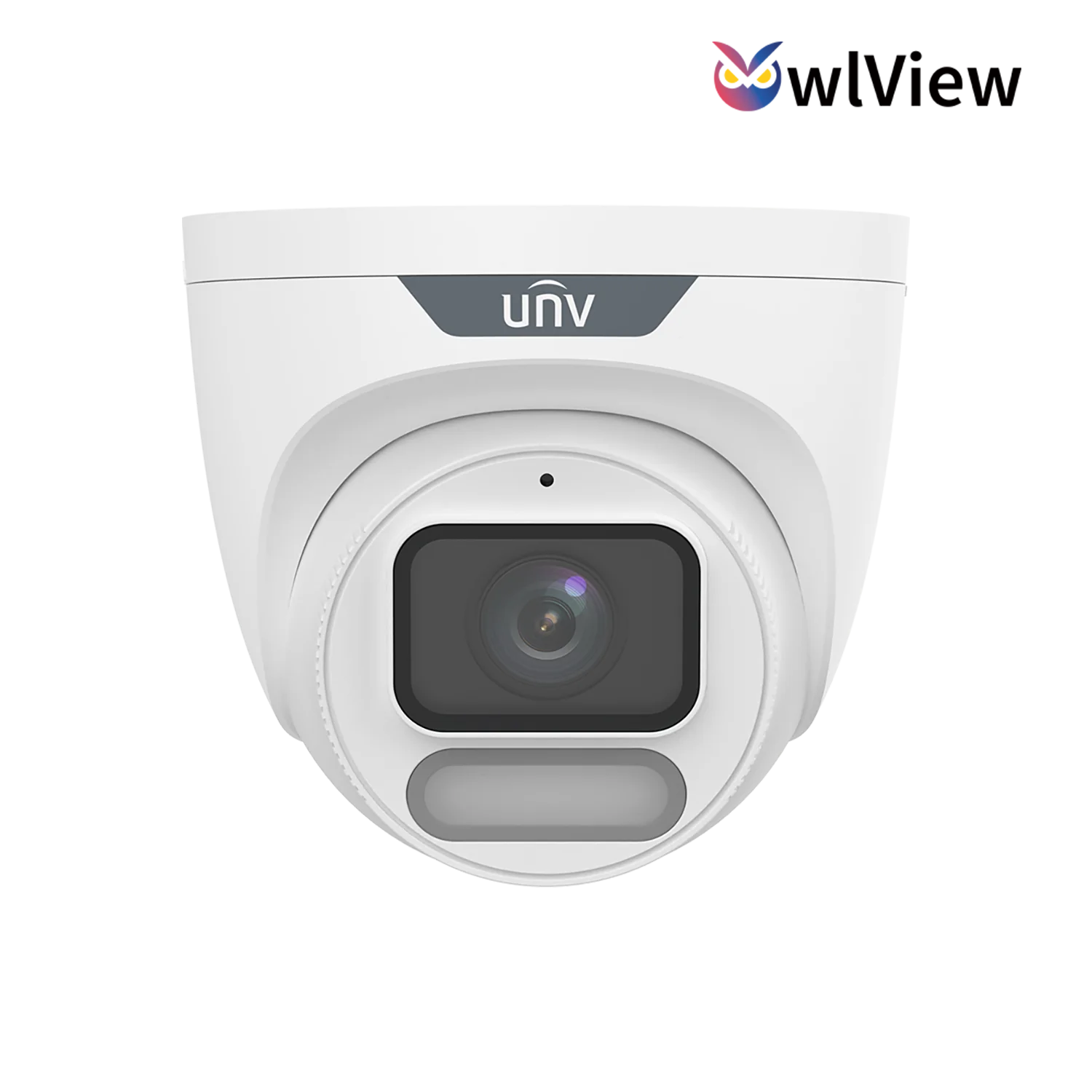

Uniview 6MP OWLVIEW TURRET 2.8mm ColorHunter Fixed HD Turret Network CCTV Camera IPC3626LE-ADF28K-WP

The Uniview IPC3626LE-ADF28K-WP is a high-performance 6MP turret network camera from the OwlView Series, engineered for exceptional low-light performance using ColorHunter technology. Designed for both indoor and outdoor use, it provides crystal-clear video, intelligent detection features, and durable construction, making it ideal for commercial, residential, and industrial security applications.

Key Features:

Superior Video Quality:

• 6MP Resolution: Delivers sharp and detailed images with a max resolution of 3072 × 2048 @ 25/20fps.
• Wise-ISP Technology: Enhances color reproduction and detail in extremely low-light environments.
• Large Aperture Lens: F1.0 aperture ensures high luminance and clarity in minimal light conditions.

Advanced Illumination:

• Smart Warm Light Technology: Provides up to 30m (98.4 ft) of warm light for full-color nighttime recording.
• True WDR (120 dB): Balances light and shadow in high-contrast scenes for clear images.

Efficient Compression & Storage:

• Ultra 265 Compression: Reduces bandwidth and storage usage without compromising image quality.
• Supports MicroSD Cards: Up to 512GB for edge storage, ensuring extended recording capacity.

Intelligent Features:

• Detection Capabilities:
  • Motion Detection, Ultra Motion Detection.
  • Intrusion and Cross Line Detection (based on human body detection).
• Privacy Masking: Configure up to 4 areas for sensitive regions.
• ROI Technology: Focus on critical areas to enhance clarity and save bandwidth.

Built-in Microphone:

• Integrated mic captures high-quality audio, complementing the video feed.

Durable Design:

• IP67-Rated: Weatherproof and dustproof, suitable for harsh outdoor conditions.
• Wide Operating Range: Operates reliably in temperatures from -30°C to 60°C (-22°F to 140°F).

Technical Specifications:

Camera:

• Image Sensor: 1/1.8” CMOS sensor.
• Lens: Fixed-focal 2.8mm with a 110.4° (H) field of view.
• Illumination Distance: Warm light effective up to 30m (98.4 ft).
• DORI Distances (2.8mm Lens):
  • Detect: 43.4m (142.5 ft)
  • Observe: 17.4m (57 ft)
  • Recognize: 8.7m (28.5 ft)
  • Identify: 4.3m (14.3 ft)

Video & Audio:

• Resolution Options:
  • 6MP (3072 × 2048 @ 25/20fps).
  • 4MP (2560 × 1440 @ 25/20fps).
  • 3MP (2304 × 1296 @ 30/25fps).
  • 2MP (1920 × 1080 @ 30/25fps).
• Compression: Ultra 265, H.265, H.264, MJPEG.
• Dual Streams: Supports flexible streaming for various applications.
• Built-in Microphone: High-quality audio recording.

Network & Connectivity:

• Protocols: IPv4, IPv6, RTSP, HTTPS, ONVIF (Profiles S, G, T), and more.
• RJ45 Ethernet Port: 10/100M Base-TX for reliable network integration.
• User Management: Up to 32 users with multi-level permissions.

Power & Consumption:

• Power Options:
  • 12V DC ±25%.
  • PoE (IEEE 802.3af).
• Power Consumption: Maximum 2.8W.

Environmental & Physical:

• Protection Rating: IP67 for weather and dust resistance.
• Material: Metal and plastic housing.
• Dimensions: Φ118 x 106 mm (4.6” x 4.2”).
• Weight: 0.48 kg (1.06 lb).

Optional Accessories:

• Mounting Options:
  • TR-JB03-I-IN: Junction Box.
  • TR-WM03-D-IN: Wall Mount.
  • TR-JB07/WM03-G-IN: Wall Mount with Junction Box.
  • TR-P100: MicroSD Memory Card.

What's in the Box:

1. Uniview IPC3626LE-ADF28K-WP Camera.
2. Mounting Screws and Bracket.
3. User Manual.

Warranty:

• 3-Year Limited Warranty covering manufacturing defects and technical support.

The Uniview IPC3626LE-ADF28K-WP delivers cutting-edge performance with exceptional low-light imaging and smart security features. Its durable design and flexible installation options make it the perfect choice for comprehensive surveillance in various environments.
