Uniview 6MP LightHunter CCTV Security Kit with 4 Channel PoE NVR | Choose Up to 4 IP Cameras | AI Detection | Built-in Mic | Ultra 265 Compression IPC3616SB-ADF28KM-I0

Protect your home, business, warehouse, retail store, office, or commercial property with the powerful Uniview 6MP LightHunter CCTV Security Kit, featuring a professional-grade 4 Channel PoE Network Video Recorder (NVR301-04B-P4-IQ) and your choice of up to 4 Uniview IPC3616SB-ADF28KM-I0 6MP IP Cameras. Delivering exceptional image clarity, advanced AI analytics, intelligent intrusion prevention, and superior low-light performance, this security solution provides reliable 24/7 surveillance while remaining easy to install and manage.

The included Uniview LightHunter cameras utilise cutting-edge low-light technology, enabling full-colour image capture in extremely challenging lighting conditions. Combined with intelligent analytics such as face capture, people counting, cross-line detection, intrusion detection, and crowd density monitoring, this system offers enterprise-level security features suitable for both residential and commercial environments.

What's Included in the Box

Base Kit Includes

• 1 × Uniview NVR301-04B-P4-IQ 4 Channel PoE Network Video Recorder
• 1 × Power Supply for NVR
• 1 × Mouse
• Quick Start Guide

Camera Options

Choose from:

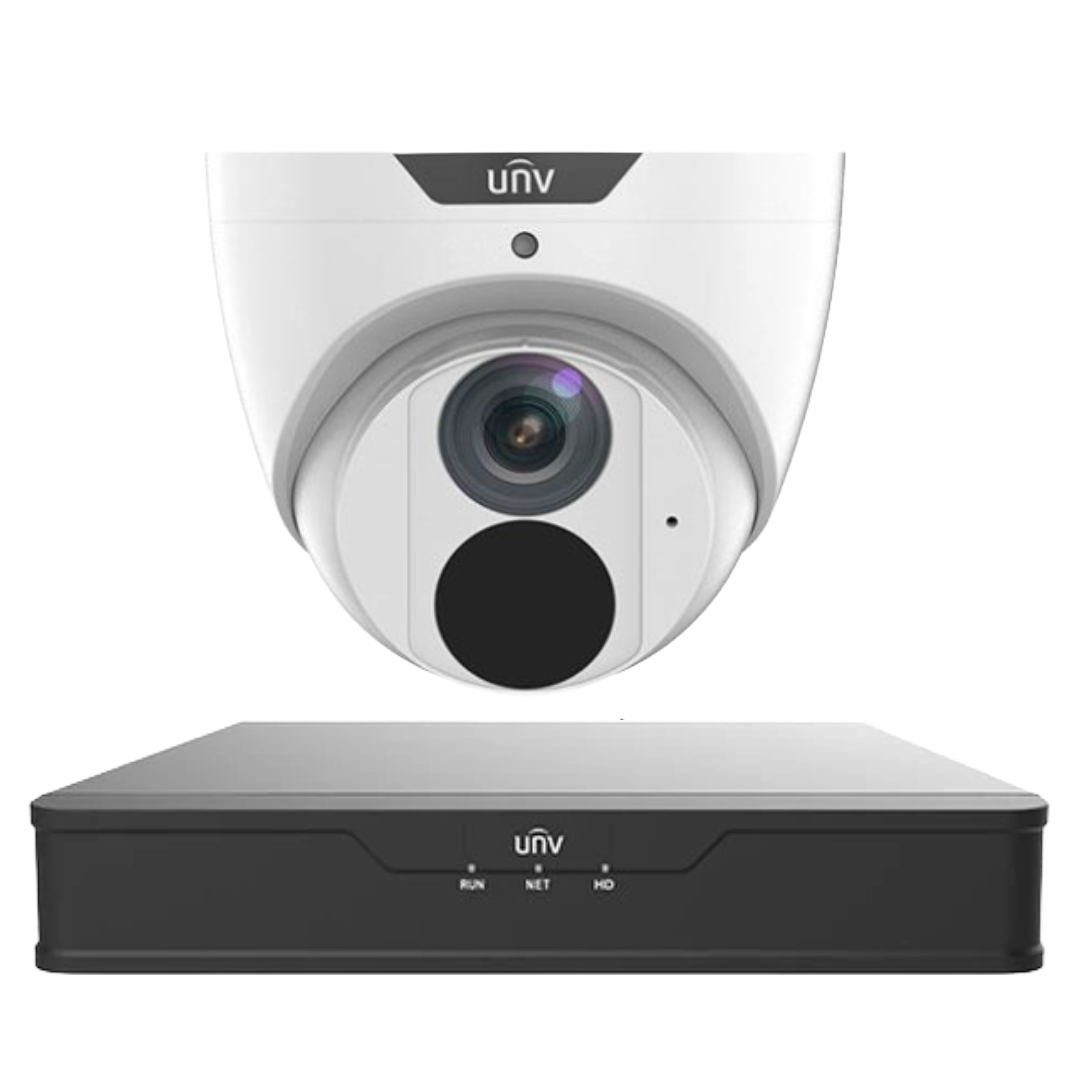

• 1 × Uniview IPC3616SB-ADF28KM-I0 6MP Camera

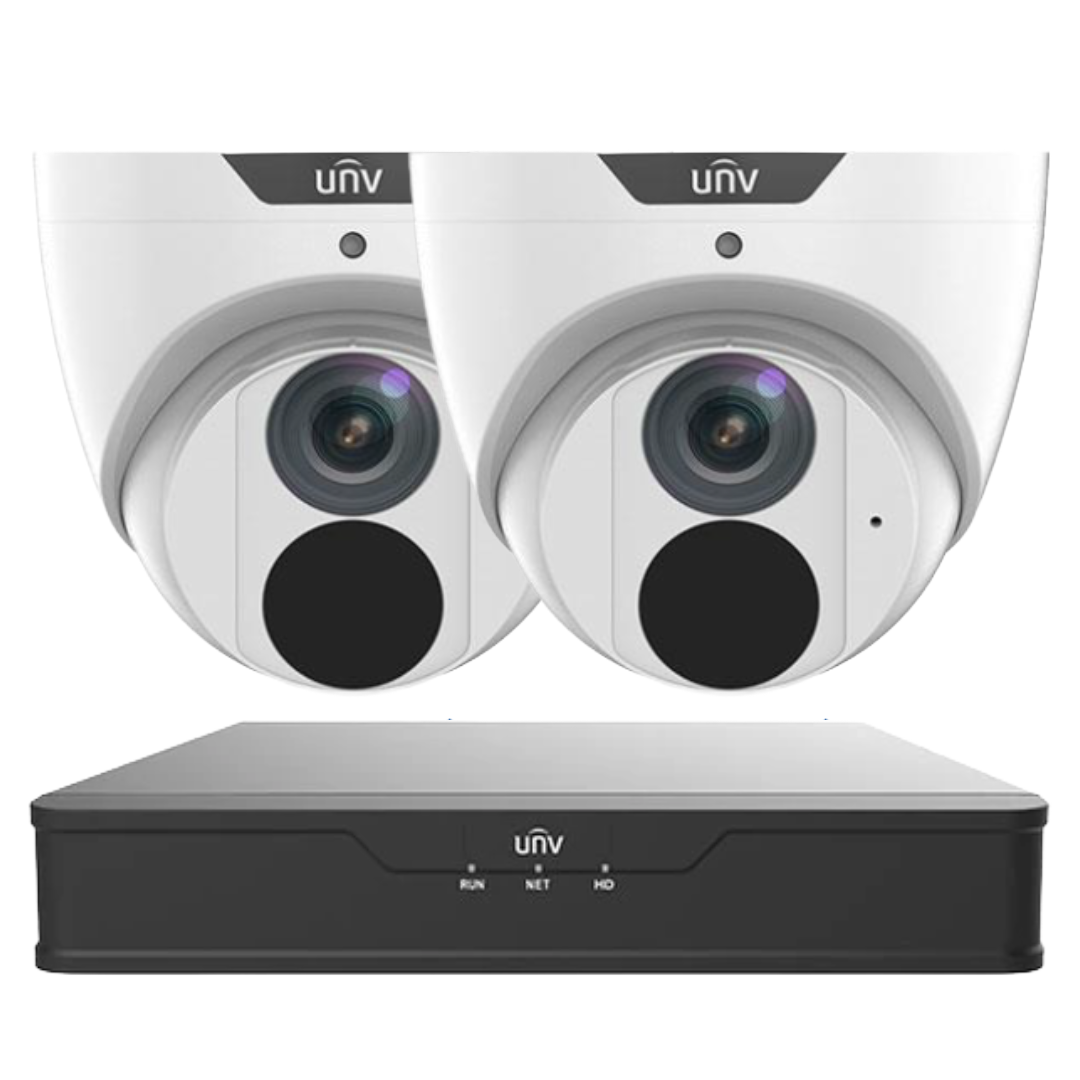

• 2 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras

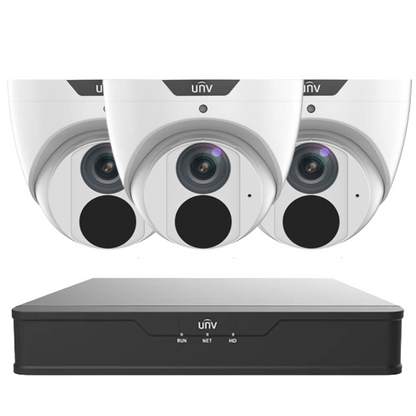

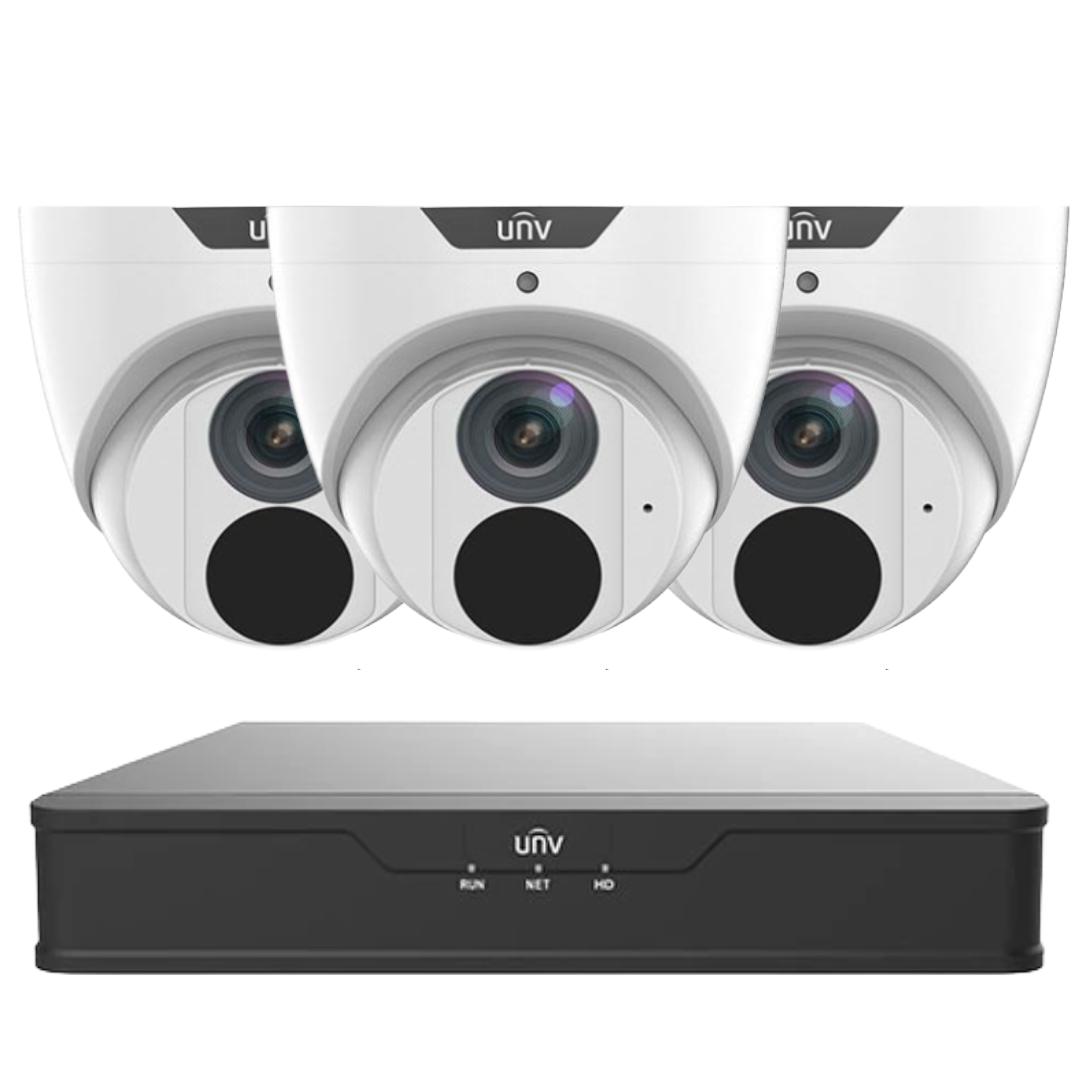

• 3 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras

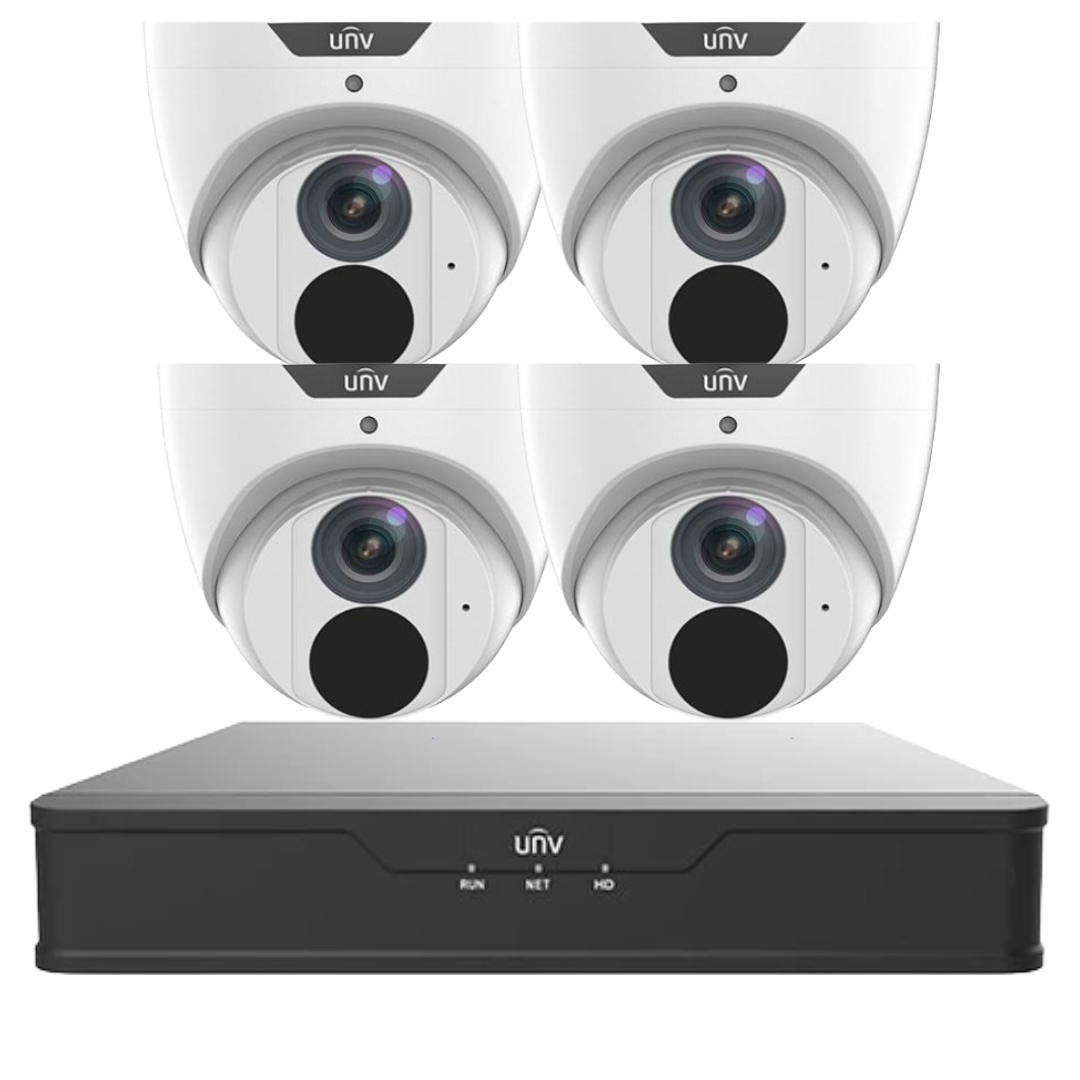

• 4 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras

Hard drive sold separately unless specified.

Main Features

6MP Ultra HD Surveillance

• Crystal-clear 3072 × 2048 resolution
• Superior image detail compared to standard 4MP systems
• Up to 25fps recording at full 6MP resolution

LightHunter Low-Light Technology

• Exceptional image quality in near-dark conditions
• Colour illumination down to 0.0025 Lux
• Automatic day/night switching

Intelligent AI Detection

• Cross Line Detection
• Intrusion Detection
• Enter Area Detection
• Leave Area Detection
• False Alarm Filtering
• Human Detection
• Face Capture Technology

People Counting Analytics

• People flow monitoring
• Crowd density monitoring
• Ideal for retail stores, schools, offices, and public facilities

Professional Audio Recording

• Built-in microphone in each camera
• Captures audio alongside video evidence

Weatherproof Outdoor Protection

• IP67-rated metal housing
• Suitable for harsh Australian weather conditions
• Dustproof and waterproof construction

Smart Video Compression

• Ultra 265
• H.265
• H.264
• Reduced bandwidth and storage requirements

Plug & Play PoE Installation

• Power and data through a single Ethernet cable
• Simplified installation
• Dedicated PoE ports on NVR

4 Channel NVR

• Supports up to 4 IP cameras
• HDMI and VGA outputs
• Up to 12MP recording support
• Cloud upgrade support

Camera Specifications

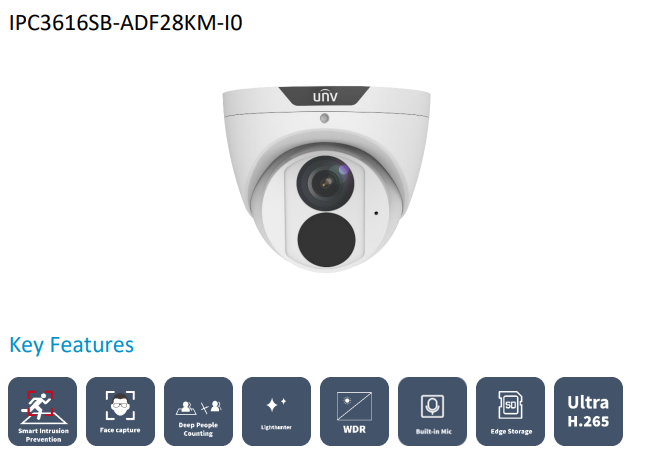

Uniview IPC3616SB-ADF28KM-I0

Image Sensor

• 1/2.7" Progressive Scan CMOS
• 6 Megapixel Resolution

Lens

• Fixed 2.8mm Lens
• F1.6 Aperture

Viewing Angles

• Horizontal: 101.34°
• Vertical: 54.46°
• Diagonal: 119.72°

Night Vision

• IR Range: Up to 30 metres
• 850nm Infrared LEDs

Wide Dynamic Range

• 120dB True WDR

Audio

• Built-in Microphone

Storage

• MicroSD Support up to 256GB

Video Compression

• Ultra 265
• H.265
• H.264
• MJPEG

Weather Rating

• IP67

Power

• 12V DC
• PoE IEEE 802.3af

Operating Temperature

• -30°C to +60°C

NVR Specifications

Uniview NVR301-04B-P4-IQ

Channels

• 4 Channel IP Camera Input

Recording Resolution

• Up to 12MP

Video Outputs

• HDMI
• VGA

Network Bandwidth

• 80 Mbps Incoming
• 80 Mbps Outgoing

Playback

• Up to 16 Channel Playback

Hard Drive Support

• 1 SATA Bay
• Supports up to 10TB HDD

PoE Ports

• 4 Built-in PoE Ports

Smart Functions

• Face Detection
• Face Comparison
• Smart Intrusion Prevention
• Ultra Motion Detection
• Vehicle Detection
• People Counting

Remote Access

Compatible with:

• Uniview EZView
• EZLive
• EZStation

Browser Support

• Chrome
• Edge
• Firefox
• Internet Explorer

Warranty Information

• 3 year Manufacturer Warranty Included
• Warranty serviced through authorised Uniview distribution channels
• Full manufacturer support available for eligible warranty claims

Brand Overview

Uniview

Uniview is one of the world's leading manufacturers of professional IP video surveillance solutions. Renowned for innovative imaging technologies, AI-powered analytics, reliable hardware, and enterprise-grade security solutions, Uniview products are trusted globally across residential, commercial, industrial, education, healthcare, and government sectors.

SKU

KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM

Ideal Applications

• Residential homes
• Retail stores
• Warehouses
• Offices
• Schools
• Healthcare facilities
• Manufacturing plants
• Car parks
• Commercial buildings
• Small business security

Datasheets & Downloads

Available upon request:

• Uniview IPC3616SB-ADF28KM-I0 Camera Datasheet



• Uniview NVR301-04B-P4-IQ NVR Datasheet
• Uniview NVR301-B-P-IQ Series Datasheet

Excellence for the Australian and New Zealand Market

This Uniview CCTV solution has been selected specifically for Australian and New Zealand security requirements, offering robust performance in demanding environmental conditions. The cameras feature IP67 weatherproof protection suitable for outdoor installations exposed to dust, rain, and temperature extremes commonly experienced across Australia and New Zealand.

Key benefits include:

• Suitable for Australian and New Zealand residential and commercial installations
• Compliant with international safety and EMC standards including CE, FCC, UL, RoHS, and WEEE certifications
• Genuine Uniview products sourced through authorised distribution channels
• Local warranty support through authorised suppliers
• Optimised for reliable operation in harsh outdoor environments
• Advanced AI analytics for modern security applications
• Professional-grade surveillance technology trusted worldwide

FAQs

What resolution does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM CCTV system record in?

The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM includes 6MP cameras capable of recording at up to 3072 × 2048 resolution for exceptional image clarity.

How many cameras can I connect to the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM?

The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports up to four IP cameras through its built-in 4-channel PoE NVR.

Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support night vision?

Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM features LightHunter low-light technology and infrared night vision with up to 30 metres of coverage.

Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM record audio?

Yes. Each camera in the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM includes a built-in microphone for audio recording.

Can I view the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM remotely?

Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports remote viewing through Uniview EZView, EZLive, and EZStation applications.

Is the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM suitable for outdoor use?

Yes. The cameras included in the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM feature an IP67 weatherproof rating for reliable outdoor operation.

Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support AI analytics?

Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports face capture, people counting, intrusion detection, cross-line detection, and other advanced AI functions.

What hard drive capacity can the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support?

The NVR included with the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports one SATA hard drive up to 10TB capacity.
