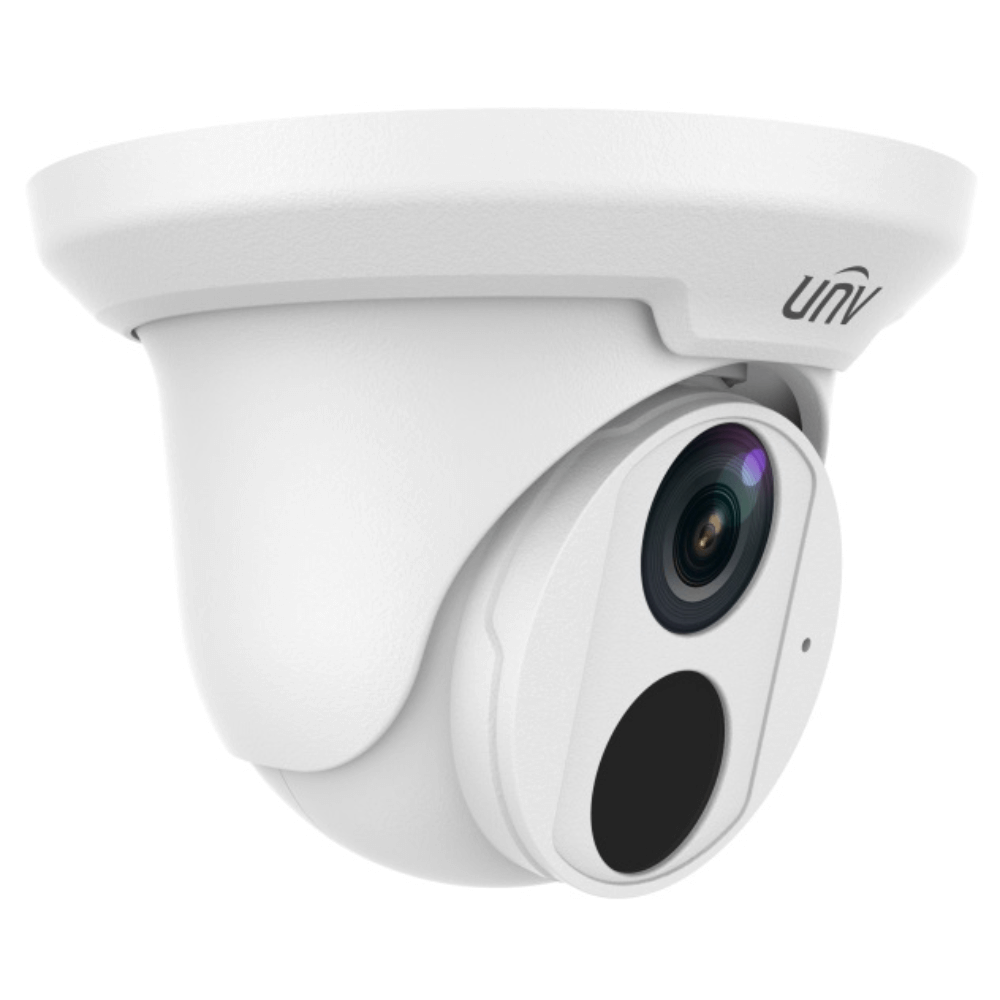

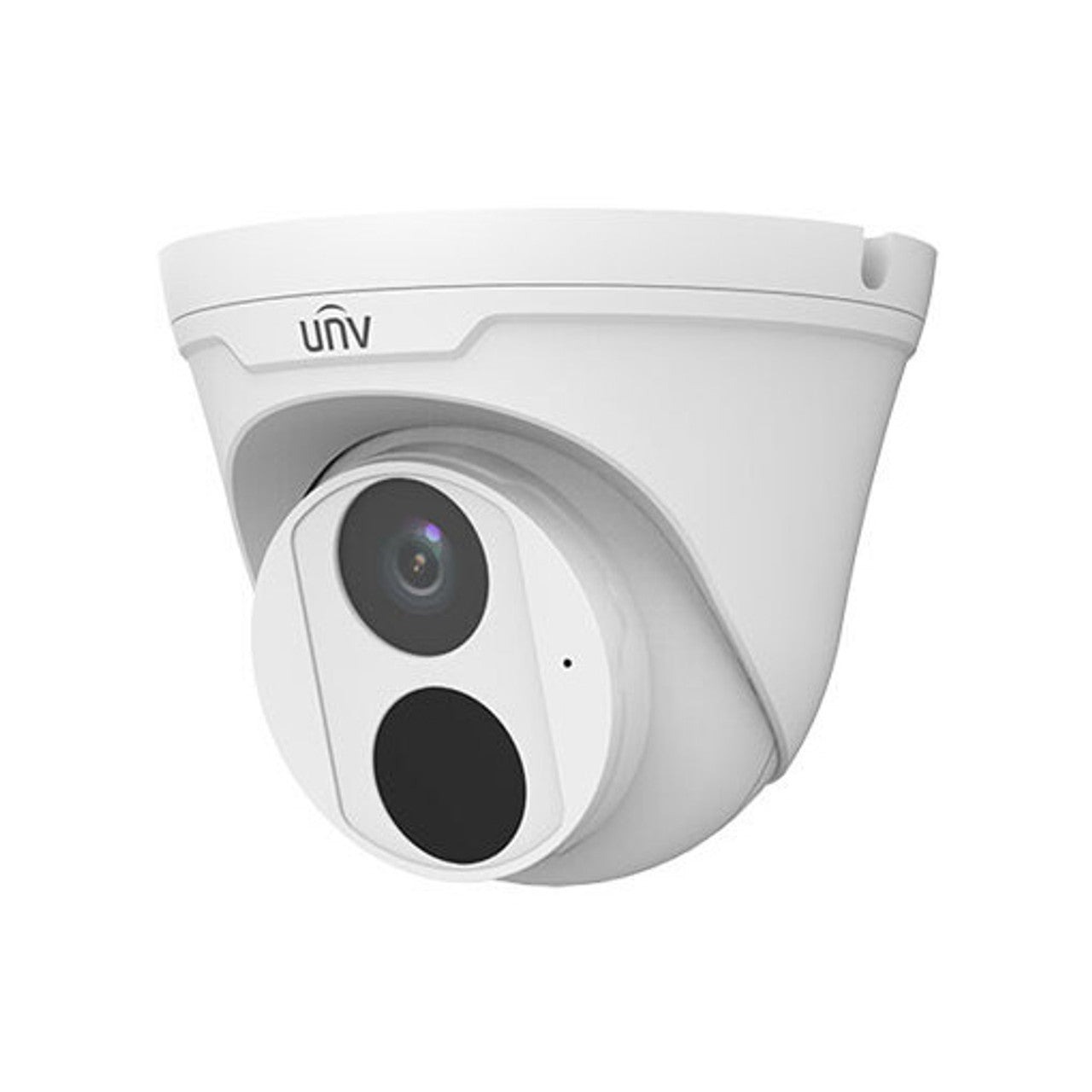

UNIVIEW 6mp IPC3616SR3-DPF28M PRIME-II series ip camera 2.8MM fixed lens ir 30m poe ip67 without mic

UNIVIEW 6mp IPC3616SR3-DPF28M PRIME-II series ip camera 2.8MM fixed lens ir 30m poe ip67 without mic

$197.88 AUD
$275.40 AUD $197.88 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.



Illuminate your surroundings with the cutting-edge Prime-II Series IP Camera in a sleek white finish. Boasting an impressive 6MP resolution and utilizing advanced H.264/5+/MJPEG compression, this turret-style camera redefines clarity and precision in surveillance.

Designed for optimal performance, the camera features a 2.8mm fixed lens, providing a wide field of view for comprehensive coverage. Benefit from enhanced visibility even in challenging lighting conditions, thanks to the 120dB Wide Dynamic Range (WDR) technology.

Experience unmatched night vision capabilities with powerful IR technology, offering a remarkable 30 meters of illumination in low-light environments. With Power over Ethernet (PoE) support, installation is streamlined for convenience.

Crafted with durability in mind, the camera's robust metal construction ensures long-lasting reliability, while its IP67 rating guarantees resistance against dust and water, making it suitable for various outdoor applications.

This camera is tailored for those who prioritize functionality without audio requirements, featuring no built-in microphone and excluding an SD card slot. It operates seamlessly with a 12VDC power supply.

Secure your spaces with the Prime-II Series IP Camera, where innovation meets performance. Elevate your surveillance experience and order now to enjoy top-notch features and reliability!



Attribute Details
Vendor UNV Digital Technologies
Brand Uniview
Series Prime-II
HDCVI / IP IP Camera
Color White
Application 0
Megapixels 6MP
Camera Style Turret
Lens Size 2.8mm
Lens Type Fixed
Night Vision IR
IR / White LED Distance 30m
Features IP67
Warranty 36 Months





Key Features:

Optics:

  • Day/night functionality for continuous surveillance.
  • Smart IR technology with an impressive 30m (98ft) IR distance.
  • Optical glass window with higher light transmittance ensures clear imaging.
  • IR anti-reflection window increases infrared transmittance.
  • 2D/3D DNR (Digital Noise Reduction) for enhanced image quality.
  • Up to 120dB WDR (Wide Dynamic Range) for optimal visibility in varying lighting conditions.

Compression:

  • Efficient video compression with Ultra 265, H.264, and MJPEG formats.
  • Triple streams for versatile data management.
  • 9:16 corridor format for optimal vertical video display.

Network:

  • ONVIF Conformance ensures seamless integration with various systems.

Structure:

  • Wide operating temperature range: -30°C to 60°C (-22°F to 140°F).
  • Wide voltage range of ±25% for adaptability.
  • IP67 rating for protection against dust and water.
  • 3-Axis design for flexible and easy positioning.

Datasheet



Datasheet

Specifications



Specifications IPC3616SR3-DPF28M IPC3616SR3-DPF40M
Camera Sensor 1/2.5", 6.0 MP, progressive scan, CMOS 1/2.5", 6.0 MP, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
Angle of View (H/V/O) 118.1°/64.0°/153.5° (IPC3616SR3-DPF28M) 91.6°/47.2°/112.7° (IPC3616SR3-DPF40M)
DORI Distance (mm) Detect: 50.4, Observe: 20.2, Recognize: 10.1, Identify: 5.0 (2.8mm) Detect: 72, Observe: 28.8, Recognize: 14.4, Identify: 7.2 (4.0mm)
Adjustment Range Pan: 0°360°, Tilt: 0°90°, Rotation: 0°~360° Pan: 0°360°, Tilt: 0°90°, Rotation: 0°~360°
Shutter Auto/Manual, 1 ~ 1/100000s Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.05Lux (F2.0, AGC ON) Color: 0.05Lux (F2.0, AGC ON)
Day/Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR 2D/3D DNR
IR Range Up to 30m (98ft) IR range Up to 30m (98ft) IR range
Defog Digital Defog Digital Defog
WDR 120dB 120dB
Video Compression Ultra 265, H.264, MJPEG Ultra 265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile, High Profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 6MP (Max 30fps); Sub Stream: 1080P (Max 30fps); Third Stream: D1 (Max 30fps) Main Stream: 6MP (Max 30fps); Sub Stream: 1080P (Max 30fps); Third Stream: D1 (Max 30fps)
HLC/BLC/9:16 Corridor Mode Supported Supported
OSD/Privacy Mask/ROI/Motion Detection Up to 8 OSDs/Up to 8 areas/Up to 8 areas/Up to 4 areas Up to 8 OSDs/Up to 8 areas/Up to 8 areas/Up to 4 areas
Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API ONVIF (Profile S, Profile T), API
Interface 10M/100M Base-TX Ethernet 10M/100M Base-TX Ethernet
Power DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 5.5W DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 5.5W
Dimensions (Ø x H)/Weight Φ126 x 94mm (Ø5.0” x 3.7”), 0.45kg (0.99lb) Φ126 x 94mm (Ø5.0” x 3.7”), 0.45kg (0.99lb)
Operating Conditions/Ingress Protection -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)/IP67 -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)/IP67
