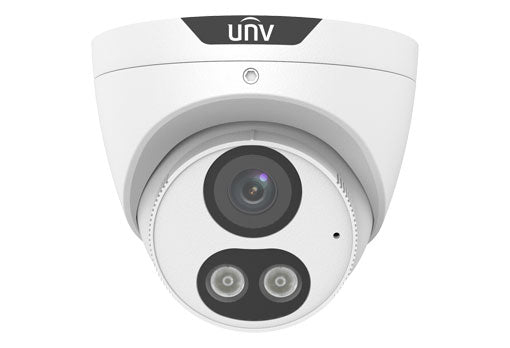

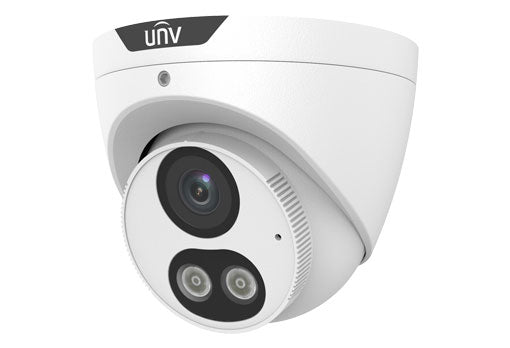

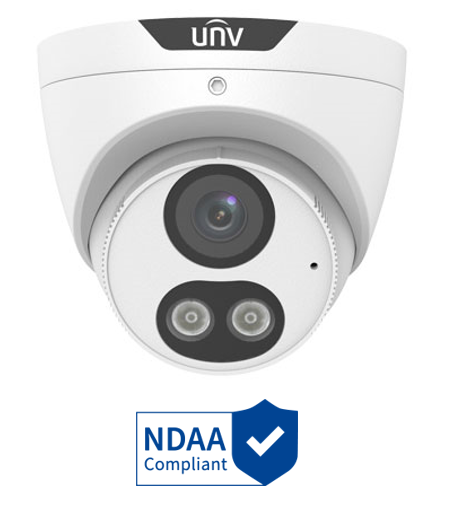

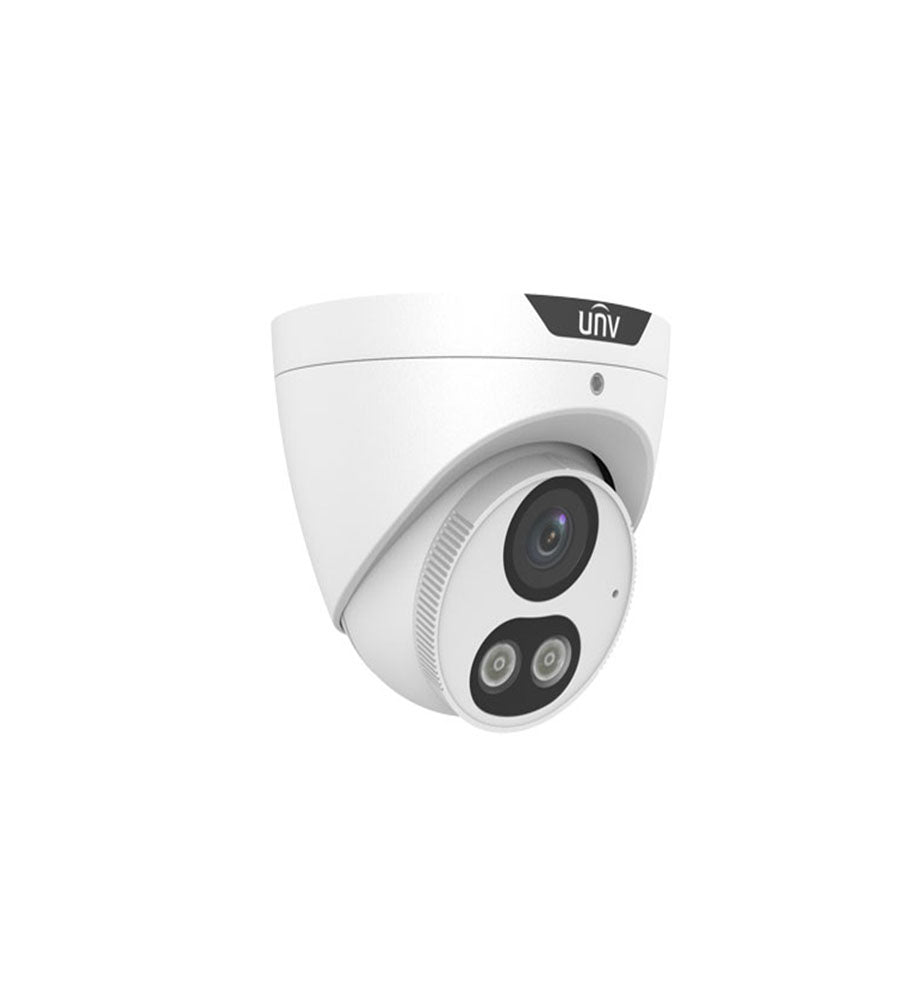

Uniview 5MP PRIME-III Series CCTV IP Camera IPC3615SE-ADF28KM-WL-I0

The Uniview PRIME-III Series IP Camera delivers advanced surveillance capabilities with its 5MP resolution, AI-powered features, and all-metal turret design. This versatile security camera offers robust performance in challenging environments, making it an excellent choice for commercial and residential installations.

Key Features:

• High-Resolution Imaging:

  • 5MP 1/2.7" CMOS sensor with resolutions up to 2880x1620 at 30fps.
  • Wide range of frame rates and resolutions to suit varying bandwidth and storage needs.

• ColorHunter Technology:

  • Delivers vibrant, full-color images 24/7, even in low-light conditions.
  • White LED illumination with a range of up to 30m (98 ft) enhances nighttime visibility.

• Smart Compression:

  • Supports Ultra 265, H.265, H.264, and MJPEG for efficient bandwidth and storage use.

• Wide Dynamic Range (WDR):

  • 120dB true WDR ensures clear images in scenes with bright and dark areas.

• Audio and Storage:

  • Built-in microphone for audio recording.
  • Supports up to 256GB MicroSD card for edge storage.

• Weather and Impact Resistance:

  • IP67-rated housing for dust and water resistance.
  • IK08-rated impact-resistant metal construction.

• Power and Connectivity:

  • Power over Ethernet (PoE) and 12V DC power options.
  • Supports ONVIF (Profiles S, G, and T) for compatibility with third-party systems.

Specifications:

Camera:

• Lens: Fixed 2.8mm lens with F1.0 aperture for wide-angle views.
  • Horizontal field of view: 102°.
• DORI Distance:
  • Detect: 63m
  • Observe: 25.2m
  • Recognize: 12.6m
  • Identify: 6.3m
• Minimum Illumination: 0.001 Lux (Color, F1.0, AGC ON).

Video:

• Main Stream:
  • 5MP, 4MP, 3MP, 2MP resolutions at 30fps.
• Sub and Third Streams: Up to 720P at 30fps.
• Features:
  • Privacy masking for up to 4 areas.
  • Region of Interest (ROI) for up to 8 areas.
  • Smart illumination control.

Audio:

• Compression: G.711.
• Built-in Mic: Provides real-time audio recording.

Storage:

• Edge Storage: MicroSD card slot supports up to 256GB.
• Network Storage: ANR and NAS support.

Network:

• Protocols: TCP/IP, UDP, HTTP/HTTPS, SMTP, NTP, and more.
• Interface: RJ45 10M/100M Ethernet port.

General:

• Power: PoE or 12V DC (max power consumption 7.5W).
• Dimensions: Ø110.5 x 94.1 mm (Ø4.4” x 3.7”).
• Weight: 0.44kg (0.97 lb).
• Material: All-metal housing for durability.
• Operating Environment: -30°C to 60°C (-22°F to 140°F), humidity ≤95% RH.

Certifications:

• CE, UL, FCC compliant.

Accessories (Sold Separately):

• Mounting options: TR-JB03-G-IN, TR-JB07/WM03-G-IN, TR-WM03-D-IN, TR-UM06-E-IN.

Warranty:

• 36-month manufacturer warranty for peace of mind.

This Uniview 5MP ColorHunter Turret Camera combines cutting-edge AI features, exceptional image clarity, and a durable design, making it ideal for high-performance surveillance applications.
