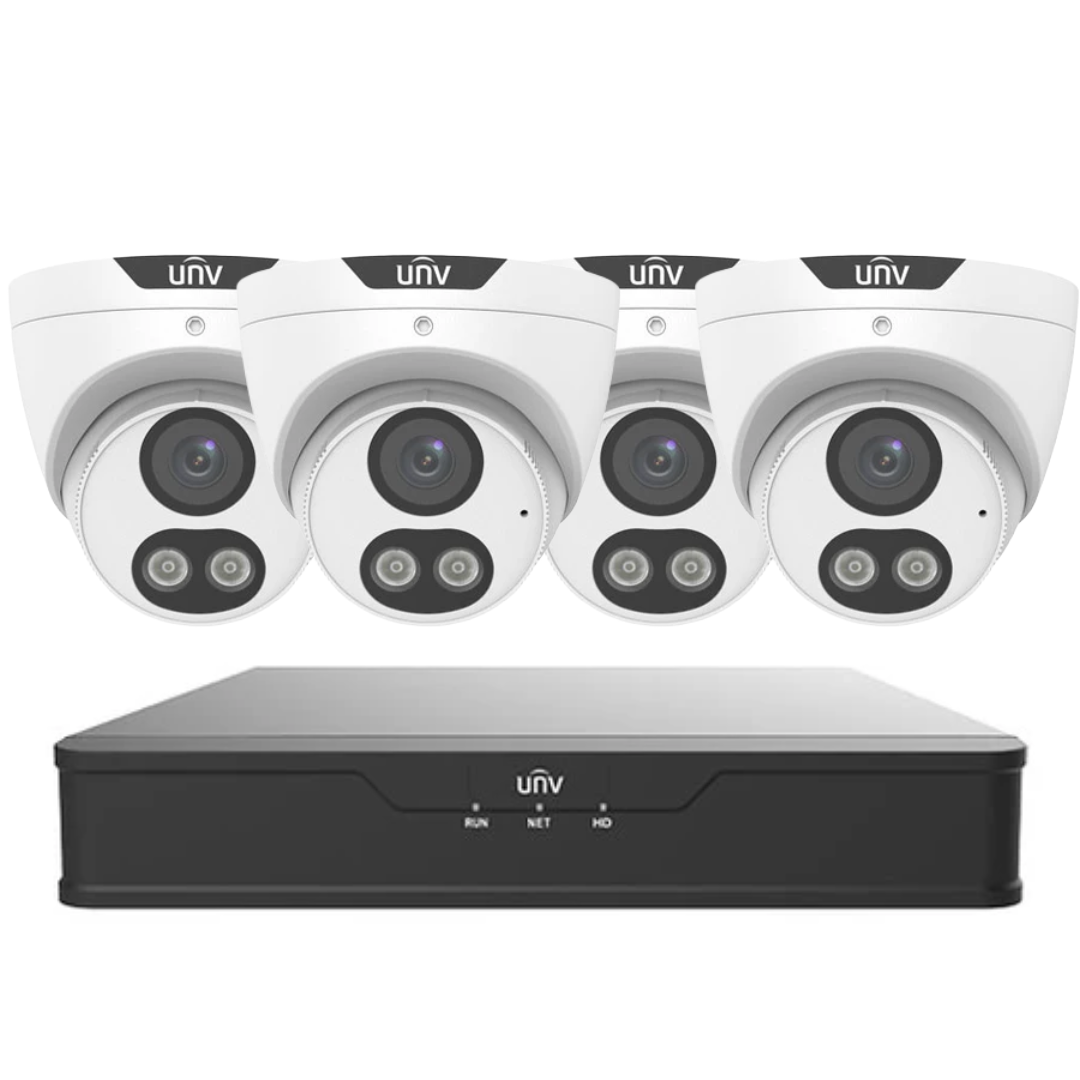

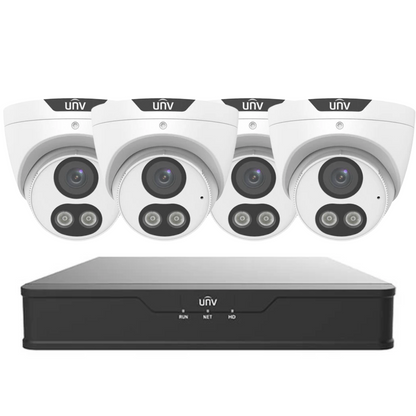

Uniview 5MP ColorHunter CCTV Kit Upto 4 x 5MP Full Colour IP Cameras with 4 Channel PoE NVR | 24/7 Colour Surveillance System

Protect your home, business, warehouse, retail store, office, farm, or commercial property with the Uniview 5MP ColorHunter CCTV Security Kit. Featuring four advanced 5MP ColorHunter network cameras and a powerful 4-channel PoE Network Video Recorder (NVR301-04B-P4-IQ), this professional-grade surveillance solution delivers exceptional full-colour video day and night, intelligent AI analytics, remote monitoring, and reliable recording performance. Designed for Australian and New Zealand conditions, this complete security system provides outstanding image clarity, simplified installation, and dependable protection around the clock.

The included Uniview ColorHunter cameras utilise advanced low-light imaging technology with F1.0 lenses and integrated warm LEDs to capture vivid colour footage 24 hours a day. Combined with the intelligent PoE NVR, users benefit from AI-powered vehicle detection, face detection, intrusion detection, line crossing alerts, people counting, and efficient Ultra 265 video compression for reduced storage requirements.

What's Included in the Box

• 1 x Uniview NVR301-04B-P4-IQ 4-Channel PoE Network Video Recorder
• choose up-to 4 x Uniview IPC3615SE-ADF28KM-WL-I0 5MP ColorHunter Fixed Eyeball Cameras
• 1 x NVR Power Supply
• Quick Installation Guide
• Mounting Hardware
• Network Configuration Documentation

Hard drive sold separately unless otherwise specified.

Main Features

Advanced 5MP Full Colour Surveillance

• 5MP resolution (2880 × 1620)
• Crystal-clear imaging with enhanced detail
• Full-colour monitoring day and night

Uniview ColorHunter Technology

• 24-hour full-colour video capture
• Ultra-large F1.0 aperture lens
• Superior low-light performance
• Integrated warm LED illumination up to 30 metres

Smart AI Analytics

• Face Detection
• Vehicle Detection
• Intrusion Detection
• Cross Line Detection
• Enter Area Detection
• Leave Area Detection
• Ultra Motion Detection (UMD)
• People Counting
• Traffic Monitoring

Powerful 4-Channel PoE NVR

• Built-in 4-Port PoE switch
• Plug-and-play installation
• Supports up to 12MP recording resolution
• HDMI and VGA simultaneous video output
• Up to 10TB HDD support

Remote Viewing & Monitoring

• Uniview EZView mobile application support
• Browser access
• Remote playback and live viewing
• Supports up to 128 remote users

Built for Outdoor Environments

• IP67 weatherproof cameras
• Metal housing construction
• Operating temperature from -30°C to +60°C

Detailed Specifications

Recorder Specifications

Model

• Uniview NVR301-04B-P4-IQ

Video Compression

• Ultra 265
• H.265
• H.264

Recording Resolution

• 12MP
• 8MP
• 6MP
• 5MP
• 4MP
• 3MP
• 1080P
• 960P
• 720P

Incoming Bandwidth

• 80 Mbps

Outgoing Bandwidth

• 80 Mbps

Video Outputs

• HDMI up to 4K (3840 × 2160)
• VGA up to 1080P

Storage

• 1 SATA Interface
• Supports up to 10TB HDD

Playback

• Up to 16-channel simultaneous playback

Network Protocols

• TCP/IP
• DHCP
• HTTPS
• DNS
• RTSP
• IPv4 / IPv6
• SMTP
• SNMP
• P2P

PoE Ports

• 4 x RJ45 PoE Ports
• IEEE 802.3af
• IEEE 802.3at

PoE Power Budget

• Maximum 50W Total
• Maximum 30W Per Port

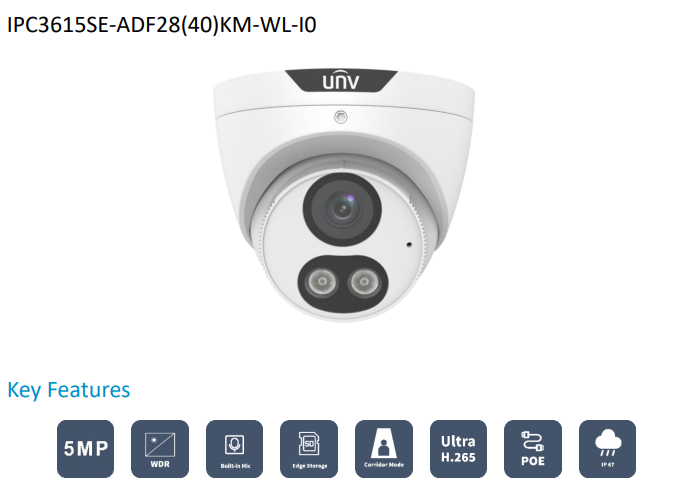

Camera Specifications

Model

• IPC3615SE-ADF28KM-WL-I0

Image Sensor

• 1/2.7" Progressive Scan CMOS

Resolution

• 5MP (2880 × 1620)

Lens

• 2.8mm Fixed Lens
• F1.0 Aperture

Viewing Angle

• Horizontal: 102°
• Vertical: 53.4°
• Diagonal: 121°

Colour Imaging

• Minimum Illumination: 0.001 Lux

WDR

• 120dB True WDR

Video Compression

• Ultra 265
• H.265
• H.264
• MJPEG

Built-in Audio

• Integrated Microphone

Edge Storage

• MicroSD Card Support up to 256GB

Smart Features

• Motion Detection
• Face Detection
• Vehicle Detection
• Intrusion Detection
• Line Crossing Detection

Network Compatibility

• ONVIF Profile S
• ONVIF Profile G
• ONVIF Profile T

Weather Rating

• IP67

Housing Material

• Metal Construction

Power Options

• PoE (IEEE 802.3af)
• DC 12V

Maximum Power Consumption

• 7.5W

Warranty Information

• Manufacturer Warranty: 3 Years
• Warranty serviced through authorised Uniview distribution channels.
• Technical support available through authorised suppliers and brand representatives.

About Uniview

Uniview is a global leader in professional IP video surveillance solutions. Known for innovation, reliability, and advanced AI-powered security technologies, Uniview delivers enterprise-grade security products trusted by businesses, government organisations, educational facilities, industrial sites, and residential customers worldwide.

SKU

KIT-UNV-5MP-CH-4CAM-4CH-NVR

Ideal Applications

• Residential homes
• Small businesses
• Retail stores
• Offices
• Warehouses
• Workshops
• Farms and rural properties
• Schools and educational facilities
• Medical centres
• Commercial buildings
• Industrial facilities

Datasheets & Resources

Included Products

NVR Datasheet

•  Uniview NVR301-B-P-IQ Series Datasheet

Camera Datasheet

• Datasheet

Excellence for the Australian and New Zealand Market

This Uniview CCTV Security Kit has been carefully selected to meet the requirements of Australian and New Zealand residential and commercial security installations. Featuring weather-resistant IP67-rated cameras and professional PoE networking technology, the system is designed for reliable operation in harsh environmental conditions commonly encountered throughout Australia and New Zealand.

Key benefits include:

• Genuine Uniview products sourced through authorised distribution channels.
• Designed for Australian and New Zealand security requirements.
• Supports local installation standards and professional deployment.
• CE, FCC, UL, RoHS and WEEE certified components.
• Optimised remote viewing and network performance.
• Full manufacturer warranty support through authorised channels.
• Professional-grade surveillance suitable for residential and commercial applications.

Frequently Asked Questions

Does KIT-UNV-5MP-CH-4CAM-4CH-NVR record in full colour at night?

Yes. The ColorHunter cameras included in KIT-UNV-5MP-CH-4CAM-4CH-NVR provide 24-hour full-colour surveillance using advanced low-light technology and integrated warm LED illumination.

Can KIT-UNV-5MP-CH-4CAM-4CH-NVR be viewed remotely?

Yes. KIT-UNV-5MP-CH-4CAM-4CH-NVR supports remote viewing through Uniview EZView and compatible web browsers.

Does KIT-UNV-5MP-CH-4CAM-4CH-NVR include a hard drive?

No. KIT-UNV-5MP-CH-4CAM-4CH-NVR is supplied without a hard drive unless otherwise specified. The NVR supports up to 10TB of storage.

Is KIT-UNV-5MP-CH-4CAM-4CH-NVR suitable for outdoor installation?

Yes. All cameras supplied with KIT-UNV-5MP-CH-4CAM-4CH-NVR are IP67-rated for outdoor use and harsh weather conditions.

What AI functions are available on KIT-UNV-5MP-CH-4CAM-4CH-NVR?

KIT-UNV-5MP-CH-4CAM-4CH-NVR supports face detection, vehicle detection, intrusion detection, line crossing detection, people counting, and ultra motion detection.

Can additional cameras be added to KIT-UNV-5MP-CH-4CAM-4CH-NVR?

The included NVR supports up to four IP cameras. To expand beyond four cameras, an 8-channel Uniview NVR would be required.

Does KIT-UNV-5MP-CH-4CAM-4CH-NVR support PoE?

Yes. The NVR included in KIT-UNV-5MP-CH-4CAM-4CH-NVR features four integrated PoE ports for simplified installation and power delivery.

What maximum recording resolution is supported by KIT-UNV-5MP-CH-4CAM-4CH-NVR?

The NVR supplied with KIT-UNV-5MP-CH-4CAM-4CH-NVR supports recording resolutions up to 12MP.
