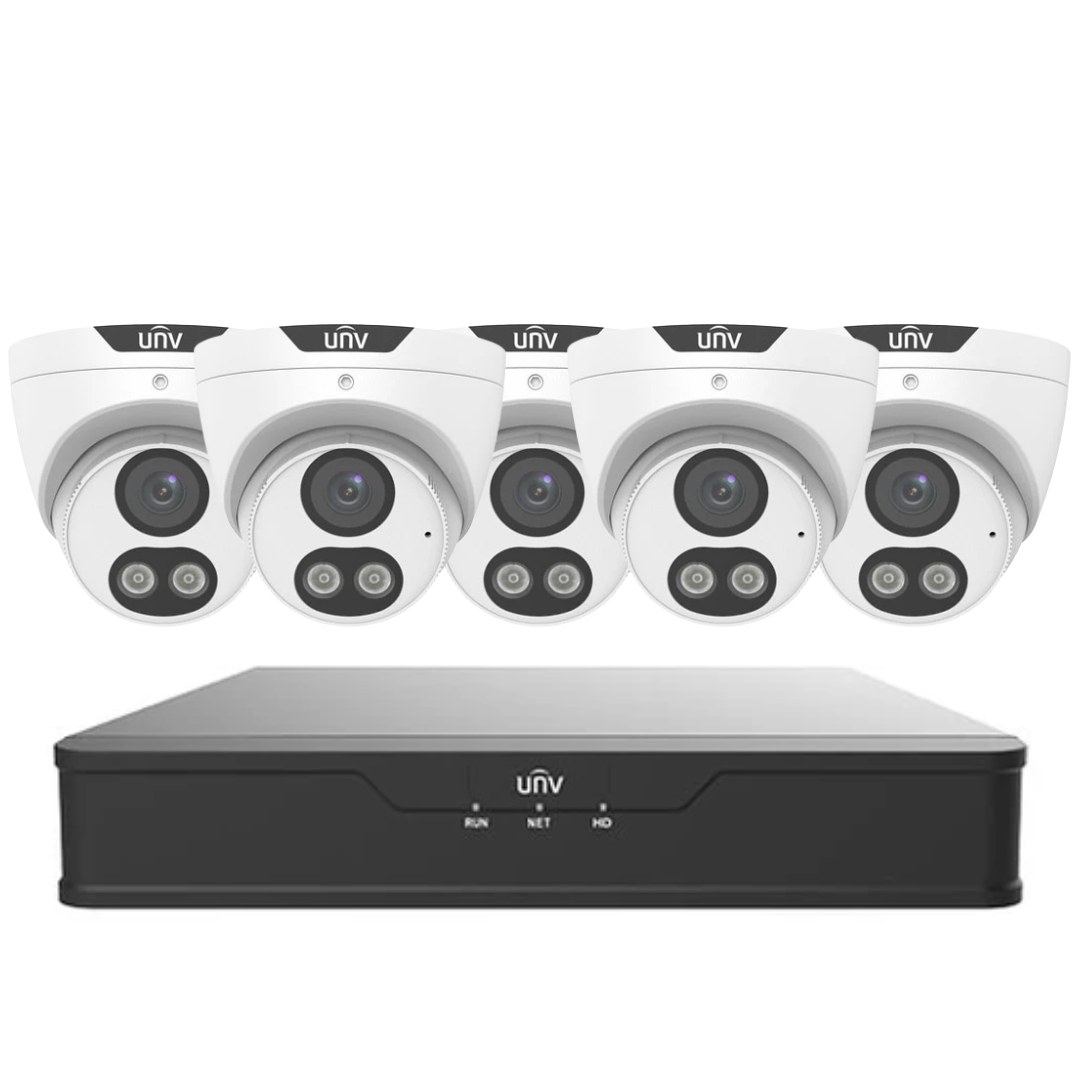

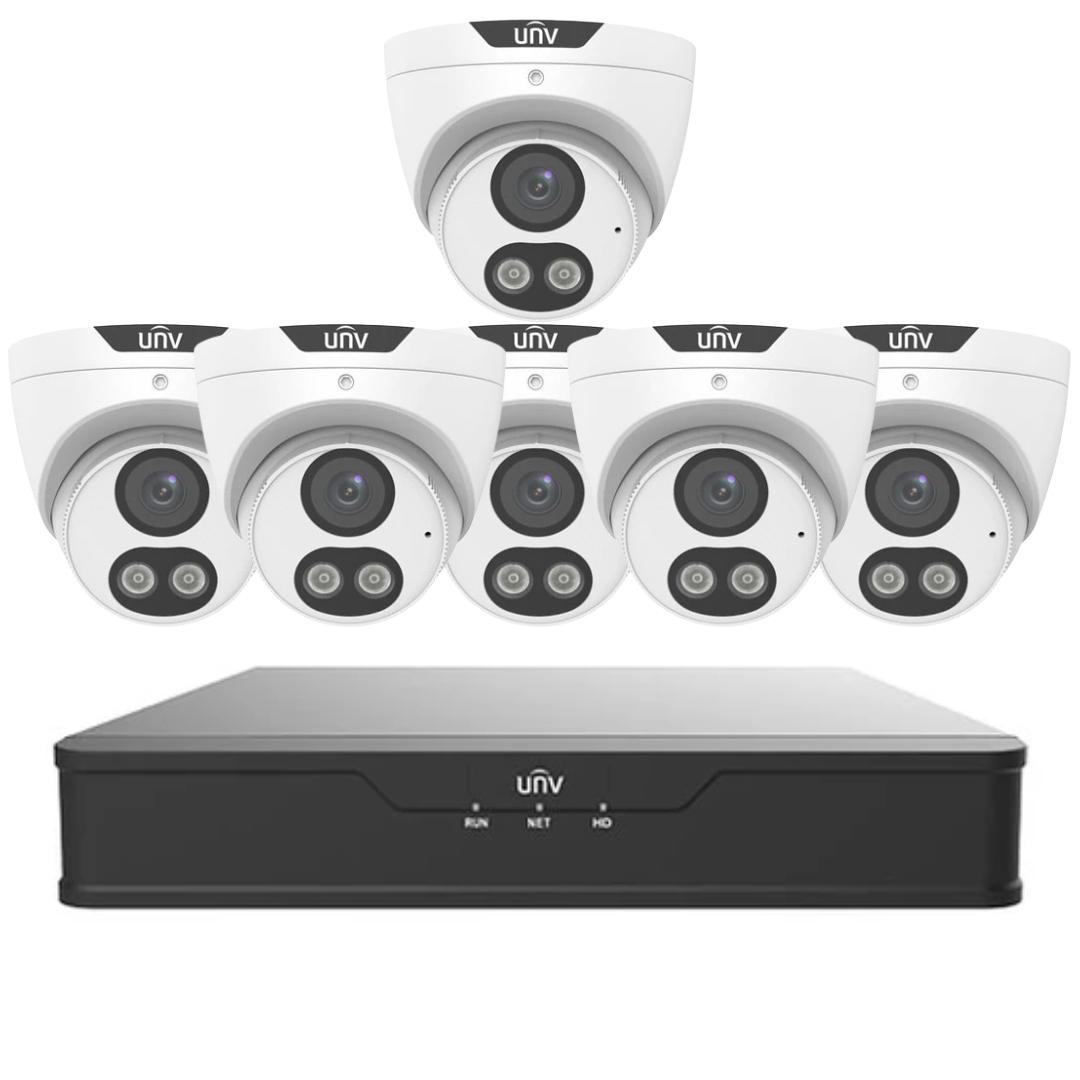

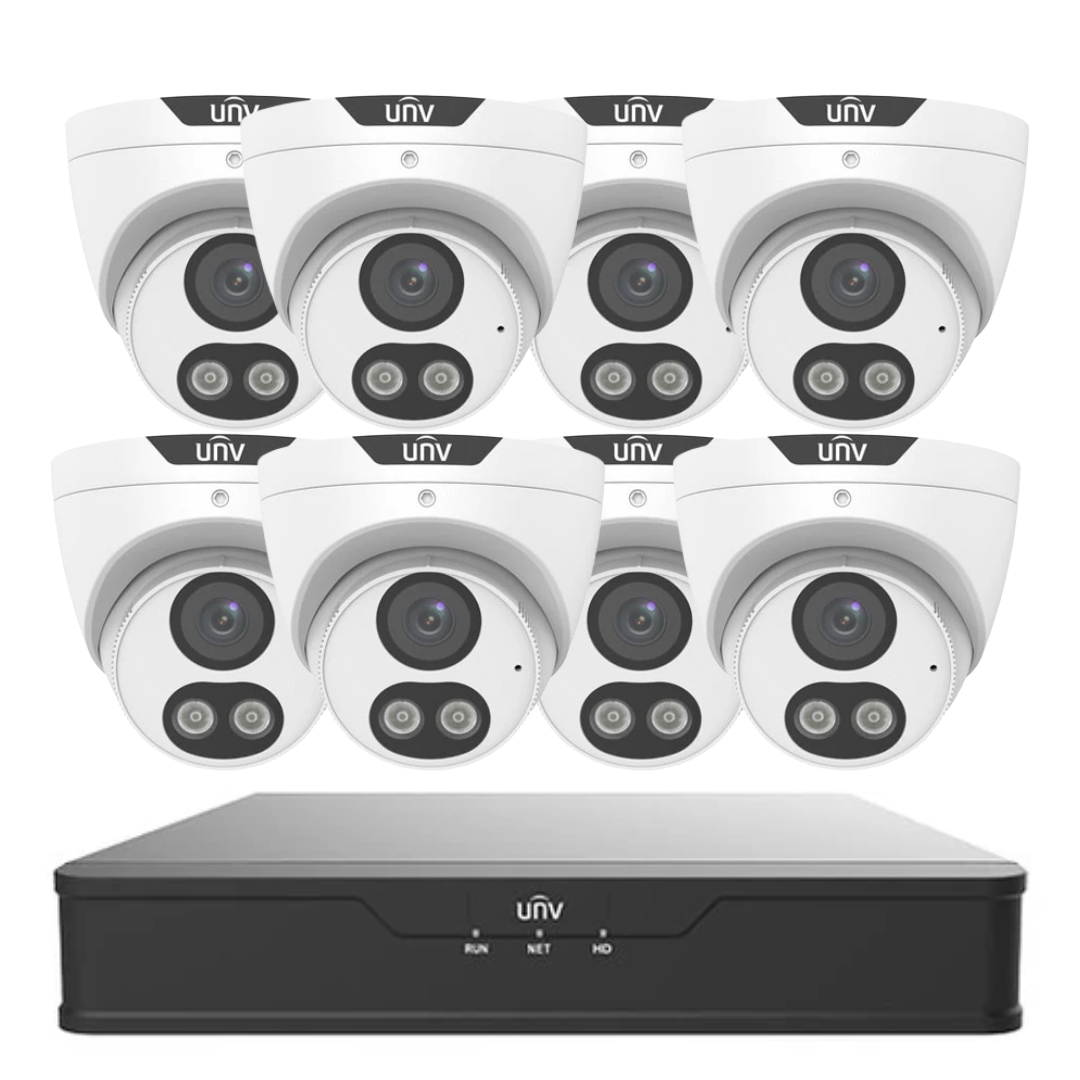

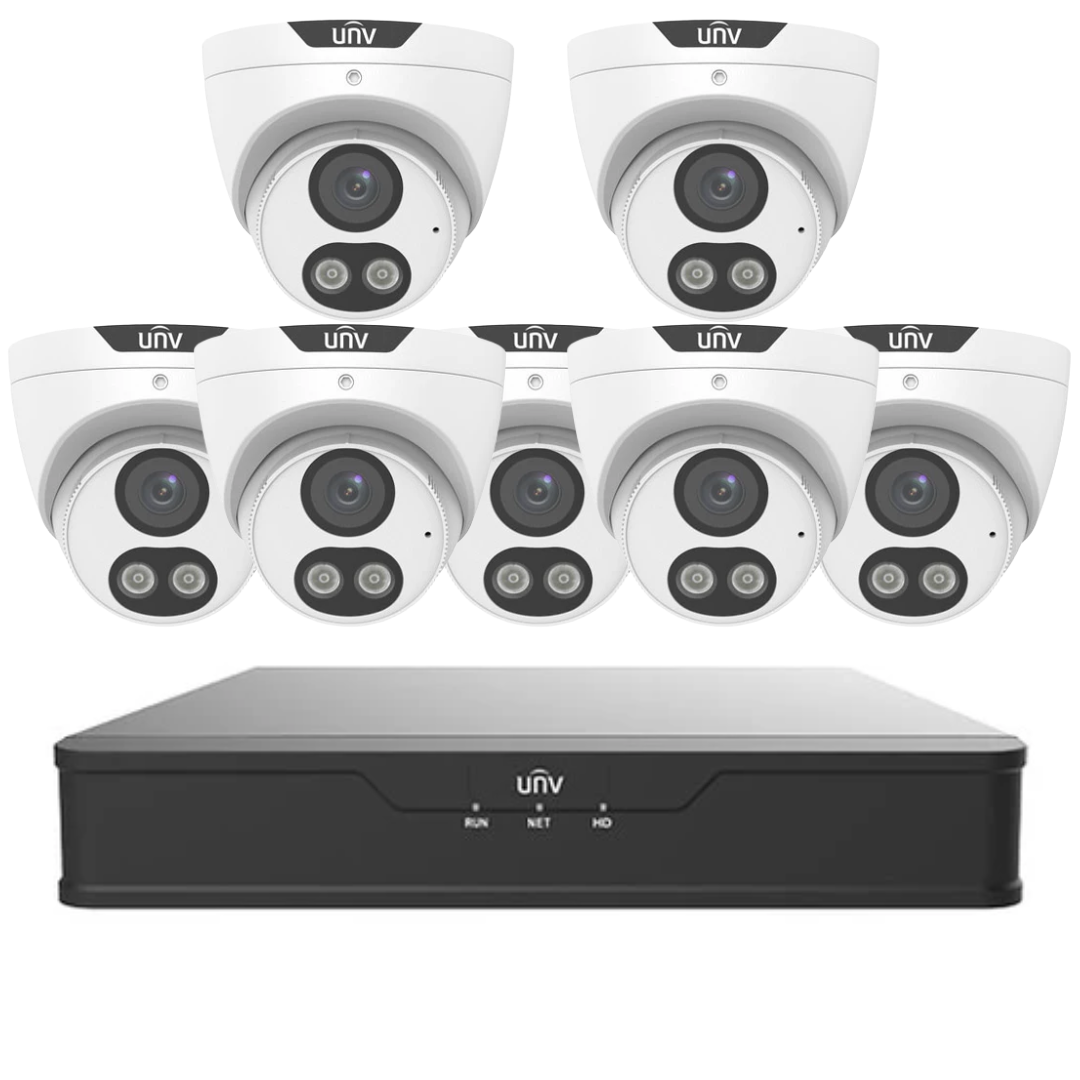

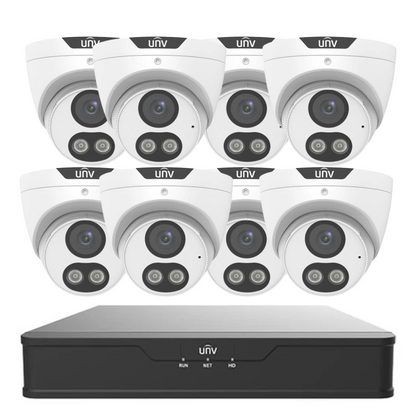

Uniview 5MP ColorHunter CCTV Kit – Choose Up to 8 Cameras with 8CH NVR | IPC3615SE-ADF28KM-WL-I0 + NVR301-08B-IQ

Upgrade your security with the Uniview 5MP ColorHunter CCTV Kit, a professional surveillance package allowing you to choose up to 8 high-resolution 5MP cameras with an 8-channel Uniview NVR. Designed for homes, offices, shops, warehouses, farms, and commercial properties, this kit delivers full-colour 24/7 video, smart detection, remote monitoring, and reliable recording performance.

The included IPC3615SE-ADF28KM-WL-I0 cameras feature ColorHunter technology, a 5MP CMOS sensor, 120dB True WDR, built-in microphone, IP67 weather protection, and PoE support. The NVR301-08B-IQ supports up to 8 IP cameras, Ultra 265/H.265/H.264 compression, HDMI and VGA output, smart analytics, and up to 10TB HDD storage.

What’s Included in the Box

• 1 x Uniview NVR301-08B-IQ 8-Channel Network Video Recorder
• Choose up to 8 x Uniview IPC3615SE-ADF28KM-WL-I0 5MP ColorHunter Eyeball Cameras
• 1 x NVR Power Supply
• Mounting Accessories
• Quick Installation Guide

Hard drive, PoE switch, and network cables sold separately unless specified.

Main Features

• Choose from 1 to 8 cameras
• 5MP resolution: 2880 × 1620
• 24/7 full-colour ColorHunter imaging
• Ultra 265, H.265, H.264 and MJPEG compression
• 120dB True WDR for strong backlight scenes
• Built-in microphone on each camera
• IP67 weatherproof outdoor protection
• PoE camera support
• Up to 12MP recording resolution via NVR
• HDMI 4K and VGA simultaneous output
• Smart AI detection including vehicle, face, intrusion and line crossing detection
• Remote viewing via Uniview compatible apps and browser access

Detailed Specifications

NVR Specifications

Model: NVR301-08B-IQ
Channels: 8 IP camera inputs
Compression: Ultra 265, H.265, H.264
Recording Resolution: Up to 12MP
Bandwidth: 80Mbps incoming / 80Mbps outgoing
Video Output: HDMI up to 4K, VGA up to 1080P
Audio Input/Output: 1 RCA input, 1 RCA output
Storage: 1 SATA HDD bay, up to 10TB
Remote Users: Up to 128
USB: 1 x USB 2.0, 1 x USB 3.0
Power Supply: DC 12V / 2A
Dimensions: 260mm × 222mm × 47mm
Certifications: CE, FCC, UL, RoHS, WEEE

Camera Specifications

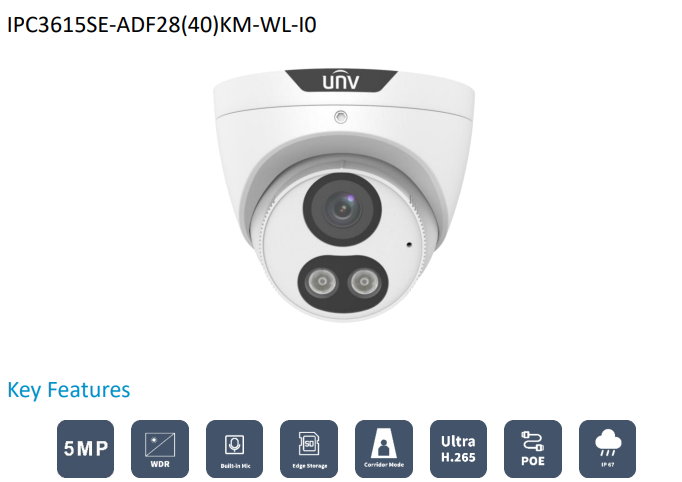

Model: IPC3615SE-ADF28KM-WL-I0
Sensor: 1/2.7" 5MP Progressive Scan CMOS
Lens: 2.8mm F1.0 fixed lens
Resolution: 5MP, 4MP, 3MP, 2MP
Viewing Angle: 102° horizontal
Minimum Illumination: 0.001 Lux
LED Distance: Up to 30m
WDR: 120dB True WDR
Audio: Built-in microphone
Storage: MicroSD up to 256GB
Weather Rating: IP67
Housing: Metal
Power: DC 12V or PoE IEEE 802.3af
Power Consumption: Max 7.5W
Operating Temperature: -30°C to +60°C

Warranty Information

3 year Manufacturer warranty applies through authorised Uniview distribution channels. Warranty support is handled through direct communication with the brand or authorised representatives.

Brand Description

Uniview is a global provider of professional IP surveillance solutions, offering high-quality CCTV cameras, NVRs, video management software, and intelligent security technologies for residential, commercial, and enterprise applications.

SKU

KIT-UNV-5MP-CH-8CAM-8CH-NVR

Practical Use Scenarios

Ideal for homes, retail shops, offices, warehouses, workshops, schools, farms, car parks, medical centres, commercial buildings, and industrial facilities requiring clear 5MP video and full-colour night surveillance.

Datasheets & Downloadable Resources

• Uniview NVR301-B-IQ Series Datasheet

• Datasheet of NVR301-B-IQ Series

• Uniview IPC3615SE-ADF28KM-WL-I0 Camera Datasheet
• Datasheet

Excellence for the Australian and New Zealand Market

This Uniview CCTV kit is suitable for Australian and New Zealand residential and commercial security installations. It features IP67-rated weatherproof cameras, professional-grade recording, recognised certifications including CE, FCC, UL, RoHS and WEEE, and genuine sourcing through authorised brand representatives. Warranty handling is supported through direct communication with Uniview or authorised supply channels.

FAQs

Does KIT-UNV-5MP-CH-8CAM-8CH-NVR support up to 8 cameras?

Yes, KIT-UNV-5MP-CH-8CAM-8CH-NVR supports up to 8 Uniview IP cameras.

Does KIT-UNV-5MP-CH-8CAM-8CH-NVR record in colour at night?

Yes, KIT-UNV-5MP-CH-8CAM-8CH-NVR uses Uniview ColorHunter cameras for 24/7 full-colour video.

Does KIT-UNV-5MP-CH-8CAM-8CH-NVR include PoE cameras?

Yes, KIT-UNV-5MP-CH-8CAM-8CH-NVR includes PoE-supported cameras, but the NVR model listed requires external PoE switching unless supplied with a PoE NVR version.

Does KIT-UNV-5MP-CH-8CAM-8CH-NVR include a hard drive?

No, KIT-UNV-5MP-CH-8CAM-8CH-NVR does not include a hard drive unless specified.

Is KIT-UNV-5MP-CH-8CAM-8CH-NVR suitable for outdoor use?

Yes, KIT-UNV-5MP-CH-8CAM-8CH-NVR includes IP67-rated cameras suitable for outdoor installation.

What resolution does KIT-UNV-5MP-CH-8CAM-8CH-NVR provide?

KIT-UNV-5MP-CH-8CAM-8CH-NVR provides 5MP camera resolution and supports NVR recording up to 12MP.
