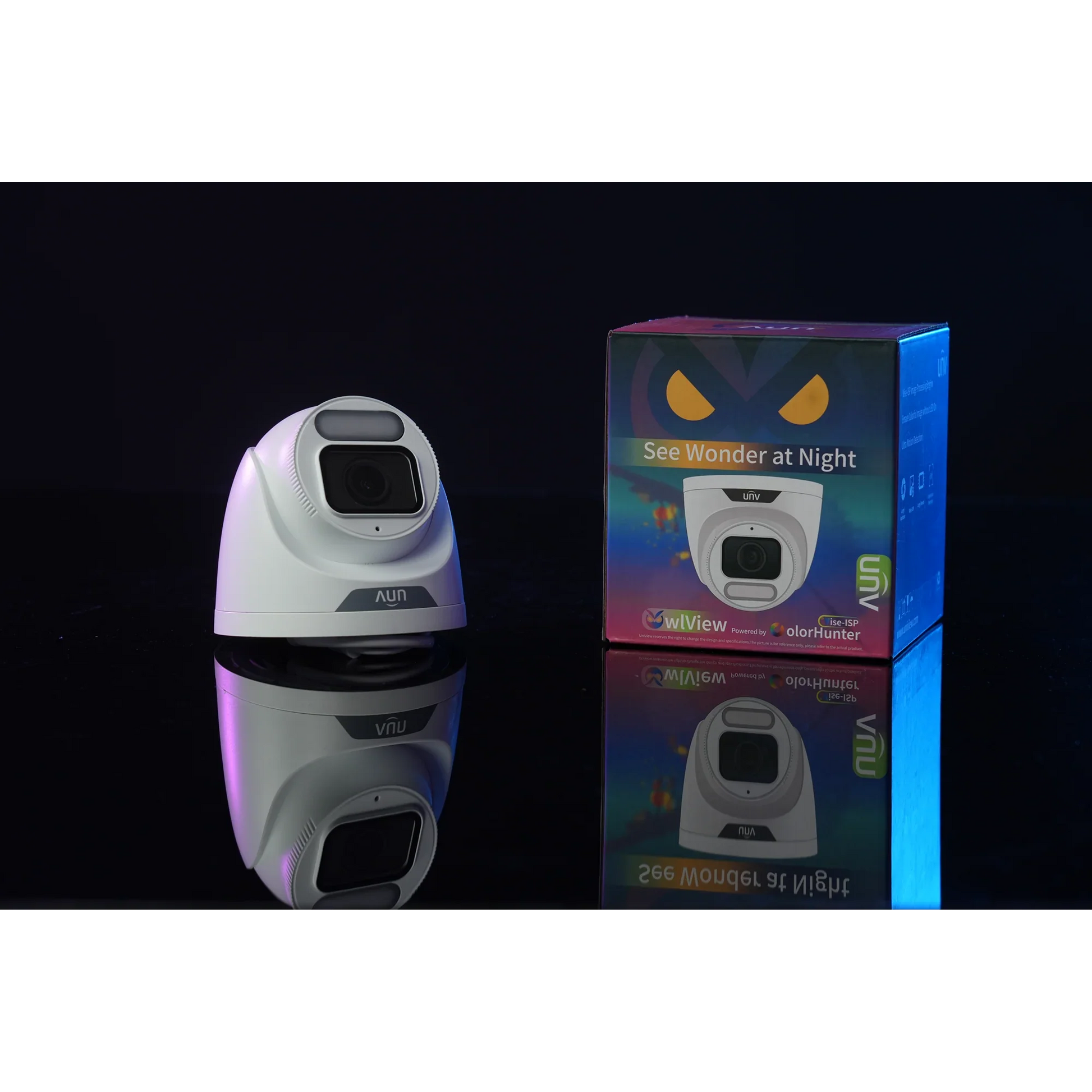

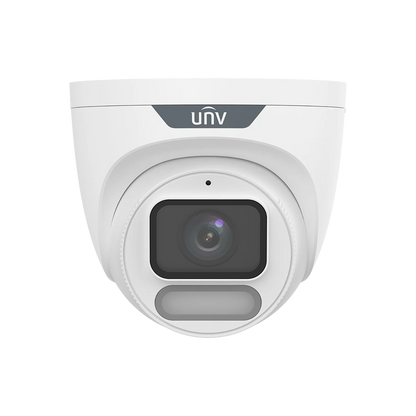

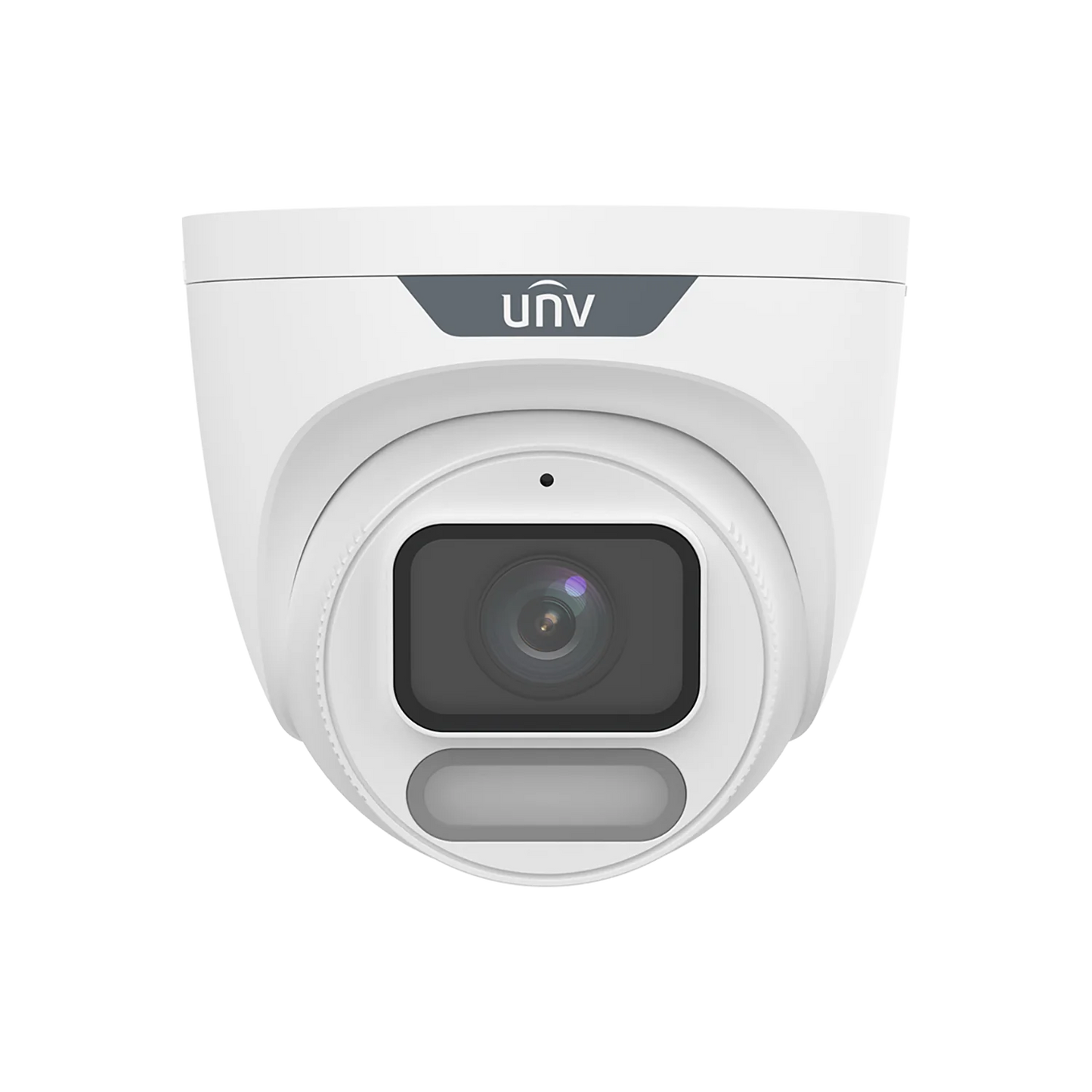

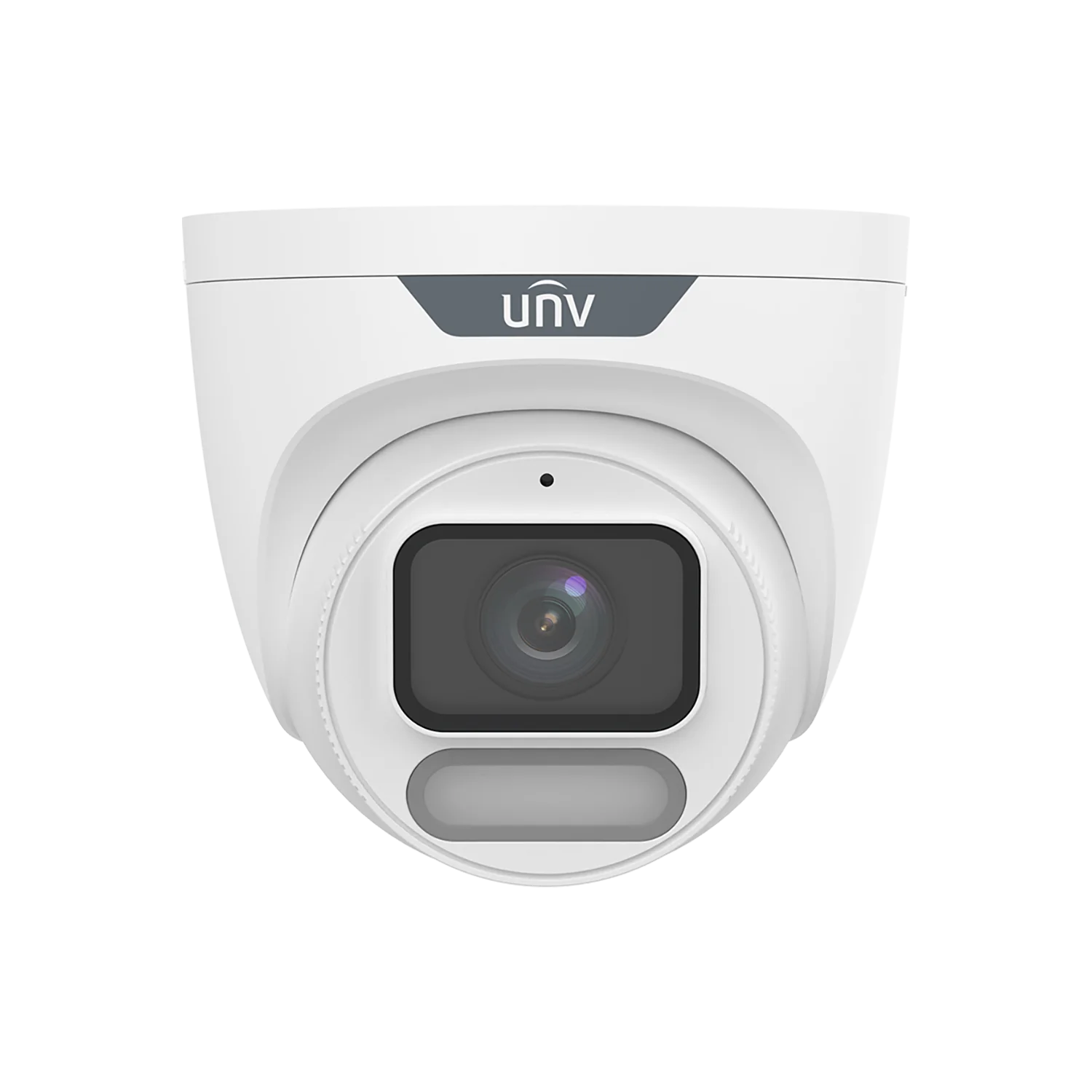

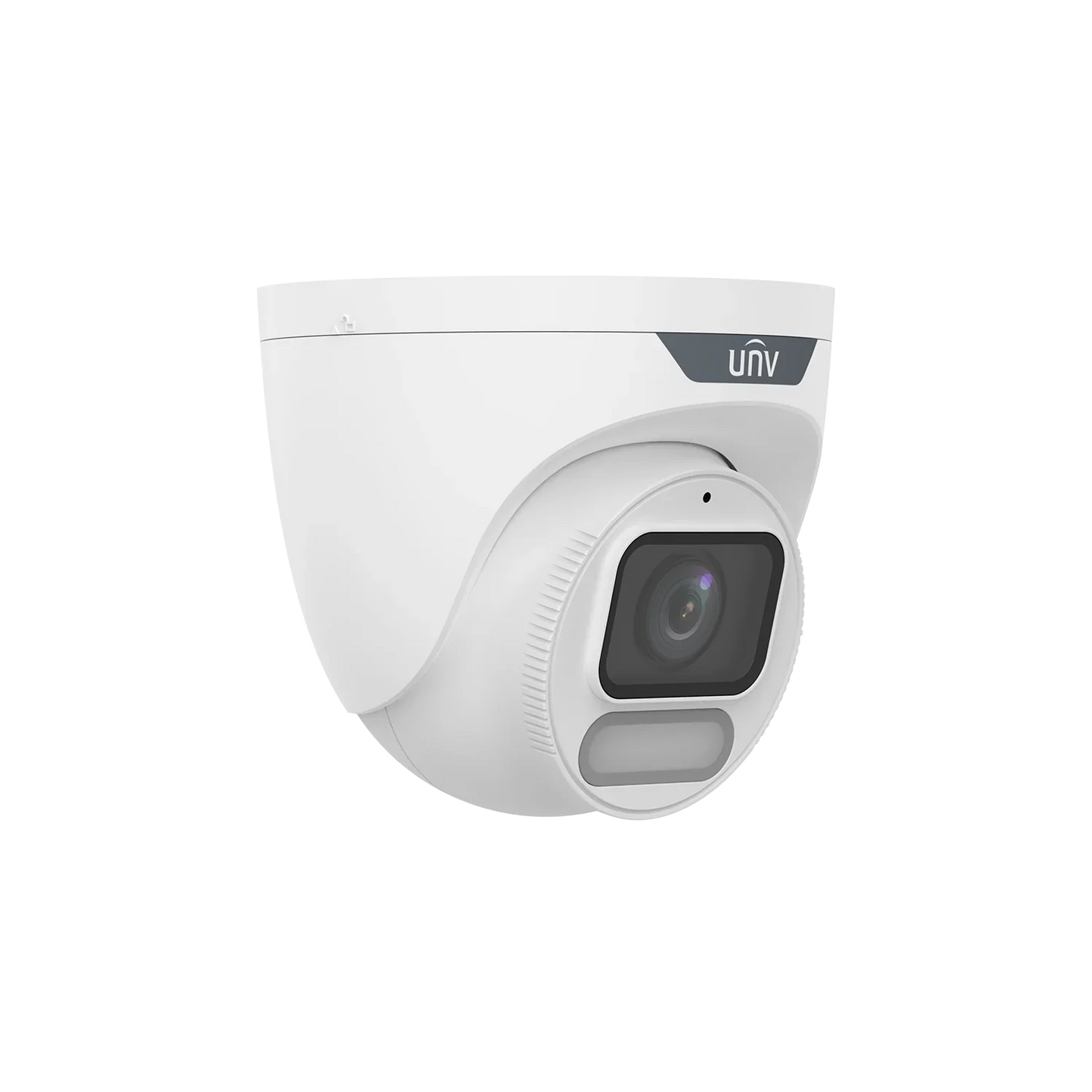

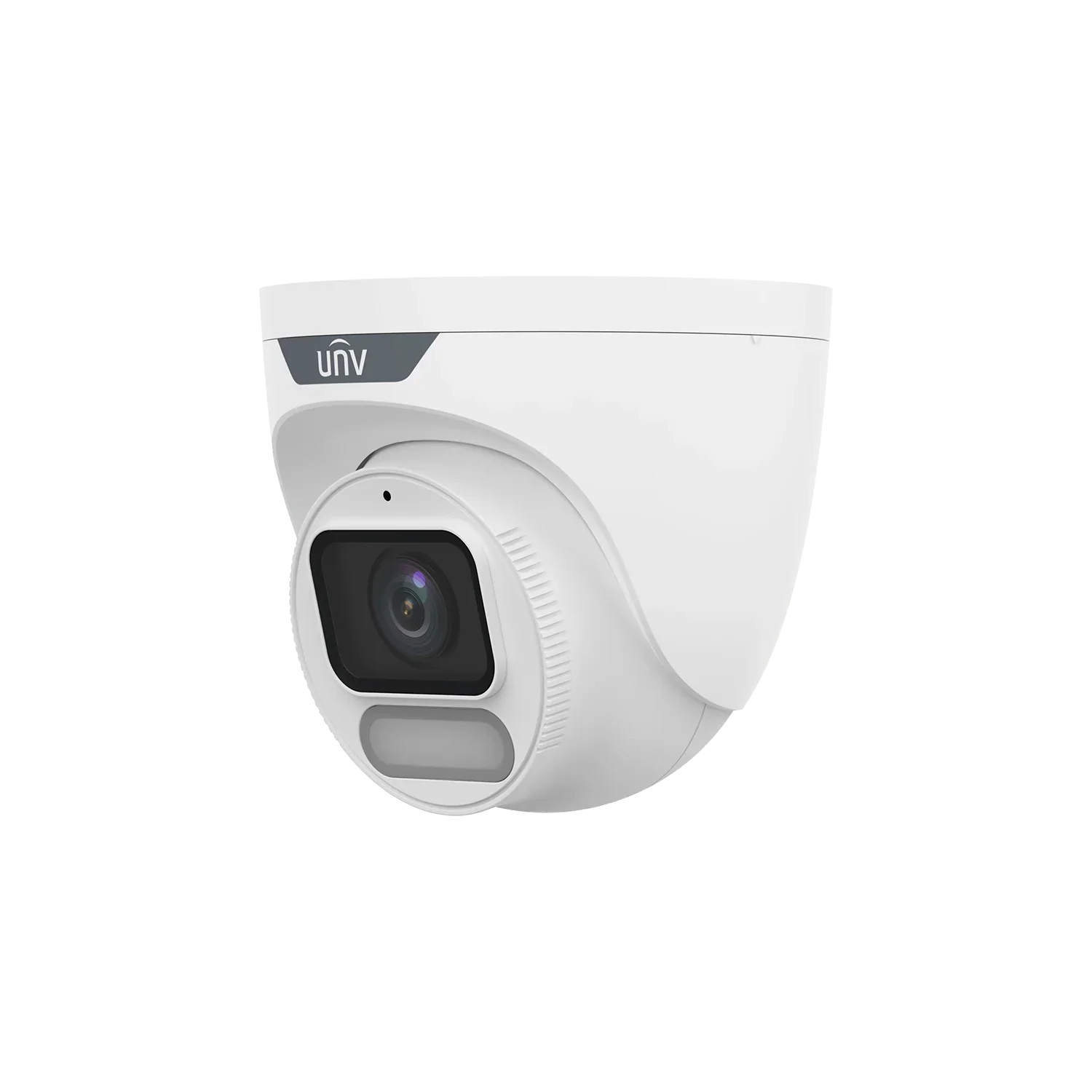

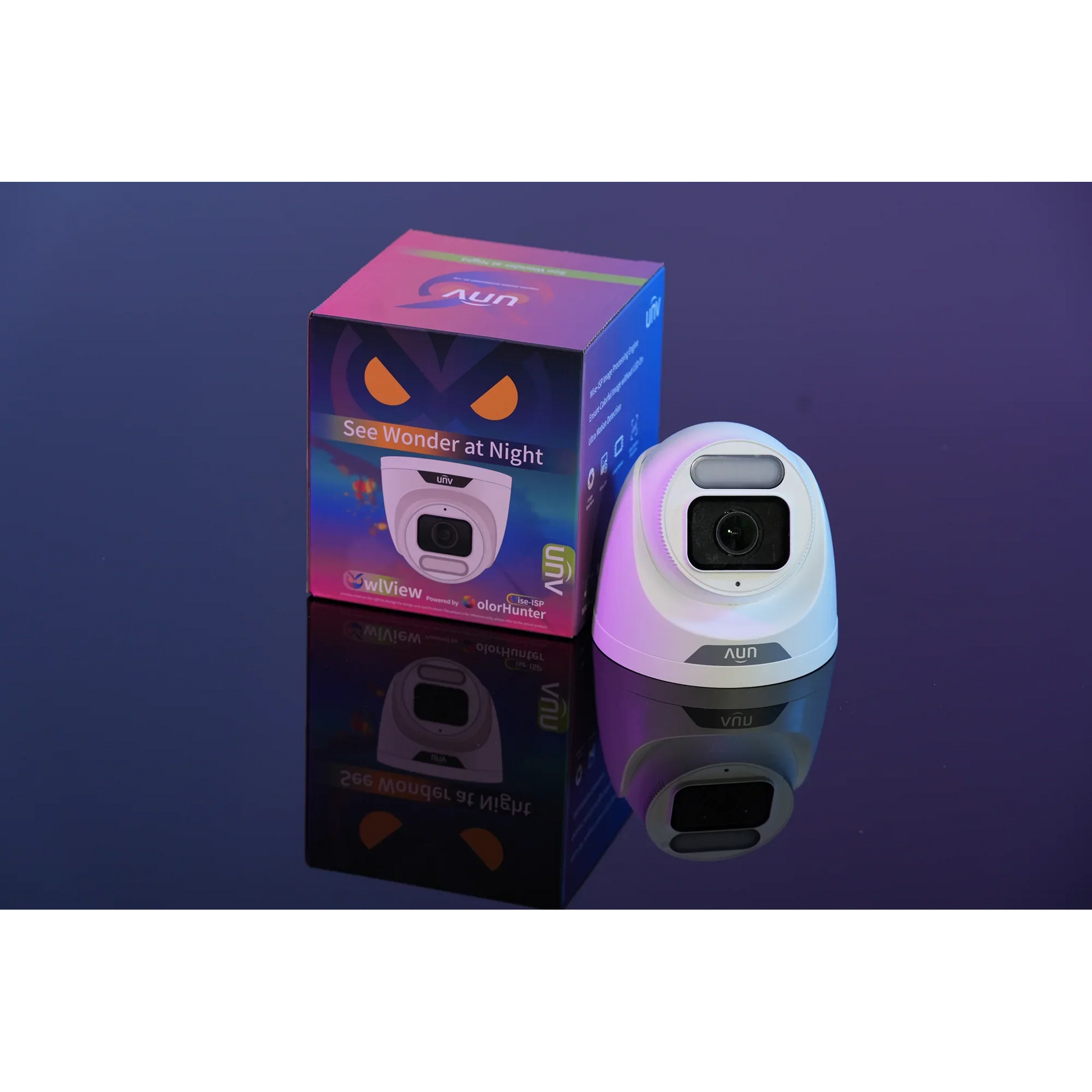

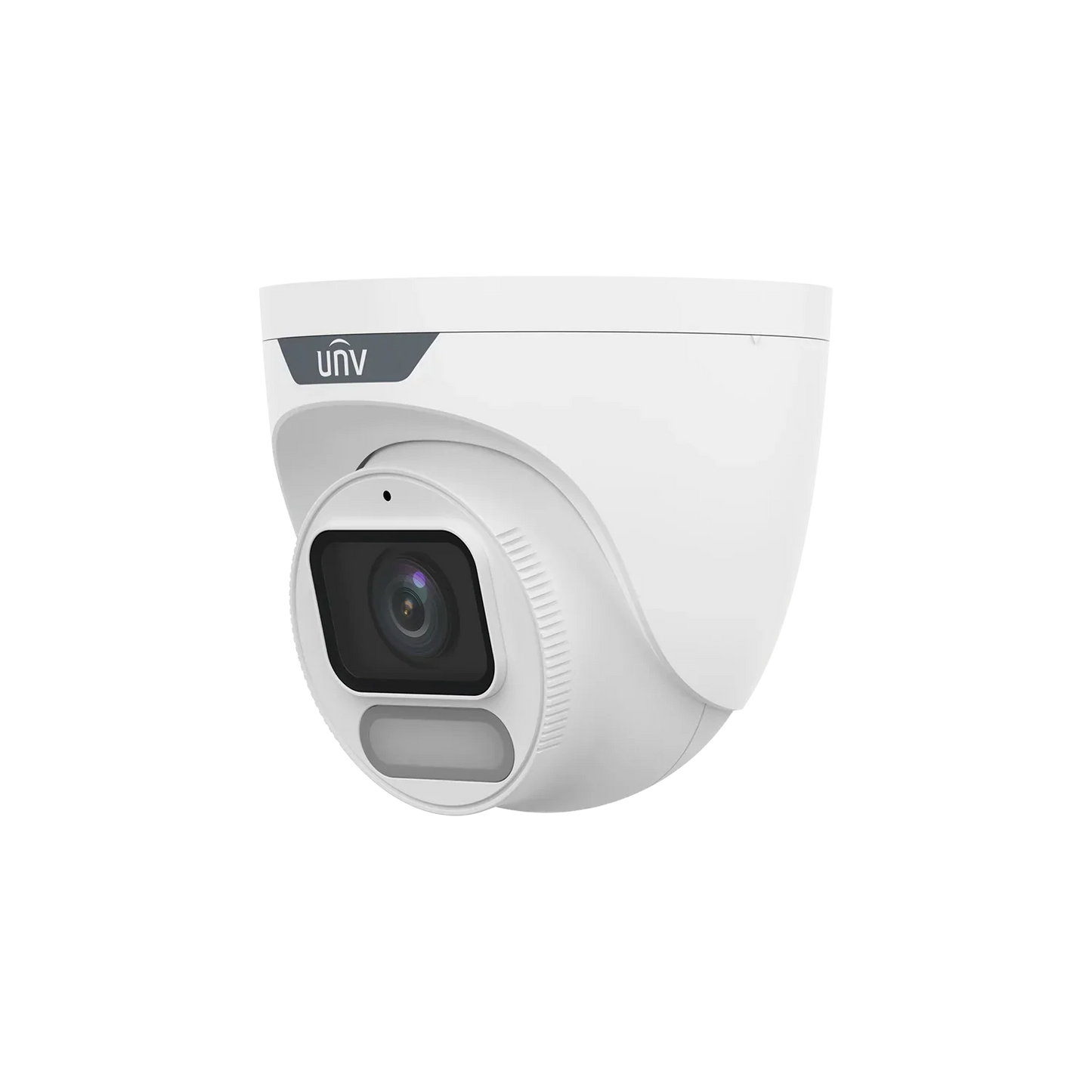

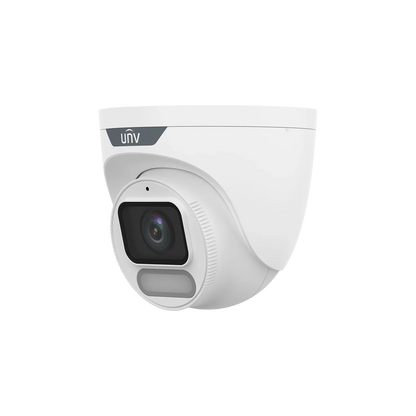

Uniview 4MP OwlView Turret Camera - IPC3624LE-ADF28K-WP
Uniview 4MP OwlView Turret Camera - IPC3624LE-ADF28K-WP
Regular price
$228.48 AUD
Regular price
$329.46 AUD
Sale price
$228.48 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

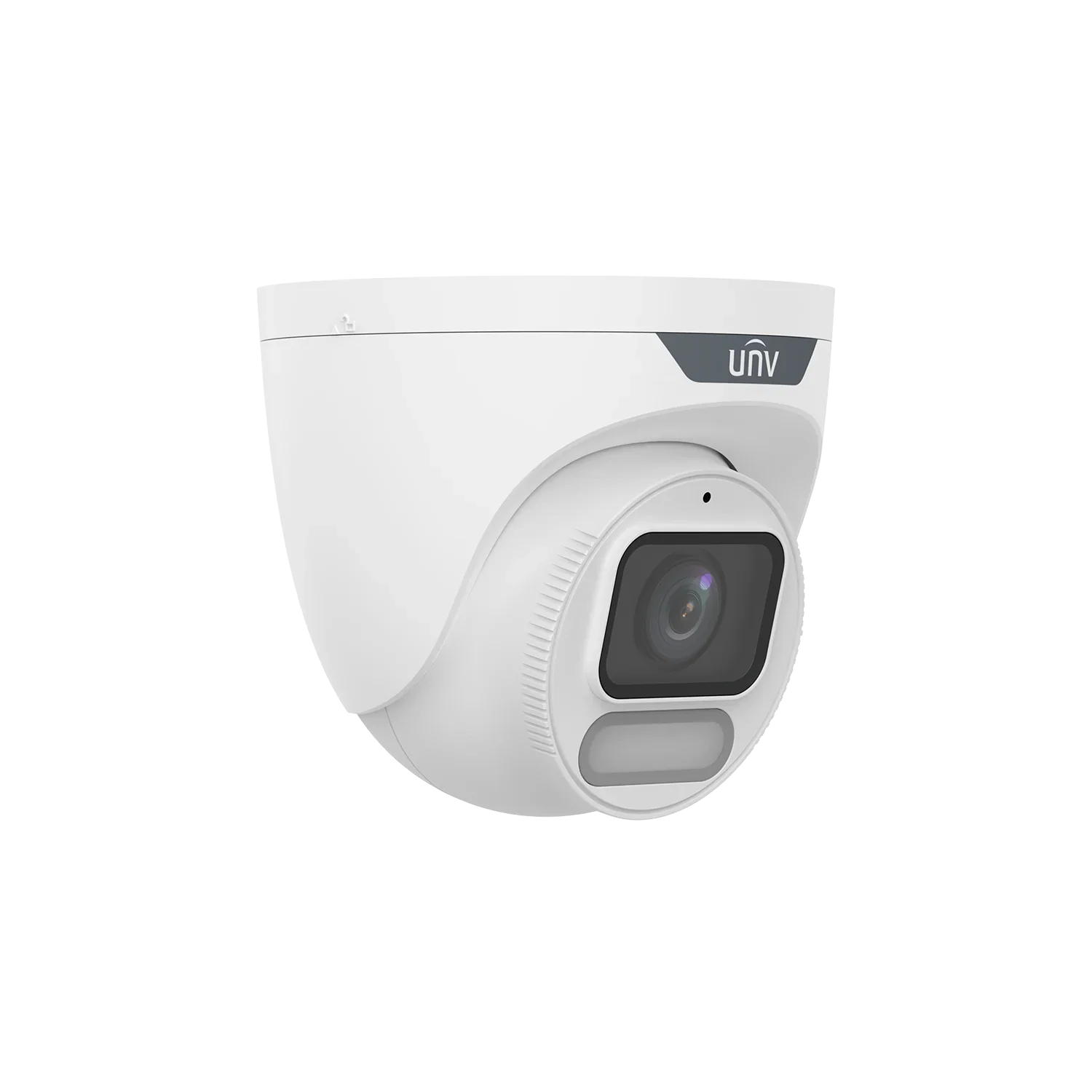

The Uniview IPC3624LE-ADF28K-WP is part of the cutting-edge 4MP OwlView Series, designed to deliver superior quality surveillance. Equipped with a 2.8mm fixed lens and Wise-ISP technology, this ColorHunter turret camera guarantees 24-hour full-color monitoring in any lighting condition, making it ideal for both day and night surveillance.
Key Features:
- 4MP High-Definition: Featuring a 1/1.8'' CMOS sensor and F1.0 large aperture lens, it provides crystal-clear 4MP (2688x1520) images at 25/20fps. Other resolutions supported include 2560x1440, 2304x1296, and 1920x1080 for flexible recording options.
- Advanced Compression Technologies: Supports Ultra 265, H.265, H.264, and MJPEG for optimized bandwidth usage and storage efficiency.
- ColorHunter with Wise-ISP Technology: Ensures full-color imagery 24/7, even in low-light scenarios, by utilizing built-in warm lighting and sophisticated image processing.
- 120dB True WDR (Wide Dynamic Range): Enables clear images in high-contrast and strong lighting conditions, perfect for challenging environments.
- Built-in Microphone: Captures audio to complement the video feed for a more comprehensive security solution.
- Night Vision up to 30m: Warm light provides effective illumination in darkness for enhanced visibility up to 30 meters.
- Corridor Mode: Ideal for narrow scenes, providing a vertical 9:16 aspect ratio.
- Expandable Storage: Supports up to a 256GB Micro SD card for local video storage.
- Durable Design: IP67-rated, making it dust-tight and waterproof, suitable for outdoor installations.
- Power over Ethernet (PoE): Simplifies installation with both power and data transmitted over a single cable.
- Flexible Mounting Options: Compatible with optional junction box (AC-TR-JB03-I-IN) and wall mount (TR-WM03-D-IN) for versatile installation.
The Uniview 4MP OwlView Turret Camera is an excellent choice for anyone seeking reliable, high-quality surveillance with advanced features that ensure constant full-color monitoring and robust performance. Ideal for both residential and commercial settings, this camera provides peace of mind with its superior image clarity, advanced technology, and durable design.
Specifications
|
Specifications |
IPC3624LE-ADF28K-WP | IPC3624LE-ADF40K-WP |
|---|---|---|
| Sensor | 1/1.8″, 4.0 MP, progressive scan, CMOS | 1/1.8″, 4.0 MP, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.0003lux (F1.0, AGC ON) | Colour: 0.0003lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°~ 360°, Tilt: 0°~ 75°, Rotate: 0°~ 360° | Pan: 0°~ 360°, Tilt: 0°~ 75°, Rotate: 0°~ 360° |
| WDR | 120dB | 120dB |
| S/N | >52dB | >52dB |
| Lens | 2.8mm@F1.0 | 4.0mm@F1.0 |
| Iris | Fixed | Fixed |
| Field of View (H) | 110.4° | 89.4° |
| Field of View (V) | 60.5° | 48.2° |
| Field of View (D) | 115.2° | 94.7° |
| DORI Distance | Detect: 43.4m, Observe: 17.4m, Recognize: 8.7m, Identify: 4.3m | Detect: 62.1m, Observe: 24.8m, Recognize: 12.4m, Identify: 6.2m |
| Warm Light Range | Up to 30m (98ft) | Up to 30m (98ft) |
| Light On/Off Control | Auto/Manual | Auto/Manual |
| Video Compression | Ultra265, H.265, H.264, MJPEG | Ultra265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline, Main, High | Baseline, Main, High |
| Main Stream Frame Rate | 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P Max 30fps | 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P Max 30fps |
| Sub Stream Frame Rate | 720P, D1, 640*360, 2CIF, CIF - Max 30fps | 720P, D1, 640*360, 2CIF, CIF - Max 30fps |
| Video Bit Rate | 128 Kbps~6144Kbps | 128 Kbps~6144Kbps |
| U-code | Support | Support |
| OSD | Up to 4 OSDs | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas | Up to 4 areas |
| ROI | Up to 8 areas | Up to 8 areas |
| Video Stream | Dual streams | Dual streams |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR |
| Smart Illumination | Support | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC/BLC/Defog | Support | Support |
| Detection Events | Cross line, intrusion, motion detection, tampering alarm, audio detection | Same as 28K-WP |
| Audio Compression | G.711U, G.711A | G.711U, G.711A |
| Audio Bitrate | 64 Kbps | 64 Kbps |
| Edge Storage | Micro SD, up to 256GB | Micro SD, up to 256GB |
| Network | IPv4, IGMP, ICMP, ARP, TCP, UDP, etc. | Same |
| Integration | ONVIF (Profile S, G, T), API, SDK | Same |
| Power Consumption | Max 2.8W | Max 2.8W |
| Dimensions (Ø x H) | Φ118x106mm (4.6” x 4.2”) | Same |
| Weight | 0.48kg (1.06lb) | Same |
Datasheets
Warranty
3 years warranty
