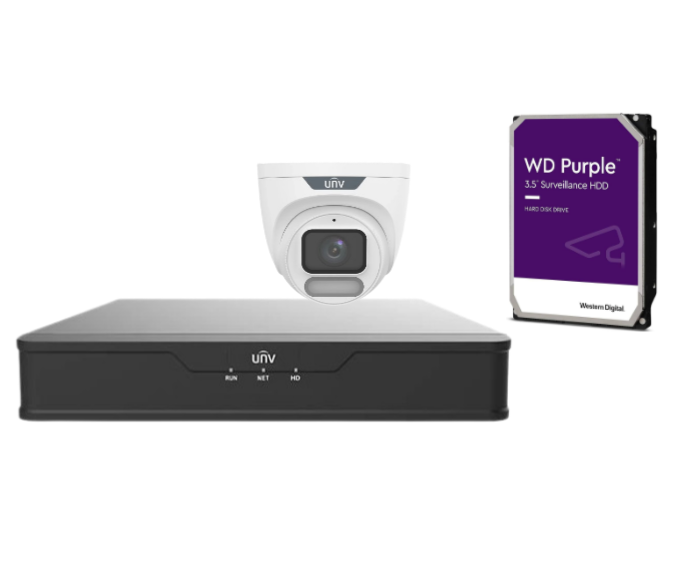

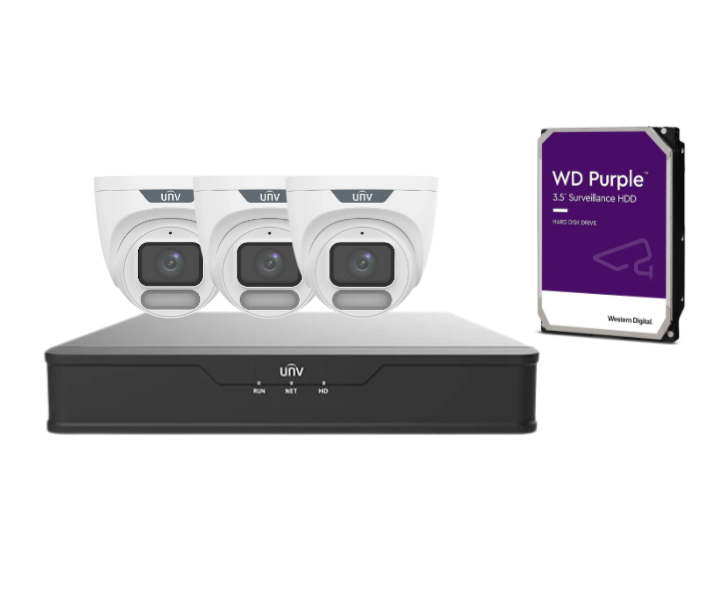

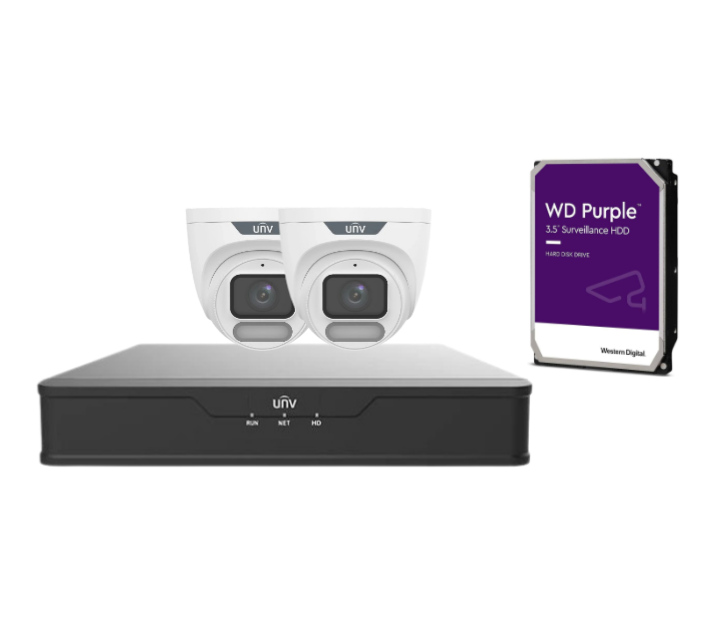

Uniview 4MP Oulview 4x CCTV Camera kit with 4 Channel NVR, IPC3624LE-ADF28K-WP, NVR301-04X-P4

This professional-grade Uniview CCTV kit delivers complete, high‑definition surveillance for both residential and commercial environments. The kit features four IPC3624LE‑ADF28K‑WP 4MP OwlView turret cameras equipped with ColorHunter & Wise‑ISP technology, ensuring full‑color footage around the clock—even in low‑light scenes. Paired with the powerful NVR301‑04X‑P4 network video recorder and a WD Purple HDD, it provides seamless 24/7 recording, advanced compression, and smart analytics for a secure and reliable monitoring solution.

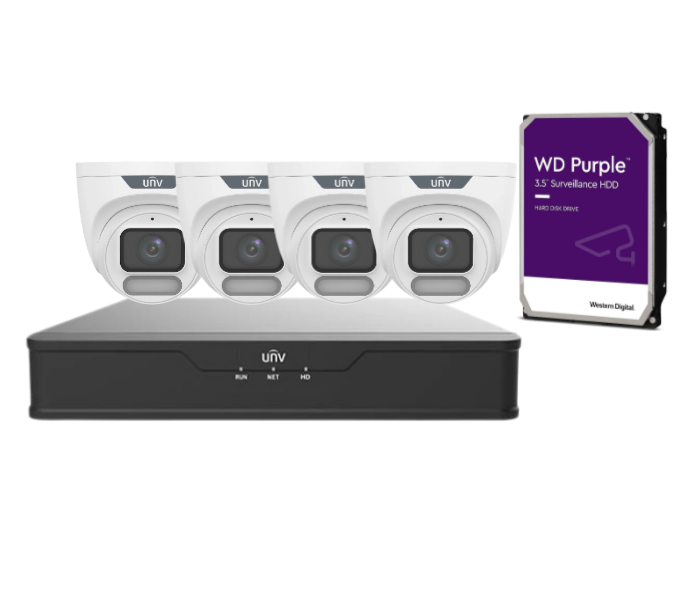

🎁 What’s Included

• Up to 4 × IPC3624LE‑ADF28K‑WP turret cameras

• 1 × NVR301‑04X‑P4 4‑Channel Ultra 265/H.265/H.264 NVR

• Choose your HDD below (No HDD default)

✅ Main Features

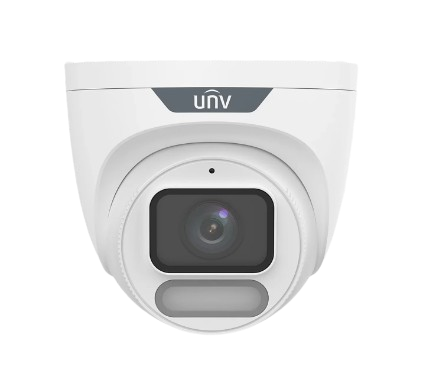

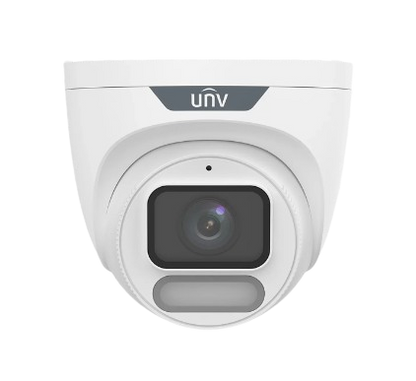

Uniview IPC3624LE‑ADF28K‑WP Turret Camera

• 4MP UHD Sensor (2688×1520@25fps), large F1.0 lens for crisp image quality

• ColorHunter with Wise‑ISP for vibrant, full‑color recording even at 0.0003 lux

• Warm Light Night Vision, up to 30 m for detailed nighttime imaging

• 120 dB True WDR minimizes glare in high-contrast environments

• Ultra 265 / H.265 / H.264 / MJPEG compression, supports up to 512 GB micro‑SD

• Built‑in microphone—captures audio along with video

• Corridor Mode (9:16) ideal for hallways and narrow spaces

• IP67-rated housing for reliable outdoor use; PoE-enabled installation

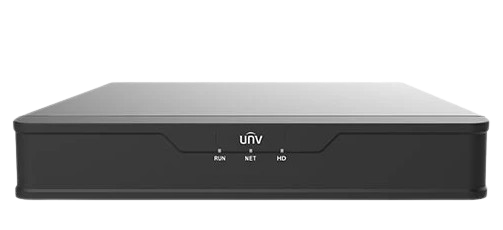

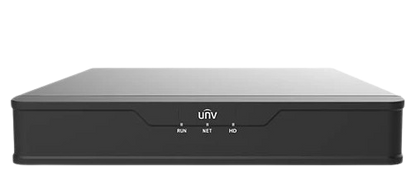

Uniview NVR301‑04X‑P4

• 4-channel recording with support for up to 8 MP cameras

• Ultra 265 / H.265 / H.264 codecs; HDMI 4K and VGA simultaneous output

• 1 × SATA up to 8 TB HDD support (plus included WD Purple)

• 4 PoE ports, IEEE 802.3af/at, max 30 W per port

• 80 Mbps incoming, 64 Mbps outgoing bandwidth; supports ONVIF & RTSP

• Smart analytics: face detection, people-counting, corridor screen, Ultra Motion Detection

• Durable in all conditions (-10 °C to +55 °C, ≤ 90 % RH)

🔍 Detailed Specifications

🛡️ Warranty

• A 3-year manufacturer's warranty applies.


🏢 Brand Description

Uniview is a global leader in AIoT surveillance solutions, offering advanced imaging, compression, and intelligent analytics technologies. WD Purple drives are designed specifically for surveillance systems, engineered for high write endurance and reliability.

🏷️ SKU

• Uniview Kit: UNV‑KIT‑IPC3624LE‑4×4MP

• Camera: IPC3624LE‑ADF28K‑WP

• NVR: NVR301‑04X‑P4

🎯 Practical Use Scenarios

• Home security: full-color night images for driveways, fences, and gardens.

• Retail environments: monitor aisles and entrances with corridor mode.

• Offices & warehouses: wide‑area overview with smart alerts and people counting.

• Outdoor spaces: IP67-rated cameras for building exteriors, carparks, perimeter monitoring.

🔽 Datasheets & Downloads

• IPC3624LE‑ADF28K‑WP Datasheet & Quick Guide

🇦🇺 Excellence for the Australian and New Zealand Market

• Meets Australian quality standards, suitable for climate extremes.

• Authorized Uniview distributor ensures genuine products and local support.

• Warranty handling via Uniview ANZ offices—quick, direct manufacturer support.

• Optimized for region: local language manuals, compatible with NABERS guidelines for security monitoring.

❓ FAQs

Q: What is the kit’s product code?
A: Each FAQ includes the product code UNV‑KIT‑IPC3624LE‑4×4MP.

Q1: What resolution does the UNV‑KIT‑IPC3624LE‑4×4MP support?
The kit supports up to 4MP (2688×1520) for all cameras.

Q2: Can I store footage locally for the UNV‑KIT‑IPC3624LE‑4×4MP?
Yes—each camera supports up to 512 GB micro‑SD and the NVR supports up to 8 TB SATA HDD storage.

Q3: What night‑time performance to expect from UNV‑KIT‑IPC3624LE‑4×4MP?
ColorHunter & Wise‑ISP technology ensures 24/7 full-color video, with warm light up to 30 m.

Q4: Is PoE included in UNV‑KIT‑IPC3624LE‑4×4MP?
Yes—the NVR has 4 PoE ports (IEEE 802.3af/at), delivering data & power over a single Ethernet cable.

Q5: Does the UNV‑KIT‑IPC3624LE‑4×4MP support smart analytics?
Yes—features include face detection, people counting, intrusion and cross‑line detection, and Ultra Motion Detection.

Q6: Does UNV‑KIT‑IPC3624LE‑4×4MP include HDD?
Yes—a WD Purple surveillance-grade HDD is included, along with the NVR’s HDD bay.
