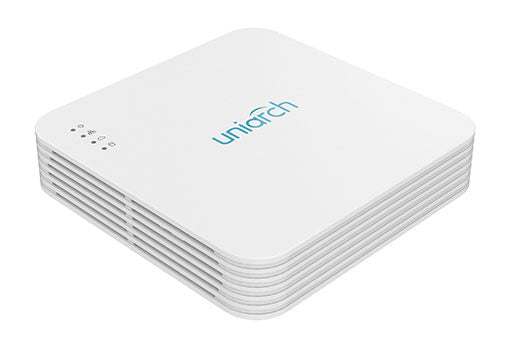

Uniarch U-NVR-104LX-P4 4CH 4K/5MP H.265 NVR with PoE Switch
Enhance your surveillance setup with the Uniarch U-NVR-104LX-P4, a robust 4-channel Network Video Recorder designed to deliver high-definition video recording and playback capabilities. Ideal for small to medium-sized installations, this NVR offers advanced features and ease of use.
Key Features:
Video Compatibility:
-
Supports Ultra 265/H.265/H.264: Efficient video compression formats maximize storage and bandwidth utilization without compromising video quality.
Camera Inputs and PoE Switch:
-
4-channel Input: Connect up to 4 IP cameras for comprehensive monitoring.
-
Plug & Play PoE Interfaces: Features 4 independent PoE (Power over Ethernet) network interfaces for straightforward camera connectivity and power supply, simplifying installation.
Compatibility and Connectivity:
-
ONVIF Conformance: Ensures compatibility with third-party IP cameras, supporting ONVIF profiles S, G, and T for seamless integration.
-
Dual Output: Provides 1 HDMI and 1 VGA output, with support for simultaneous display, HDMI up to 4K resolution (3840x2160), ensuring clear and detailed video playback.
Recording and Storage:
-
Up to 4K Resolution Recording: Captures high-resolution video up to 4K, preserving fine details crucial for effective surveillance.
-
Storage Flexibility: Supports 1 SATA HDD, with a capacity of up to 10 TB, providing ample storage space for continuous recording.
Additional Features:
-
Cloud Upgrade Support: Allows easy firmware updates and system enhancements through cloud-based upgrades, ensuring your NVR is always up to date with the latest features and security patches.
Compact and efficient, the Uniarch U-NVR-104LX-P4 is designed to meet the demands of modern surveillance systems, offering reliability, flexibility, and high-performance video recording capabilities. Perfect for environments such as retail stores, offices, and residential properties where quality and ease of use are essential.
Datasheets
Datasheet
Specifications
| Specifications |
NVR-104LX-P4 |
| Two-way Audio Input |
1-ch, RCA |
| Incoming Bandwidth |
64Mbps |
| Outgoing Bandwidth |
64Mbps |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, |
|
1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, |
|
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, |
|
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback |
4-ch |
| Decoding Format |
Ultra 265/H.265/H.264 |
| Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, |
|
8 x 1080p@30, 16 x 720p@30 |
| Capacity |
Up to 10TB for each disk |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 1 x USB2.0, 1 x USB3.0 |
| Interface |
4 independent 100 Mbps PoE network interfaces |
| Max Power |
Max 30W for single port |
|
Max 54W in total (13.5W for each) |
| Supported Standard |
IEEE 802.3at, IEEE 802.3af |
| Power Consumption |
≤9 W (without HDD) |
| Working Environment |
-10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
205mm × 205mm × 47mm (8.1"×8.1"×1.8") |
| Weight (without HDD) |
1kg (2.20 lb) |
