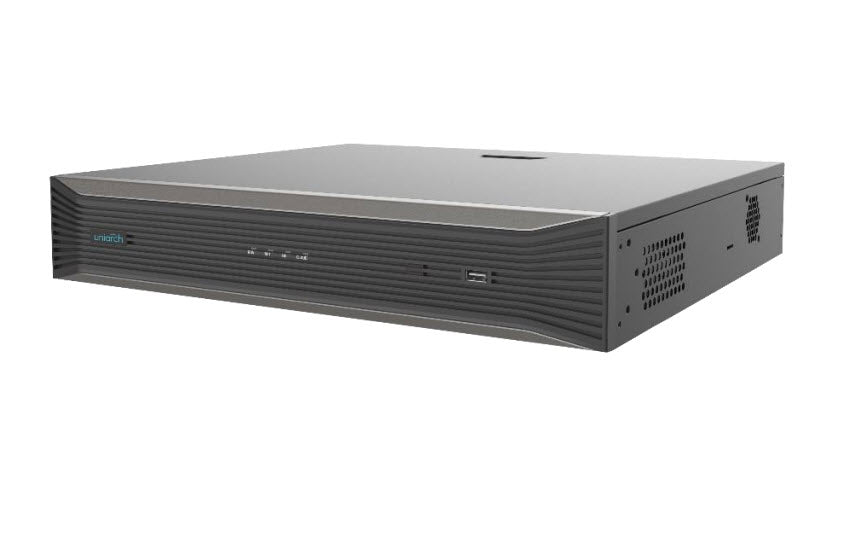

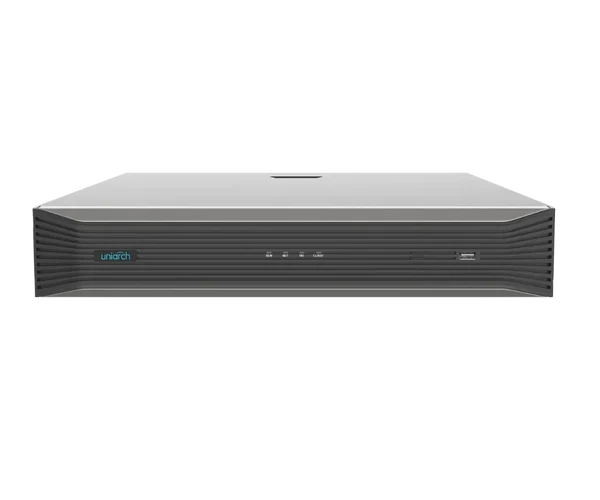

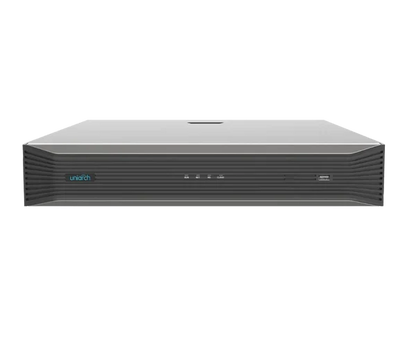

Uniarch NVR-432XU-P16 PRO 32 Channel 4 HDDs NCR

Name: Uniarch NVR-432XU-P16 PRO 32 Channel 4 HDDs NCR
Brand: CCTV Tradie
SKU: sku-45585556799727

Uniarch NVR-432XU-P16 PRO 32 Channel 4 HDDs NCR

$921.06 AUD

~~$1,224.00 AUD~~ $921.06 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Introducing the UNIARCH NVR-432XU-P16, a cutting-edge 32-channel Network Video Recorder (NVR) designed for large-scale and high-performance surveillance solutions. Part of the prestigious Uniarch Pro Series, this NVR combines advanced technology, extensive compatibility, and robust performance to meet all your security needs.

Key Features:

Advanced Video Formats: Supports Ultra H.265, H.265, and H.264 video formats, ensuring efficient storage and high-quality video playback.
32-Channel Input: Manages up to 32 IP cameras, providing comprehensive surveillance coverage for extensive areas.
Plug & Play PoE: Equipped with 16 independent PoE ports, simplifying installation by delivering power and data through a single cable for each connected camera.
High Compatibility: Supports mainstream cameras with ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols, ensuring versatile integration.
Dual Output Options: Supports 1-ch HDMI and 1-ch VGA outputs, with HDMI up to 4K (3840x2160) resolution, providing sharp and clear display.
Ultra-High Definition: Capable of recording up to 12 Megapixels resolution, delivering exceptionally detailed video for enhanced monitoring and analysis.
Massive Storage: Accommodates four SATA HDDs with a capacity of up to 10TB each, offering extensive storage for video recordings.
RAID Support: Includes RAID 1 and RAID 5 support, enhancing data redundancy and reliability.
Fisheye Dewarping: Various fisheye dewarping modes for live view and playback available on both web interface and GUI, ensuring comprehensive monitoring coverage.
ANR Technology: Automatic Network Replenishment (ANR) technology to enhance storage reliability during network disconnections.
Cloud Upgrade Support: Easily upgrade the NVR's firmware via the cloud, ensuring access to the latest features and security updates.
High Bandwidth: Handles up to 320Mbps incoming and 320Mbps outgoing bandwidth, ensuring smooth data transmission and optimal performance.
(Choose your own HDD below)

Technical Specifications:

Number of Channels: 32CH
Number of PoE Ports: 16 PoE Ports
Number of Hard Disk Bays: 4 HDD bays
Maximum Resolution Support: 12MP
Technology: Uniarch Pro Series
Network Bandwidth: 320Mbps Incoming, 320Mbps Outgoing

The UNIARCH NVR-432XU-P16 is the perfect solution for large-scale surveillance systems, offering unparalleled performance, high compatibility, and ease of use. Enhance your security infrastructure with this reliable and feature-rich NVR, ensuring peace of mind with top-notch video quality and extensive storage capabilities.

Specifications Chart: NVR-432XU-P16

Model	NVR-432XU-P16
Video/Audio Input
IP Video Input	32-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	320Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Browser	IE (IE10/11) for Windows, Firefox (version 52.0 and above) for Windows, Chrome (version 45 and above) for Windows, Edge (version 79 and above) for Windows
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9/16/25/36
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Snapshot	FTP/Schedule/Event Snapshot, 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1@30
Hard Disk
SATA	4 SATA interfaces
Capacity	up to 10TB for each HDD
eSATA	NA
Disk Group Support	Yes
RAID	RAID 1, 5
Smart
VCA Detection by Camera	Face Detection, Face Comparison, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search	Face Search, Face Comparison Search, Behavior Search, Vehicle Search
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention	(SIP), Face Detection, Face Comparison, Vehicle Detection by Camera, Total 8-ch
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection, Doorbell Call, People Present Alarm
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	16-ch
Alarm Out	4-ch
PoE
Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port, Max 150W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	100~240V AC
Power Consumption	≤ 20 W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	400mm × 368mm × 74mm (15.7" × 14.5"× 2.9")
Weight (without HDD)	≤4Kg (8.82lb)
Certification
CE	EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC	Part15 Subpart B, ANSI C63.4
RoHS	Yes
WEEE	Yes
