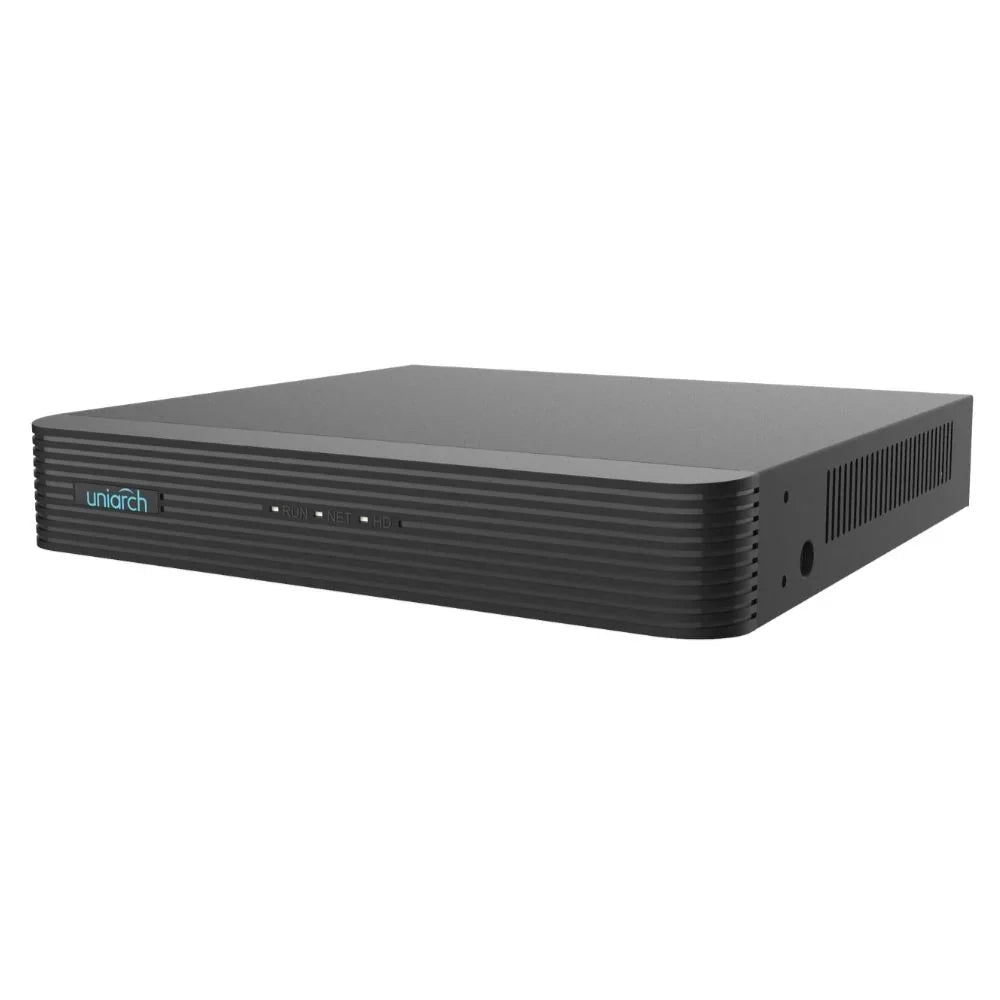

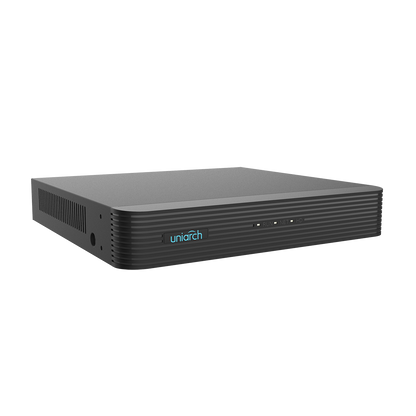

Uniarch NVR-104X-P4 PRO 4 Channel NVR

Uniarch NVR-104X-P4 PRO 4 Channel NVR

Regular price $208.08 AUD
Regular price $310.08 AUD Sale price $208.08 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Quantity

Introducing the UNIARCH PRO NVR-104X-P4, a state-of-the-art 4-channel Network Video Recorder (NVR) designed for advanced surveillance applications. This powerful and versatile NVR is part of the esteemed Uniarch Pro Series, offering cutting-edge technology and superior performance for all your security needs.

Key Features:

  • Advanced Video Formats: Supports Ultra 265, H.265, and H.264 video formats, ensuring efficient storage and high-quality video playback.
  • 4-Channel Input: Capable of handling up to 4 IP cameras, providing comprehensive coverage for your surveillance area.
  • High Compatibility: Compatible with mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols, ensuring seamless integration with your existing security infrastructure.
  • Dual Output Options: Supports 1-ch HDMI and 1-ch VGA outputs, allowing simultaneous display on multiple monitors.
  • Ultra-High Definition: Capable of recording up to 4K resolution, delivering crystal-clear video for precise monitoring and analysis.
  • SATA HDD Support: Accommodates one SATA HDD with a capacity of up to 6TB, providing ample storage for your video recordings.
  • Cloud Upgrade Support: Easily upgrade your NVR's firmware via the cloud, ensuring you always have the latest features and security updates.
  • Network Bandwidth: Handles up to 80Mbps incoming and 64Mbps outgoing bandwidth, ensuring smooth data transmission and optimal performance.
  • PoE Ports: Equipped with 4 PoE ports, simplifying installation by providing power and data transmission over a single cable for each connected camera.
  • (Choose your own HDD below)

Technical Specifications:

  • Number of Channels: 4CH
  • Number of PoE Ports: 4 PoE Ports
  • Number of Hard Disk Bays: 1 HDD bay
  • Maximum Resolution Support: 8MP
  • Technology: Uniarch Pro Series
  • Network Bandwidth: 80Mbps Incoming, 64Mbps Outgoing

The UNIARCH PRO NVR-104X-P4 is the perfect solution for small to medium-sized surveillance systems, offering robust performance, high compatibility, and ease of use. Enhance your security setup with this reliable and feature-rich NVR, ensuring peace of mind with top-notch video quality and extensive storage capabilities.

Specifications

Category Specification
Model NVR-104X-P4
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, DHCP, UPnP, HTTP, HTTPS, DNS, DDNS, SMTP
Video/Audio Output
HDMI/VGA Output HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz<br>VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Decoding
Decoding Format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each disk
Smart
VCA Detection by Camera Intrusion detection, Cross line detection, Enter area, Leave area
VCA Search Behavior search
General Alarm
General Alarm Motion, Human Body Detection, Video Loss, Alarm input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0, 1 x USB3.0
RS232 NA
RS485 NA
Alarm In NA
Alarm Out NA
PoE
Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port, Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption ≤9 W (without HDD)
Working Environment -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm × 47mm (10.2"×9.4"×1.9")
Weight (without HDD) 1kg (2.20 lb)
Certification
Certification CE, FCC, WEEE, RCM
