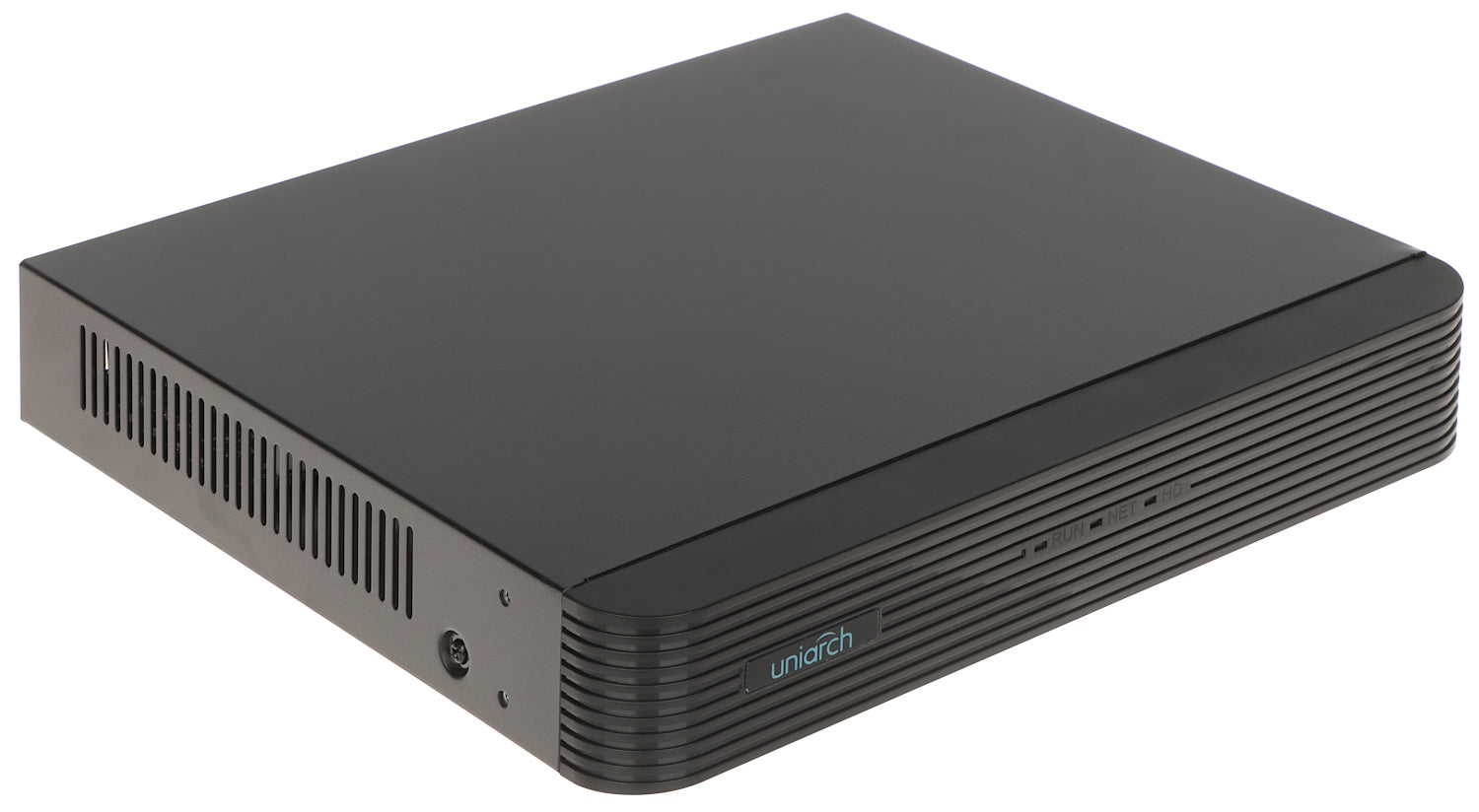

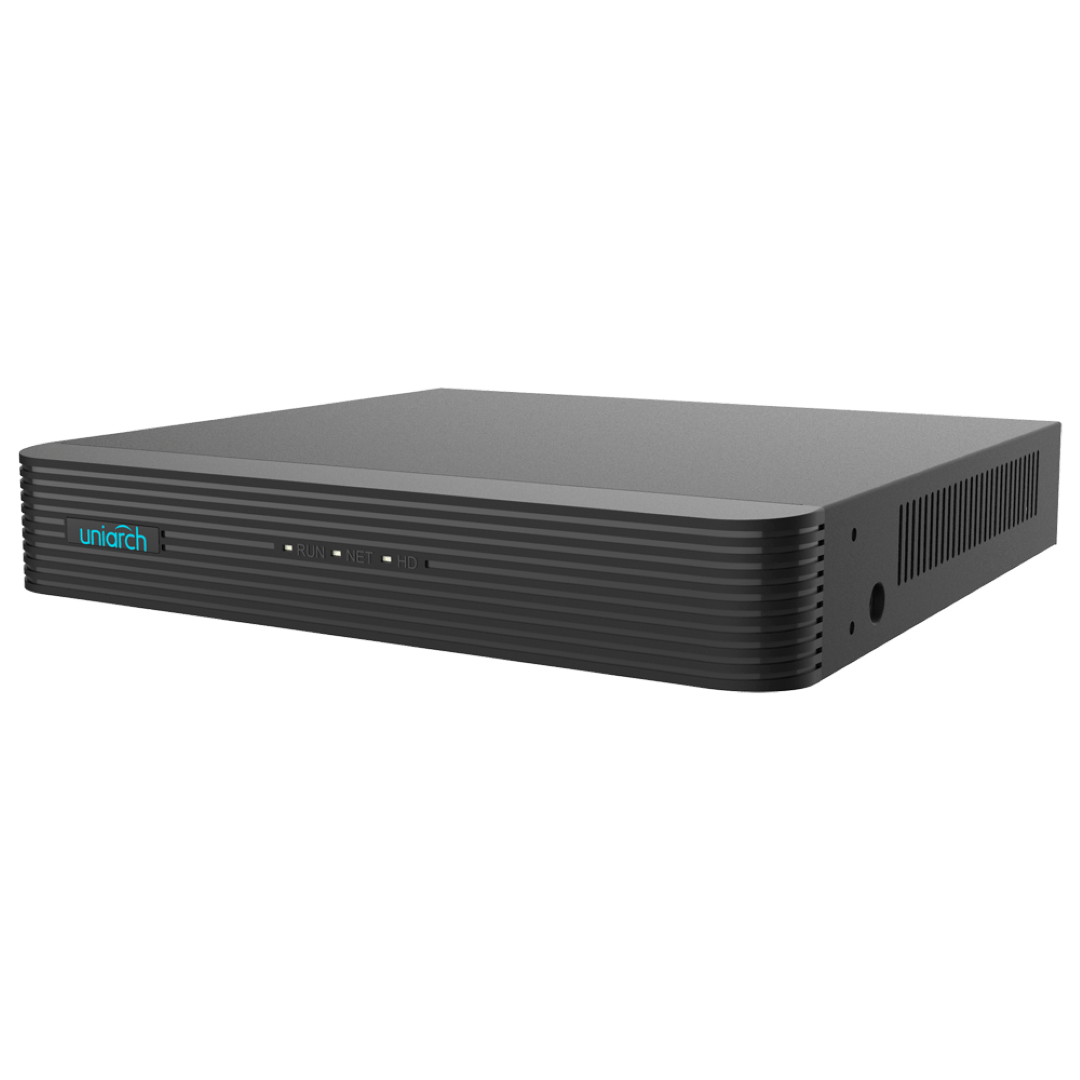

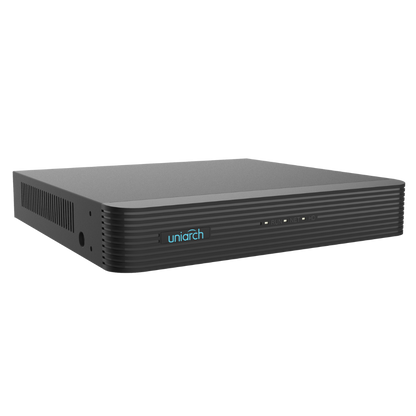

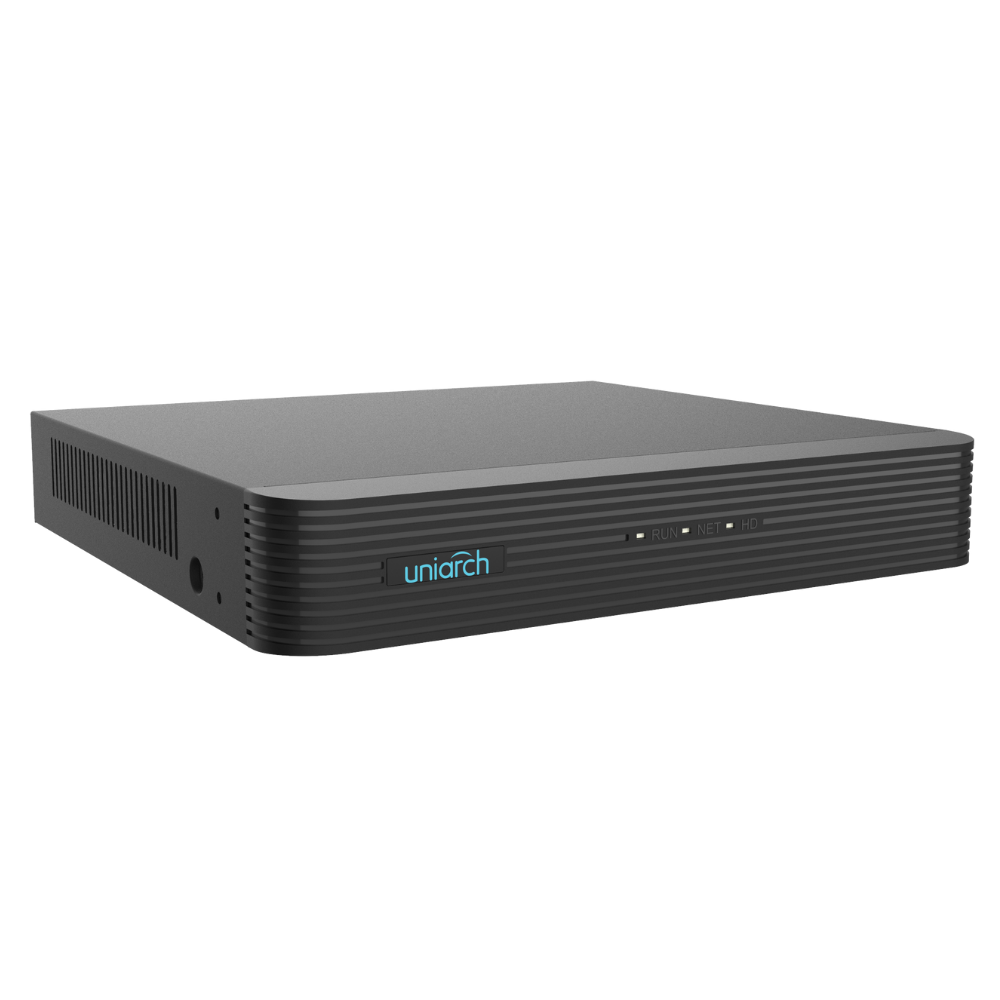

UNIARCH NVR-104E2-P4-1TB Lite 4 Channel NVR with 1TB Installed

UNIARCH NVR-104E2-P4-1TB Lite 4 Channel NVR with 1TB Installed

$264.18 AUD
$346.80 AUD $264.18 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Experience seamless and reliable video recording with the UNIARCH Lite 4 Channel NVR, equipped with essential features for efficient surveillance management.

Key Features:

  • Channels: 4-channel NVR supporting Ultra 265/H.265/H.264 video formats.
  • PoE Ports: 4 independent PoE (Power over Ethernet) ports for plug-and-play connectivity.
  • Recording Resolution: Capable of recording up to 4K@30fps for detailed surveillance footage.
  • Storage Capacity: Includes a pre-installed 1TB surveillance-grade HDD, expandable up to 6TB with 1 SATA HDD bay.
  • Bandwidth: 40Mbps incoming and outgoing bandwidth for smooth data transmission.
  • Video Outputs: Supports 1 HDMI and 1 VGA output simultaneously for flexible display options.
  • Remote Access: Cloud upgrade support for easy firmware updates and maintenance.
  • Compatibility: Third-party IP cameras supported with ONVIF conformance (Profile S, Profile G, Profile T).
  • Resolution Support: Records up to 8MP resolution for clear and detailed video capture.
  • User-friendly Design: Designed for ease of setup and operation, ideal for small to medium-scale surveillance systems.

Ideal for Small to Medium-Scale Surveillance:

The UNIARCH Lite 4 Channel NVR with 1TB Installed offers a robust solution for businesses and homes seeking reliable video recording and management. With its plug-and-play PoE ports, high-resolution recording capabilities, and expandable storage options, it ensures seamless integration and effective monitoring.

Enhance your security infrastructure with UNIARCH, where simplicity meets efficiency in video surveillance technology.

Specifications

Specification NVR-104E2-P4 NVR-108E2-P8
Video/Audio Input 4-ch 8-ch
Incoming Bandwidth 40Mbps 50Mbps
Outgoing Bandwidth 40Mbps 40Mbps
Remote Users 128 128
Protocols P2P, UPnP, DHCP P2P, UPnP, DHCP
Video/Audio Output HDMI/VGA HDMI/VGA
HDMI Output Resolutions 3840x2160/30Hz, 1920x1080/60Hz, etc. 3840x2160/30Hz, 1920x1080/60Hz, etc.
VGA Output Resolutions 1920x1080/60Hz, 1600x1200/60Hz, etc. 1920x1080/60Hz, 1600x1200/60Hz, etc.
Audio Output 1-ch, RCA 1-ch, RCA
Recording Resolution 8MP/5MP/4MP/3MP/1080P/720P, etc. 8MP/5MP/4MP/3MP/1080P/720P, etc.
Synchronous Playback 4-ch 8-ch
Corridor Mode Screen 3/4 3/4/5/7/9
Decoding Format Ultra 265/H.265/H.264 Ultra 265/H.265/H.264
Liveview/Playback Capability 1 x 8MP@30, 1 x 5MP@30, etc. 1 x 8MP@30, 1 x 5MP@30, etc.
Hard Disk 1 SATA interface 1 SATA interface
HDD Capacity Up to 6TB per disk Up to 6TB per disk
Network Interface 1 RJ45 10M/100M 1 RJ45 10M/100M
USB Interface Rear panel: 2 x USB2.0 Rear panel: 2 x USB2.0
PoE Interface 4 RJ45 10M/100M 8 RJ45 10M/100M
Max Power Max 30W per port, 54W total Max 30W per port, 75W total
Supported Standard IEEE 802.3at, IEEE 802.3af IEEE 802.3at, IEEE 802.3af
Power Supply 48V DC 52V DC
Power Consumption ≤9W (without HDD) ≤9W (without HDD)
Working Environment -10°C ~ +55°C, Humidity ≤ 90% RH -10°C ~ +55°C, Humidity ≤ 90% RH
Dimensions (W×D×H) 260mm × 243mm × 46mm 260mm × 243mm × 46mm
Weight (without HDD) ≤1.2kg (2.65 lb) ≤1.2kg (2.65 lb)



Datasheets

Datasheet

Warranty

We offer 2 Years warranty
