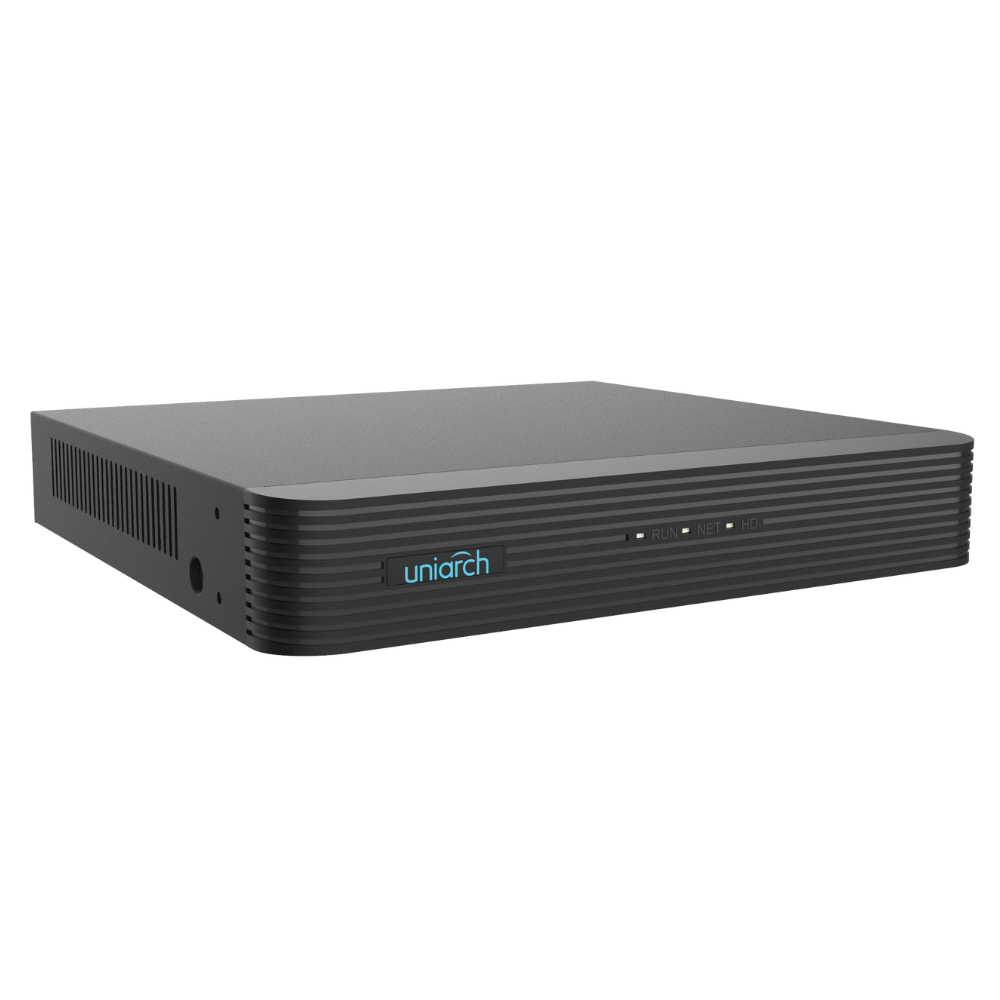

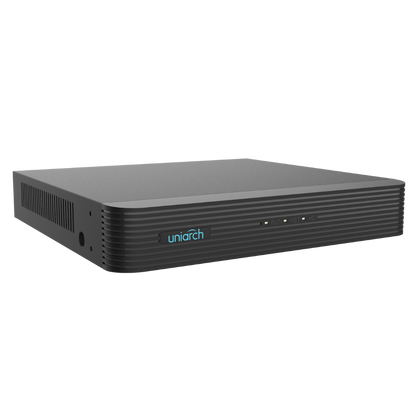

UNIARCH Lite 8 Channel NVR with 2TB Installed - NVR-108E2-P8-2TB

UNIARCH Lite 8 Channel NVR with 2TB Installed - NVR-108E2-P8-2TB

$373.32 AUD
$530.40 AUD $373.32 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Enhance your surveillance setup with the UNIARCH Lite 8 Channel NVR, complete with robust features tailored for efficient video recording and management.

Key Features:

  • Channels: 8-channel NVR supporting Ultra 265/H.265/H.264 video formats.
  • PoE Ports: 8 independent PoE (Power over Ethernet) ports for easy setup and connectivity.
  • Recording Resolution: Supports up to 4K@30fps for crystal-clear video capture.
  • Storage Capacity: Includes a pre-installed 2TB surveillance-grade HDD, expandable up to 6TB with 1 SATA HDD bay.
  • Bandwidth: 50Mbps incoming and 40Mbps outgoing for seamless data handling.
  • Video Outputs: HDMI and VGA outputs allow simultaneous display for flexible monitoring options.
  • Remote Access: Supports cloud upgrades for convenient firmware updates and maintenance.
  • Compatibility: Third-party IP cameras supported with ONVIF conformance (Profile S, Profile G, Profile T).
  • Resolution Support: Records up to 8MP resolution, ensuring detailed surveillance footage.

Ideal for Comprehensive Surveillance Solutions:

The UNIARCH Lite 8 Channel NVR with 2TB Installed is designed to meet the demands of medium-scale surveillance applications. With its intuitive plug-and-play PoE ports, high-resolution recording capabilities, and ample storage capacity, it provides reliable video management and monitoring.

Empower your security infrastructure with UNIARCH, where advanced technology meets user-friendly design for effective surveillance solutions.

Specifications

Specification NVR-104E2-P4 NVR-108E2-P8
Video/Audio Input 4-ch 8-ch
Incoming Bandwidth 40Mbps 50Mbps
Outgoing Bandwidth 40Mbps 40Mbps
Remote Users 128 128
Protocols P2P, UPnP, DHCP P2P, UPnP, DHCP
Video/Audio Output HDMI/VGA HDMI/VGA
HDMI Output Resolutions 3840x2160/30Hz, 1920x1080/60Hz, etc. 3840x2160/30Hz, 1920x1080/60Hz, etc.
VGA Output Resolutions 1920x1080/60Hz, 1600x1200/60Hz, etc. 1920x1080/60Hz, 1600x1200/60Hz, etc.
Audio Output 1-ch, RCA 1-ch, RCA
Recording Resolution 8MP/5MP/4MP/3MP/1080P/720P, etc. 8MP/5MP/4MP/3MP/1080P/720P, etc.
Synchronous Playback 4-ch 8-ch
Corridor Mode Screen 3/4 3/4/5/7/9
Decoding Format Ultra 265/H.265/H.264 Ultra 265/H.265/H.264
Liveview/Playback Capability 1 x 8MP@30, 1 x 5MP@30, etc. 1 x 8MP@30, 1 x 5MP@30, etc.
Hard Disk 1 SATA interface 1 SATA interface
HDD Capacity Up to 6TB per disk Up to 6TB per disk
Network Interface 1 RJ45 10M/100M 1 RJ45 10M/100M
USB Interface Rear panel: 2 x USB2.0 Rear panel: 2 x USB2.0
PoE Interface 4 RJ45 10M/100M 8 RJ45 10M/100M
Max Power Max 30W per port, 54W total Max 30W per port, 75W total
Supported Standard IEEE 802.3at, IEEE 802.3af IEEE 802.3at, IEEE 802.3af
Power Supply 48V DC 52V DC
Power Consumption ≤9W (without HDD) ≤9W (without HDD)
Working Environment -10°C ~ +55°C, Humidity ≤ 90% RH -10°C ~ +55°C, Humidity ≤ 90% RH
Dimensions (W×D×H) 260mm × 243mm × 46mm 260mm × 243mm × 46mm
Weight (without HDD) ≤1.2kg (2.65 lb) ≤1.2kg (2.65 lb)
