CCTV Tradie

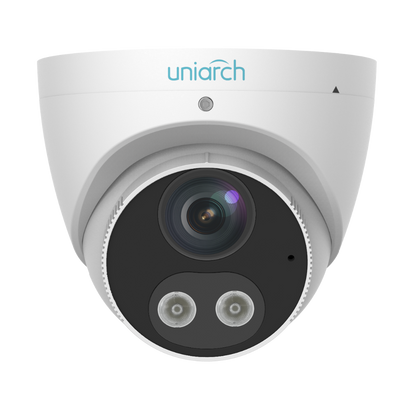

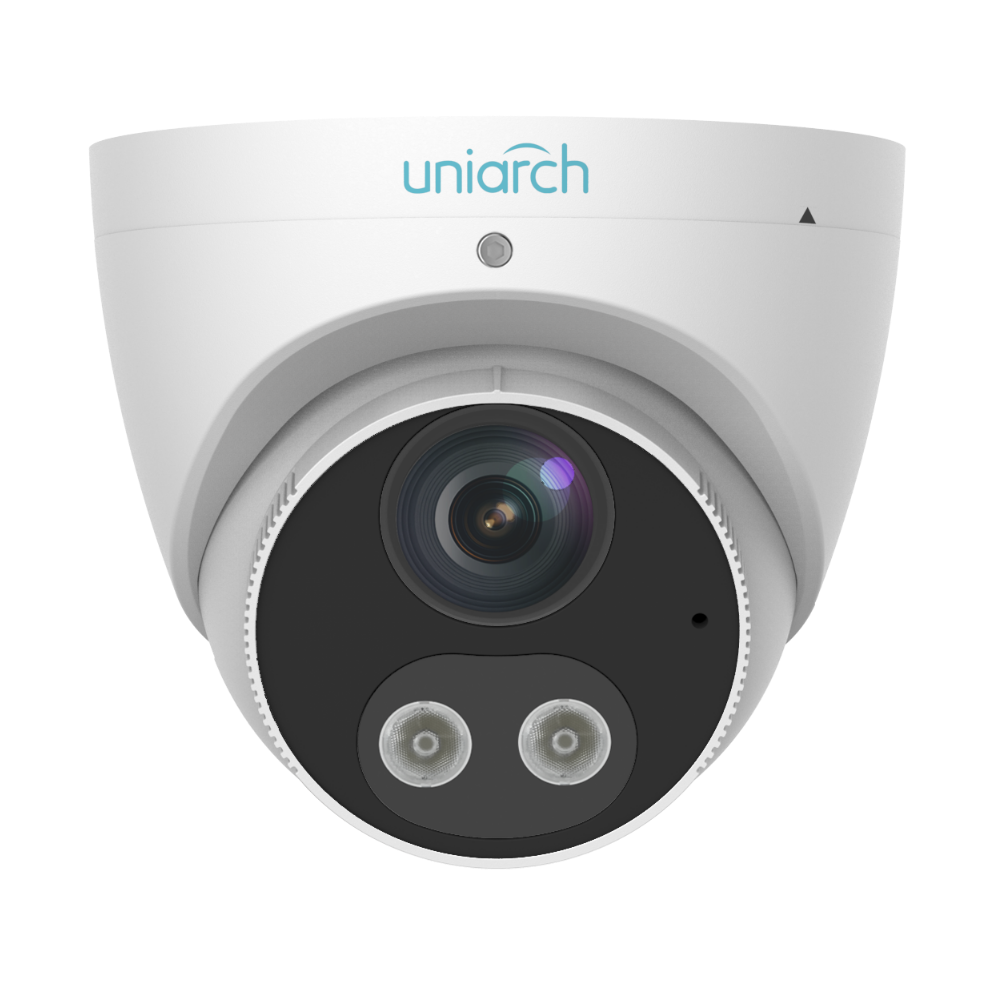

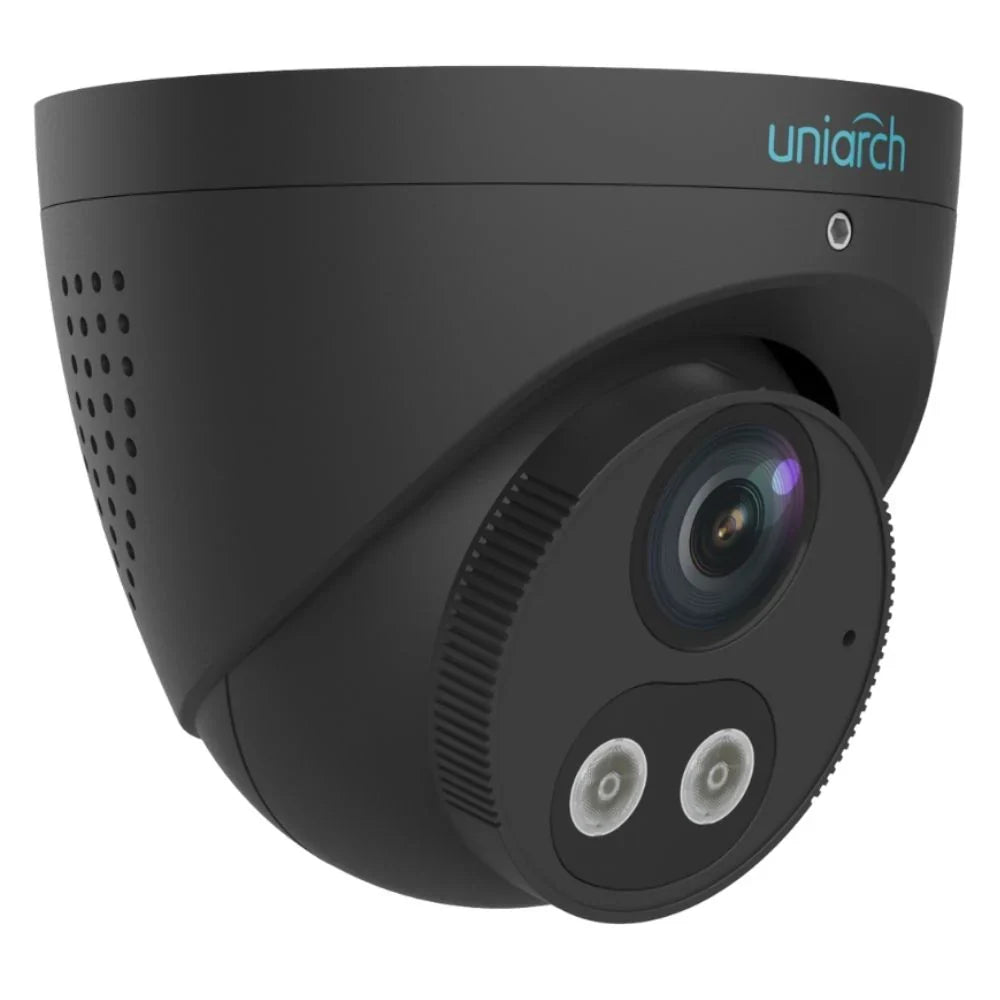

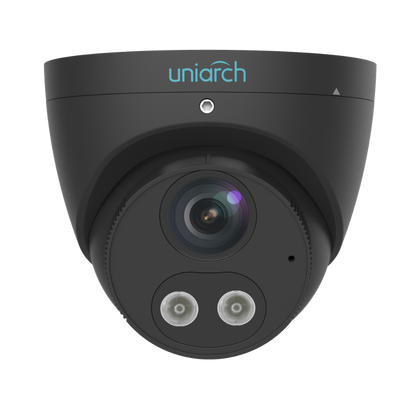

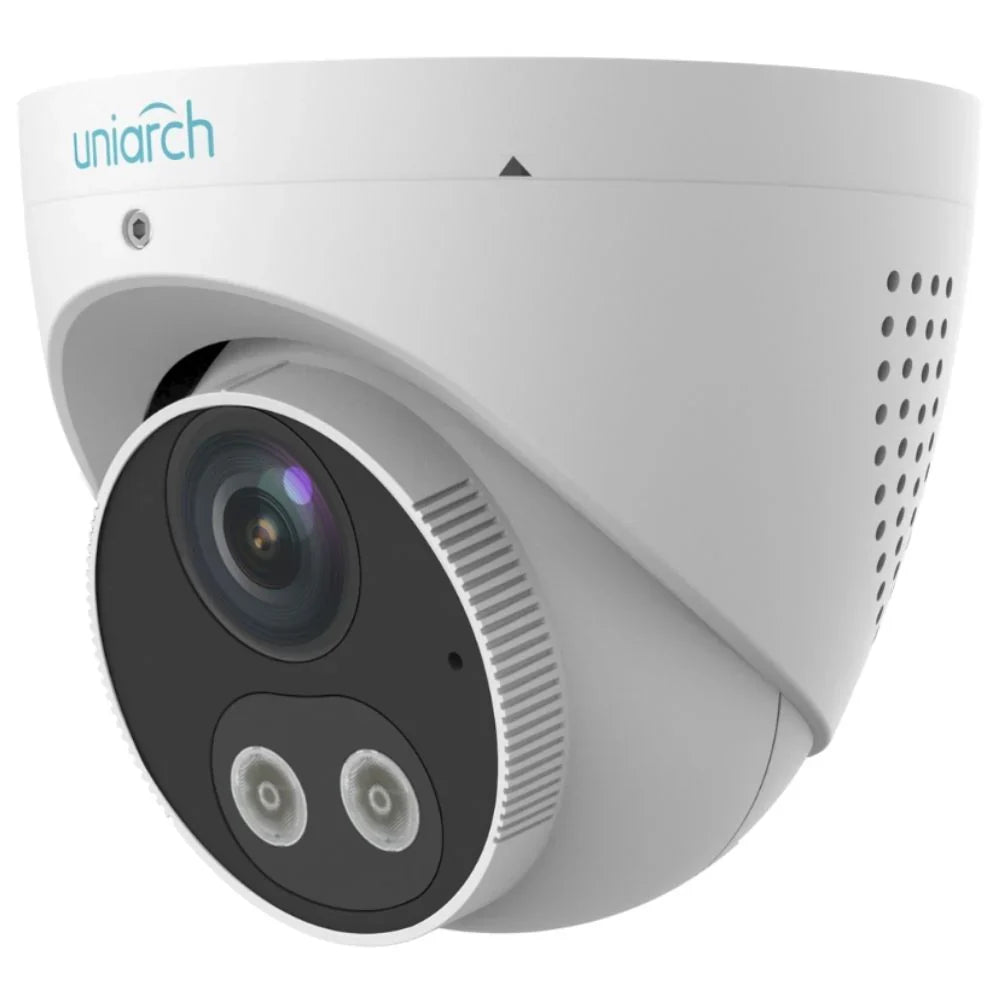

Uniarch IPC-T1P8-AF28KC AiOC (all in 1) 8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

Uniarch IPC-T1P8-AF28KC AiOC (all in 1) 8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

Regular price $284.58 AUD
Regular price $386.58 AUD Sale price $284.58 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color
Quantity

Here is a concise product description for the UNIARCH 8MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera (IPC-T1P8-AF28KC):

  • High Resolution Imaging: Features an 8MP CMOS sensor for crisp and detailed images. Offers multiple resolutions including 8MP, 5MP, 4MP, and 2MP, ensuring flexibility in video quality.

  • Advanced Video Compression: Utilizes Ultra 265, H.265, H.264, and MJPEG compression technologies, optimizing storage and bandwidth efficiency without compromising image quality.

  • Intelligent Intrusion Prevention: Smart detection capabilities such as cross line, intrusion, enter area, and leave area detection. Reduces false alarms caused by environmental factors, focusing accurately on human and vehicle movement.

  • Sound and Light Alarm Linkage: Integrated sound and light alarms triggered by smart intrusion prevention events, enhancing security response capabilities.

  • Wide Dynamic Range (WDR): Incorporates 120dB true WDR technology to capture clear images in challenging lighting conditions, ensuring visibility in both bright and dark areas.

  • Specialized Modes: Supports 9:16 Corridor Mode, ideal for monitoring narrow spaces efficiently.

  • Audio Capabilities: Includes built-in microphone and speaker for two-way audio communication, enhancing interaction and monitoring capabilities.

  • Night Vision: Equipped with Smart IR technology providing up to 30m (98ft) of infrared night vision, ensuring clear footage even in low-light environments.

  • Storage Options: Supports up to 256GB Micro SD card for edge storage, ensuring continuous recording and playback capability without external servers.

  • Weatherproof Design: Built to withstand harsh environmental conditions with an IP67-rated housing, making it suitable for outdoor use.

This camera is designed to provide reliable and advanced surveillance solutions, combining high-resolution imaging, intelligent detection features, and robust construction for effective security monitoring in various environments.

Specifications

Category Details
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan CMOS
Minimum Illumination Color: 0.003Lux (F1.6, AGC ON), 0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
WDR 120dB
S/N Ratio >56dB
Lens
Lens 2.8mm @F1.6
Angle of View (H/V/O) 106.7° / 57.1° / 115.7°
DORI Distance
Lens (mm) Detect(m) / Observe(m) / Recognize(m) / Identify(m)
2.8mm 86.9 / 34.8 / 17.4 / 8.7
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP@20fps, 5MP@30fps, 4MP@30fps, 1080P@30fps
Sub Stream: 1080P@30fps, 720P@30fps, D1@30fps, 2CIF@30fps, CIF@30fps
Video Bit Rate 128 Kbps~16 Mbps
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Rotation, brightness, saturation, contrast, sharpness, gain adjustable
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Line crossing detection, Intrusion detection, Region entrance/exit detection
Events
Basic Detection Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, access policy, security
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way Audio Supported
Audio Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP
FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users, 2 user levels (administrator and common user)
Security
Security Password protection, HTTPS encryption, operation logs, authentication
Digest authentication for HTTP, TLS 1.2, WSSE, ONVIF
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Supported
Built-in Speaker Supported
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
General
Power DC 12V±25%, PoE (IEEE802.3 af)
Power Consumption Max 10.5 W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ111 x 95mm (Φ4.4” x 3.7”)
Weight 0.48kg (1.058lb)





Datasheets

Datasheet

Warranty

We offer 2 Years warranty
