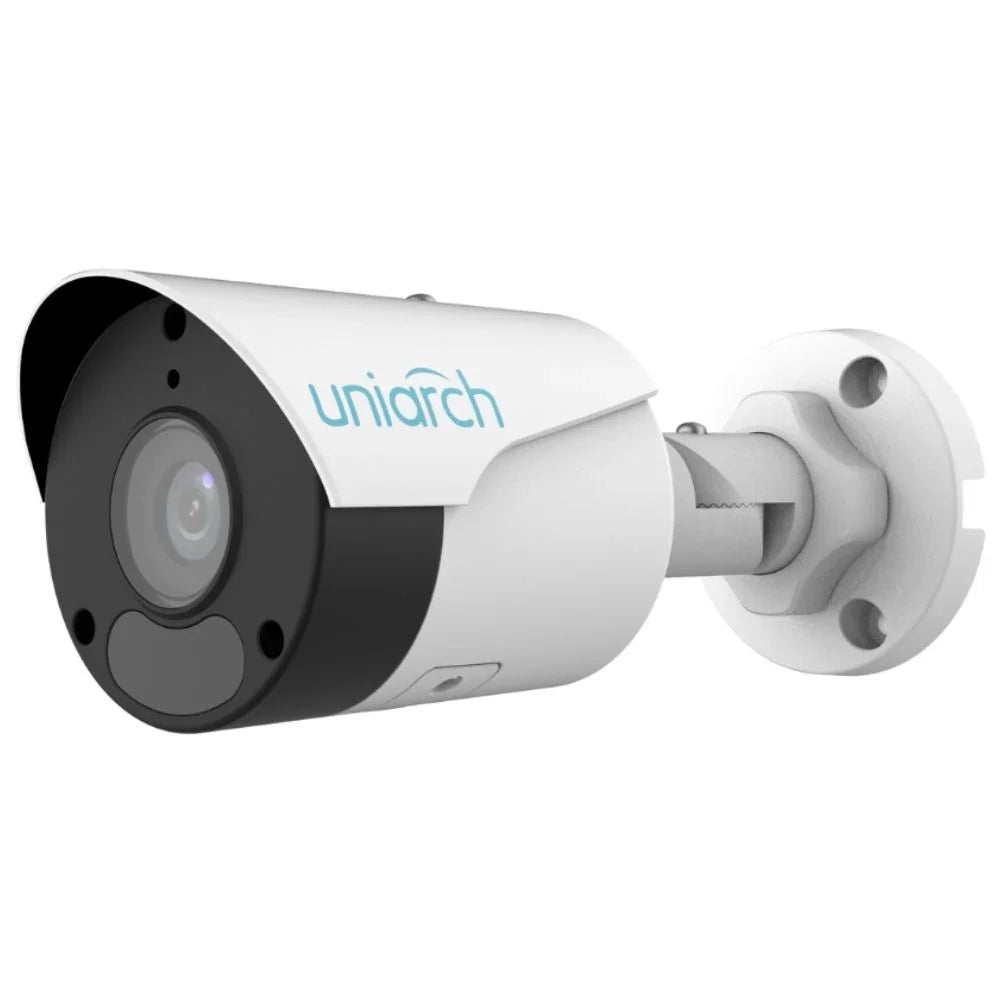

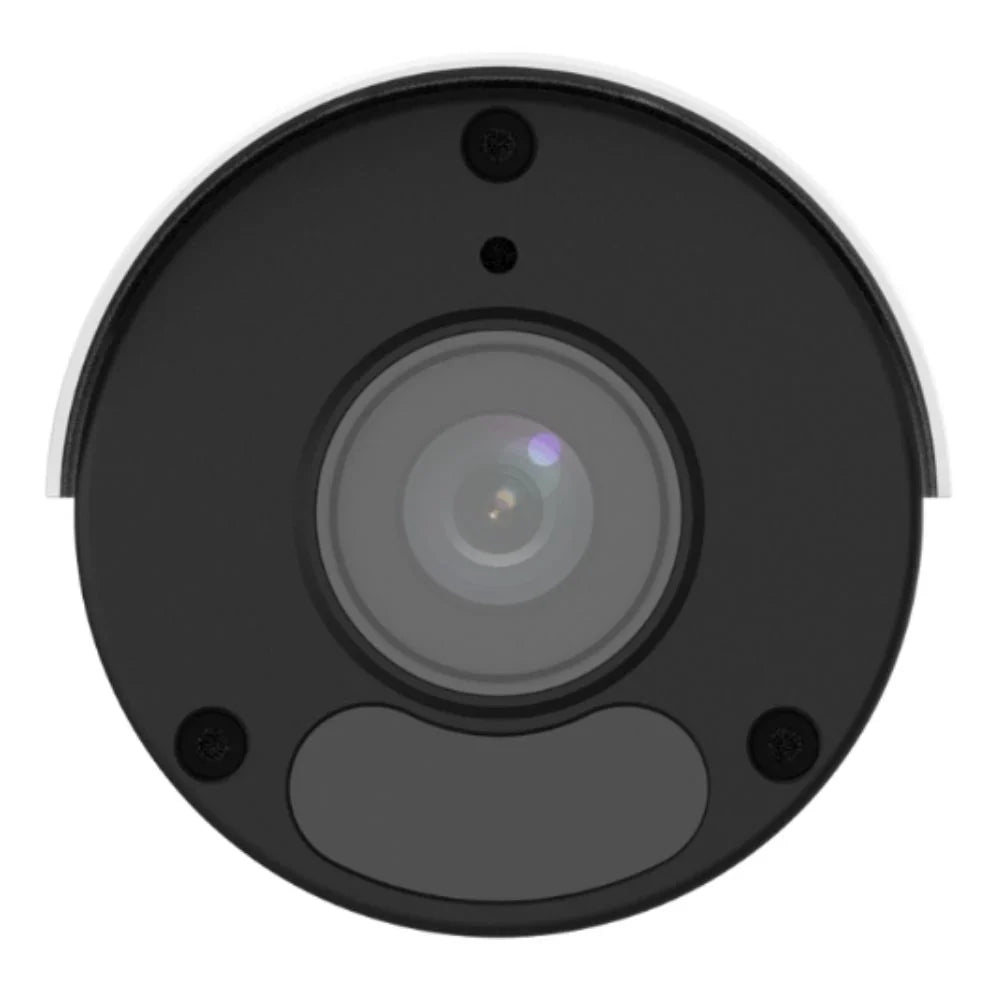

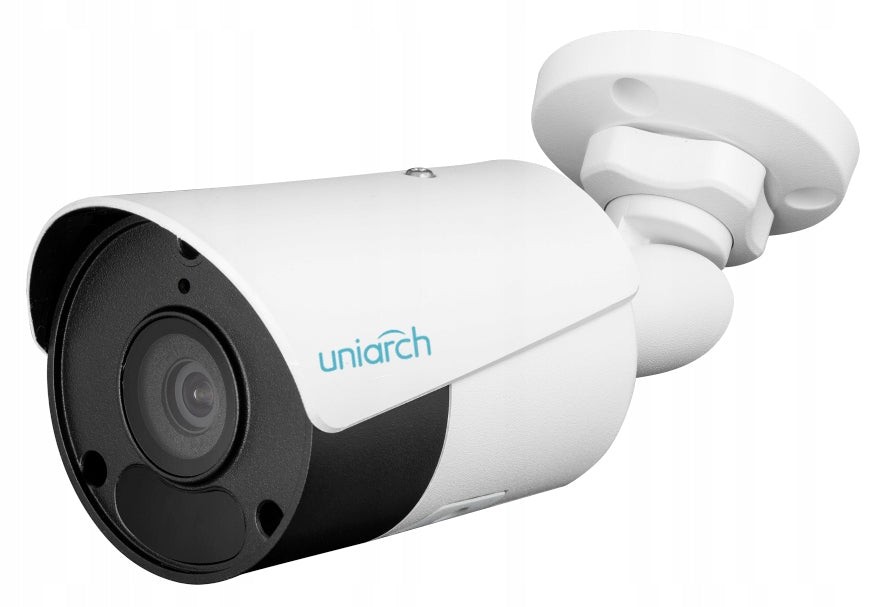

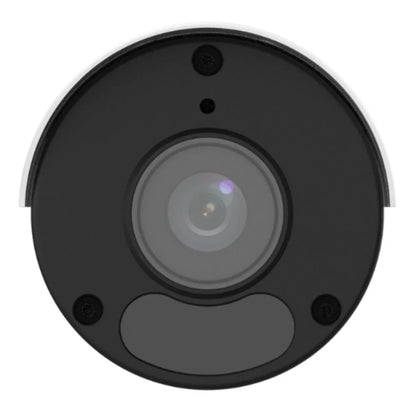

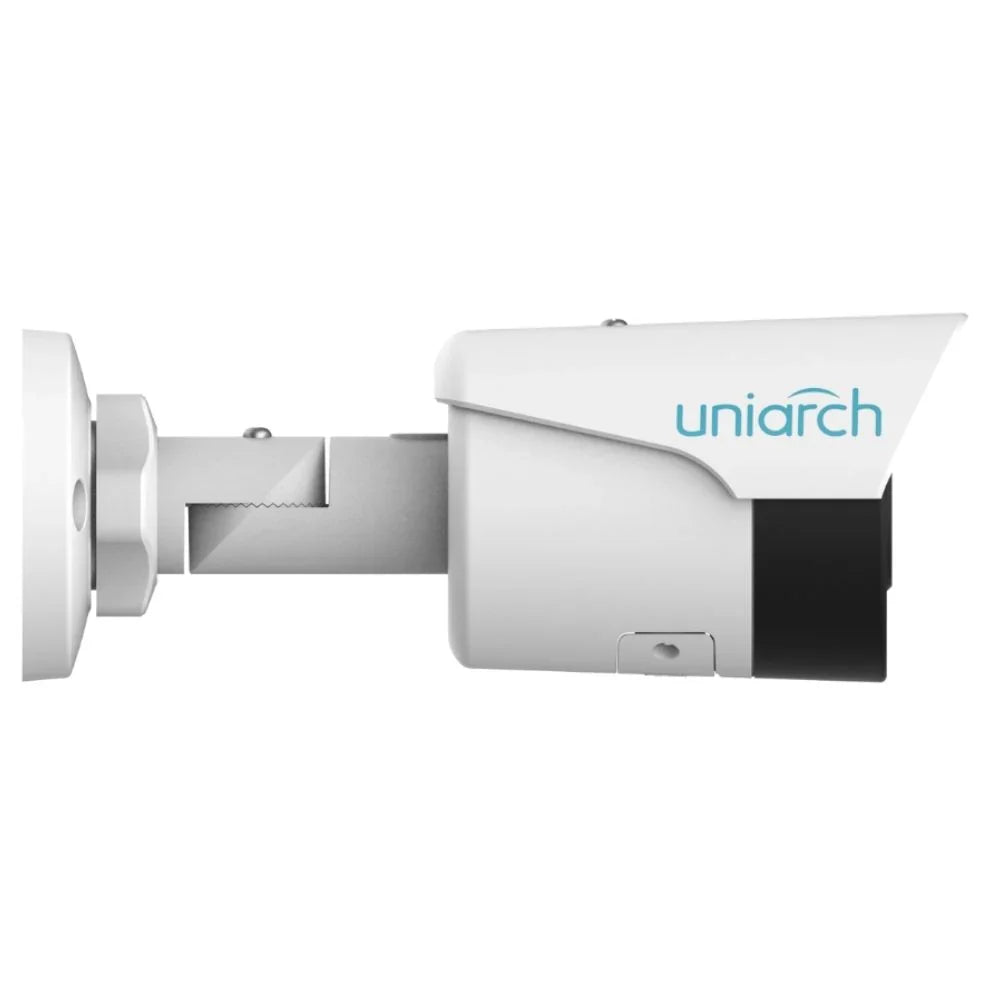

Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network ip CCTV Camera

Introducing the Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network Camera, designed to elevate your surveillance capabilities with cutting-edge technology and robust features:

• High-Resolution Imaging: Equipped with an 8MP 1/2.7'' CMOS sensor, delivering high-quality images at resolutions up to 3840 x 2160 pixels @ 20fps, ensuring exceptional clarity and detail.

• Advanced Compression: Supports Ultra 265, H.265, H.264, and MJPEG formats, optimizing storage and bandwidth efficiency while preserving image quality.

• Easystar Technology: Ensures superior image quality in low-light environments, enhancing visibility and monitoring effectiveness day and night.

• Enhanced Visibility: Features 120dB true Wide Dynamic Range (WDR) technology, providing clear images in environments with strong backlighting or varying light conditions.

• Flexible Installation: Supports 9:16 Corridor Mode, allowing seamless monitoring in narrow spaces or hallways, adapting to different surveillance needs.

• Audio Capabilities: Includes a built-in microphone for audio recording, enhancing overall surveillance capabilities.

• Night Vision: Smart IR technology offers up to 50 meters (164 feet) of infrared distance, ensuring reliable monitoring in low-light or nighttime conditions.

• Storage Flexibility: Compatible with up to 256GB Micro SD card for convenient local storage options, facilitating easy data management.

• Weatherproof Design: IP67-rated for dust and water resistance, suitable for outdoor installations in various weather conditions, ensuring reliable operation.

• Effortless Deployment: Supports Power over Ethernet (PoE) for simplified installation with single-cable connectivity for power and data transmission.

The Uniarch IPC-B1E8-AF28K 4K HD Fixed Bullet Network Camera is ideal for businesses, residential areas, and public spaces requiring high-performance surveillance solutions. With its advanced features and rugged design, it ensures superior image quality, robust security, and reliable performance for comprehensive monitoring needs.

Specifications	Details

Camera

Sensor: 1/2.7", 8.0 megapixel, progressive scan, CMOS

Minimum Illumination: Color: 0.005Lux (F1.6, AGC ON), 0Lux with IR

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

S/N Ratio: >56dB

WDR: 120dB

Lens	Lens Type: 2.8mm @1.6, Fixed-focal

Lens Mount: M12

Angle of View (H): 112.9°

Angle of View (V): 59.1°

Angle of View (O): 121.2°

DORI	Distance Chart:

Lens (mm)

2.8

Illuminator

IR Range: Up to 50m (164ft) IR range

Wavelength: 850nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

Frame Rate:

Main Stream: 8MP (38402160), Max 20fps; 5MP (30721728), Max 30fps

Sub Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps

Video Bit Rate: 128 Kbps~16 Mbps

U-code Supported

9:16 Corridor Mode Supported

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Motion Detection: Up to 4 areas


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital Noise Reduction: 2D/3D DNR

Smart IR: Supported

Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Defog: Digital Defog

HLC: Supported

BLC: Supported

Events

Intelligent Detection: Intrusion detection (based on human)

Basic Detection: Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression: G.711

Suppression: Supported

Sampling Rate: 8KHZ

Storage

Edge Storage: Micro SD, up to 256GB

Network Storage: ANR, NAS(NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host: Up to 32 users. 2 user levels: administrator and common user

Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

Uniarch Client

Uniarch APP

Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below; Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Built-in Mic: Supported

General

Power: 12 V DC±25%, PoE (IEEE802.3 af), Power consumption: Max 6.5W

Power Interface: Ø 5.5mm coaxial power plug

Dimensions (L × W × H): 179×71×70mm (7.0”×2.8”×2.8”)

Weight: 0.45kg (0.99lb)

Material: Metal

Working Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)

Storage Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)

Surge Protection: 4KV

Reset Button: Supported

Ingress Protection: IP67
