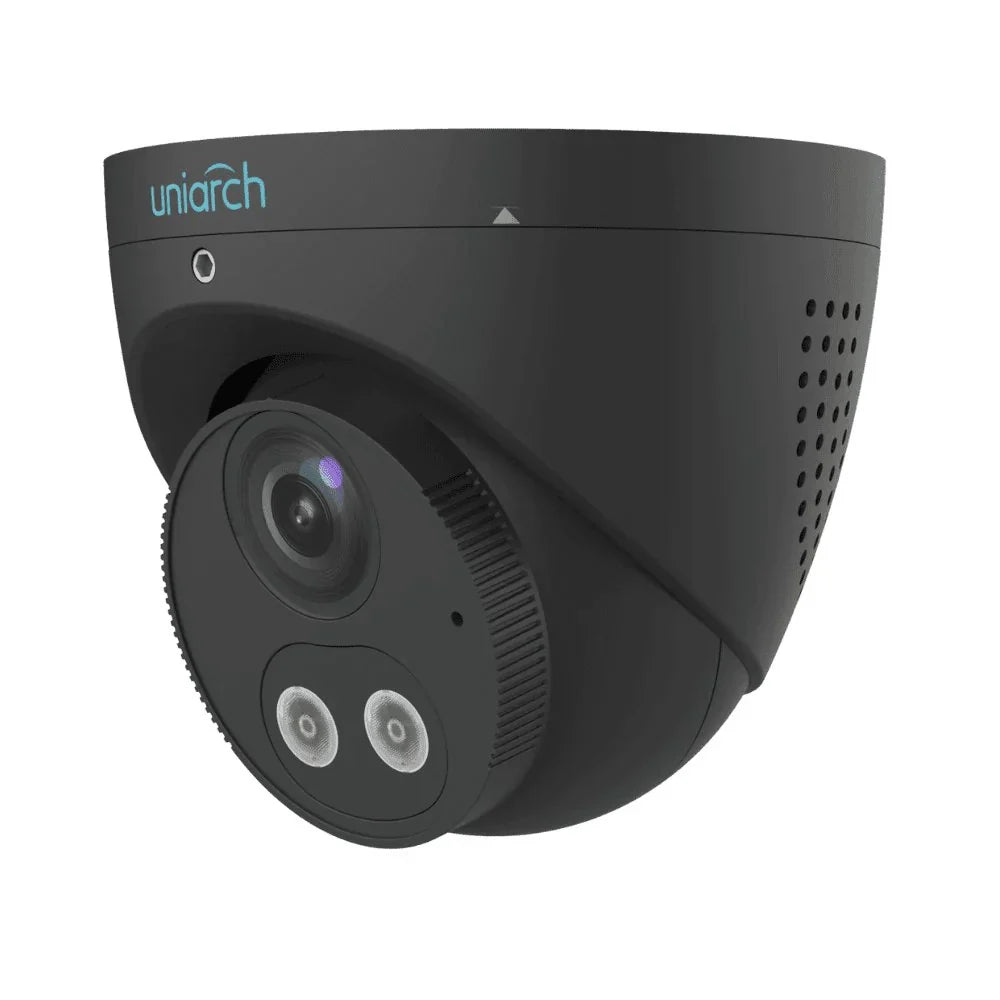

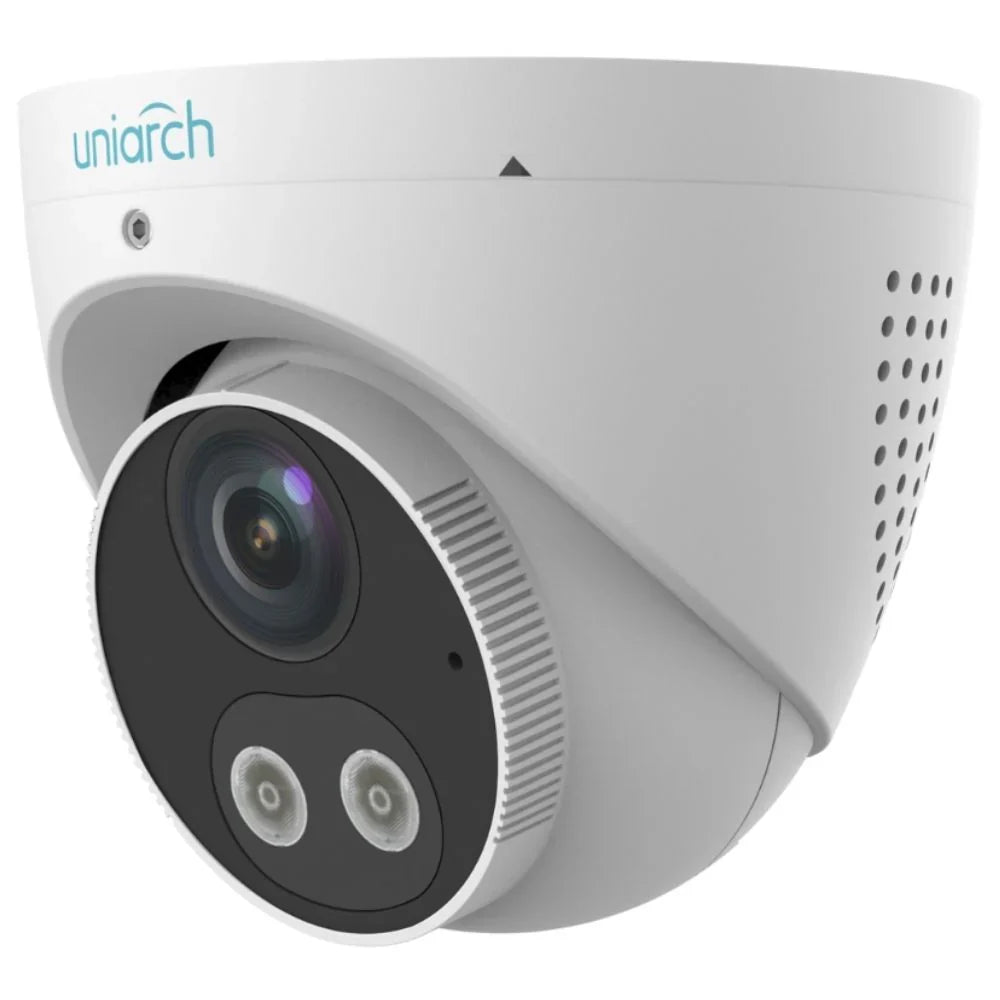

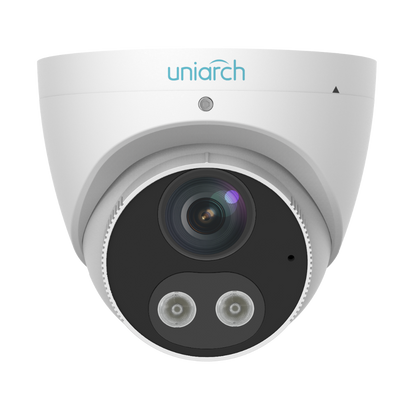

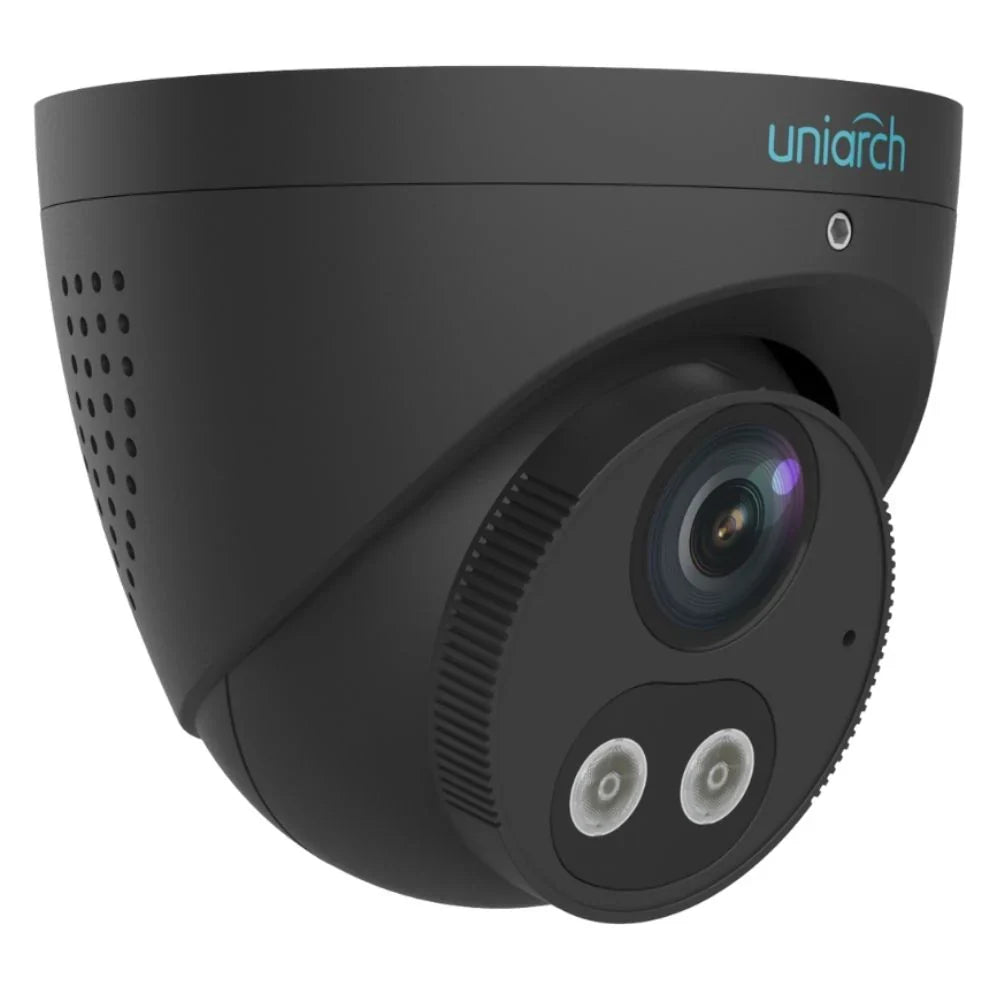

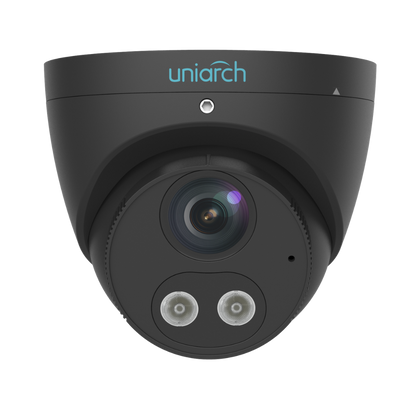

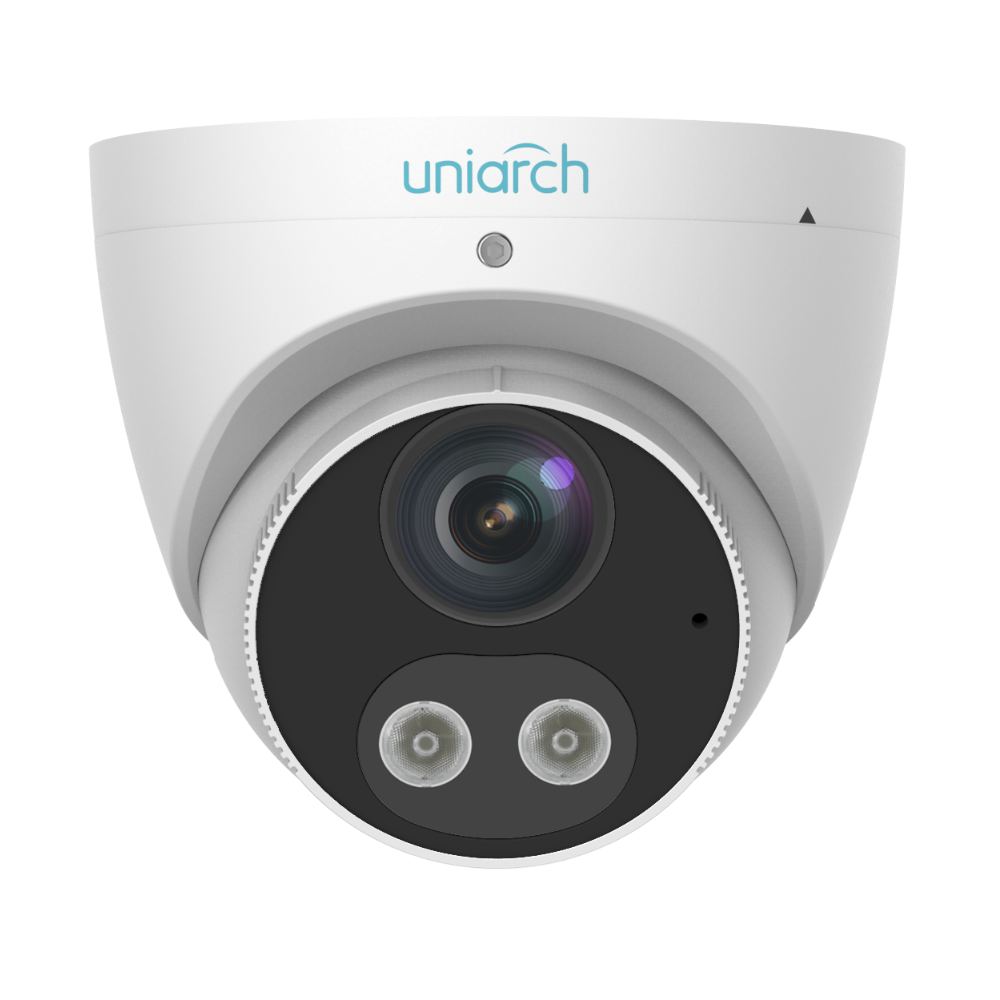

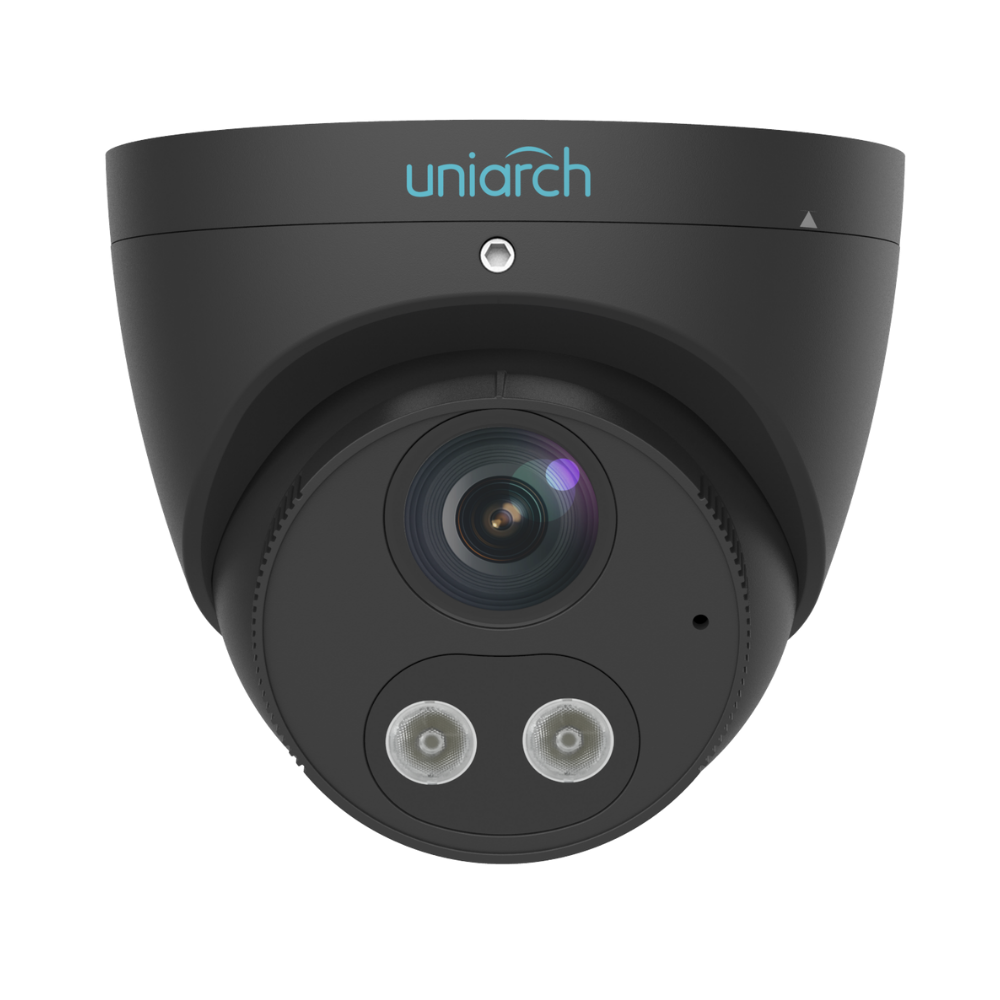

Uniarch AiOC (All in 1) IPC-T1P5-AF28KC 5MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

UNIARCH 5MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera, model IPC-T1P5-AF28KC:

• High-Quality Image: Utilizes a 5MP, 1/2.7" CMOS sensor for clear and detailed video footage.
• Resolution Options: Supports resolutions up to 5MP (2880*1620)@30/25fps, with additional options including 4MP, 3MP, and 2MP.
• Video Compression: Offers Ultra 265, H.265, H.264, and MJPEG for efficient video storage and transmission.
• Smart Intrusion Prevention: Includes advanced features like cross line, intrusion, enter area, and leave area detection. Targets classification helps reduce false alarms caused by environmental factors, focusing on human and vehicle detection.
• Sound and Light Alarm Linkage: Activates sound and light alarms when smart intrusion prevention is triggered, enhancing security responses.
• Wide Dynamic Range (WDR): 120dB WDR technology ensures clear images in varying light conditions, even in strong backlight scenarios.
• Specialized Modes: Supports 9:16 Corridor Mode for optimized vertical surveillance.
• Audio Capabilities: Equipped with built-in microphone and speaker for two-way audio communication.
• Night Vision: Smart IR technology provides up to 30m (98ft) of infrared night vision distance.
• Storage Options: Compatible with up to 256GB Micro SD cards for local video storage.
• Weatherproof Design: IP67-rated for protection against dust and water, suitable for outdoor use.
• Power over Ethernet (PoE): Supports PoE power supply for convenient installation and setup.

This camera is designed to offer comprehensive security solutions with advanced features tailored for effective surveillance applications.

Specifications

Category	Details

Camera

Sensor

1/2.7", 5.0 megapixel, progressive scan, CMOS

Minimum Illumination

Color: 0.003Lux (F1.6, AGC ON), 0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

WDR

120dB

S/N Ratio

>56dB

Lens

Lens	2.8mm @ F1.6, Fixed-focal

Angle of View (H)

101.1°

Angle of View (V)

55.3°

Angle of View (O)

111.1°

DORI Distance

Lens	Detect: 63.0m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m

Illuminator

IR Range

Up to 30m (98ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 5MP (2880*1620) @ 30fps; 4MP @ 30fps; 3MP @ 30fps; 1080P @ 30fps; Sub Stream: 720P @ 30fps; D1 @ 30fps; Third Stream: D1 @ 30fps

Video Bit Rate

128 Kbps~16 Mbps

U-code Supported

Yes

ROI	Up to 8 areas

Video Stream

Triple streams

OSD	Up to 8 OSDs

Privacy Mask

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Rotation, brightness, saturation, contrast, sharpness, gain adjustable

Digital Noise Reduction

2D/3D DNR

Smart IR

Supported

Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Defog

Digital Defog

Intelligent Smart Intrusion Prevention

Line crossing, Intrusion detection, Region entrance, Region exit detection

Events

Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711

Audio Bitrate

64 Kbps

Two-way Audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, G, T), API, SDK

User/Host

Up to 32 users, 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF

Web Browser

Plug-in Required Live View

IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in Free Live View

Chrome 57.0+, Firefox 58.0+, Edge 16+

Interface

Audio I/O

N/A

Alarm I/O

N/A

RS485

N/A

Built-in Mic

Supported

Built-in Speaker

Supported

WIFI

N/A

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

General

Power

DC 12V±25%, PoE (IEEE802.3 af)

Power Consumption

Max 7.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ111 x 95mm (Φ4.4” x 3.7”)

Weight

0.43kg (0.948lb)

Material

Metal

Working Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Reset Button

Supported

Ingress Protection

IP67

Datasheets

Datasheet

Warranty

We offer 2 Years warranty
