TP-Link VIGI SP9030 Intelligent Solar Power Supply System

Name: TP-Link VIGI SP9030 Intelligent Solar Power Supply System
Brand: CCTV Tradie
SKU: VIGI-SP9030ESS
Price: 1120.98 AUD
Availability: InStock

TP-Link VIGI SP9030 Intelligent Solar Power Supply System

$1,120.98 AUD

~~$1,530.00 AUD~~ $1,120.98 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

The TP-Link VIGI SP9030 is a state-of-the-art solar power supply system designed for reliable and sustainable energy in security and surveillance setups. This system combines high-efficiency solar technology with intelligent power management features to ensure non-stop operation where the sun shines.

Key Features:

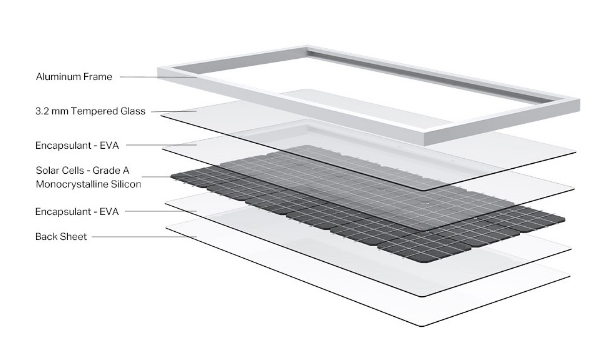

1. High-Efficiency Solar Panel

Power: 90W
Voltage: 18V
Conversion Efficiency: 21.6%
Lifespan: 25+ years

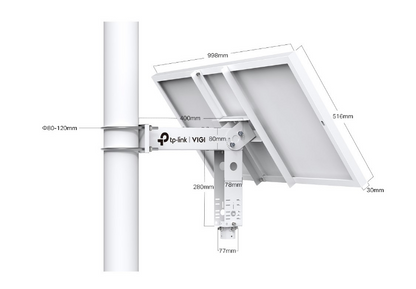

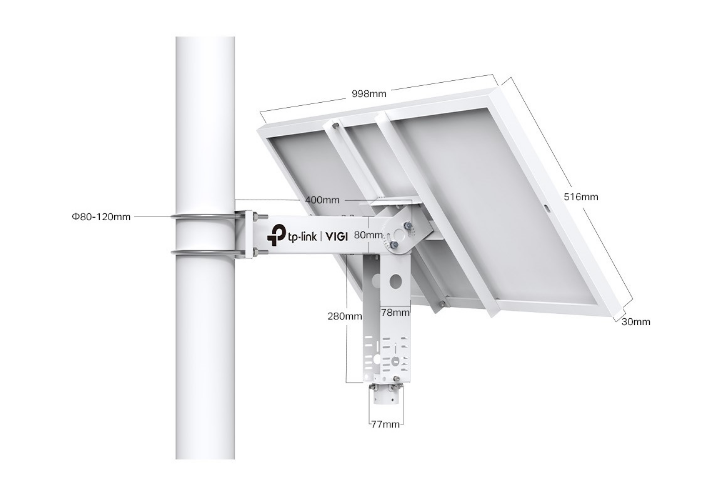

Dimensions: 998 × 516 × 30 mm (39.3 × 20.3 × 1.2 in)

The high-grade solar panel provides robust power with a high conversion efficiency, ensuring effective energy capture and long-term performance.

2. Lithium Battery

Type: Lithium
Capacity: 30Ah / 10.8V
Max. Output Voltage: 12.6V
Life: Over 500 cycles
Dimensions: 250 × 74 × 74 mm (9.8 × 2.9 × 2.9 in)
Charging Conditions: 0°C ~ 45°C (With intelligent auxiliary heating: -30°C ~ 45°C)
Discharging Conditions: -20°C ~ 60°C (With intelligent auxiliary heating: -30°C ~ 60°C)

The high-capacity lithium battery supports intelligent auxiliary heating technology, allowing reliable performance across a wide temperature range.

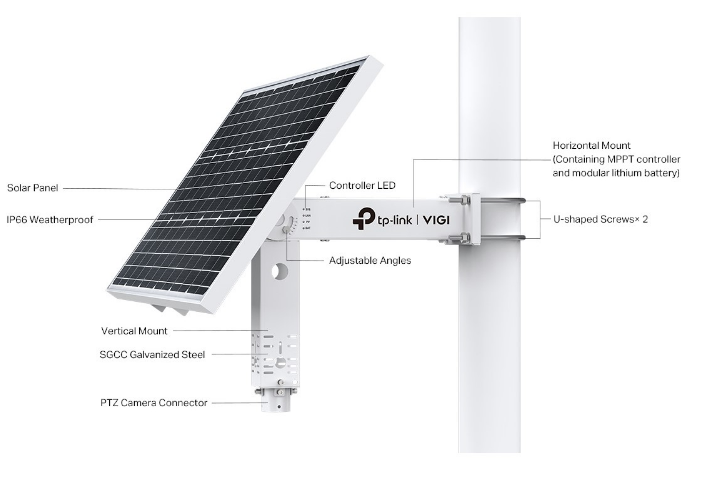

3. Modular Design

Adjustable Angles: 5°, 15°, 25°, 35°, 45°, 55°

The modular design and adjustable angle options ensure optimal solar panel positioning for maximum sunlight exposure.

4. Intelligent Features

MPPT Charging Controller: Boosts charging efficiency by 20% compared to PWM controllers.
Remote Management: Allows for remote monitoring and control through a web interface or mobile app.
Simple Installation: Designed for easy setup with included mounting accessories.
IP66 Weatherproof: Ensures durability and protection against the elements.

5. Software Features

Load Control: Manages power usage efficiently.
High and Low Temperature Protection: Safeguards against extreme temperatures.
Overdischarge Protection: Prevents battery damage.
Power Consumption Statistics: Tracks energy use.
Real-time Load Status: Displays current system performance.
Battery Level Display: Monitors battery charge status.
Firmware Remote Update: Keeps the system up-to-date.
Remote Reboot and Reset: Facilitates remote maintenance.
Local LAN Management: Allows for network-based control and monitoring.

6. Recommended Models

VIGI C540-4G
VIGI C345
VIGI C540S
EAP115-Bridget KIT

Performance Highlights

Working Hours on Consecutive Rainy Days: Up to 8.5 days
On-load Charge on Sunny Days: 1.5 days (varies based on specific model and conditions)

Package Contents:

VIGI SP9030 Solar Power Supply System
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

General Specifications:

Certification: CB, PSE (Battery), CE, FCC, VCCI, IC, IP66
Operating Temperature: -30°C to 60°C (with intelligent auxiliary heating)
Operating Humidity: 10% ~ 90% RH, Non-condensing
Box Dimensions: 1110 × 615 × 225 mm (43.7 × 24.2 × 8.9 in)
Product Weight: 15 kg
Package Weight: 17.5 kg

The TP-Link VIGI SP9030 Intelligent Solar Power Supply System is an ideal choice for powering your security and surveillance equipment with sustainable and reliable solar energy. Its intelligent features and high-efficiency components make it a valuable addition to any outdoor or remote security setup.
