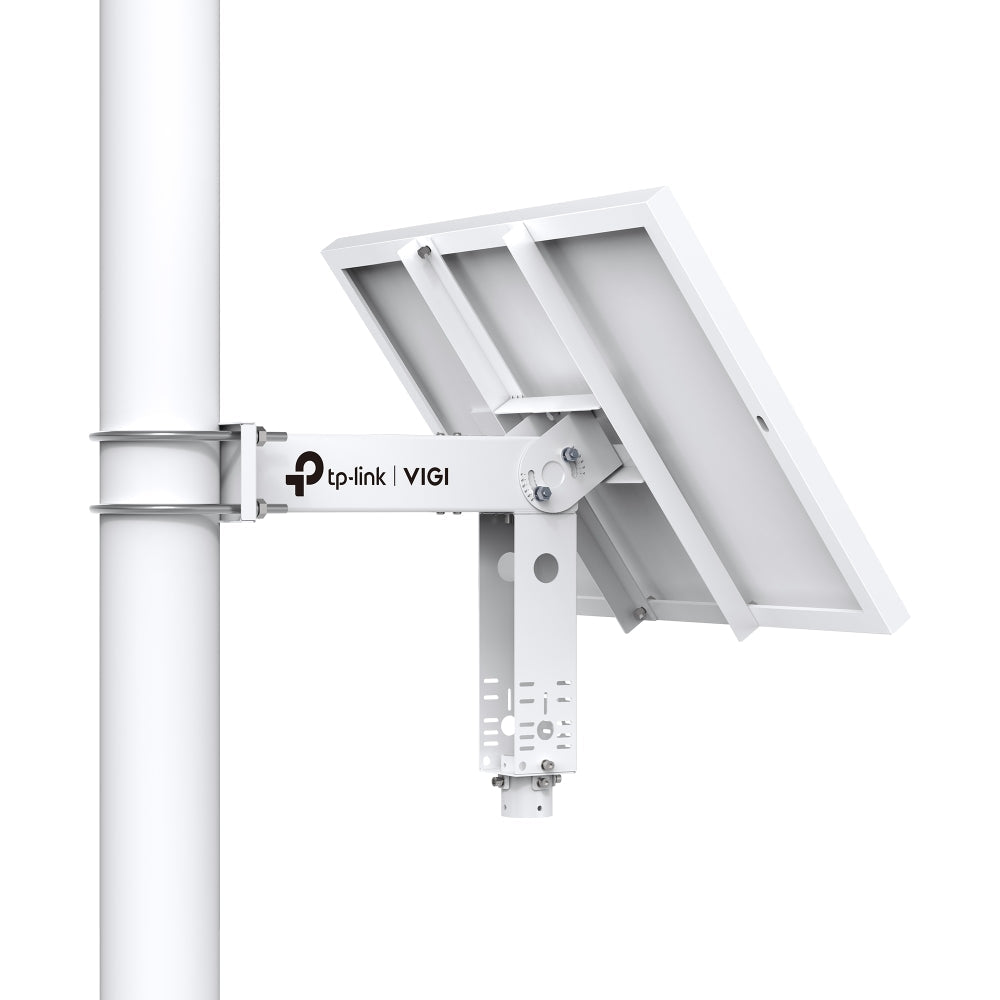

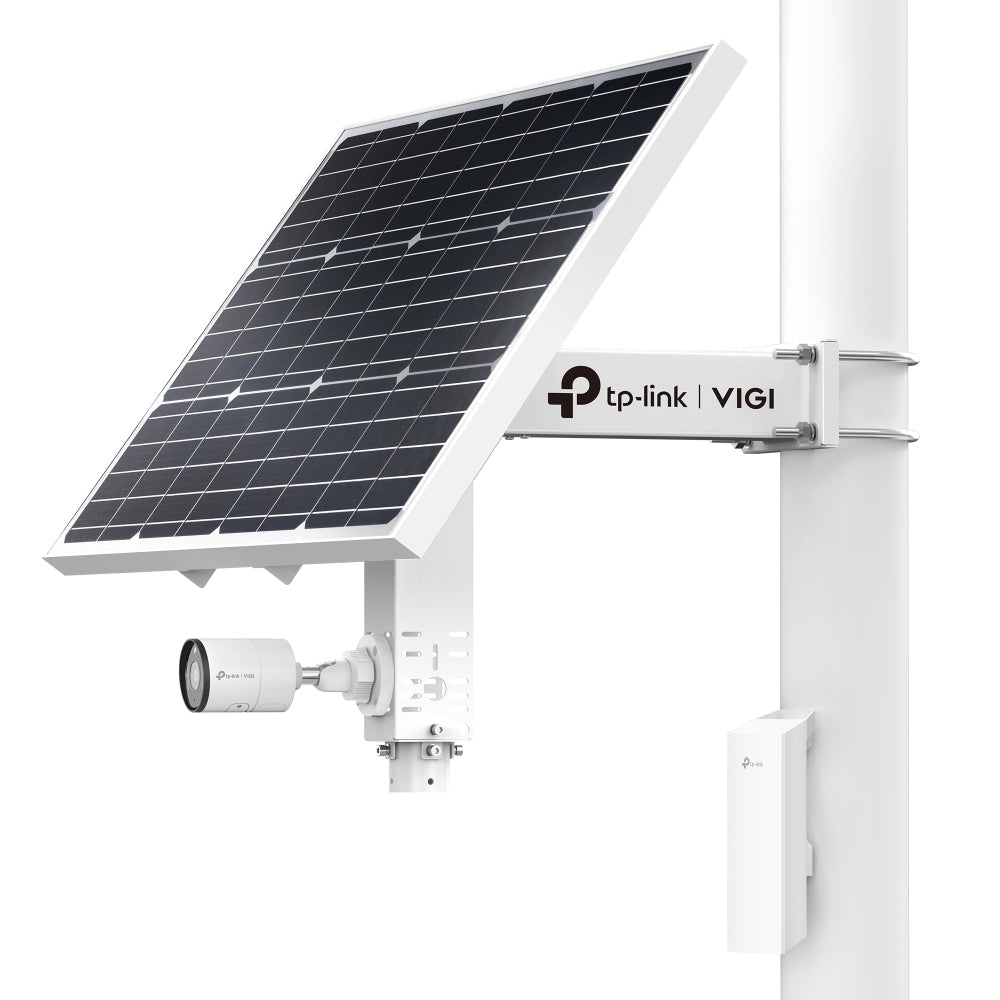

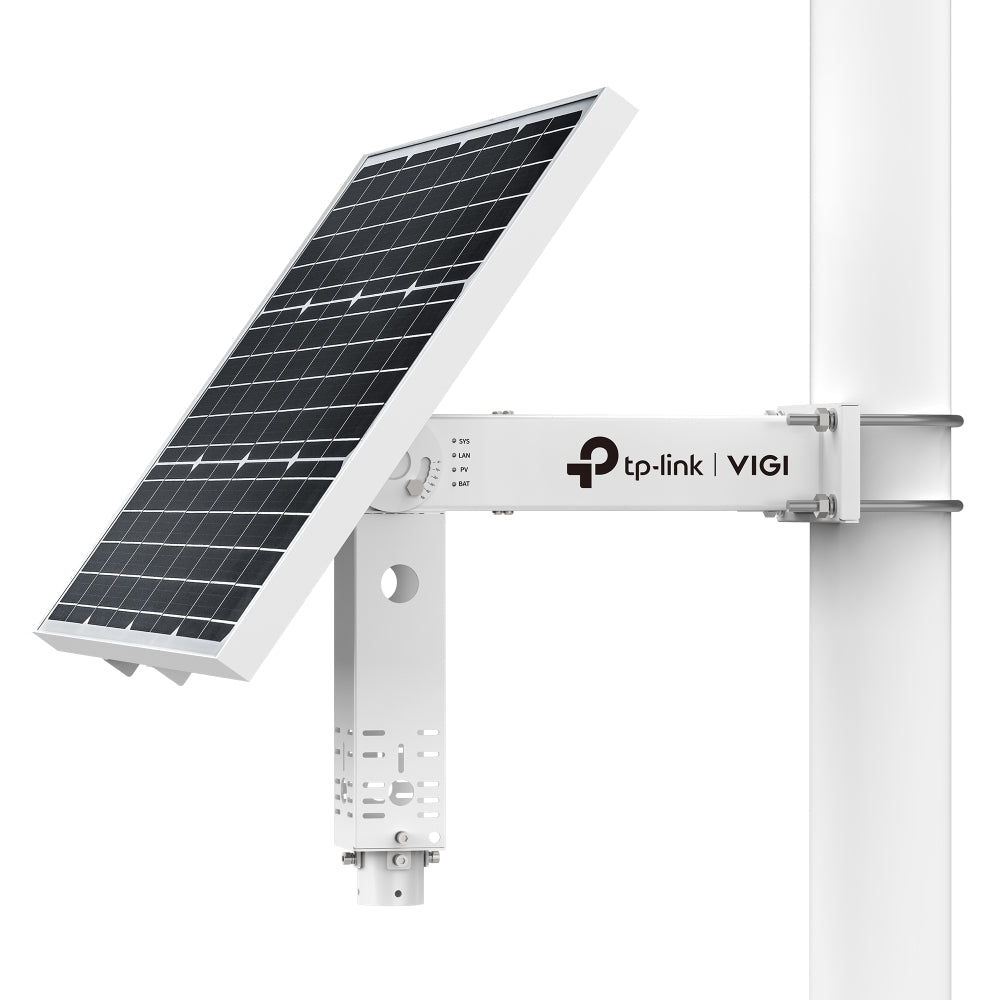

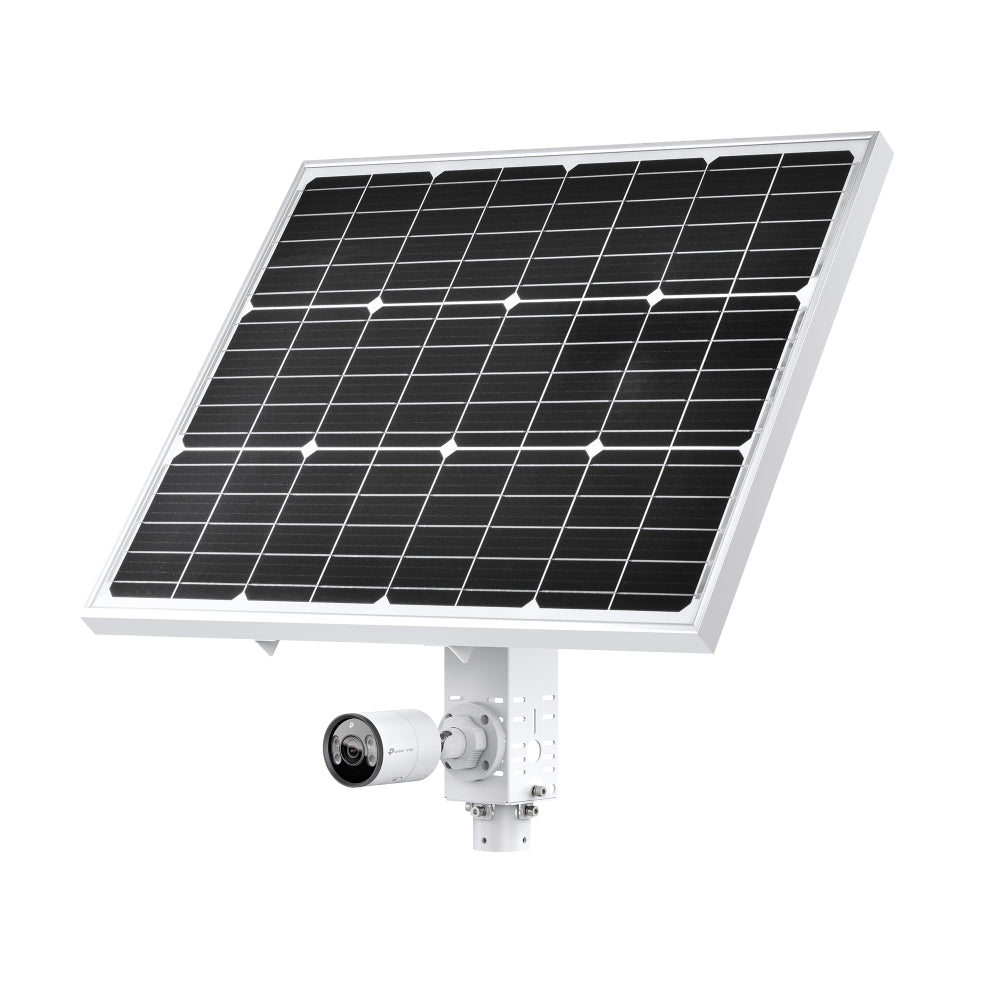

TP‑Link VIGI SP6030 Intelligent Solar Power Supply System | 60 W Solar Panel + 31.2 Ah Battery | MPPT, Aux Heating, IP66

TP‑Link VIGI SP6030 Intelligent Solar Power Supply System | 60 W Solar Panel + 31.2 Ah Battery | MPPT, Aux Heating, IP66

$867.00 AUD
$989.40 AUD $867.00 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The TP‑Link VIGI SP6030 is a compact and efficient off-grid solar power system designed for surveillance, networking, and IoT devices. Featuring a 60 W monocrystalline solar panel, a smart 31.2 Ah lithium battery with integrated auxiliary heating, and an MPPT charge controller, it delivers reliable power even in extreme temperatures. The modular design with adjustable tilt angles, IP66 weather protection, and remote management makes installation and operation simple and robust.

What’s in the Box

  • VIGI SP6030 controller with modular battery

  • 60 W solar panel (690 × 516 × 30 mm)

  • Waterproof cable attachments and DC plugs

  • Mounting accessories

  • Quick Start Guide

Main Features

  • 60 W Grade-A Monocrystalline Panel with 21.6 % efficiency and estimated 25+ years lifespan

  • 31.2 Ah Lithium Battery (10.8 V), >500 cycles, intelligent auxiliary heating to operate down to –30 °C

  • MPPT Charge Controller improves efficiency by up to 20% compared to PWM

  • Three DC Output Ports: two at 9–12.6 V/2 A and one at 12 V/2 A

  • Manual Tilt Adjustment: 5°/15°/25°/35°/45°/55° for optimized solar gain

  • IP66-rated housing and controller for dust and water resistance

  • Remote Management: via VIGI app with real-time monitoring, firmware updates, scheduling, load control, low-battery alerts, and remote reboot

Detailed Specifications

Component Specification
Solar Panel 60 W / 18 V; dimensions 690 × 516 × 30 mm; Grade-A mono-silicon; 25+ year lifespan
Battery Lithium 10.8 V; 31.2 Ah; max output 12.6 V; >500 cycles; –30 °C to 45 °C with heating; –30 °C to 60 °C discharging
Controller Outputs 3× DC plugs (#1 & #2: 9–12.6 VDC/2 A, #3: 12 VDC/2 A)
Interfaces 1× RJ45 (10/100 Mbps); 1× solar panel connector; 3× DC outputs
LED Indicators SYS, LAN, PV, BAT (Blue)
Tilt Adjustment Manual selectable angles: 5°, 15°, 25°, 35°, 45°, 55°
Certifications CB, PSE (battery); CE, FCC, VCCI, IC; IP66
Environment Specs Operating Temp: –30 °C to +60 °C; Humidity: 10–90 % RH non-condensing
Weight & Size 14 kg (product); 15.5 kg (package); Package: 800 × 615 × 225 mm

Warranty & Certification

Certified CB, PSE, CE, FCC, VCCI, IC, and IP66-rated. Includes standard TP‑Link warranty. Local support available via TP-Link partners in AU/NZ.

Brand Description

VIGI by TP‑Link provides advanced power and surveillance integrations with intelligent control, managed via the VIGI ecosystem for reliable, scalable, and remote-ready installations.

SKU

SP6030

Ideal Use Scenarios

  • Powering 4G cameras (e.g., VIGI C540‑4G): ~6.4 days autonomy in consecutive rainy conditions, ~2.7 days charge in sunshine

  • For wireless bridges or bullet cameras (e.g., VIGI C345 + EAP115-Bridge): ~3.6 days rainy uptime, ~4.0 days charge in sun

  • Ideal for remote or off-grid surveillance, site access control, and IoT deployments

Datasheets & Downloads

Excellence for the Australian and New Zealand Market

  • Rugged build for –30 °C to +60 °C operation and tropical humidity

  • Modular system fits AU/NZ voltage standards

  • Remote monitoring aligns with local surveillance regulations

  • Quick deployment via certified TP-Link distributors

FAQs

Q: What is the SKU of this system? – SP6030
A: The product SKU is SP6030.

Q: How much battery capacity does it have? – SP6030
A: Includes a 31.2 Ah lithium battery (10.8 V) capable of over 500 cycles.

Q: Can it work in freezing conditions? – SP6030
A: Yes. With intelligent auxiliary heating, it operates from –30 °C to +60 °C.

Q: What are the adjustable tilt angles? – SP6030
A: Panels can be set to 5°, 15°, 25°, 35°, 45°, or 55°.

Q: How many output ports does it have? – SP6030
A: Three DC outputs: two at 9–12.6 V/2 A, one at 12 V/2 A.

Q: Does it support remote management? – SP6030
A: Yes—it includes LAN control, firmware updates, scheduling, alerts, and remote reboot via the VIGI app
