TP‑Link VIGI SP6020 Intelligent Solar Power Supply System | 60 W Solar Panel + 20.8 Ah Battery | MPPT, Aux Heating, IP66

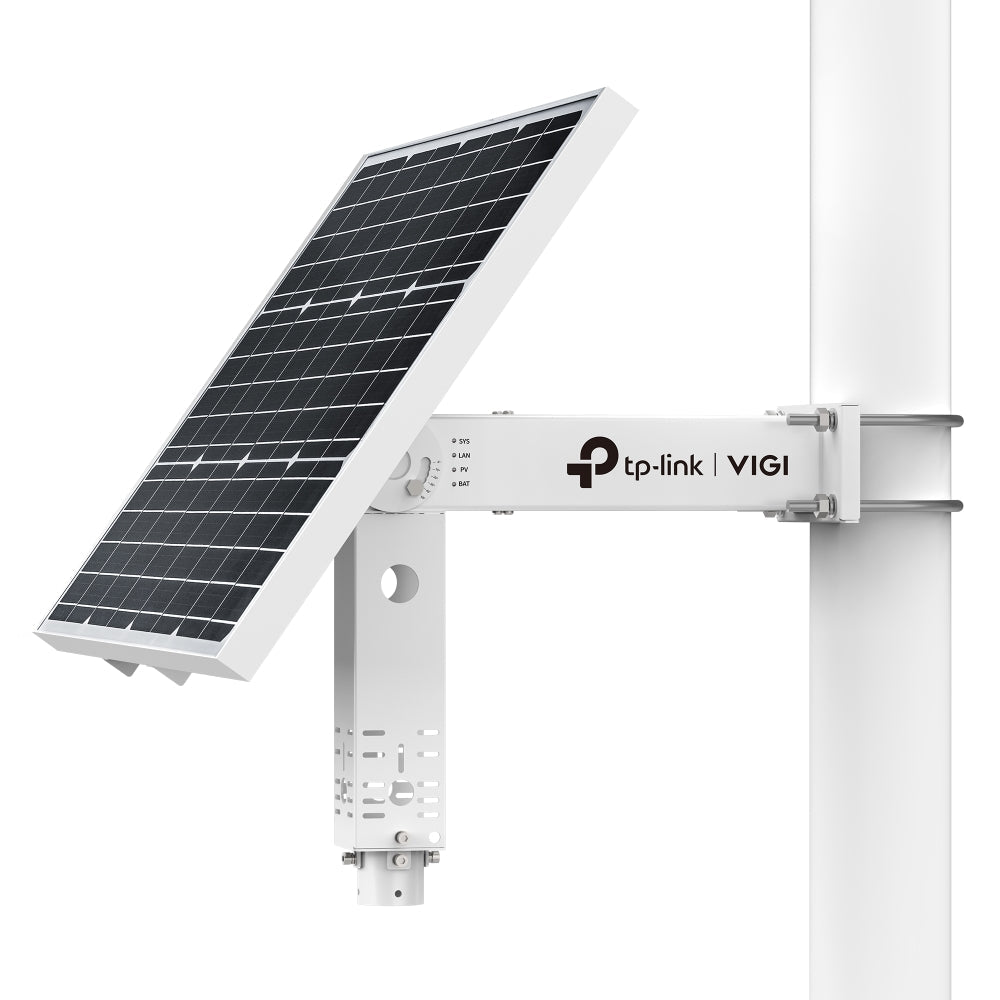

The TP‑Link VIGI SP6020 is a durable off-grid solar power system ideal for surveillance, networking, and IoT applications. Its compact setup integrates a 60 W monocrystalline solar panel, a 20.8 Ah lithium battery with intelligent auxiliary heating, and an MPPT charge controller for enhanced efficiency. With adjustable tilt, IP66 weather protection, and remote management capabilities, it's a reliable power solution under diverse outdoor conditions.

What’s in the Box

• VIGI SP6020 controller with modular lithium battery

• 60 W solar panel (690 × 516 × 30 mm)

• Waterproof cable attachments & DC plugs

• Mounting accessories

• Quick Start Guide

Main Features

• 60 W Grade-A Monocrystalline Panel: 21.6 % efficiency, 25+ years lifespan

• 20.8 Ah Lithium Battery (10.8 V): >500 cycles, integrates auxiliary heating for –30 °C operation

• MPPT Charging Controller: Increases efficiency ~20% over PWM systems

• Three DC Output Ports: #1 & #2: 9–12.6 V/2 A, #3: 12 V/2 A

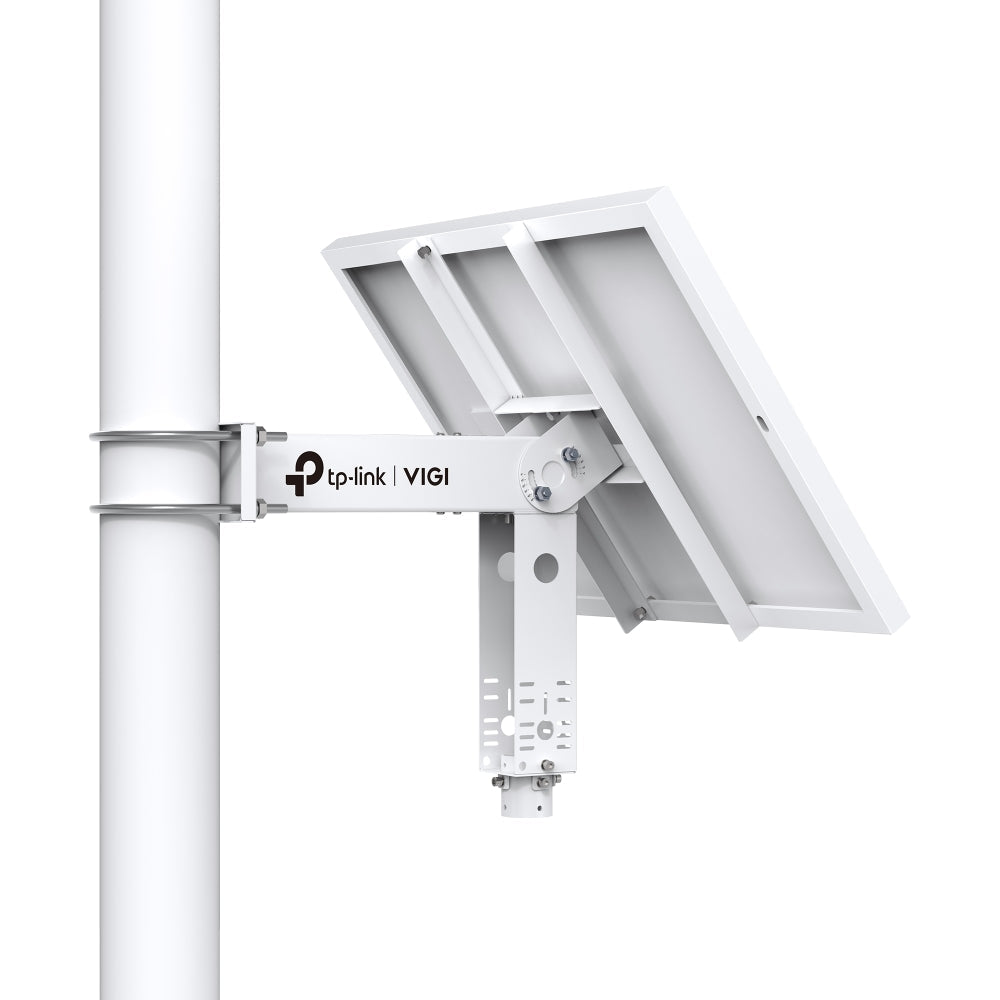

• Manual Tilt Adjustment: Supports 5°, 15°, 25°, 35°, 45°, 55° angles

• IP66 Weatherproof: Built for harsh outdoor conditions

• Remote Management: Monitor power, receive alerts, schedule firmware updates, and remotely reboot via the VIGI app

Detailed Specifications

Warranty & Certification

Fully certified (CB, PSE, CE, FCC, VCCI, IC, IP66) and covered under TP‑Link’s warranty. Local support available through Australian and New Zealand TP‑Link partners.

Brand Description

VIGI by TP‑Link delivers reliable solar power solutions tailored for outdoor surveillance and IoT systems. Their solar systems combine rugged build, intelligent energy management, and remote monitoring capabilities.

SKU

SP6020

Ideal Use Scenarios

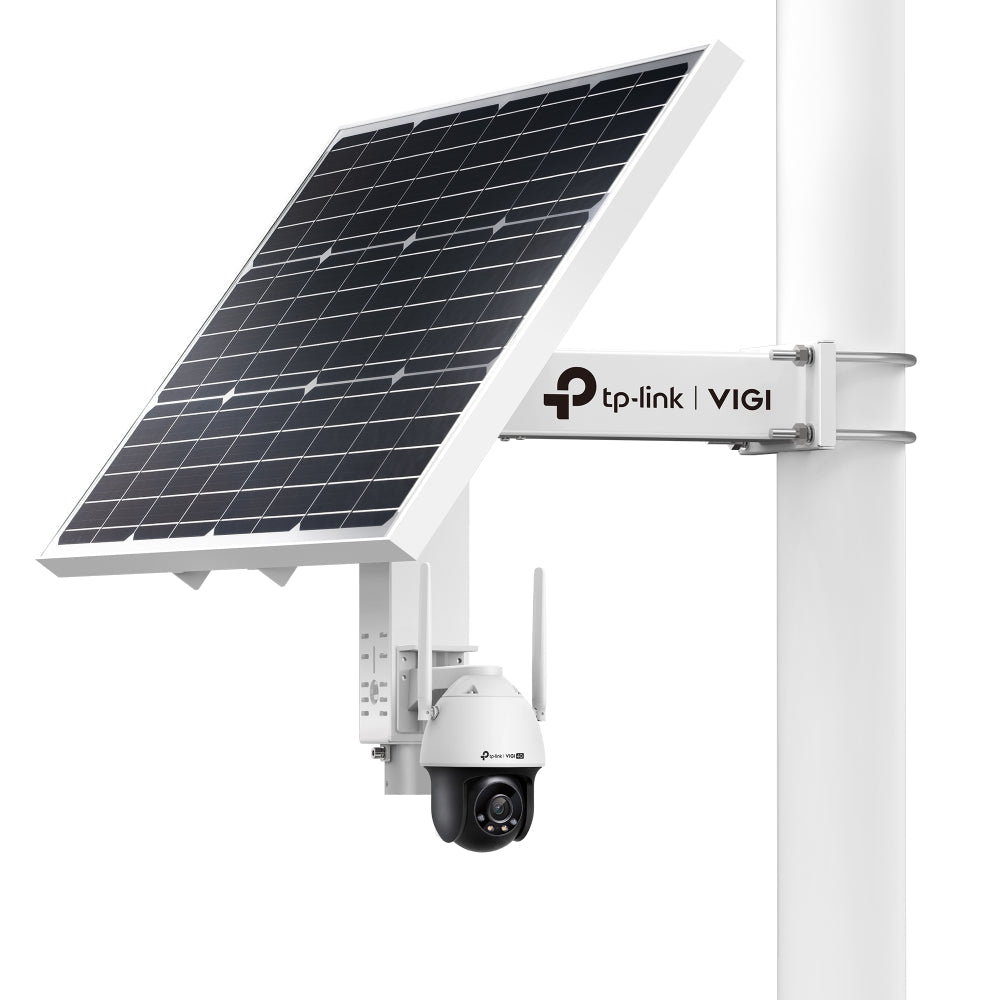

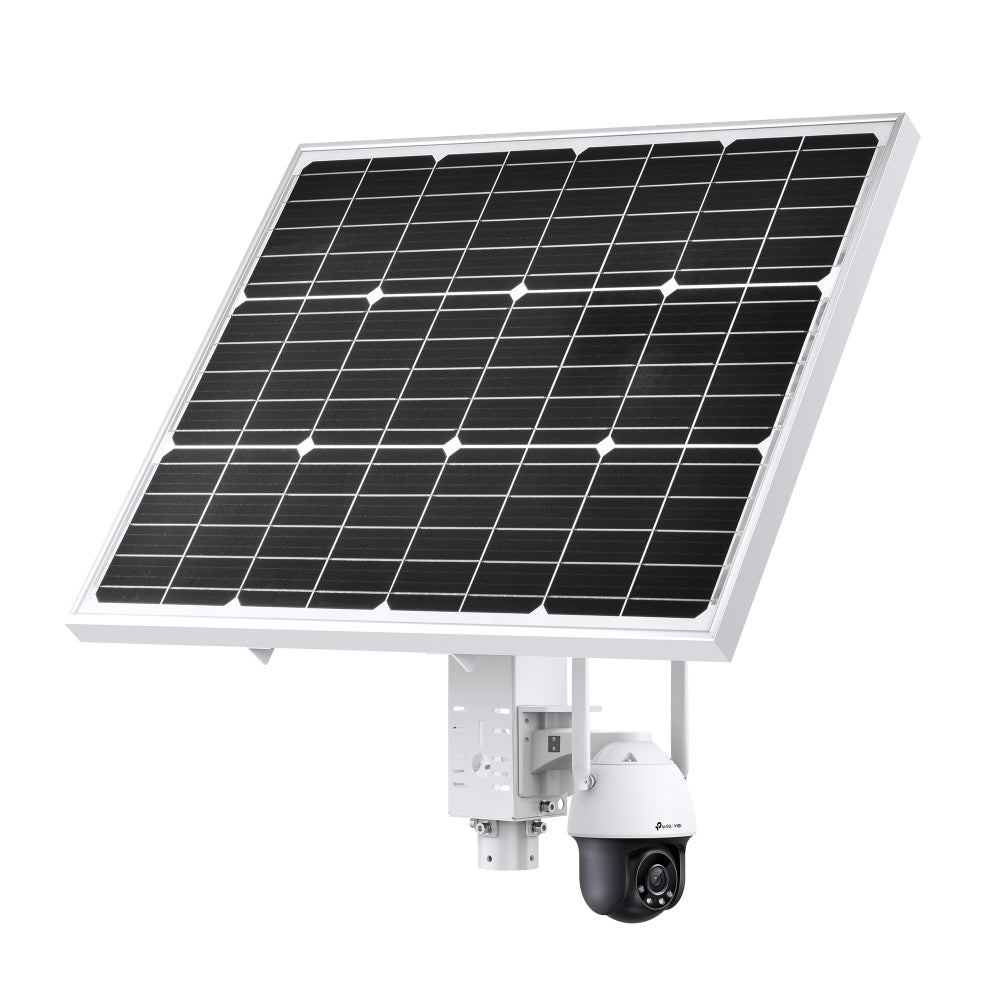

• Powers 4G cameras (e.g., VIGI C540‑4G): ~4.3 days autonomy in cloudy weather, ~1.8 days charging in sun

• Supports wireless bridges or bullet cameras (e.g., VIGI C345 + EAP115-Bridge): ~2.4 days uptime when cloudy, ~2.7 days charging

• Ideal for remote/off-grid power for security, access control, and IoT in rugged locations

Datasheets & Downloads

• Manual

  • VIGI PS20 Mutil-model_Installation Guide
  • VIGI App_UG
  • Intelligent Solar Power Supply System/ Solar System Controller_Regulatory Compliance

Excellence for the Australian and New Zealand Market

• Built for extreme temps (–30 °C to +60 °C) and 90 % humidity

• Compatible with local voltage standards and outdoor regulations

• Remote monitoring simplifies compliance for surveillance deployments

• Distributed regionally for fast delivery and warranty support

FAQs

Q: What is the SKU of this system? – SP6020
A: The product’s SKU is SP6020, ideal for ordering and support inquiries.

Q: How much battery capacity does it have? – SP6020
A: It includes a 20.8 Ah lithium battery at 10.8 V, offering over 500 charge cycles.

Q: Can it operate in cold climates? – SP6020
A: Yes, with intelligent auxiliary heating, it functions down to –30 °C and up to +60 °C.

Q: What tilt angles are available? – SP6020
A: Manual adjustment at 5°, 15°, 25°, 35°, 45°, or 55°.

Q: How many output ports are included? – SP6020
A: Three DC outputs: two rated for 9–12.6 V/2 A, one at 12 V/2 A.

Q: Does it support remote management? – SP6020
A: Yes, via the VIGI app: monitor power, get alerts, manage firmware and reboot remotely.
