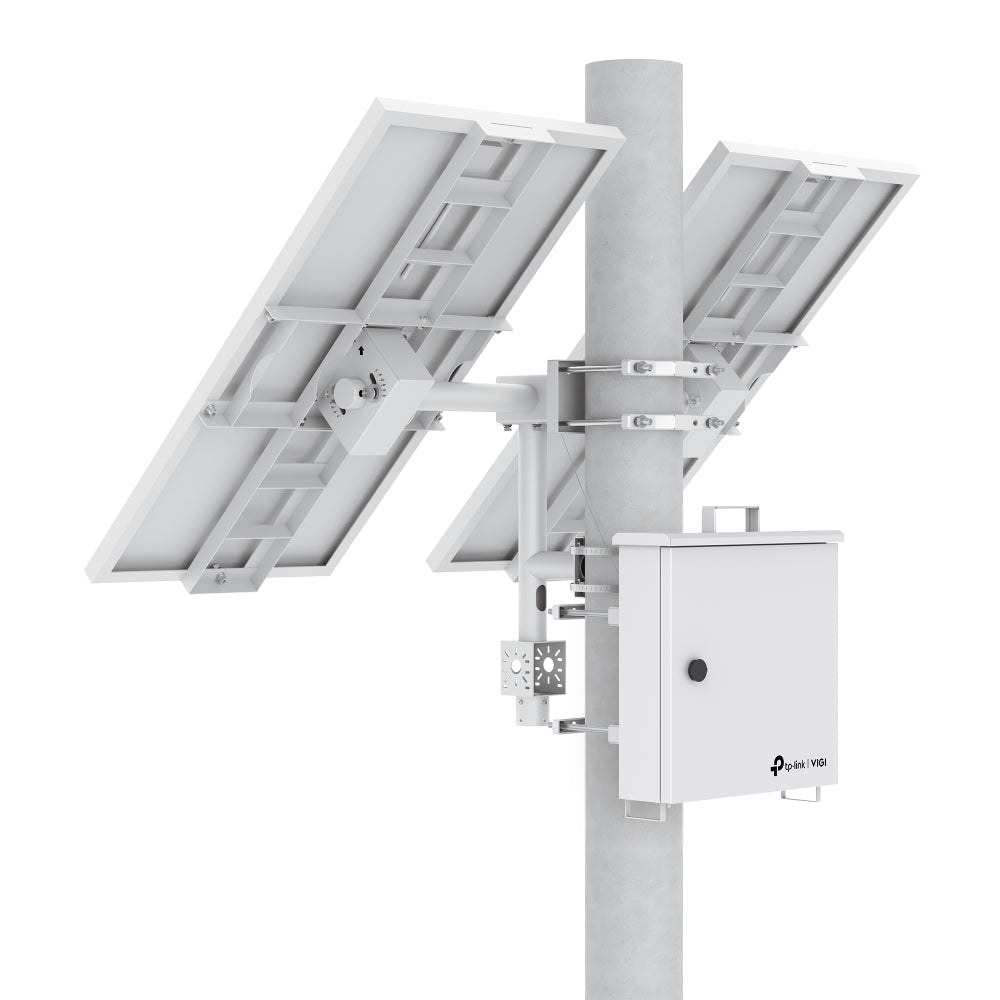

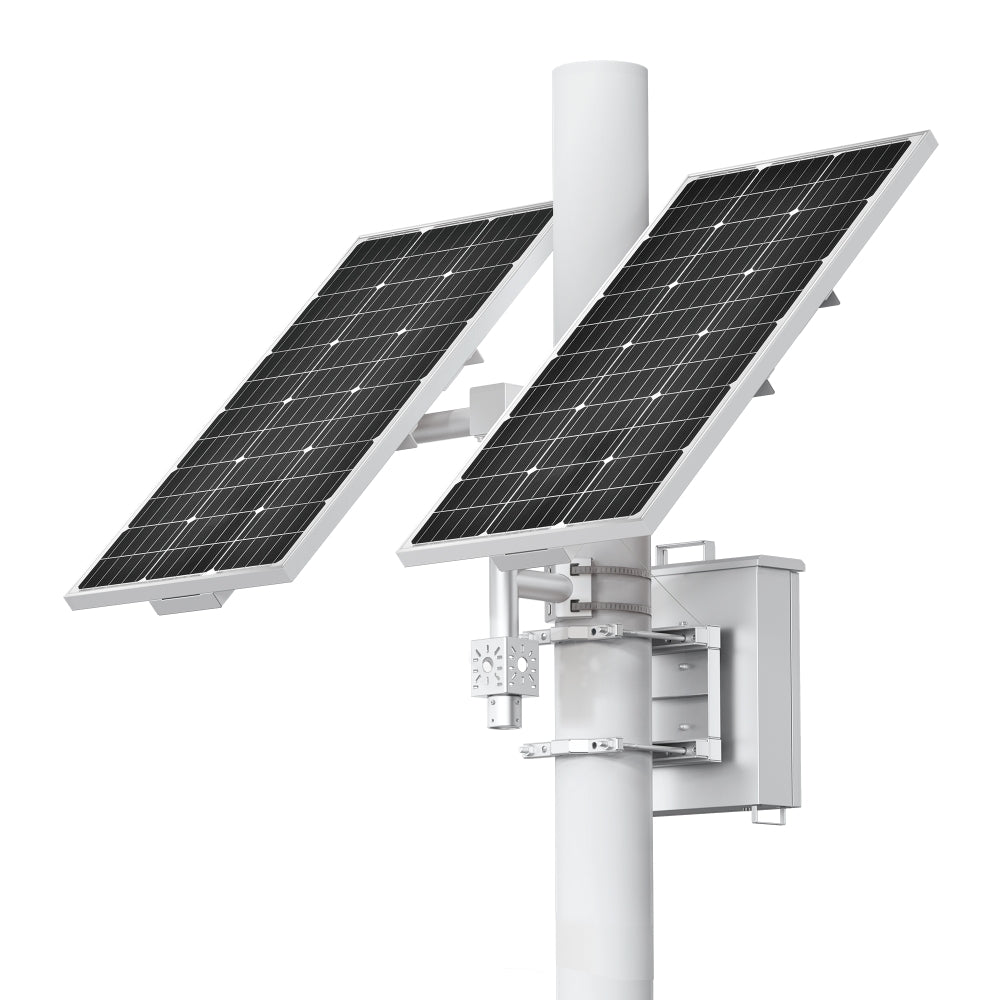

TP‑Link VIGI SP18090 Intelligent Solar Power Supply System | 180 W Dual Panels + 93.6 Ah Battery | MPPT & Aux Heating

  The TP‑Link VIGI SP18090 is an advanced off-grid solar power system tailored for surveillance, remote networking, and IoT devices. Combining high-efficiency photovoltaic panels, a smart lithium-ion battery, and remote management features, it delivers reliable, eco-friendly energy in any environment. Its modular design and rugged IP66 shielding ensure dependable performance in every Australian and New Zealand setting.

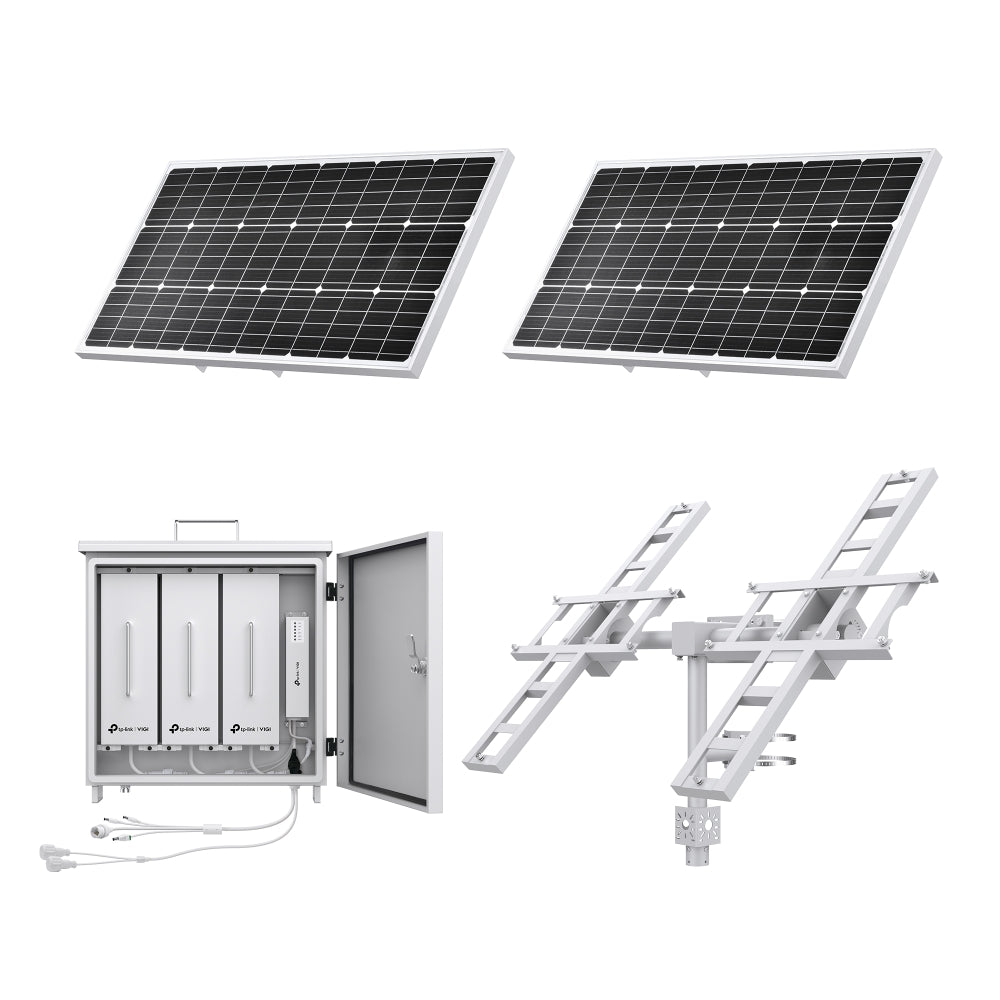

What’s in the Box

• 2 × 90 W solar panels (18 V each)

• Modular 93.6 Ah/10.95 V lithium battery (31.2 Ah per module)

• Intelligent MPPT controller with heating

• Adjustable tilting bracket assembly

• All-weather cables and connectors

• Quick-start guide and mounting accessories

Main Features

• 180 W Dual Solar Panels with 21.6% conversion efficiency

• 93.6 Ah Lithium Battery supporting over 500 full cycles, with intelligent auxiliary heating from –30 °C to +5 °C

• MPPT Charging Controller for maximum power tracking and efficiency

• 3 DC Output Ports (two at 9–12.6 V/2 A; one at 12 V/2 A)

• Modular & Adjustable tilt angles from 5° to 55°

• Robust Protection with IP66 system rating and IP67 panels

• Remote Monitoring & Control via VIGI app or LAN

• High-Low Temp & Battery Protection, overdischarge, and power stats included

Detailed Specifications

Warranty & Certification

• Certified CE, FCC, RoHS, IP66; solar panels IP67 rated

• Backed by TP‑Link’s warranty; localized support available in AU/NZ through select resellers

Brand Description

VIGI by TP‑Link specializes in high-performance smart solar solutions for security and IoT applications. With a broad product range backed by robust warranties and remote management technology, VIGI ensures reliable power even in the harshest environments.

SKU

SP18090

Ideal Use Scenarios

• Remote Surveillance: Drive 4G cameras continuously—6+ days of autonomy per test

• Rural or Construction Sites: Off-grid power for routers, sensors, and security systems

• Environmental Monitoring: Enables long-term deployment in extreme climates, from -30 °C to +60 °C

• Temporary & Event setups: Fast deployment without cabling

Datasheets & Downloads

• VIGI Solar Panel 90W(UN)_V1_Datasheet
• VIGI 180W Solar Mount_V1_Datasheet
• VIGI PS90_V1_Datasheet
• VIGI 180W Solar Mount_V1_Installation Guide
• Intelligent Solar Power Supply System/ Solar System Controller_Regulatory Compliance
• VIGI Solar Panel 90W_V1_Quick Installation Guide

Excellence for the Australian and New Zealand Market

• Fully compliant with AU/NZ environmental standards

• Local distributor stock ensures rapid delivery and warranty support

• Preconfigured tilt brackets suit local sunlight patterns

• Ideal for projects following Australian sustainability and power regulations

FAQs

Q: What is the SKU for this system? – SP18090
A: The official SKU is SP18090—search this when contacting local vendors.

Q: How much battery capacity is included? – SP18090
A: The system includes a 93.6 Ah lithium battery (3 modules of 31.2 Ah each).

Q: Can it operate in freezing conditions? – SP18090
A: Yes. With intelligent auxiliary heating, it functions reliably from –30 °C to +60 °C.

Q: What solar panel angles are supported? – SP18090
A: Panels adjust manually to 5°, 15°, 25°, 35°, 45°, and 55° for optimal sun exposure.

Q: Is IP66 weatherproof enough for outdoor use? – SP18090
A: Yes. The system is sealed to IP66 level, while the solar panels are IP67-rated.

Q: Does it support remote management? – SP18090
A: Absolutely—with LAN access, firmware updates, remote reboot, scheduling, and push notifications.

Q: How many devices can be powered via DC outputs? – SP18090
A: Three separate DC ports support up to 2 A each, ideal for cameras, sensors, and accessories
