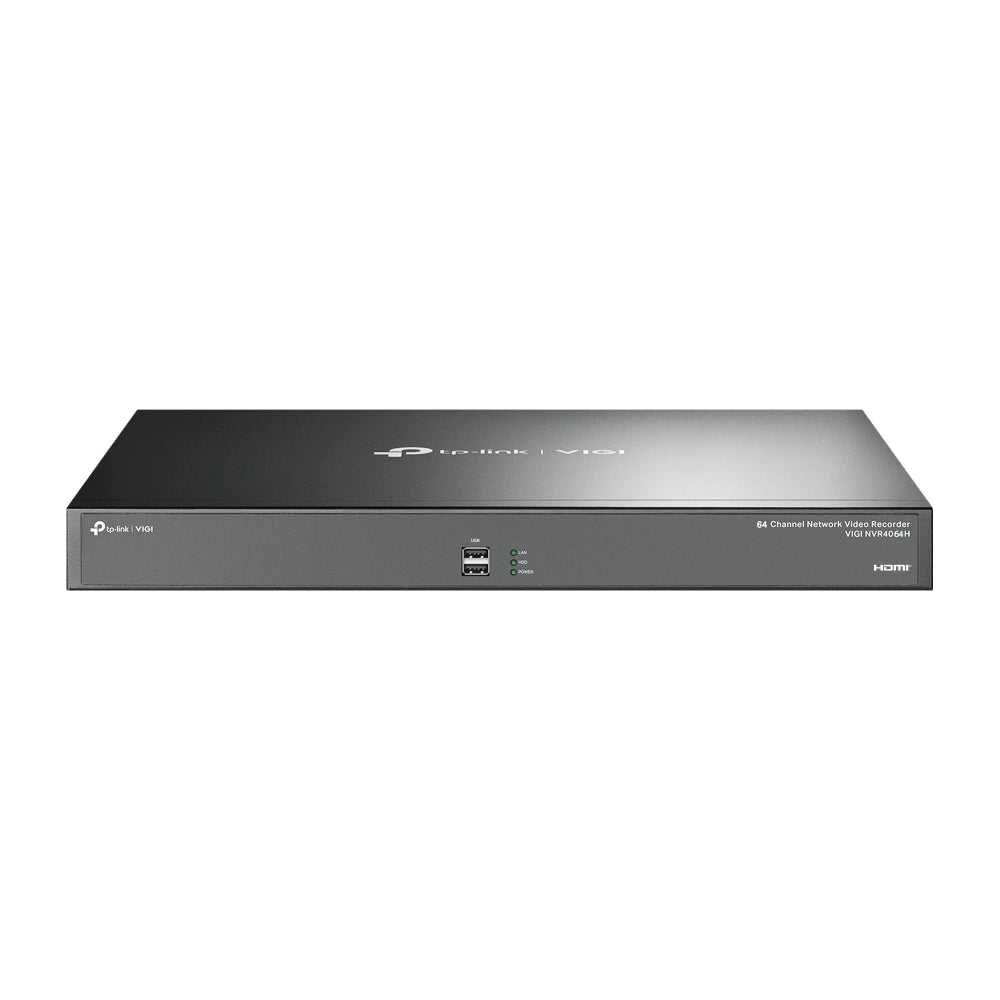

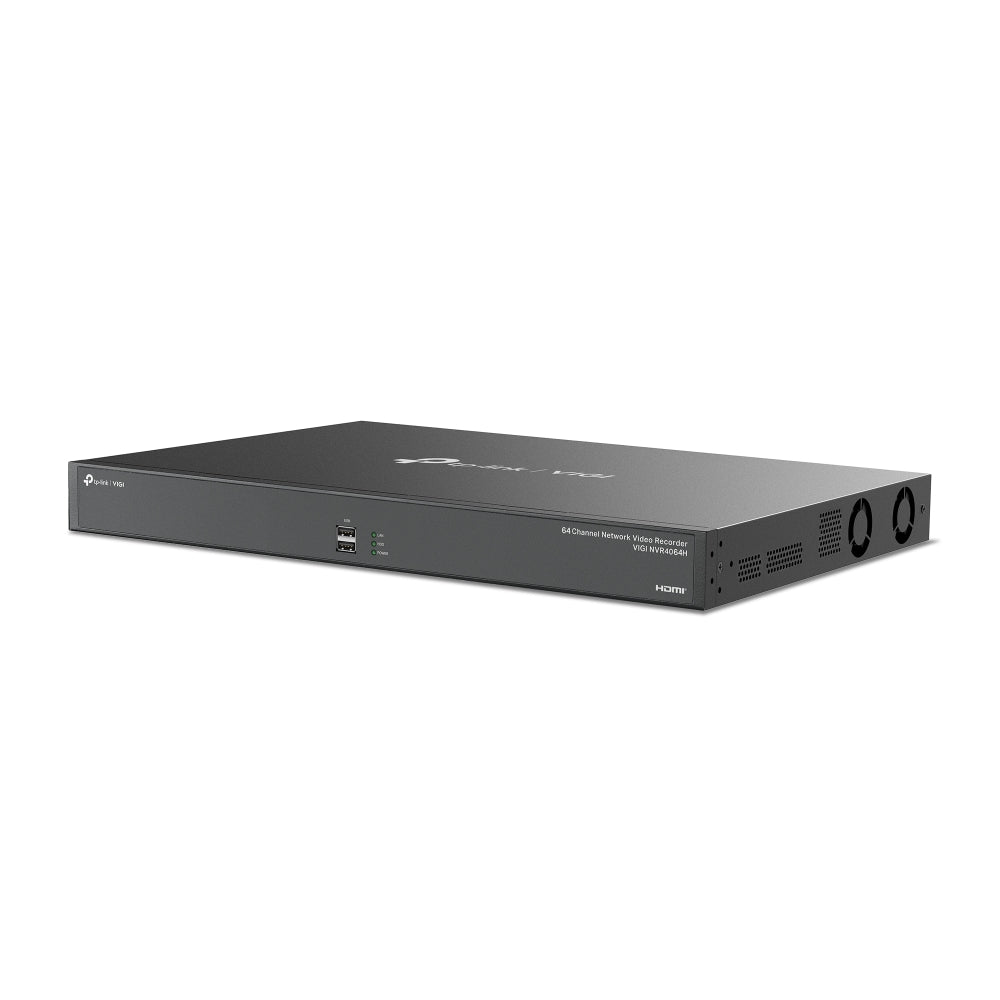

TP-Link VIGI NVR4064H | 64‑Channel 4K Network Video Recorder with 4× SATA (Up to 16 TB Each), H.265+ Compression, Remote Monitoring no PoE

The TP-Link VIGI NVR4064H is a powerful 64-channel network video recorder (NVR) designed for high-demand surveillance applications. Featuring 4K HDMI output, extensive decoding capabilities, and advanced alarm integrations, this enterprise-grade NVR offers reliable performance, robust storage, and exceptional compatibility with ONVIF-compliant cameras.

With up to 320 Mbps bandwidth in Extended Mode and support for 16-channel synchronous playback, it handles high-resolution streaming effortlessly. The H.265+ compression reduces storage usage and transmission load, while four SATA ports each support up to 16 TB HDDs, making it a perfect solution for long-term, large-scale video archiving.

📦 What’s Included

• VIGI NVR4064H Unit

• Mouse

• Installation Guide

• Power Cord

• HDD Power Cables

• HDD Data Cables

• Terminal Blocks

• Mounting Brackets

• Screws

• Rubber Feet

⭐ Main Features

• Supports 64 IP cameras with multi-resolution recording up to 8 MP

• Decoding Capability: 16-ch @ 2MP (25fps), 8-ch @ 4MP (30fps)

• Video Output: Independent HDMI (4K) and VGA up to 1080p

• Multi-View Display Options: 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64

• H.265+ Compression: Efficient video storage and bandwidth usage

• Playback: 16-Channel synchronous playback, full playback control features

• Advanced Alarms: Human/vehicle detection, loitering, intrusion, video tampering, and more

• Remote Monitoring: Access via mobile (Android/iOS), browser (Chrome, Firefox, Edge), or VIGI Security Manager

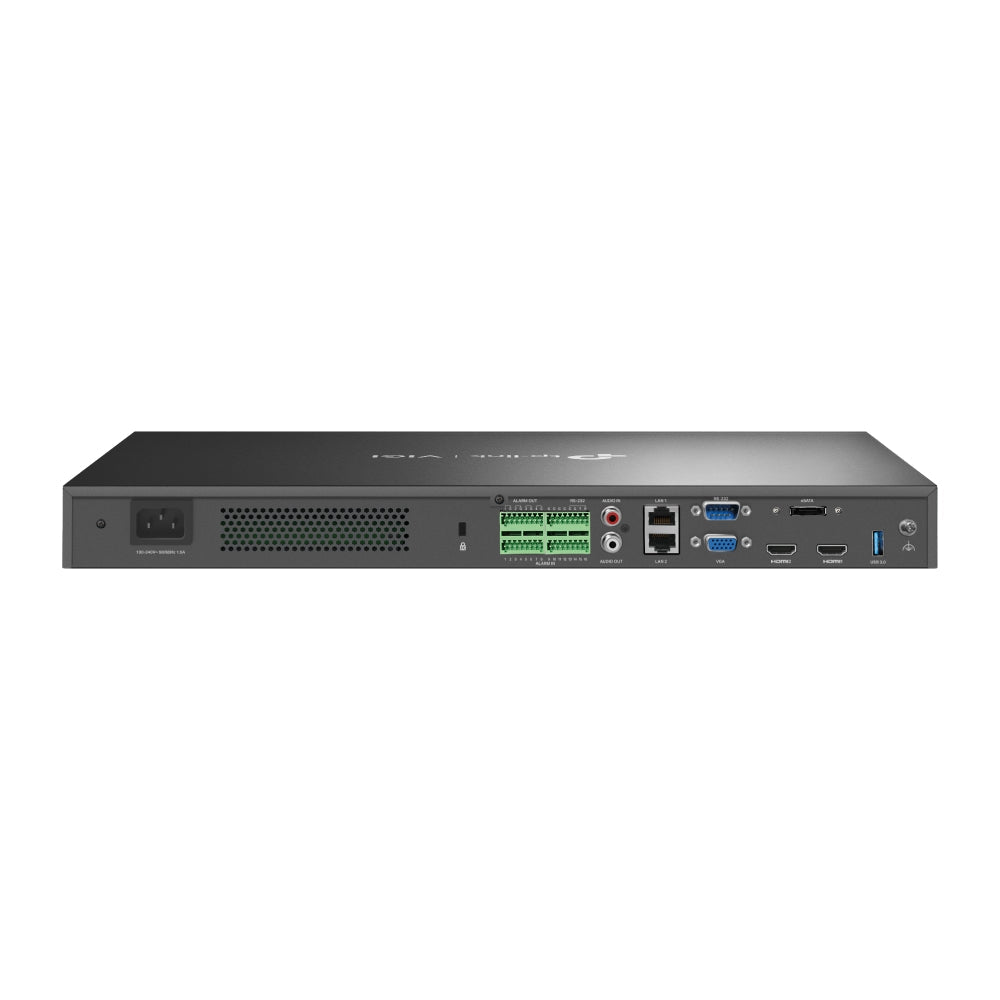

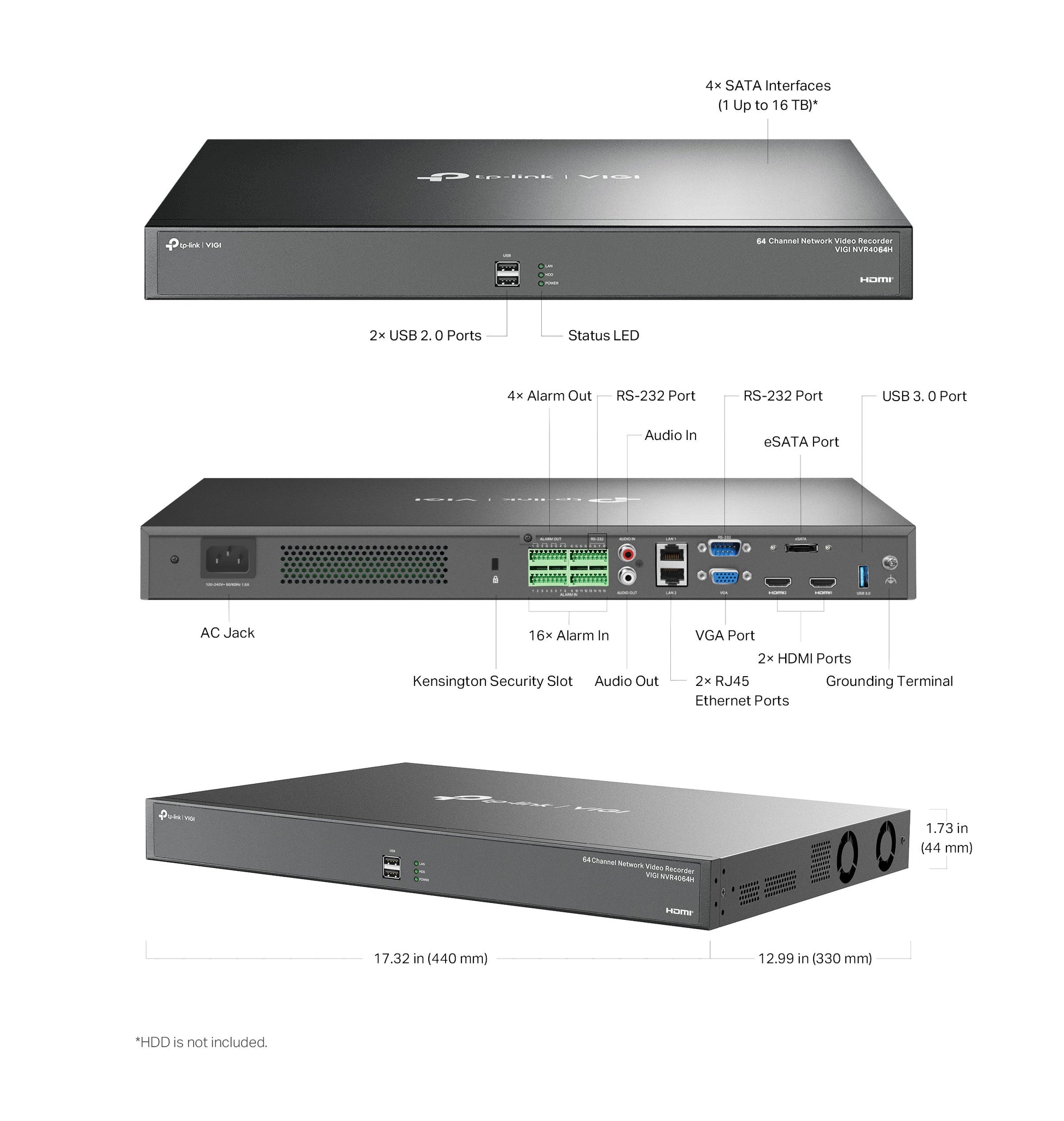

• USB Interface: 2× USB 2.0 front, 1× USB 3.0 rear

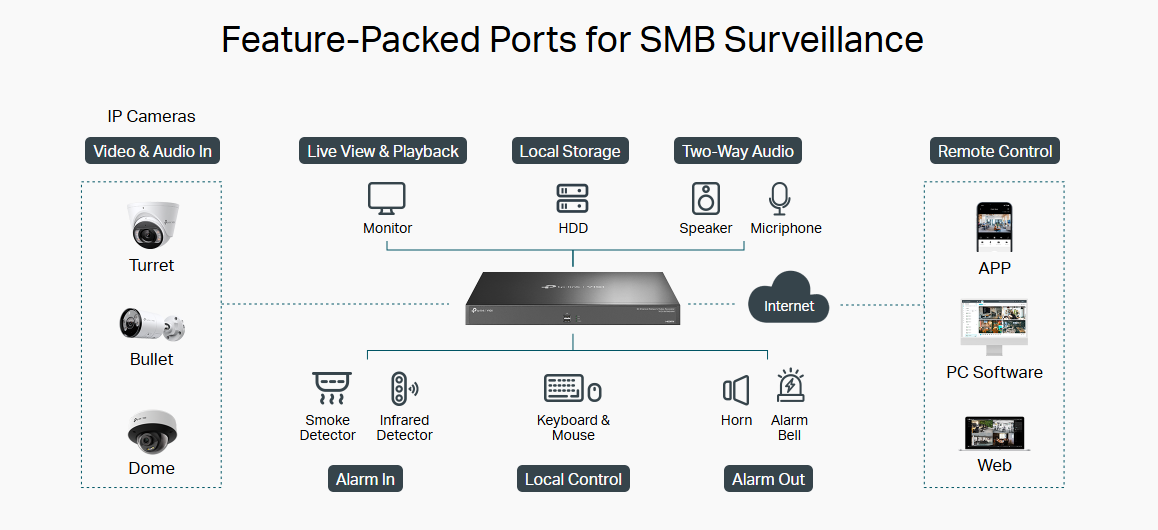

• Alarm In/Out: 16/4 I/O interfaces for integration with alarm systems

• RS232 Serial Interface for industrial control integration

• eSATA Interface for external storage backup

🧩 Detailed Specifications

✅ Warranty & Brand Description

The VIGI NVR4064H is part of TP-Link’s premium surveillance lineup, designed for demanding enterprise environments. TP-Link is renowned for reliable networking and security hardware, with full warranty and technical support provided through certified Australian and New Zealand distributors.

📦 Excellence for the Australian and New Zealand Market

• Fully certified for Australian and New Zealand markets (CE, BSMI, KC, FCC, etc.)

• Complies with ANZ network security protocols including SSL/TLS, UPnP, NTP, RTSP

• Sourced exclusively through authorized local channels

• Local warranty support ensures fast service, replacement, and firmware updates

• Ideal for educational institutions, transport hubs, government buildings, and industrial facilities in ANZ

💼 Practical Use Scenarios

• Corporate Campuses: 64-channel capability for building-wide monitoring with zone-specific alerts

• Warehouses & Logistics: 24/7 video capture with alarm integration and redundant storage

• Public Safety & Law Enforcement: Smart playback with event detection filters for quick incident reviews

• Healthcare Facilities: Monitor multiple wards with HIPAA-friendly secure access

🛠 Installation & Setup

1. Connect up to four HDDs using provided data and power cables

2. Connect HDMI/VGA to display and power on

3. Use front USB to connect the mouse and initiate the on-screen setup

4. Configure camera inputs, recording schedule, alerts, and bandwidth modes

🔧 SKU

VIGI NVR4064H

📄 Datasheets & Resources

• Full product datasheet

• user manual

• VIGI Security Manager software

❓  FAQs

1. Q: What is the total storage capacity supported by the VIGI NVR4064H?
   A: It supports up to 64 TB of internal storage across four SATA ports, each allowing up to 16 TB.

2. Q: How many cameras can VIGI NVR4064H decode in real time?
   A: It decodes 16 channels at 2MP (25fps), 8 channels at 4MP (30fps), or up to 64 channels at D1 resolution.

3. Q: Does the VIGI NVR4064H support both HDMI and VGA output at the same time?
   A: Yes, it supports independent HDMI and VGA outputs, with multi-resolution compatibility.

4. Q: Is this model compatible with third-party IP cameras?
   A: Yes, it supports ONVIF Profiles S/T/G and CGI, ensuring wide compatibility with various IP camera brands.

5. Q: Can I access the VIGI NVR4064H remotely?
   A: Absolutely. You can access it via the VIGI app (Android/iOS), a supported browser, or the VIGI Security Manager desktop software.

6. Q: What are the power and environmental specs for the VIGI NVR4064H?
   A: It operates on 100–240 VAC, 1.5A and within temperatures –10 °C to 55 °C, suitable for ANZ conditions.
