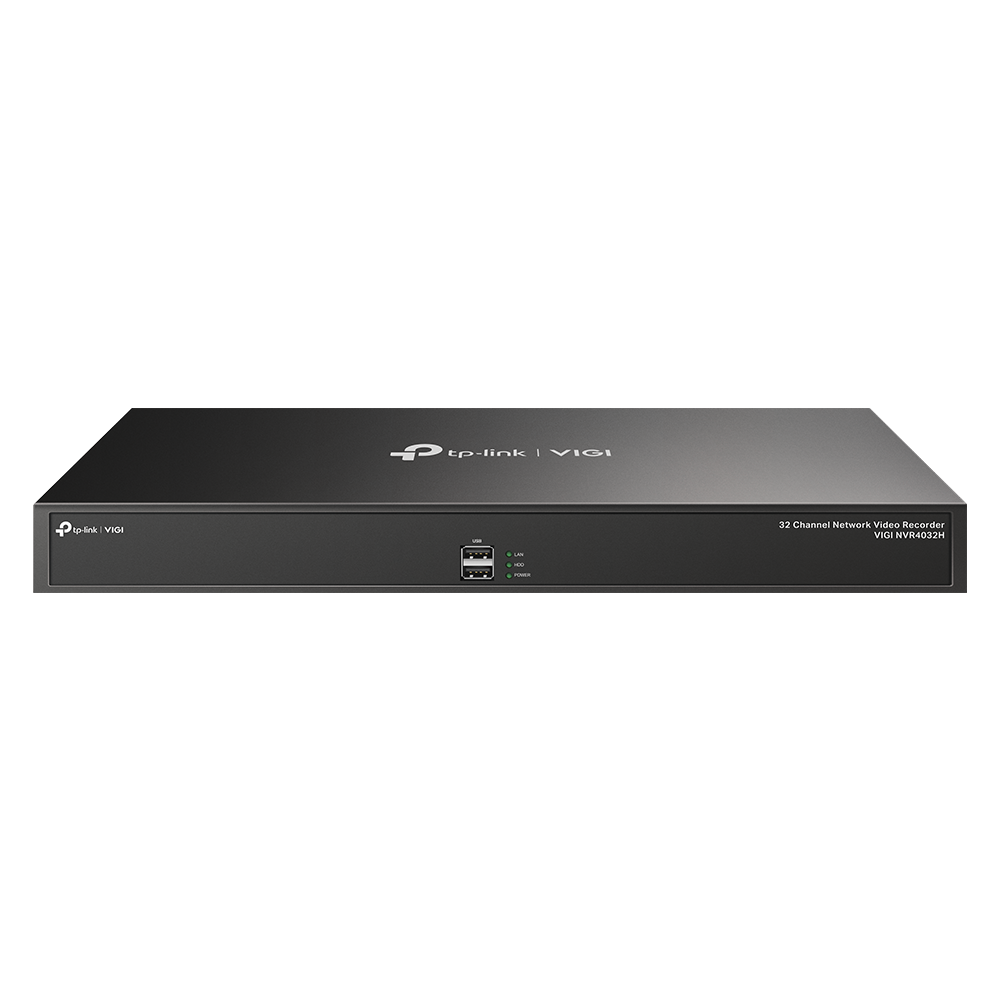

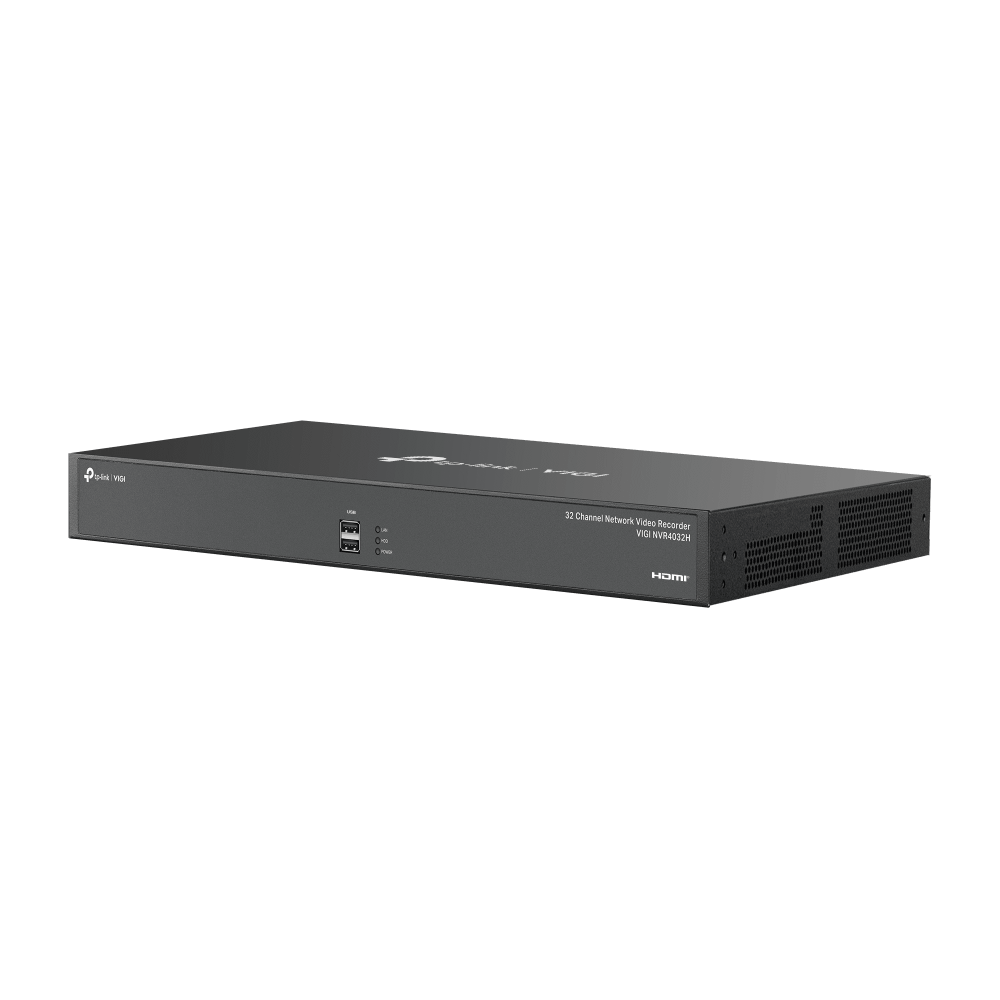

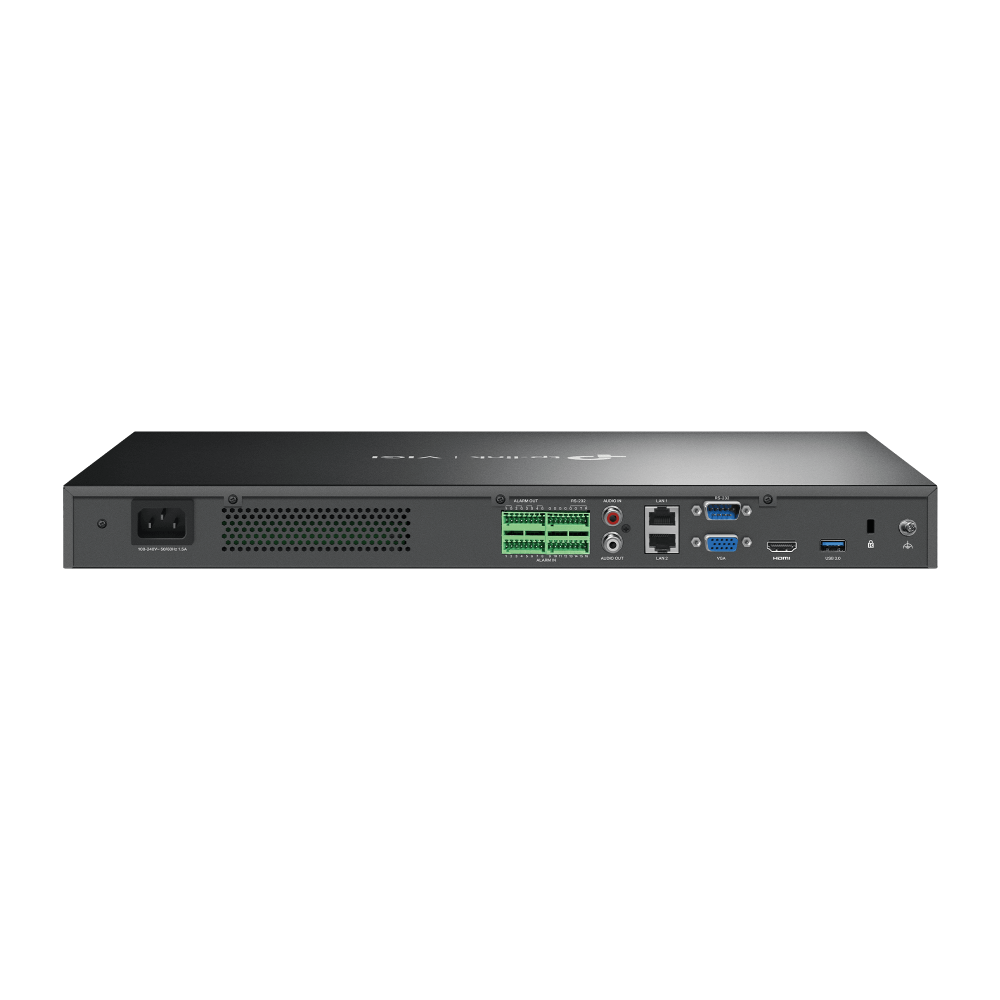

TP-Link VIGI NVR4032H | 32-Channel 4K Network Video Recorder, H.265+ Compression, Dual Ethernet, 4× SATA (Up to 16 TB Each) non PoE

The TP-Link VIGI NVR4032H is a professional-grade network video recorder built for expansive, high-resolution surveillance installations. With support for 32 IP channels, 4K HDMI output, dual Ethernet, and 4× SATA storage interfaces, it ensures smooth operation, reliable connectivity, and scalable video archiving.

Engineered for performance, it delivers 320 Mbps bandwidth both incoming and outgoing, along with H.265+ compression for efficient data handling. Equipped with smart video coding and comprehensive compatibility with ONVIF cameras, it's ideal for commercial, industrial, and institutional security needs.

📦 What’s Included

• VIGI NVR4032H Unit

• Power Cord

• Mouse

• HDD Power Cables

• HDD Data Cables

• Mounting Brackets

• Terminal Blocks

• Screws

• Rubber Feet

• Installation Guide

⭐ Main Features

• 32-channel IP camera support

• 4K HDMI output and 1080p VGA output (independent video streams)

• 16-channel synchronous playback with smart playback features

• Decoding: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP, up to 16-ch@1080p

• Dual Gigabit Ethernet ports for redundancy and load balancing

• Smart alarms: vehicle detection, human detection, motion, tampering, line crossing, and more

• H.265+ smart video compression for reduced bandwidth and disk space

• USB ports: 2× USB 2.0 (front), 1× USB 3.0 (rear)

• Flexible multi-view display: 1–36 split screens

• Alarm I/O: 16 input / 4 output

• Support for Auto Initialization for quick deployment

• RCA audio input/output support

🧩 Detailed Specifications

✅ Warranty & Brand Description

The VIGI NVR4032H is backed by TP-Link’s trusted engineering and a solid reputation for reliability. Known for its global leadership in networking and security technology, TP-Link provides full local warranty support and a growing service presence throughout Australia and New Zealand.

📦 Excellence for the Australian and New Zealand Market

• Fully compliant with RCM and CE standards, meeting all local certification requirements

• Sold via authorized AU/NZ distributors only, ensuring access to local support and valid warranty

• Optimized for high-temperature and humidity ranges found in ANZ environments

• Direct support from TP-Link’s Australian and New Zealand technical teams—no third-party interference

• Suitable for educational campuses, public infrastructure, logistics, and retail operations

💼 Practical Use Scenarios

• Retail Chains: Simultaneous monitoring of front-of-house, storage, and POS areas

• Corporate Offices: Secure coverage of entryways, parking, and employee zones

• Logistics and Warehousing: Monitor loading docks, vehicle lanes, and storage aisles

• Healthcare & Aged Care: HIPAA-eligible surveillance with reliable event recording and access control

🛠 Installation & Setup

1. Mount in server rack or secure surface using provided brackets

2. Insert up to four 16 TB SATA drives using included data/power cables

3. Connect display(s), cameras, network, and power

4. Use Auto-Initialize feature to simplify IP camera and storage setup

5. Configure alerts, schedules, and remote access through VIGI software

🔧 SKU

VIGI NVR4032H

📄 Datasheets & Resources

• Datasheet

• installation guide


❓ FAQs

1. Q: What is the maximum recording capacity of the TP-Link VIGI NVR4032H?
   A: With four SATA slots, each supporting up to 16 TB, the NVR4032H can store up to 64 TB of footage internally.

2. Q: How many high-resolution streams can the VIGI NVR4032H decode in real time?
   A: It supports 16 channels at 1080p, 8 channels at 4MP, or 4 channels at 8MP at 25fps.

3. Q: Is the VIGI NVR4032H suitable for remote viewing?
   A: Yes, it supports remote monitoring via mobile app (Android/iOS), web browsers (Chrome, Firefox, Edge), and VIGI Security Manager.

4. Q: Can the VIGI NVR4032H integrate with non-TP-Link cameras?
   A: Yes, it is ONVIF Profile S compliant and supports CGI, enabling broad compatibility with third-party IP cameras.

5. Q: What kind of alarm integration does the VIGI NVR4032H support?
   A: It features 16 alarm inputs and 4 outputs, enabling integration with external sensors, lights, and alarm systems.

6. Q: Is the VIGI NVR4032H supported under warranty in Australia and New Zealand?
   A: Yes, when purchased through authorized distributors, it includes full local warranty support and service under SKU VIGI NVR4032H
