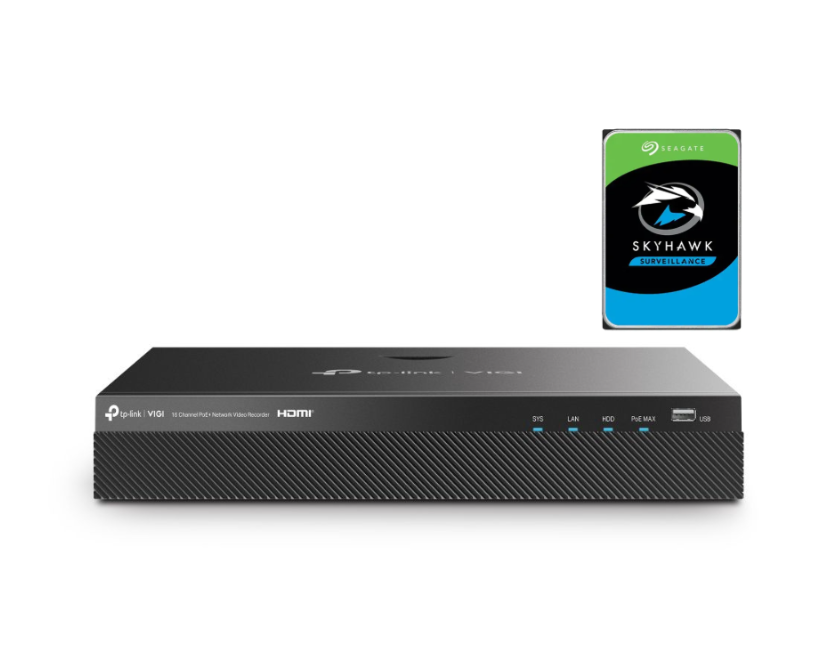

TP-Link VIGI NVR2016H-16P 16-Channel PoE+ Network Video Recorder – 4K HDMI Output, 90W PoE Budget, Dual SATA, H.265+ Compression (AUNZ)

TP-Link VIGI NVR2016H-16P 16-Channel PoE+ Network Video Recorder – 4K HDMI Output, 90W PoE Budget, Dual SATA, H.265+ Compression (AUNZ)

$410.04 AUD
$508.98 AUD $410.04 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
HDD Size

The TP-Link VIGI NVR2016H-16P is a powerful and feature-rich 16-channel PoE+ network video recorder, designed to deliver professional-grade security monitoring with maximum flexibility and high-resolution output. Supporting up to 4K HDMI resolution, 160 Mbps bandwidth, and simultaneous 16-channel playback, this NVR ensures clear, lag-free surveillance and reliable video storage. Ideal for businesses, retail chains, and public institutions in Australia and New Zealand, it also simplifies system setup with one-click initialization and intelligent storage scheduling.

🔧 What’s Included

  • 1 × TP-Link VIGI NVR2016H-16P

  • Power Adapter & Cable

  • Mouse

  • Mounting Accessories

  • HDD Power and Data Cables

  • Quick Installation Guide

  • HDD (Select)

⭐ Main Features

  • 4K HDMI Output with simultaneous VGA output for flexible multi-monitor setup

  • 90W PoE+ Budget across 16 ports, supporting up to 30W per channel

  • Supports 16-Channel Live View & Synchronous Playback

  • H.265+ Compression reduces bandwidth and storage costs while maintaining quality

  • Up to 10-ch@1080P decoding at 25fps or 2-ch@8MP for ultra-clear playback

  • Dual SATA support with capacity for up to 32TB of storage (2×16TB HDDs)

  • Comprehensive alarm integration including motion, tampering, scene change, and more

  • One-click system initialise for faster deployment and reduced setup costs

  • ONVIF compatibility and multi-protocol support for broad device integration

🧩 Detailed Specifications

Specification Details
Channels 16 IP Video Inputs
PoE Budget 90W Total, up to 30W/port
Max Incoming Bandwidth 160 Mbps
Max Outgoing Bandwidth 160 Mbps
HDMI Output Up to 3840×2160 @30Hz
VGA Output Up to 1920×1080 @60Hz
Compression Formats H.265+/H.265/H.264+/H.264
SATA Interfaces 2, each up to 16TB
Audio I/O 1 RCA In / 1 RCA Out
USB Ports 1 USB 2.0 (front), 1 USB 3.0 (rear)
Network Interface 1 Gigabit RJ45
Alarm In/Out 6 / 4
Operating Temperature -10°C to 55°C
Power Supply 53.5V DC / 2.43A
Power Consumption Max 40W (with HDD)

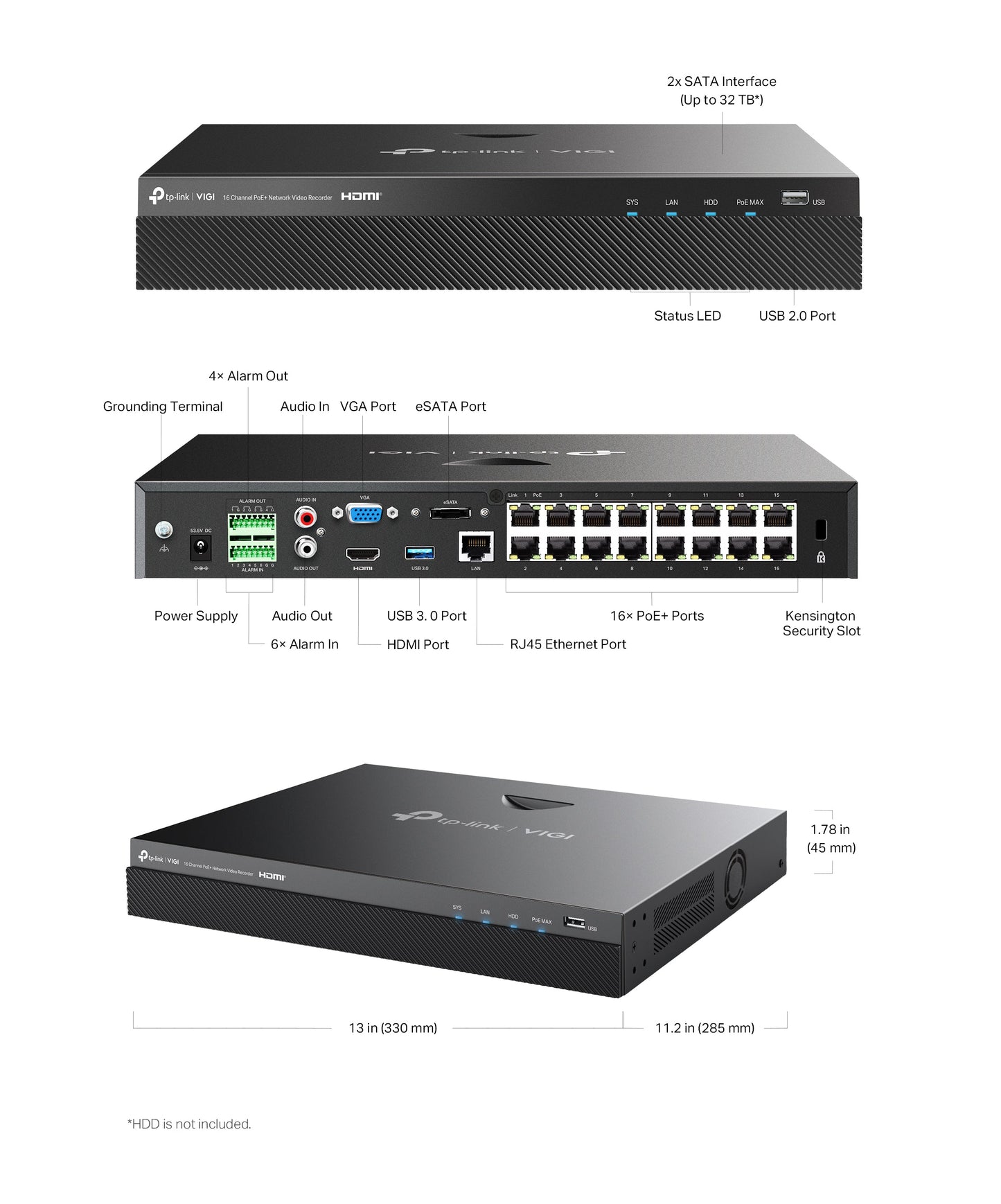

Dimensions (W×D×H) 330 × 285 × 45 mm
Certifications RCM, CE, FCC, VCCI, BSMI, UKCA, EAC, HDMI



🔋 Warranty & Support

This unit is backed by TP-Link's regional support for Australia and New Zealand, offering direct access to firmware updates, local service agents, and a 3-year manufacturer’s warranty via authorised resellers.

🌏 Excellence for the Australian and New Zealand Market

The VIGI NVR2016H-16P is specially certified for use in Australia and New Zealand, meeting the RCM standard and featuring firmware compliant with NDSS guidelines. It is sourced exclusively from official TP-Link distributors, ensuring full warranty validity and local service support.

📄 Datasheets & Resources

❓FAQs

Q: What is the PoE power output of the TP-Link NVR2016H-16P?
A: The product code NVR2016H-16P supports a total PoE+ budget of 90W, with up to 30W available per port.

Q: Can the TP-Link NVR2016H-16P output 4K video over HDMI?
A: Yes, the NVR2016H-16P delivers up to 3840×2160 resolution via HDMI for high-definition surveillance monitoring.

Q: How much storage can the NVR2016H-16P support?
A: The NVR2016H-16P features 2 SATA interfaces, each supporting up to 16TB, for a total maximum of 32TB storage.

Q: Is the NVR2016H-16P compatible with third-party IP cameras?
A: Yes, the NVR2016H-16P supports ONVIF Profile S and other standard protocols, allowing for wide compatibility.

Q: Does the TP-Link NVR2016H-16P include built-in video analytics?
A: While analytics depend on connected cameras, the NVR2016H-16P supports alarm inputs for human/vehicle detection, motion alerts, and more when paired with VIGI AI cameras.
