Overview: The TP-Link VIGI NVR1008H-8P is an advanced 8-channel PoE+ Network Video Recorder designed to deliver high-performance video management and recording. Ideal for various surveillance applications, this NVR offers exceptional image clarity, easy installation, and robust features for seamless video monitoring and playback.

Key Features

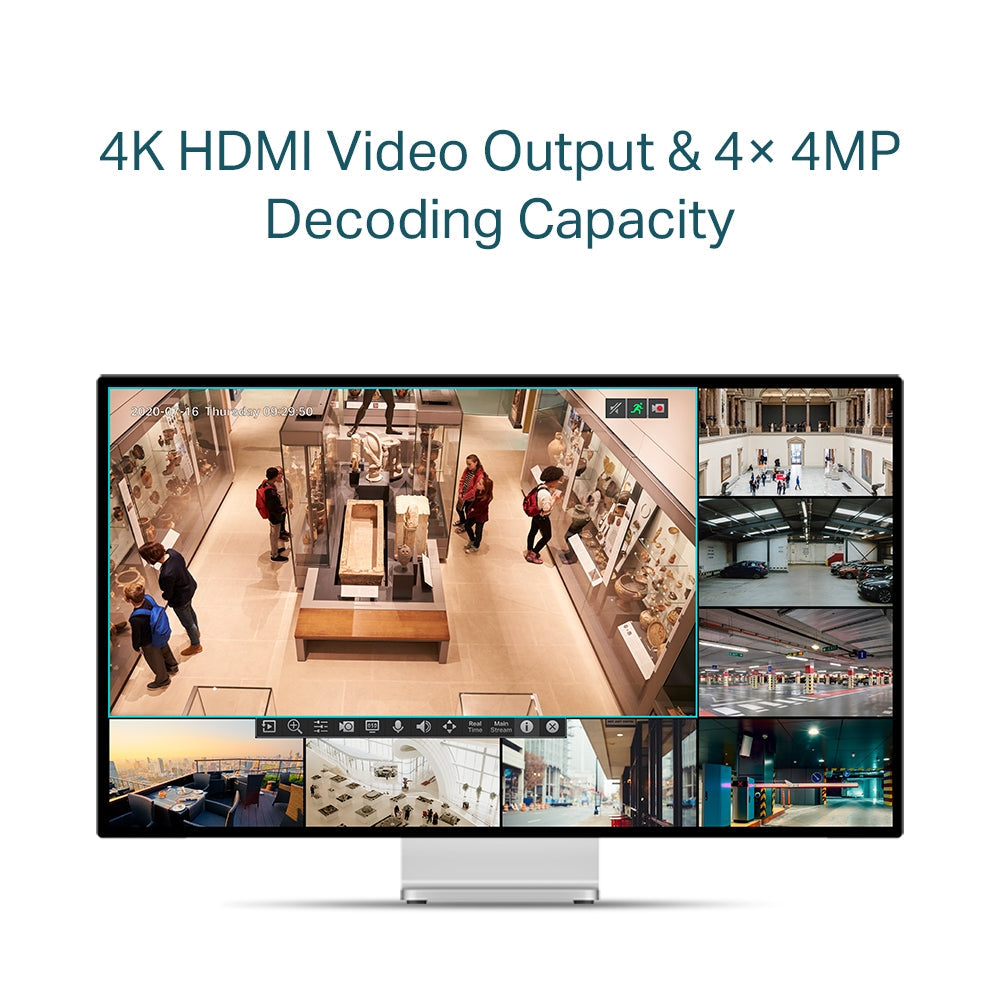

1. 8-Channel Live View & 4K HDMI Video Output

8-Channel Live View: Monitor up to 8 IP cameras simultaneously.
4K HDMI Video Output: Supports high-definition video output with resolutions up to 3840x2160 (4K) for detailed viewing.

2. Simplified Deployment with PoE+

8× PoE+ Ports: Equipped with 8× 10/100 Mbps PoE+ ports, each offering 30 W power supply, simplifying installation by enabling both data and power transmission over a single Ethernet cable.
Total PoE Budget: 53 W available across all PoE+ ports.

3. Decoding Capability

Resolution: Supports up to 8-ch @ 2MP (25fps) or 4-ch @ 4MP (25fps) decoding.

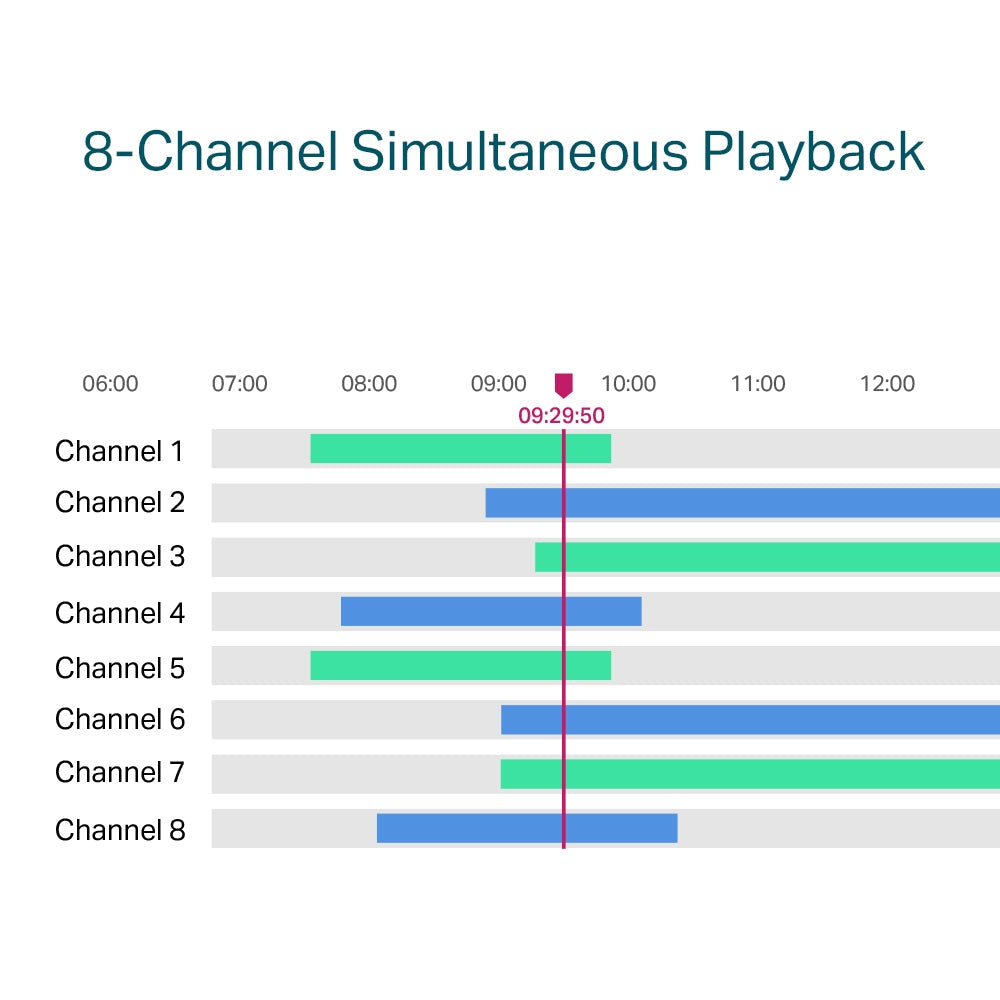

Synchronous Playback: Allows simultaneous playback of up to 8 channels for efficient video review.

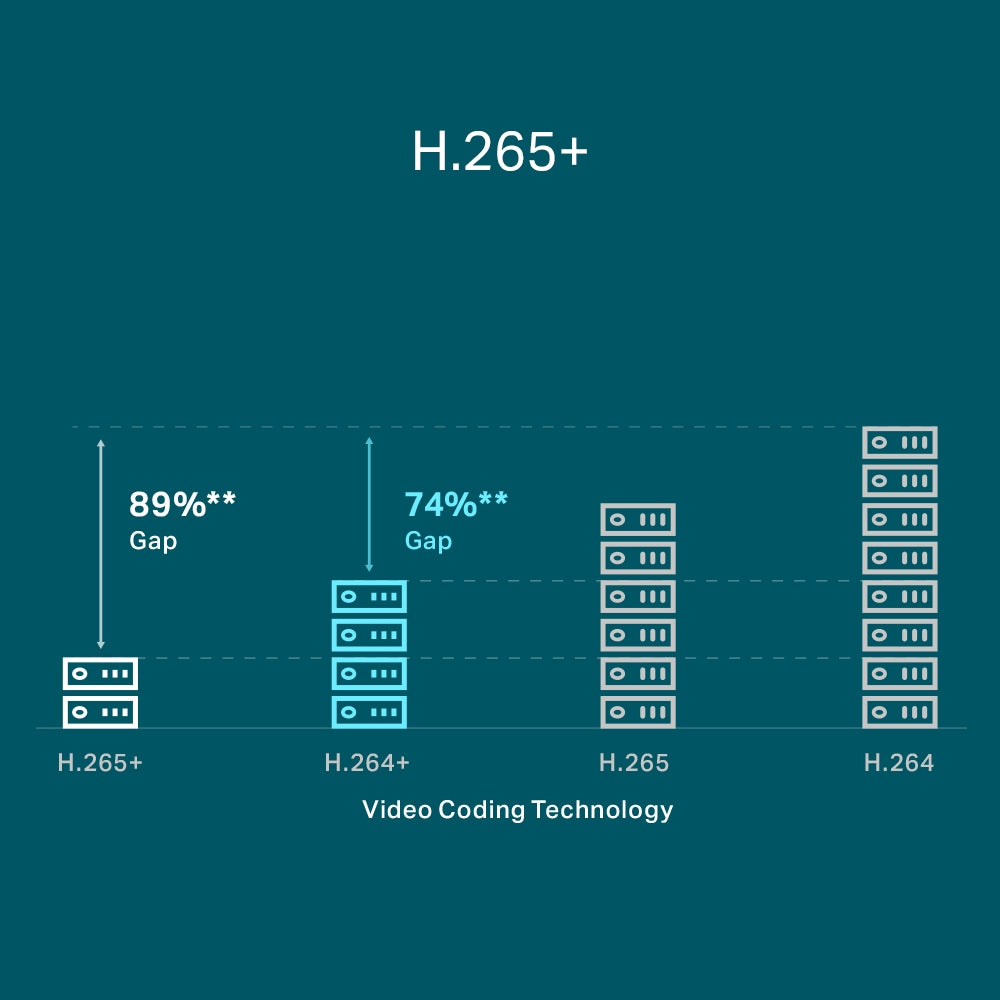

4. Advanced Compression Technology

H.265+ Compression: Reduces bandwidth and storage requirements while maintaining high video quality, leading to more efficient use of network resources.

5. HDMI and VGA Simultaneous Output

HDMI Output: Multiple resolutions supported including 3840x2160/30Hz, 1920x1080/60Hz, and more.
VGA Output: Resolutions up to 1920x1080/60Hz.

6. Remote Monitoring

Mobile Access: Compatible with Android and iOS devices for remote viewing.
Web Browser Access: Supports Chrome, Firefox, and Edge for web-based management.

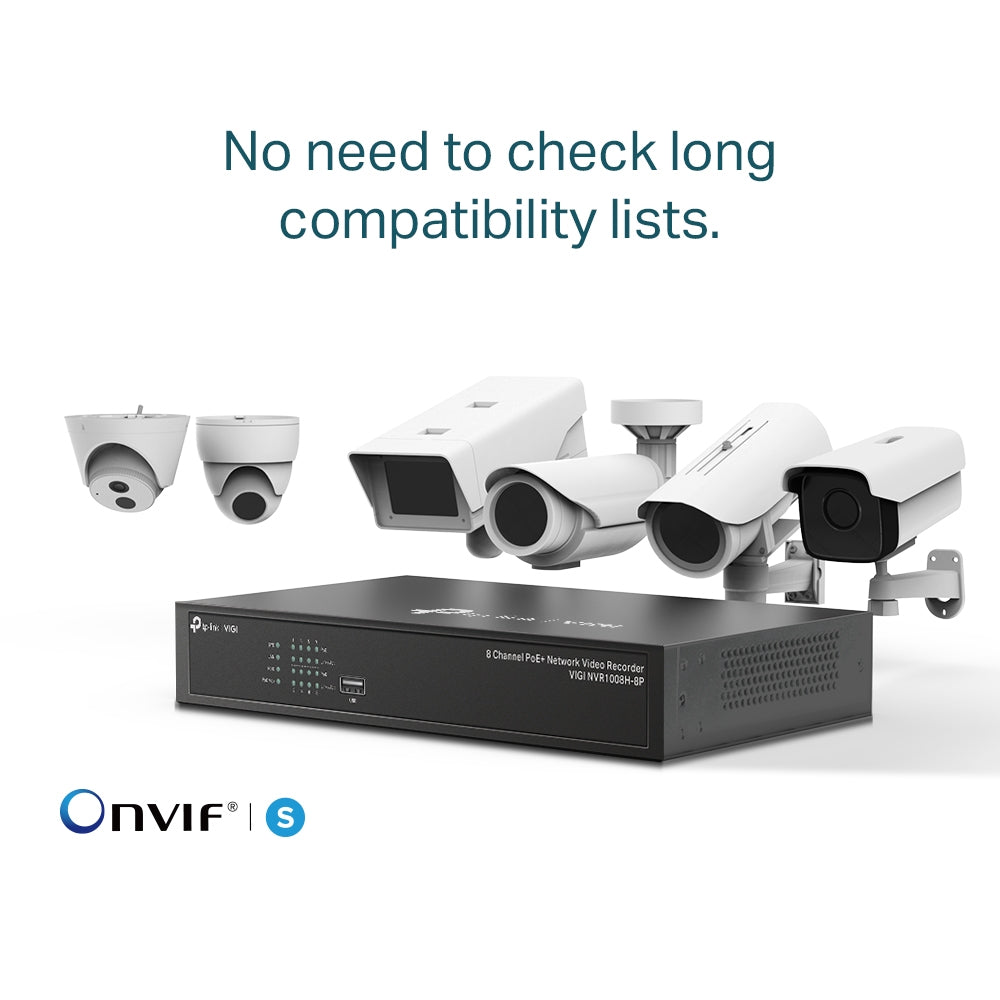

7. ONVIF Compatibility

Interoperability: Ensures seamless integration with VIGI and other ONVIF-compliant IP cameras, providing a versatile surveillance network.

8. Intelligent Detection & Two-Way Audio

Smart Detection: Includes motion detection, video tampering, and other advanced detection features.
Two-Way Audio: Enables audio communication through connected cameras.

9. Easy Setup and Management

Plug & Play: Simplified setup with automatic detection and configuration of connected cameras.
Remote Management: Features such as remote reboot, firmware updates, and real-time load status display for efficient system management.

Technical Specifications

Video and Audio:

IP Video Input: 8-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
Video Compression: H.265+, H.265, H.264+, H.264
Audio Compression: G.711A, G.711U, G.726

Decoding & Playback:

Record Resolution: Up to 8MP
Playback Capability: 8-channel synchronous playback
Playback Modes: Instant, Regular, Tag, Event Playback

Storage:

SATA Interface: 1
Maximum Capacity: Up to 16 TB per HDD

Network:

Protocol: UPnP, NTP
Interoperability: ONVIF, CGI

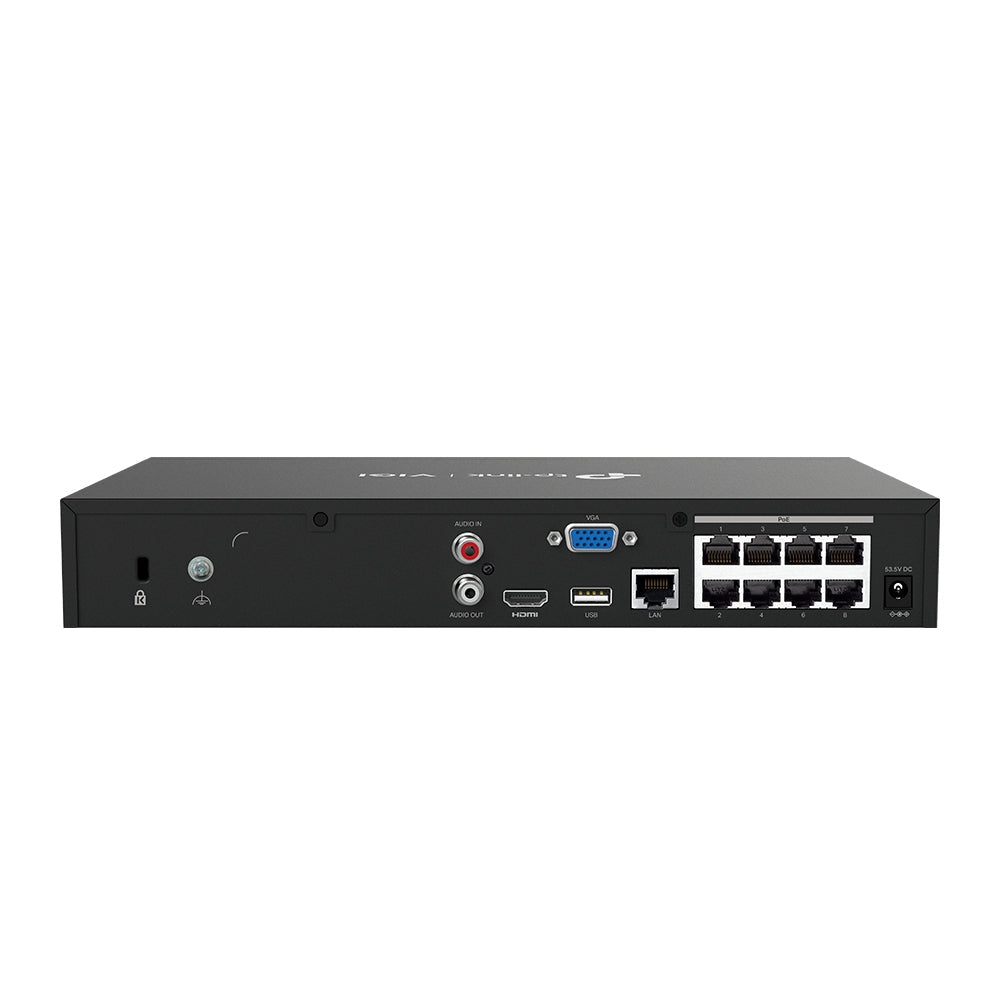

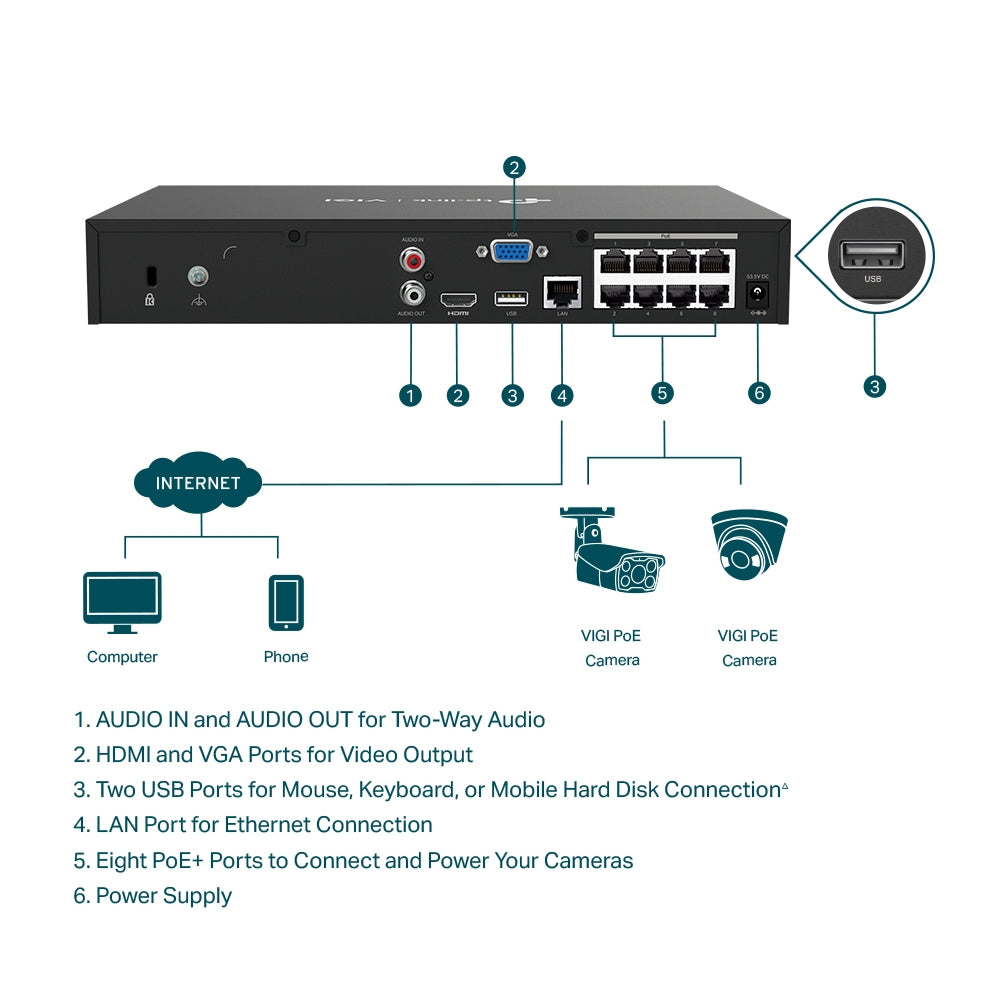

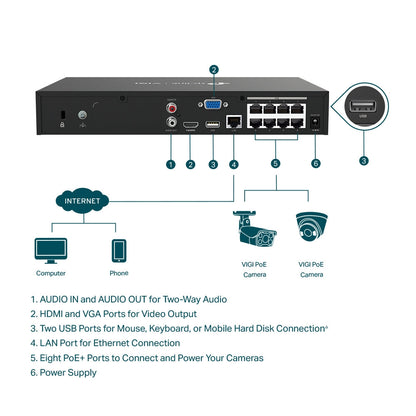

External Interfaces:

Network Interface: 1× RJ-45 10/100 Mbps
USB Interface: 2× USB 2.0
Audio Interface: 1× Audio In, 1× Audio Out
HDMI/VGA Outputs: 1 each

Power Supply:

Power Consumption: 2.38 W (without disk), 12.94 W (with disk)
Power Adapter: 53.5V DC/1.31 A

Environmental Conditions:

Operating Temperature: -10°C to 55°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% ~ 90% RH, Non-condensing

Dimensions and Weight:

Dimensions: 294 × 180 × 44 mm
Net Weight: 1.12 kg
Gross Weight: 2.06 kg

Certifications:

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Package Contents:

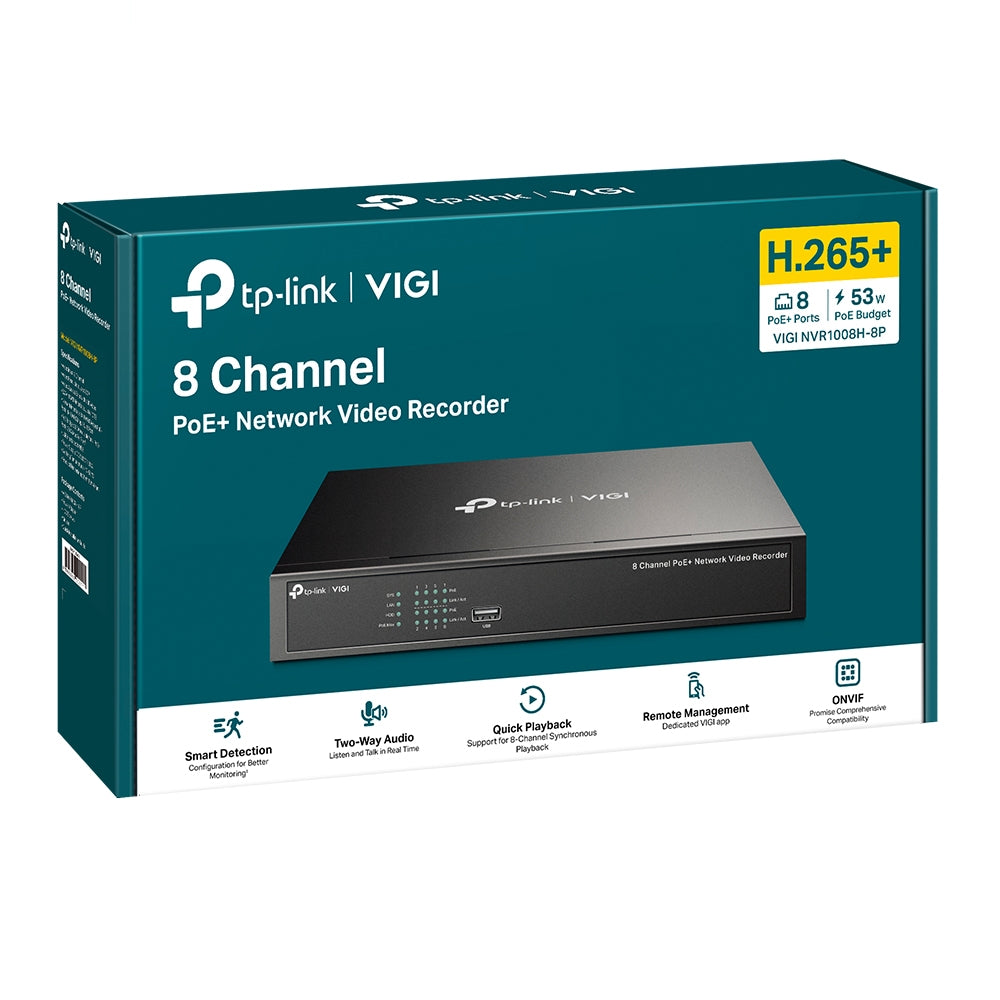

VIGI Network Video Recorder
Power Adapter
HDD Screws
Quick Installation Guide

The TP-Link VIGI NVR1008H-8P offers a powerful solution for managing and recording video from multiple IP cameras with advanced features and ease of use, making it an ideal choice for comprehensive surveillance systems.
