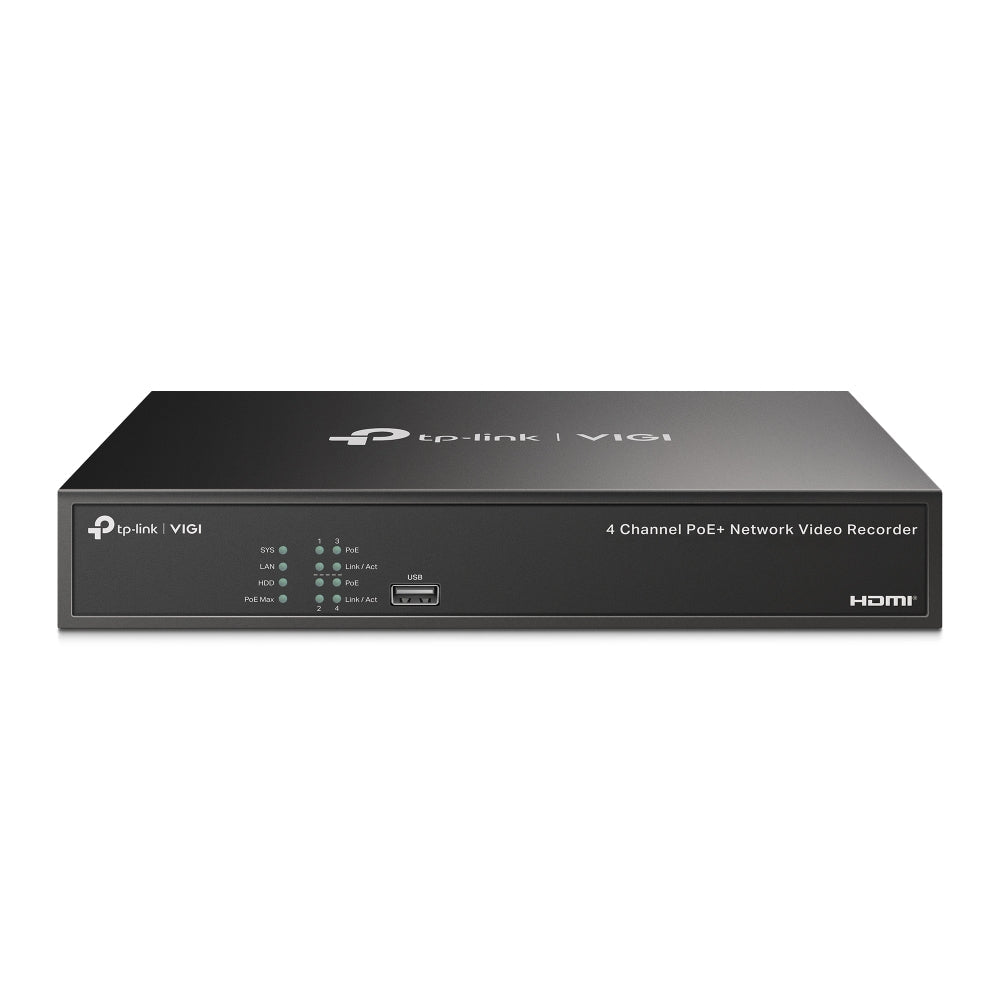

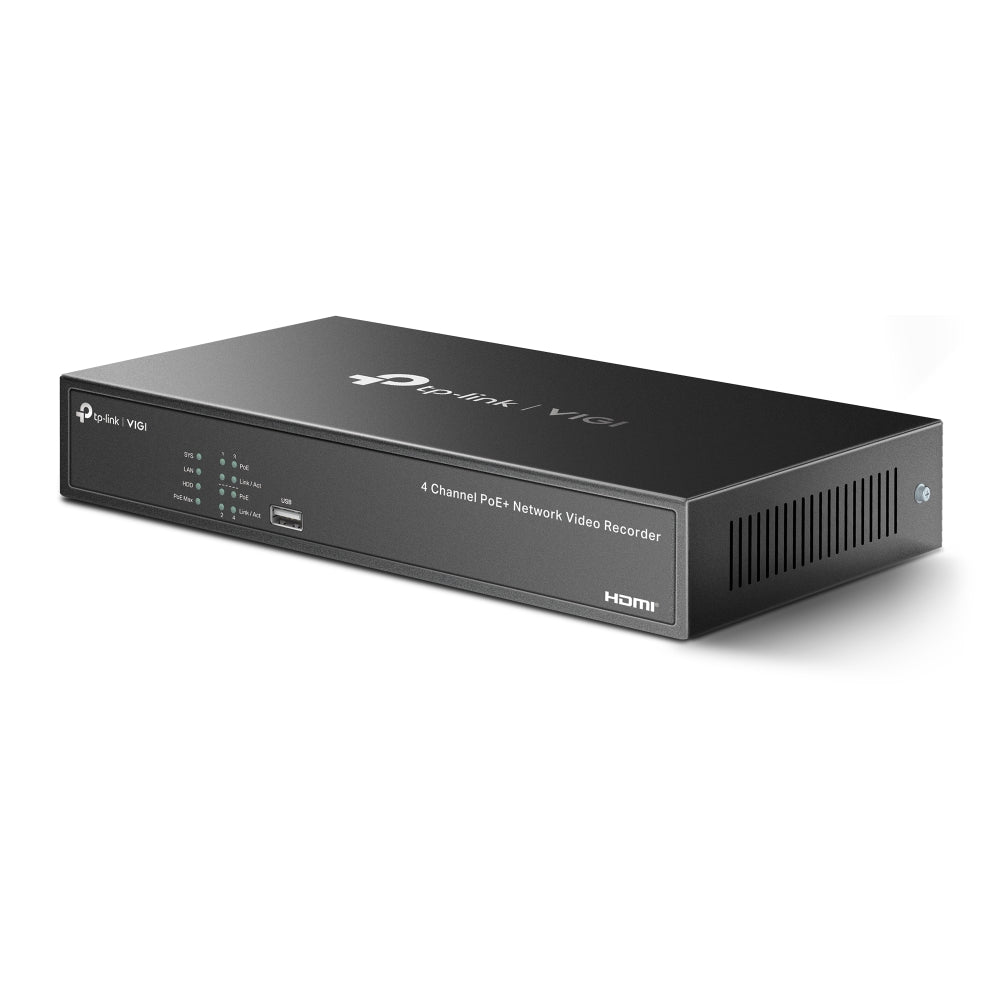

TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder – 4K HDMI Output, 53W PoE Budget, H.265+, 10TB HDD Support

The TP-Link VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder is a compact professional surveillance recorder designed for reliable business security, offering 4-channel live view, 4K HDMI output, 4 PoE+ ports, up to 53W PoE budget, H.265+ compression, 4-channel synchronous playback, and support for one SATA hard drive up to 10TB.

Built for small business, retail, office, warehouse, and commercial CCTV installations, the VIGI NVR1004H-4P simplifies camera deployment with 4 built-in PoE+ ports, allowing compatible IP cameras to receive power and data through a single Ethernet cable. Its Auto Initialise feature helps reduce setup time by quickly configuring basic IP camera and hard disk parameters.

With 80Mbps incoming bandwidth, 60Mbps outgoing bandwidth, HDMI and VGA simultaneous output, and decoding capability up to 4 channels at 4MP or 2 channels at 8MP, this NVR provides efficient recording, monitoring, playback, and backup for professional security systems.

What’s Included in the Box

• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• Rubber Feet
• Mouse
• Quick Installation Guide

Main Features

• 4-channel IP camera live view
• 4 × 10/100Mbps PoE+ ports
• 53W total PoE budget
• Up to 30W max per PoE port
• 4K HDMI video output
• HDMI and VGA simultaneous output
• 80Mbps incoming bandwidth
• 60Mbps outgoing bandwidth
• Up to 4-channel synchronous playback
• 1 × SATA interface supporting up to 10TB HDD
• H.265+ / H.265 / H.264+ / H.264 video compression
• Auto Initialise for faster setup
• ONVIF Profile S/T/G support
• CGI interoperability
• Remote monitoring via Android and iOS
• Manual, schedule, and motion detection recording
• Multiple playback and backup modes
• Smart alarm support when used with compatible cameras
• Compact desktop design
• Mouse included for local control

Detailed Specifications

Brand: TP-Link
Series: VIGI
Product Code / Model: VIGI NVR1004H-4P
Product Type: 4 Channel PoE+ Network Video Recorder

Video and Audio

IP Video Input: 4-channel
Incoming Bandwidth: 80Mbps
Outgoing Bandwidth: 60Mbps

HDMI Output Resolution:

• 3840 × 2160 at 30Hz
• 1920 × 1080 at 60Hz
• 1680 × 1050 at 60Hz
• 1440 × 900 at 60Hz
• 1280 × 1024 at 60Hz
• 1280 × 720 at 60Hz

VGA Output Resolution:

• 1920 × 1080 at 60Hz
• 1680 × 1050 at 60Hz
• 1440 × 900 at 60Hz
• 1280 × 1024 at 60Hz
• 1280 × 720 at 60Hz

Video Output Mode: HDMI / VGA simultaneous output
Multi-View Display: 1 / 4

Decoding

Audio Compression: G.711A / G.711U / G.726
Video Compression: H.265+ / H.265 / H.264+ / H.264

Record Resolution:
8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback: 4-channel

Decoding Capability:

• 25fps: 2-channel at 8MP, 4-channel at 4MP
• 30fps: 4-channel at 4MP, 3-channel at 5MP

Record Management

Record Modes:

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Modes:

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Modes:

• Regular Backup
• Video Clip Backup

Playback Functions:

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play by Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On / Off

Network

Protocols: UPnP, NTP
Mobile Phone Access: Android, iOS
Web Browser Support: Chrome 57+, Firefox 52+, Edge 91+
Interoperability: ONVIF, CGI
ONVIF Support: Profile S/T/G

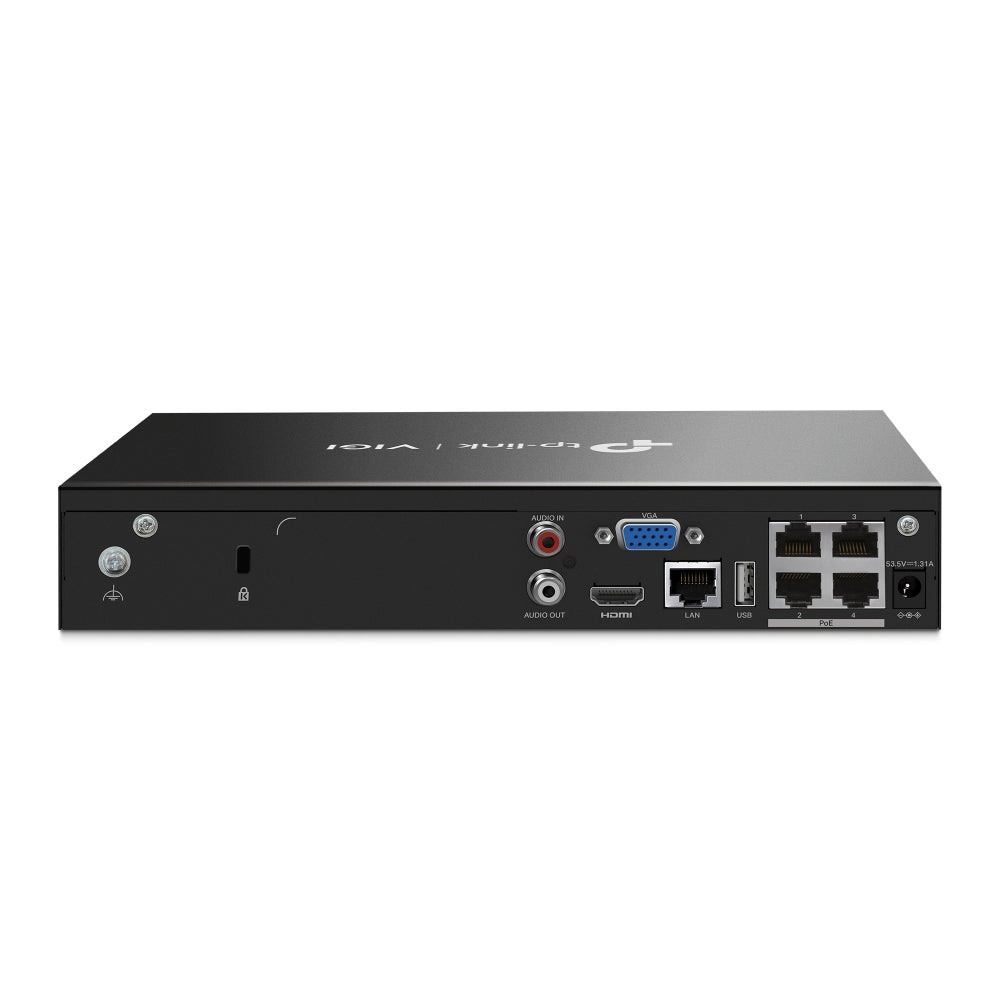

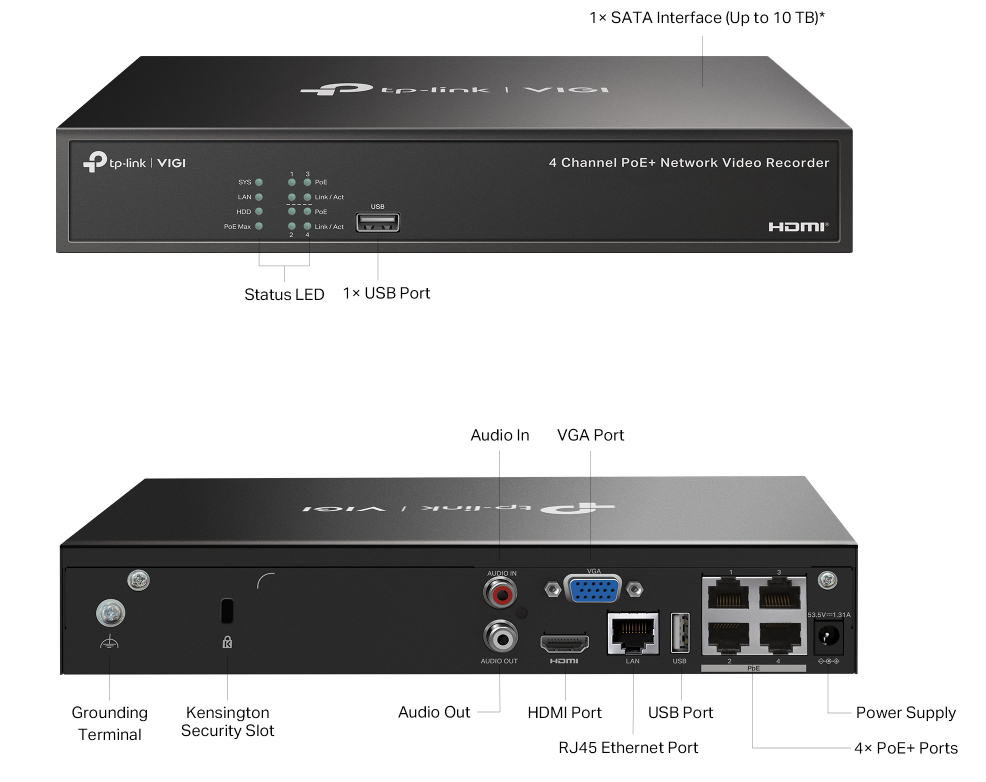

External Interface

Network Interface: 1 × RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE Interfaces: 4 × RJ-45 10/100Mbps self-adaptive Ethernet interfaces
USB Interface: 1 × front USB 2.0 port, 1 × rear USB 2.0 port
Audio Interface: 1 audio input, 1 audio output
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1 × DC jack
Reset Button: 1
Speaker: N/A
eSATA: N/A
HDMI: 1
VGA: 1

Hard Disk

SATA Interface: 1 × SATA interface
HDD Capacity: Up to 10TB
HDD Included: No

PoE

PoE Standard: 802.3at / 802.3af compliant
PoE Ports: 4 × RJ-45 10/100Mbps self-adaptive Ethernet ports
Total PoE Budget: 53W available for all PoE+ ports
Maximum PoE Per Port: 30W

Alarm

General Alarm Support:

• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned / Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame

Anomaly Alarm Support:

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception

Alarm Linkage:

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

Note: Alarm functions require the use of a compatible camera.

General

Working Temperature:

• NVR: -10°C to 55°C
• Power Adapter: 0°C to 40°C

Storage Temperature: -40°C to 70°C
Working Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 10% to 90% RH, non-condensing

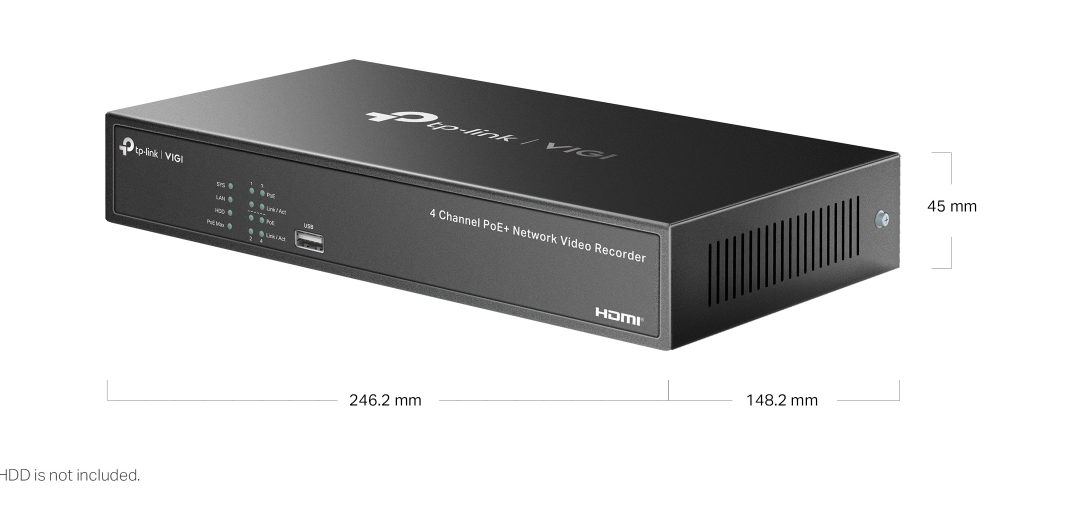

Dimensions: 246.2 × 148.2 × 45mm
Power Supply: 53.5V DC / 1.31A

Maximum Power Consumption:

• 4.25W without disk
• 13.10W with disk

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Important Notes

• PoE budget calculations are based on laboratory testing. Actual PoE power budget may vary due to client limitations and environmental factors.
• HDD is not included.
• The number of simultaneously playable channels may be fewer than 4, or none, if the total resolution exceeds 16MP.
• Alarm functions require compatible cameras.
• This model currently supports ONVIF Profile S/T/G.

Warranty Information

Manufacturer warranty applies. The exact warranty period was not included in the supplied product information and should be confirmed at the time of purchase or with the authorised TP-Link representative. Warranty handling should be managed through direct communication with the brand or authorised brand channel.

Brand Description

TP-Link VIGI is TP-Link’s professional surveillance range developed for business and commercial security systems. The VIGI ecosystem includes network cameras, network video recorders, video management tools, remote monitoring options, AI detection support, and scalable recording solutions for modern security installations.

SKU Field

SKU: VIGI NVR1004H-4P
Product Code: NVR1004H-4P
Brand: TP-Link
Product Name: VIGI 4 Channel PoE+ Network Video Recorder

Practical Use Scenarios

The TP-Link VIGI NVR1004H-4P is suitable for small to medium surveillance systems where reliable local recording, PoE camera connection, remote access, and simple management are required. It is ideal for:

• Small retail stores
• Offices and reception areas
• Cafés and restaurants
• Warehouses and stockrooms
• Residential security systems
• Small commercial buildings
• Clinics and professional suites
• Schools and community facilities
• Car park and entry point monitoring
• Sites requiring a compact 4-channel PoE NVR

Datasheets & Downloadable Resources

• Product Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link VIGI NVR1004H-4P is well suited to Australian and New Zealand surveillance installations requiring compact, reliable, and easy-to-manage video recording for small business and professional security environments.

With 4 PoE+ ports, a 53W PoE budget, 4K HDMI output, H.265+ compression, and support for one hard drive up to 10TB, this NVR provides a practical foundation for efficient surveillance recording and remote monitoring. Its support for RCM certification is especially relevant for the Australian and New Zealand market.

The supplied certification list includes CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, and HDMI. NDSS approval was not specified in the supplied information and should not be claimed unless confirmed by an authorised TP-Link representative. Warranty support should be handled through direct communication with the brand or authorised representative channel for accurate Australian and New Zealand after-sales service.

FAQs

Q1: What is the TP-Link VIGI NVR1004H-4P used for?
The TP-Link VIGI NVR1004H-4P is used to record, manage, view, and playback video from up to 4 IP security cameras in a professional surveillance system.

Q2: How many cameras does the TP-Link VIGI NVR1004H-4P support?
The TP-Link VIGI NVR1004H-4P supports 4-channel IP video input for up to 4 connected cameras.

Q3: Does the TP-Link VIGI NVR1004H-4P have PoE ports?
Yes. The TP-Link VIGI NVR1004H-4P includes 4 PoE+ ports for powering compatible IP cameras and transmitting data over Ethernet.

Q4: What is the PoE budget of the TP-Link VIGI NVR1004H-4P?
The TP-Link VIGI NVR1004H-4P provides a total PoE budget of 53W, with up to 30W maximum per PoE port.

Q5: Does the TP-Link VIGI NVR1004H-4P support 4K output?
Yes. The TP-Link VIGI NVR1004H-4P supports HDMI output up to 3840 × 2160 at 30Hz.

Q6: Does the TP-Link VIGI NVR1004H-4P support VGA output?
Yes. The TP-Link VIGI NVR1004H-4P supports VGA output up to 1920 × 1080 at 60Hz and can output HDMI and VGA simultaneously.

Q7: What hard drive capacity does the TP-Link VIGI NVR1004H-4P support?
The TP-Link VIGI NVR1004H-4P supports one SATA hard drive up to 10TB. The hard drive is not included.

Q8: Does the TP-Link VIGI NVR1004H-4P support H.265+ compression?
Yes. The TP-Link VIGI NVR1004H-4P supports H.265+, H.265, H.264+, and H.264 video compression.

Q9: Can the TP-Link VIGI NVR1004H-4P be accessed remotely?
Yes. The TP-Link VIGI NVR1004H-4P supports mobile phone access through Android and iOS devices.

Q10: Does the TP-Link VIGI NVR1004H-4P support ONVIF cameras?
Yes. The TP-Link VIGI NVR1004H-4P supports ONVIF Profile S/T/G and CGI interoperability.

Q11: What playback options are available on the TP-Link VIGI NVR1004H-4P?
The TP-Link VIGI NVR1004H-4P supports instant playback, regular playback, tag playback, event playback, and up to 4-channel synchronous playback.

Q12: Is the TP-Link VIGI NVR1004H-4P suitable for small business CCTV systems?
Yes. The TP-Link VIGI NVR1004H-4P is suitable for small business CCTV systems requiring 4-channel recording, PoE camera support, remote monitoring, and local video playback.
