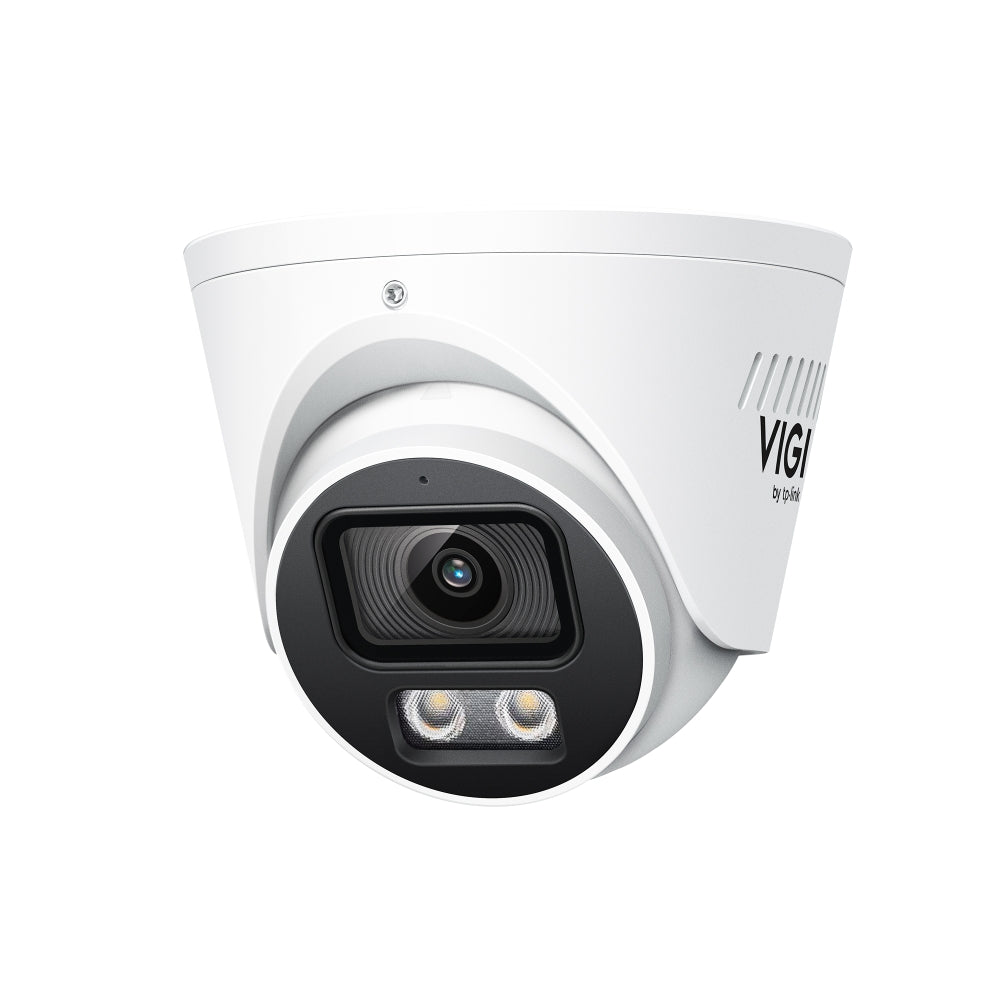

TP-Link VIGI InSight S445S 4MP ColourPro 2.0 Turret Network Camera – AI-ISP Low-Light Colour Night Vision, IP67, PoE, Two-Way Audio

The TP-Link VIGI InSight S445S 4MP ColourPro 2.0 Turret Network Camera delivers professional AI-powered surveillance with ultra-low-light colour night vision, 4MP clarity, smart human and vehicle detection, PoE installation, two-way audio, and IP67 weatherproof protection for commercial and outdoor security applications.

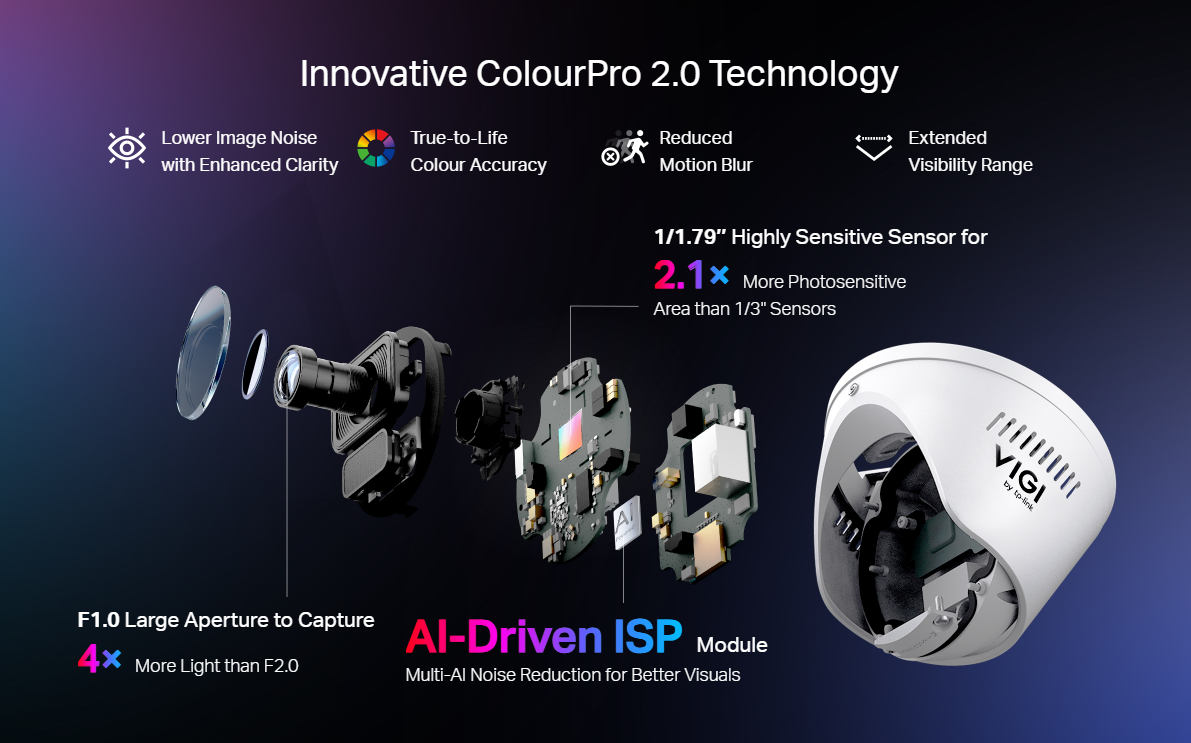

Built for clearer monitoring in challenging lighting, the VIGI InSight S445S uses ColourPro 2.0 technology, a 1/1.79” Progressive Scan CMOS sensor, F1.0 aperture, and AI-ISP processing to provide vivid colour imaging in ultra-low-light environments. With 4MP super-high-definition video up to 2688 × 1520, this turret camera is ideal for businesses that need clearer details across entrances, warehouses, parking areas, loading zones, hospitality venues, farms, and outdoor facilities.

The camera supports People & Vehicle Attributes Analytics, Human & Vehicle Classification, smart event detection, alarm input/output integration, onboard MicroSD storage up to 512GB, and efficient H.265+ compression to reduce bandwidth and storage requirements while maintaining video quality.

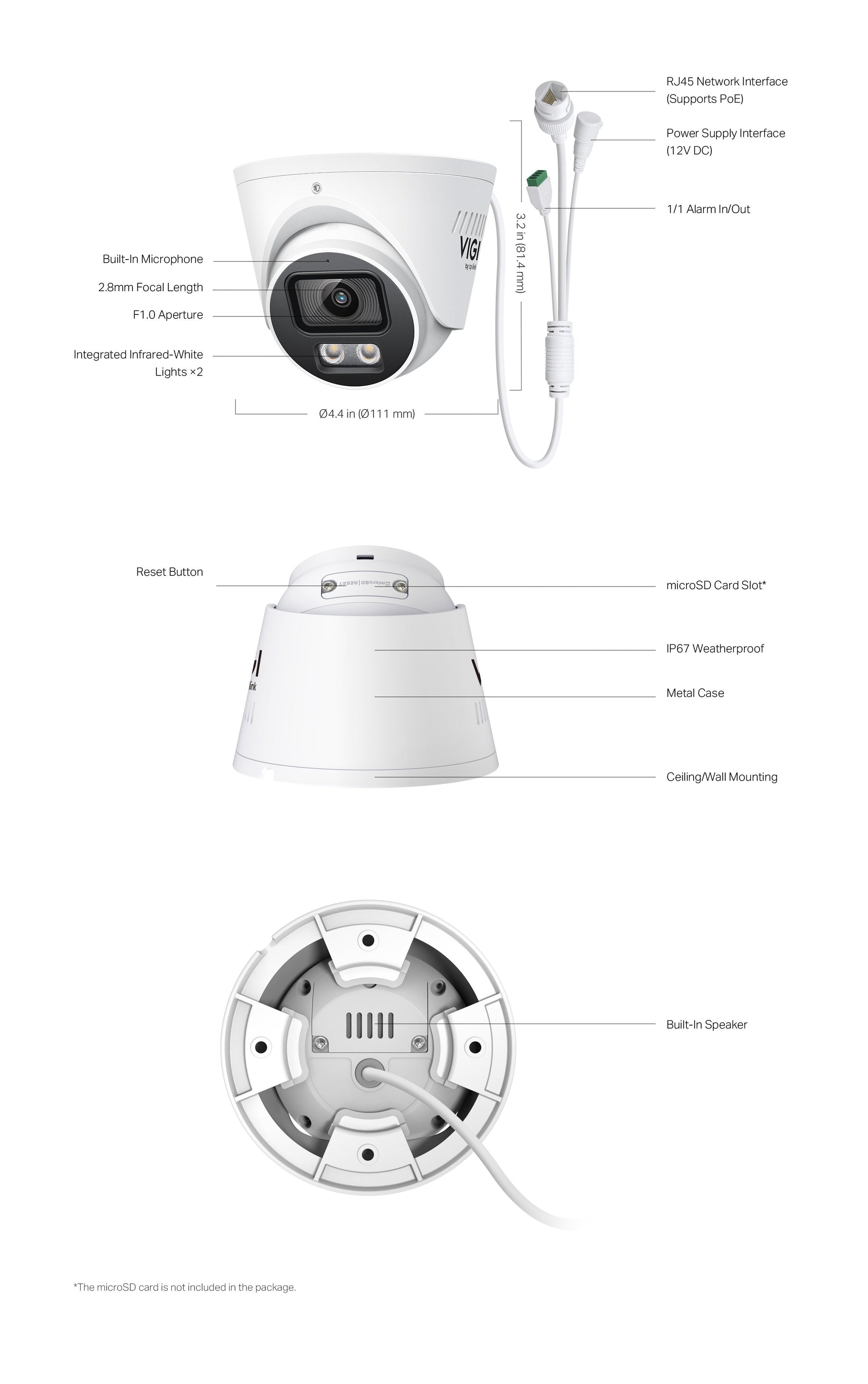

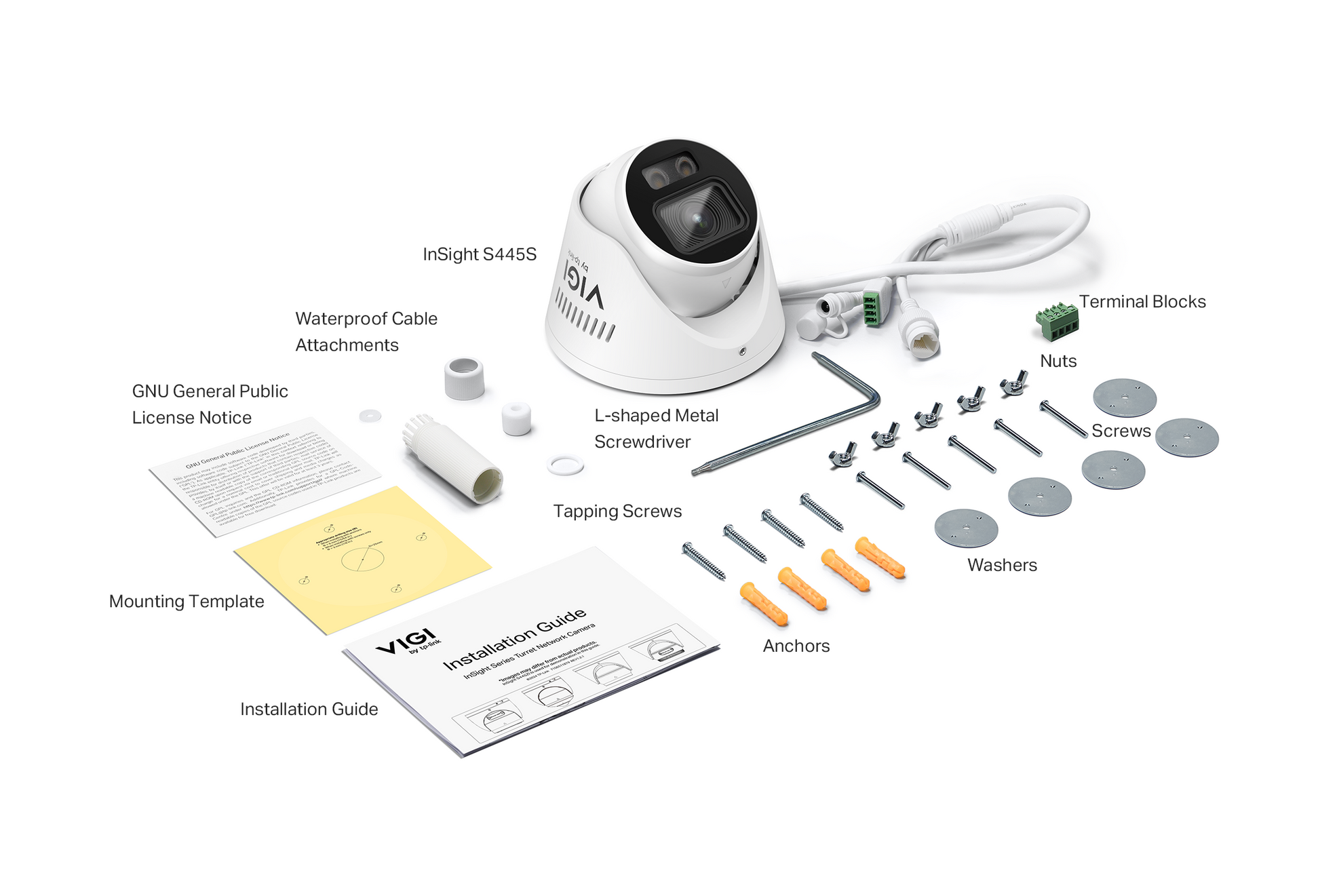

What’s Included in the Box

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Main Features

• 4MP super-high-definition video up to 2688 × 1520

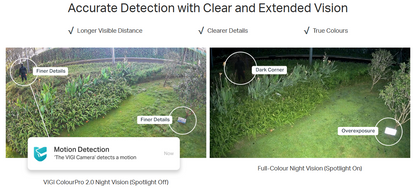

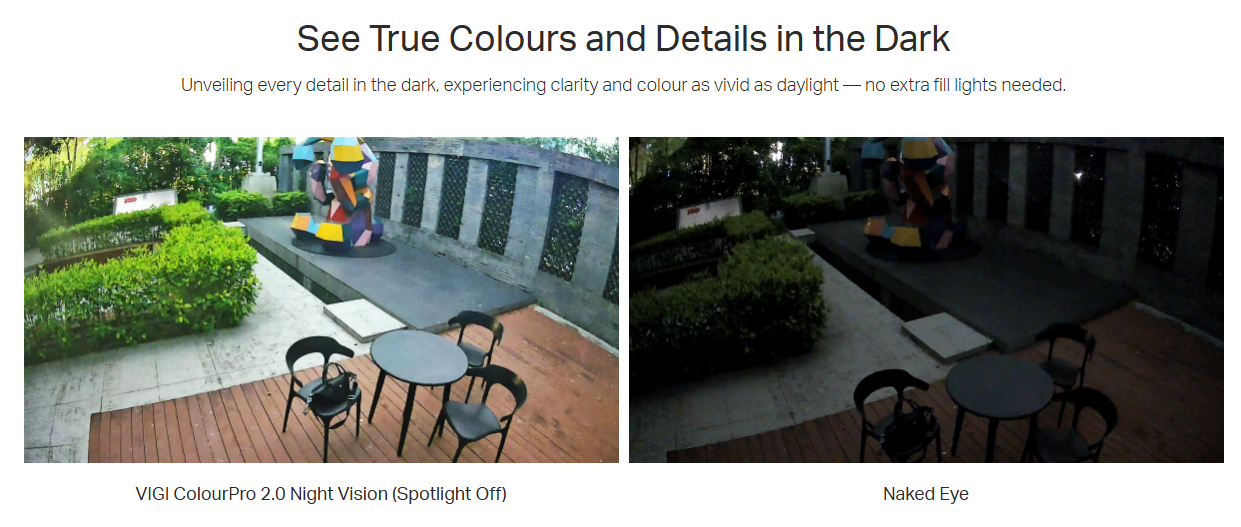

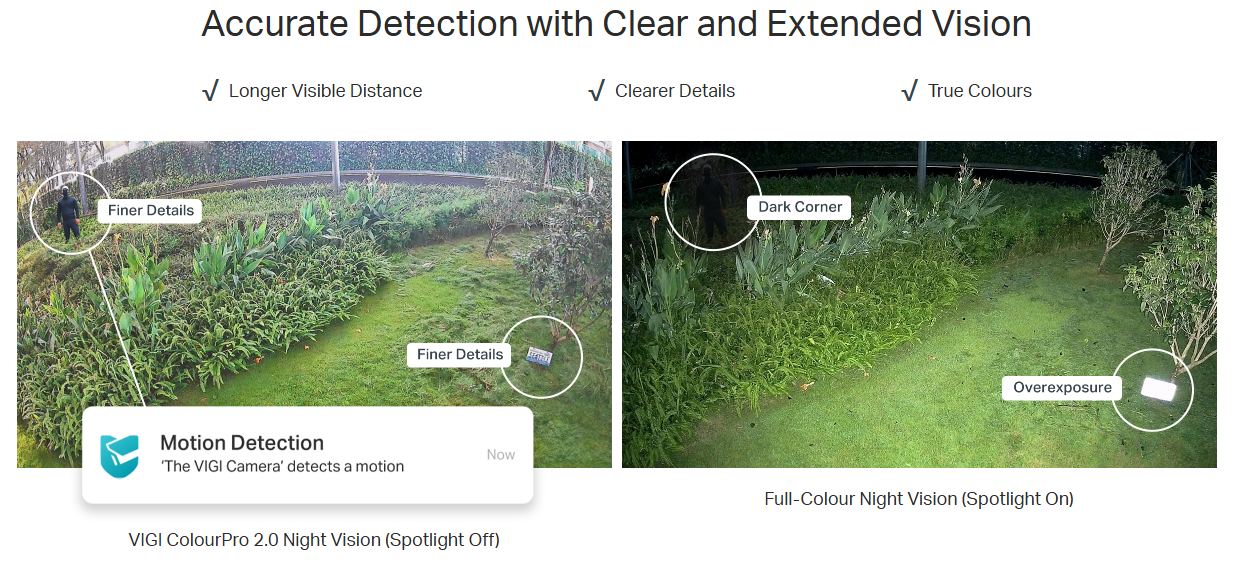

• ColourPro 2.0 ultra-low-light colour night vision
• AI-ISP powered imaging for enhanced low-light performance
• 1/1.79” Progressive Scan CMOS sensor
• 2.8mm fixed lens with wide 112.5° horizontal field of view
• F1.0 large aperture
• Integrated IR and white LEDs with up to 30m range
• People & Vehicle Attributes Analytics
• Human & Vehicle Classification
• Smart detection including intrusion, line-crossing, region entering/exiting, loitering, object abandoned/removal, people detection, vehicle detection, abnormal sound detection, and scene change detection
• Two-way audio with built-in microphone and speaker
• Alarm In/Out integration for external alarm devices
• Smart video enhancement including BLC, 3D DNR, HLC, SmartIR, and 120dB WDR
• H.265+ compression for reduced bandwidth and storage usage
• PoE or 12V DC power options
• IP67 weatherproof metal housing
• ONVIF Profile S/T/G support

Detailed Specifications

Brand: TP-Link
Series: VIGI
Product Code / Model: InSight S445S
Product Type: 4MP ColourPro 2.0 Turret Network Camera
Camera Sensor: 1/1.79” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens Type: Fixed Focal Lens
Focal Length: 2.8mm
Aperture: F1.0
Field of View:

• Horizontal: 112.5°
• Vertical: 61.4°
• Diagonal: 137°

Lens Mount: M12
DORI Distance:

• Detect: 59m
• Observe: 25m
• Recognise: 12m
• Identify: 6m

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotation: 0° to 360°

Illuminator:

• 2 × integrated infrared-white LEDs
• IR Range: up to 30m
• White LED Range: up to 30m
• Wavelength: 850nm
• Control: Auto / Scheduled / Always On / Always Off

Maximum Resolution: 2688 × 1520
Main Stream Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Main Stream Resolutions:
2688 × 1520, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720

Sub-Stream Resolutions:
848 × 480, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240

Video Compression:

• Main Stream: H.265+ / H.265 / H.264+ / H.264
• Sub-Stream: H.265 / H.264

Video Bit Rate:

• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 1024 Kbps

Image Enhancement: BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range: 120dB
SNR: ≥ 52dB
Privacy Mask: Up to 4 masks
ROI: 1 region
OSD Setting: Yes

Audio Communication: Two-way audio
Audio Input: Built-in microphone
Audio Output: Built-in speaker
Audio Sampling Rate: 8 KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps

Network Interface: 1 × RJ45 10/100M self-adaptive Ethernet port with PoE
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF: Yes
API: Open Network Video Interface Profile S/T/G
Simultaneous Live View: 3 main streams and 3 sub-streams
Client Support: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Cloud Support: Yes
Security: Password protection, HTTPS encryption, IP address filter, digest authentication, 802.1X authentication

Smart Events:

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection

Basic Events:

• Motion Detection with Human & Vehicle Classification
• Video Tampering Detection
• Exception / Illegal Login
• Alarm Input Device

Alarm Linkage:

• Memory Card Video Recording
• FTP Upload
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defense Sound Alarm
• Active Defense Light Alarm
• Email Alarm

Storage: Built-in MicroSD card slot, up to 512GB
Alarm Interface: 1 alarm input, 1 alarm output
Reset Button: Yes
Power Supply:

• 12V DC ±5%, max. 15.6W
• PoE 802.3at Class 4, max. 17.9W

Operating Temperature: -30°C to 60°C
Storage Temperature: -40°C to 60°C
Operating Humidity: 95% or less, non-condensing
Storage Humidity: 95% or less, non-condensing
Material: Metal
Net Weight: 0.55kg
Dimensions: Φ111 × 81.4mm
Protection Rating: IP67 weatherproof
Certifications: CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF

Warranty Information

Manufacturer 3 year warranty applies.

Brand Description

TP-Link VIGI is TP-Link’s professional surveillance range designed for business security environments, offering network cameras, VIGI software tools, cloud and VMS access, AI detection features, and scalable monitoring options for commercial installations.

SKU Field

SKU: InSight S445S
Product Code: S445S
Brand: TP-Link
Product Name: VIGI 4MP ColourPro 2.0 Turret Network Camera

Practical Use Scenarios

The TP-Link VIGI InSight S445S is suitable for warehouses, parking lots, shopfronts, hospitality venues, farms, orchards, dimly lit bars, wildlife-sensitive areas, loading bays, building entrances, and perimeter monitoring where low-light colour visibility, AI detection, and weatherproof operation are important.

Datasheets & Downloadable Resources

• Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link VIGI InSight S445S is well suited to Australian and New Zealand security installations requiring reliable outdoor surveillance, wide-angle monitoring, smart AI event detection, and low-light colour imaging.

Its IP67 weatherproof housing, PoE installation support, metal construction, and wide operating temperature range make it suitable for demanding commercial environments. The supplied certification list includes CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, and ONVIF.

NDSS approval was not specified in the supplied information and should not be claimed unless confirmed by an authorised TP-Link representative. Warranty support should be handled through the brand or authorised representative channel for accurate Australian and New Zealand after-sales service.

FAQs

Q1: What is the TP-Link VIGI InSight S445S used for?
The TP-Link VIGI InSight S445S is used for professional indoor and outdoor video surveillance, especially where 4MP detail, colour night vision, AI people and vehicle detection, two-way audio, and weatherproof installation are required.

Q2: Does the TP-Link VIGI InSight S445S support colour night vision?
Yes. The TP-Link VIGI InSight S445S supports ColourPro 2.0 ultra-low-light colour night vision with AI-ISP powered imaging and integrated IR/white LEDs.

Q3: What resolution does the TP-Link VIGI InSight S445S record in?
The TP-Link VIGI InSight S445S records up to 4MP resolution, with a maximum resolution of 2688 × 1520.

Q4: Does the TP-Link VIGI InSight S445S support human and vehicle detection?
Yes. The TP-Link VIGI InSight S445S supports Human & Vehicle Classification as well as People & Vehicle Attributes Analytics for more accurate alerts and faster post-event searching.

Q5: Is the TP-Link VIGI InSight S445S weatherproof?
Yes. The TP-Link VIGI InSight S445S has an IP67 weatherproof rating, making it suitable for outdoor security installations.

Q6: Does the TP-Link VIGI InSight S445S support PoE?
Yes. The TP-Link VIGI InSight S445S supports PoE 802.3at Class 4 and can also be powered by 12V DC.

Q7: Does the TP-Link VIGI InSight S445S have two-way audio?
Yes. The TP-Link VIGI InSight S445S includes a built-in microphone and built-in speaker for two-way audio communication.

Q8: What storage does the TP-Link VIGI InSight S445S support?
The TP-Link VIGI InSight S445S has a built-in MicroSD card slot supporting cards up to 512GB. The MicroSD card is not included.

Q9: What lens does the TP-Link VIGI InSight S445S use?
The TP-Link VIGI InSight S445S uses a 2.8mm fixed focal lens with an F1.0 aperture and a wide 112.5° horizontal field of view.

Q10: Is the TP-Link VIGI InSight S445S compatible with ONVIF systems?
Yes. The TP-Link VIGI InSight S445S supports ONVIF and Open Network Video Interface profiles S, T, and G.
