TP‑Link VIGI InSight S385DPS Outdoor 180° Dual‑Lens Panoramic PoE Security Camera — IP67 Weatherproof, Human & Vehicle Analytics, Night Vision, Active Defence, ColorPro

The TP‑Link VIGI InSight S385DPS is a professional panoramic outdoor security camera designed for commercial and industrial surveillance needs. Featuring 180° dual‑lens stitched panoramic imaging, Human & Vehicle Classification, Active Defence alarms, and ultra low‑light night vision, this IP67 weatherproof PoE camera delivers broad coverage with intelligent analytics — ideal for business perimeter monitoring and risk‑aware security setups.

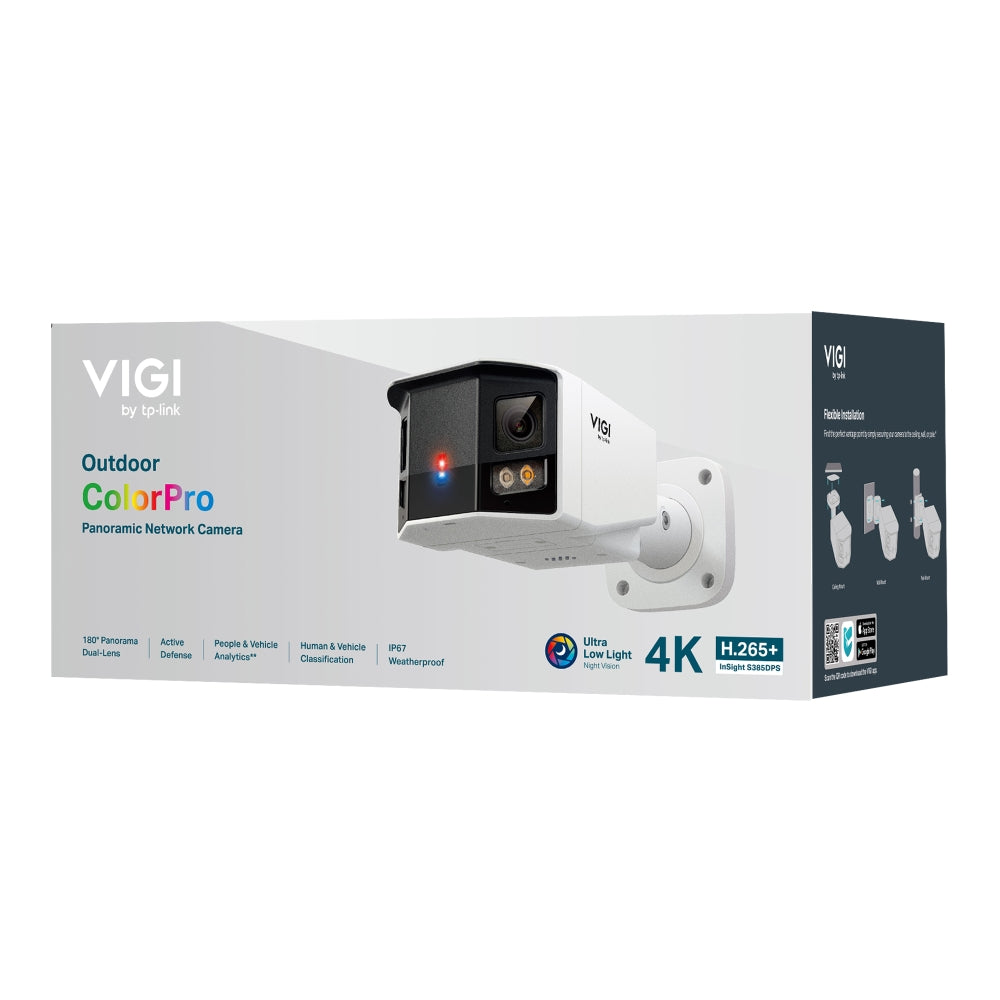

What’s Included in the Box

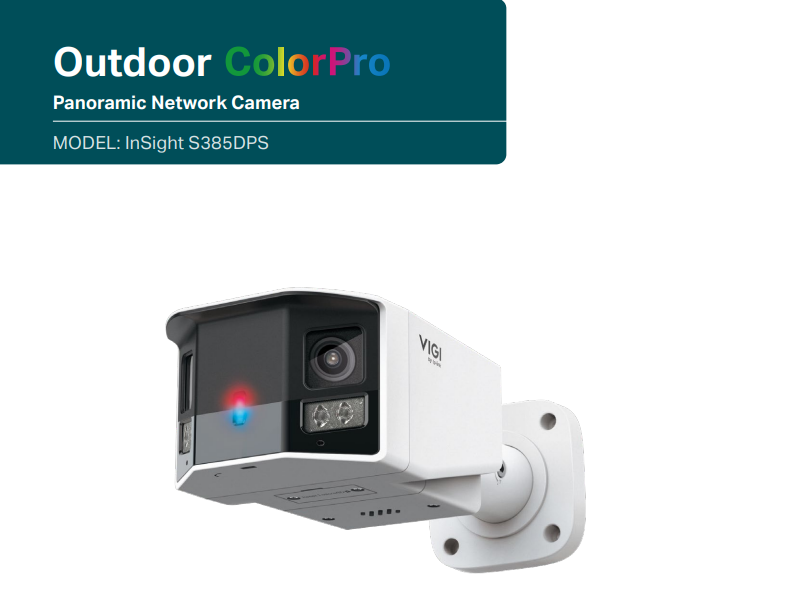

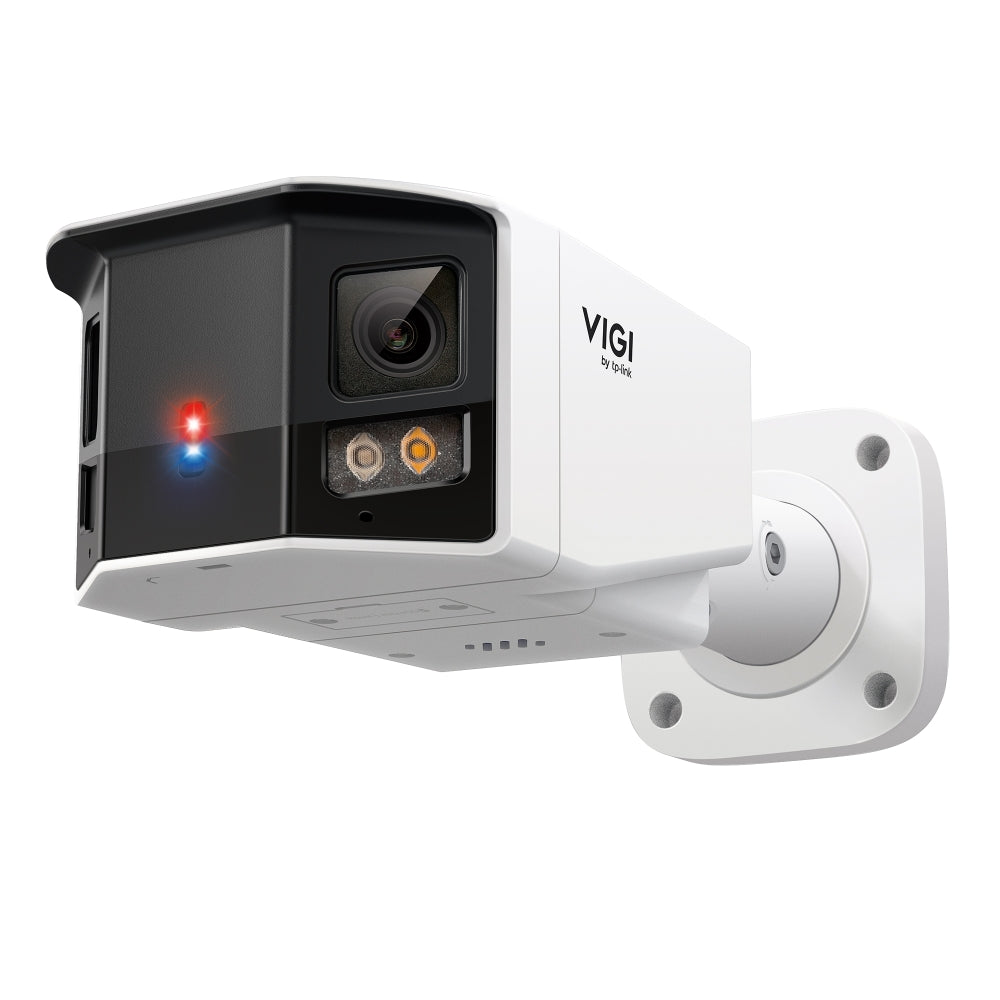

• VIGI Network Camera — InSight S385DPS

• Quick Start Guide

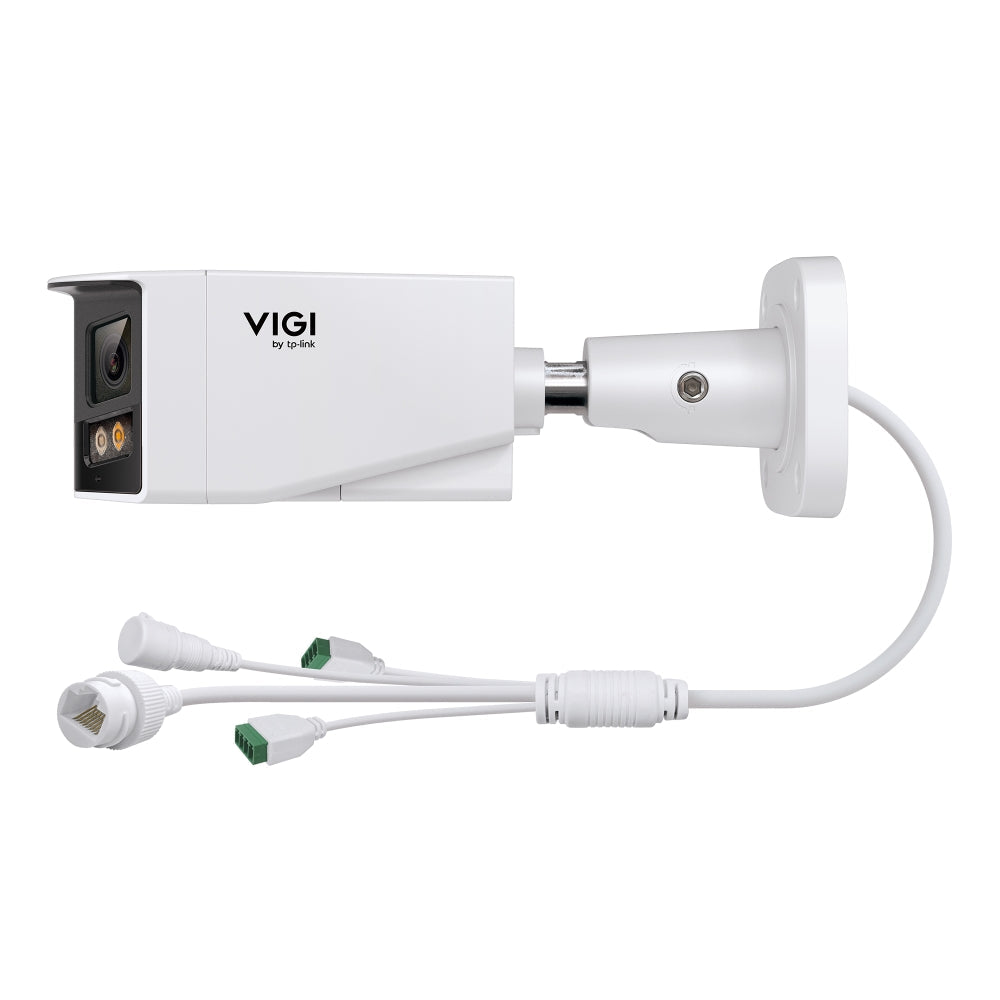

• Waterproof Cable Attachment


• (Optional accessories like PoE Switch or NVR systems sold separately)

Main Features

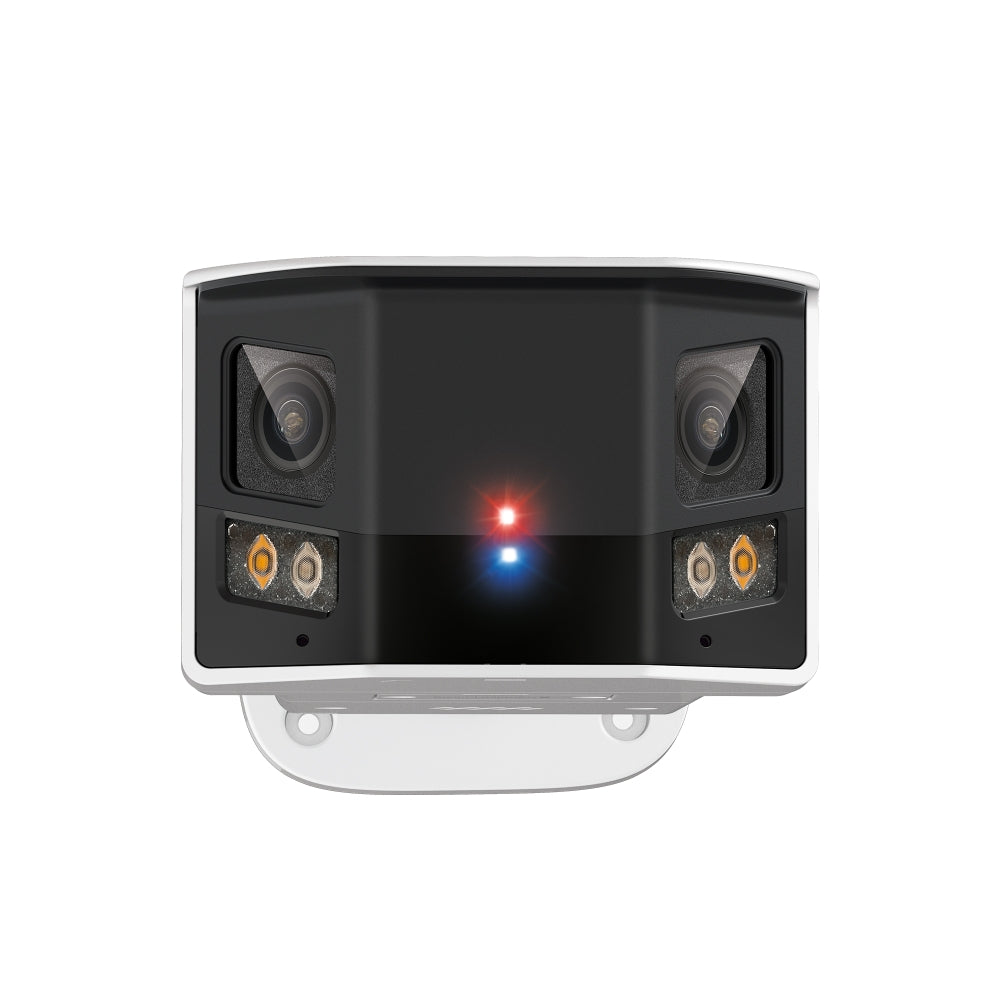

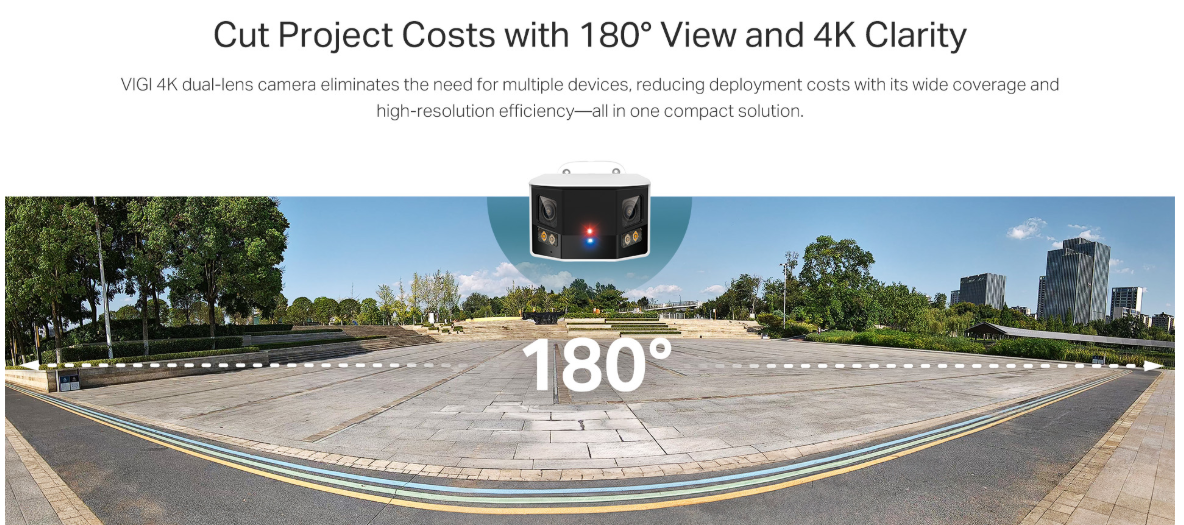

Advanced Panoramic Dual‑Lens System

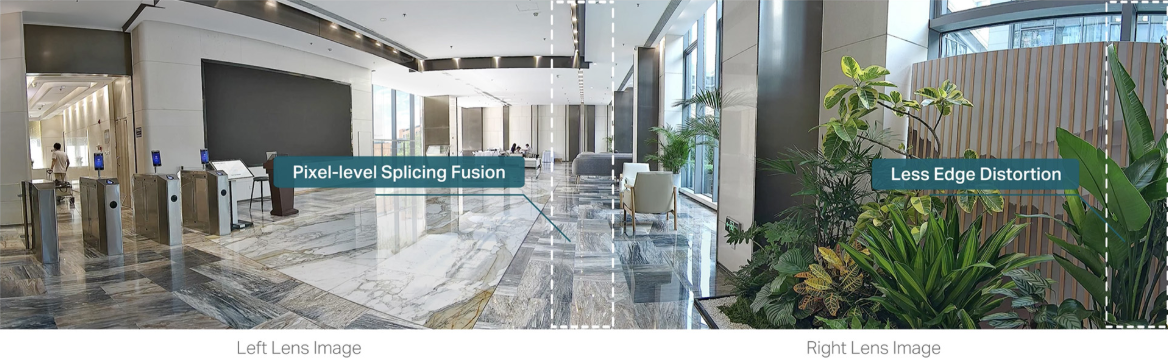

• 180° panoramic coverage with dual lenses and stitching tech for wide‑area monitoring.

• Reduces blind spots without multiple cameras.

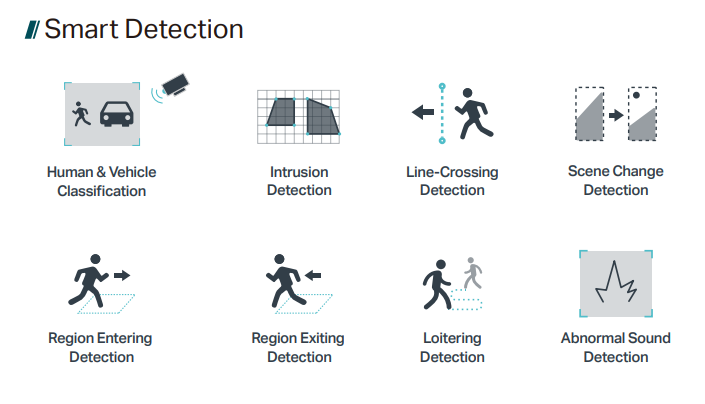

Smart Detection & Analytics

• Human & Vehicle Classification for more accurate alerts.

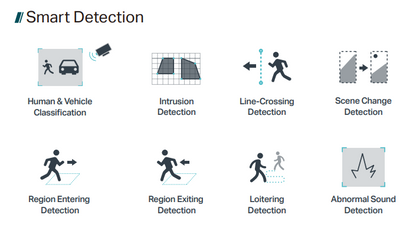

• Intelligent detection:
  • Line Crossing
  • Intrusion
  • Region Entering/Exiting
  • Loitering
  • Scene Change
  • Abnormal Sound Detection

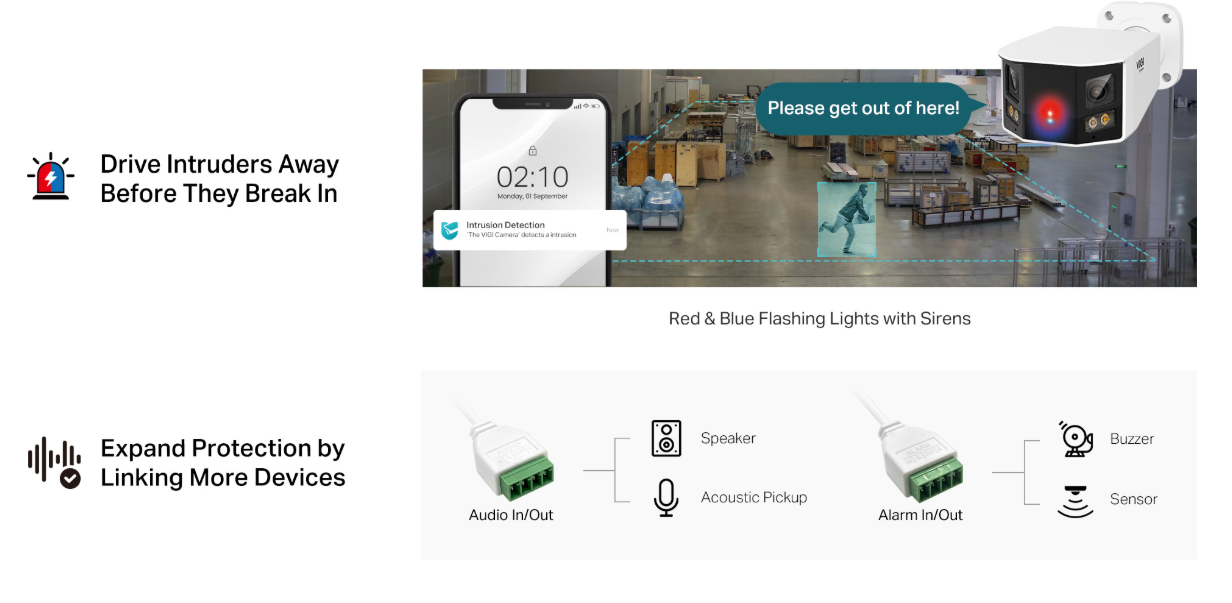

Active Defence Alerts

• Built‑in sound and light alarms trigger on smart events.

• Push notifications and alarm linkage options integrated.

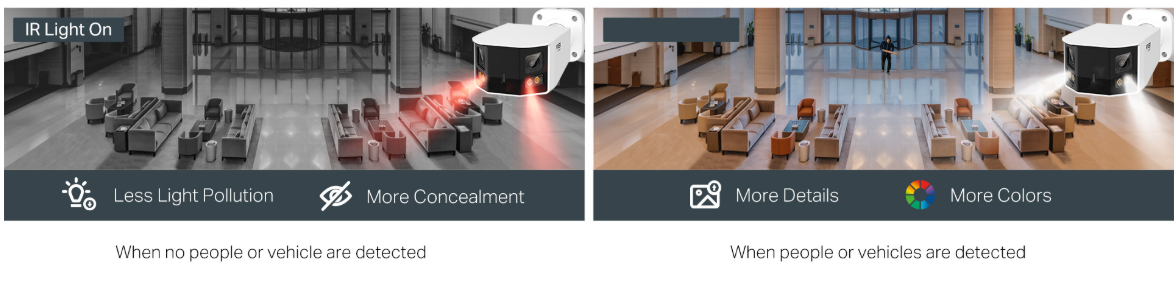

Excellent Low‑Light & Night Performance

• Dual IR LEDs + White LEDs with up to ~50 m illumination.

• Ultra low‑light performance down to 0.0005 Lux.

Robust Construction

• IP67 weatherproof and IK10 vandal‑proof metal housing built for harsh environments.

• Wide temp range (-30 °C to 60 °C).

Flexible Installation & Connectivity

• PoE or optional 12 V DC power — simplified cabling.

• Ceiling, wall, or pole mount capable.

Smart Search & Analytics

• People and vehicle search filters for fast post‑event review.

Detailed Specifications

Optics & Imaging

• Sensor: Dual 1/1.79” Progressive Scan CMOS

• Lens: 5 mm Fixed, Dual F1.0

• FOV: 180° horizontal / 180° diagonal

• Shutter: 1/3–1/10000 s

• Min Illumination: 0.0005 Lux (0 Lux with LEDs)

• WDR: 120 dB

Video

• Max Resolution: 5456×1520

• Codecs: H.265+/H.265/H.264+/H.264

• Bit Rate: 256 Kbps–8 Mbps (main)

• Multi‑stream support

Audio

• Two‑Way Audio with Built‑In Mic & Speaker

• G.711‑compatible compression

Network & Protocols

• Ethernet: RJ45 PoE (802.3at, Class 4)

• Protocols: TCP/IP, HTTPS, RTSP, UPnP, SNMP, IPv6

• ONVIF S/T/G Supported

• Cloud & Local Viewing via VIGI App/Software

Storage

• MicroSD Support up to 512 GB (card not included)

• NVR & Cloud compatible

Environmental

• Operating Temp: –30 °C to 60 °C

• Humidity: Up to 95% non‑condensing

Certifications

• IP67, IK10, CE, FCC, VCCI, KC, BSMI, NTRA, ONVIF

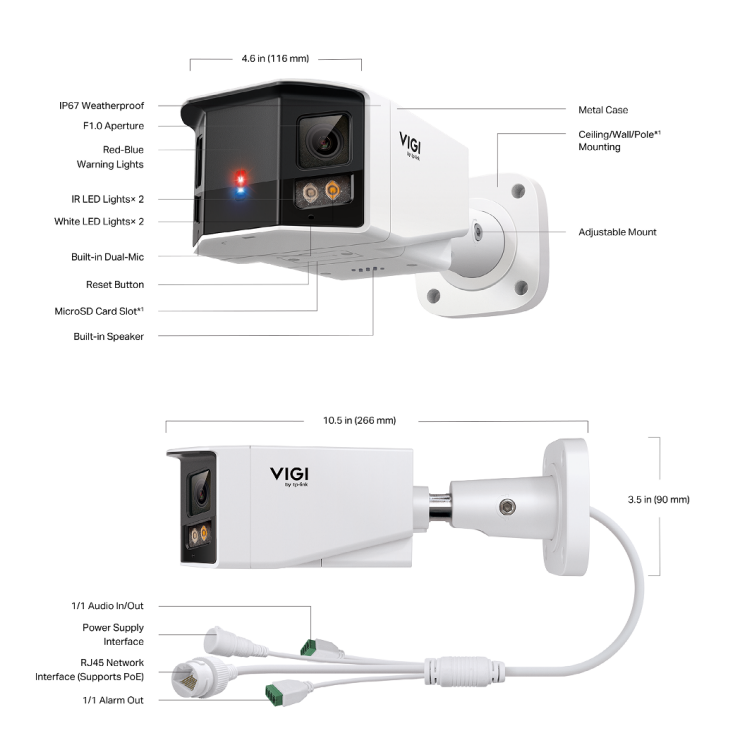

Physical

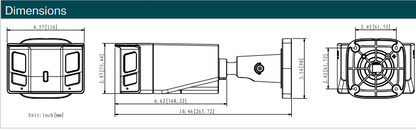

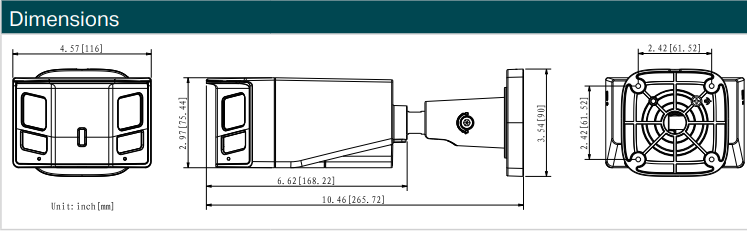

• Dimensions: 266 × 116 × 90 mm

• Weight: 1.12 kg

Warranty Information

• Manufacturer Warranty (terms per TP‑Link policies) 3 Years

• Warranty handled directly through TP‑Link or authorised local reseller

Brand Description

TP‑Link VIGI is a trusted security brand engineered to help businesses safeguard properties with powerful yet accessible surveillance solutions. VIGI combines intuitive installation, high‑performance analytics, and long‑term reliability.

SKU

InSight‑S385DPS‑TPVIGI‑PN

Practical Use Scenarios

• Retail Storefronts: Full entrance and display area coverage with minimal blind spots.

• Warehouse & Yard Monitoring: Wide‑angle oversight in low‑light conditions.

• Office Perimeters: Intelligent classification reduces false alarms.

• Public Facilities: Broad situational awareness with two‑way communication.

Datasheets & Resources

• Downloadable PDF Datasheet

• Installation Guides: VIGI Mounting & Installation Manual

• Software & App Downloads: VIGI Config Tool & VIGI Cloud App

Excellence for the Australian and New Zealand Market

This TP‑Link VIGI InSight S385DPS camera meets rigorous quality and performance expectations suitable for Australian and New Zealand business environments, engineered for rugged outdoor conditions. Sourced through authorised distributors with genuine warranty handling and relevant safety certifications recognised across ANZ markets.

FAQs

Q: What is the model number of this panoramic security camera? (Product Code: InSight‑S385DPS‑TPVIGI‑PN)
A: The model number is InSight S385DPS, a dual‑lens panoramic network camera designed by TP‑Link.

Q: Does the TP‑Link InSight S385DPS support weatherproof outdoor use? (Product Code: InSight‑S385DPS‑TPVIGI‑PN)
A: Yes — the InSight S385DPS is IP67 weatherproof and IK10 vandal‑proof, ideal for outdoor installations.

Q: Can this camera detect people and vehicles intelligently? (Product Code: InSight‑S385DPS‑TPVIGI‑PN)
A: Yes — it supports Human & Vehicle Classification and multiple smart detection types.

Q: What connectivity options are available for the InSight S385DPS? (Product Code: InSight‑S385DPS‑TPVIGI‑PN)
A: The camera supports PoE (802.3at) and optional 12 V DC power, plus ONVIF compatibility for third‑party systems.

Q: Is night vision available on this panoramic PoE surveillance camera? (Product Code: InSight‑S385DPS‑TPVIGI‑PN)
A: Yes — it includes dual IR LEDs and White LEDs with up to ~50 m illumination for low‑light and night visibility.
