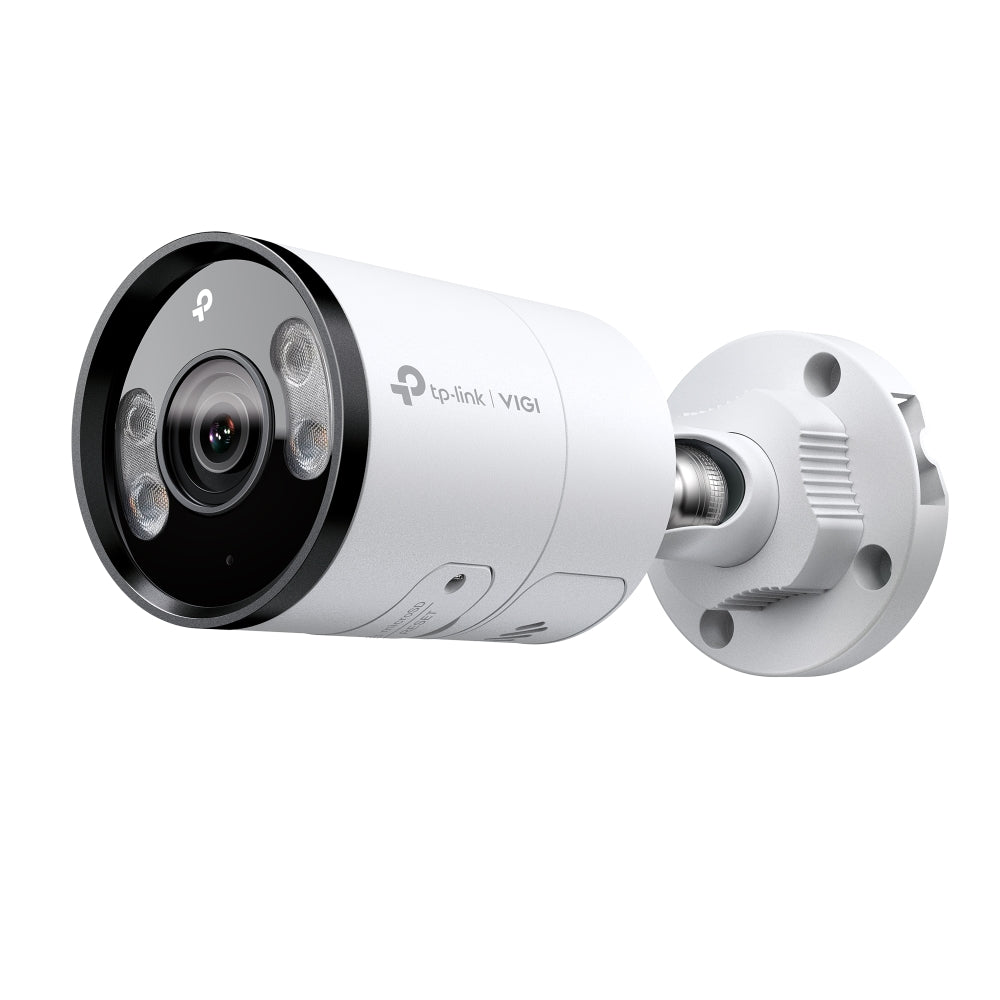

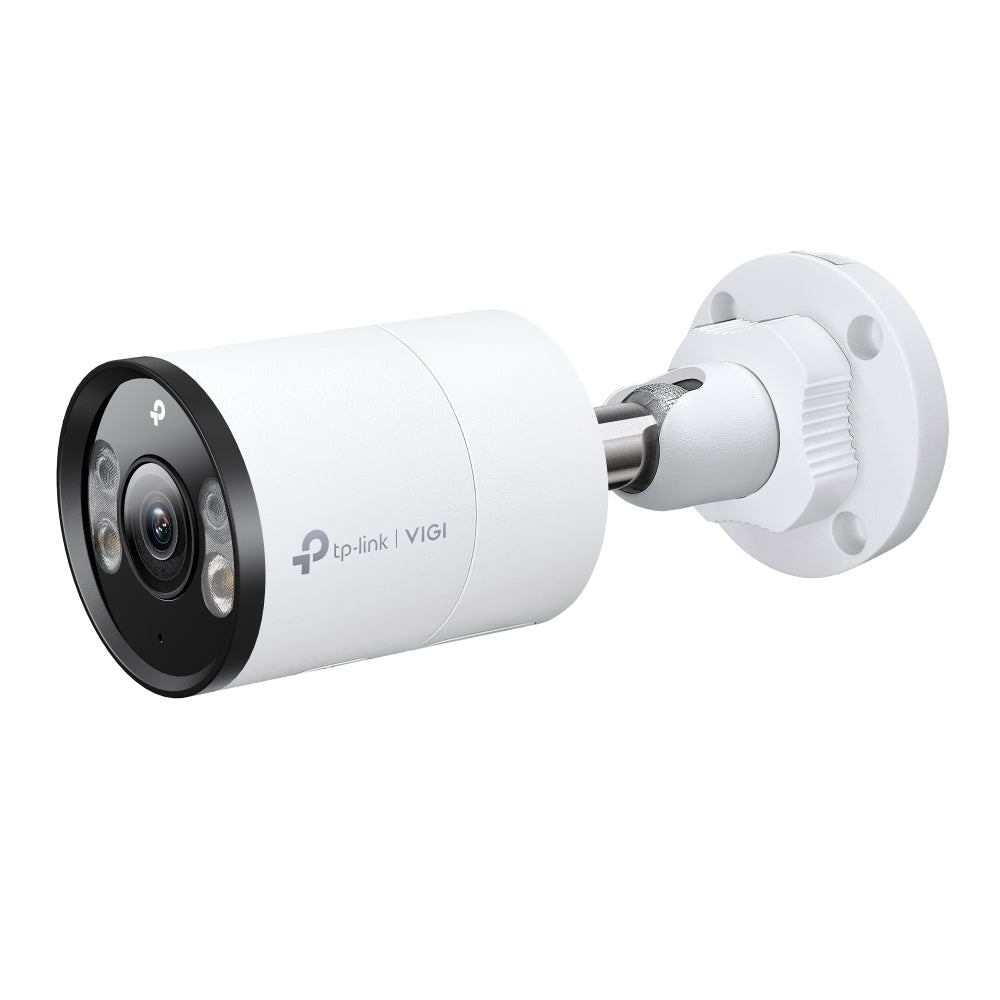

TP-Link VIGI C345 4MP Outdoor Full-Colour Bullet Network Camera – AI Surveillance with Smart Detection | SKU: VIGI C345

The TP-Link VIGI C345 4MP Full-Colour Bullet Network Camera is built to provide unmatched surveillance clarity and proactive security for outdoor environments. With its 4MP super-high-definition resolution, full-colour night vision, and advanced AI-driven analytics, it ensures sharp visibility and smarter monitoring, day and night.

Equipped with People & Vehicle Analytics, Human & Vehicle Classification, and a suite of intelligent event detection capabilities, the VIGI C345 enhances real-time response and post-incident review. Its powerful True WDR, Smart IR, and 3D DNR technologies deliver superior image quality across varying light conditions. Weatherproof and built with a robust metal body, it’s designed for challenging outdoor conditions and long-term durability.

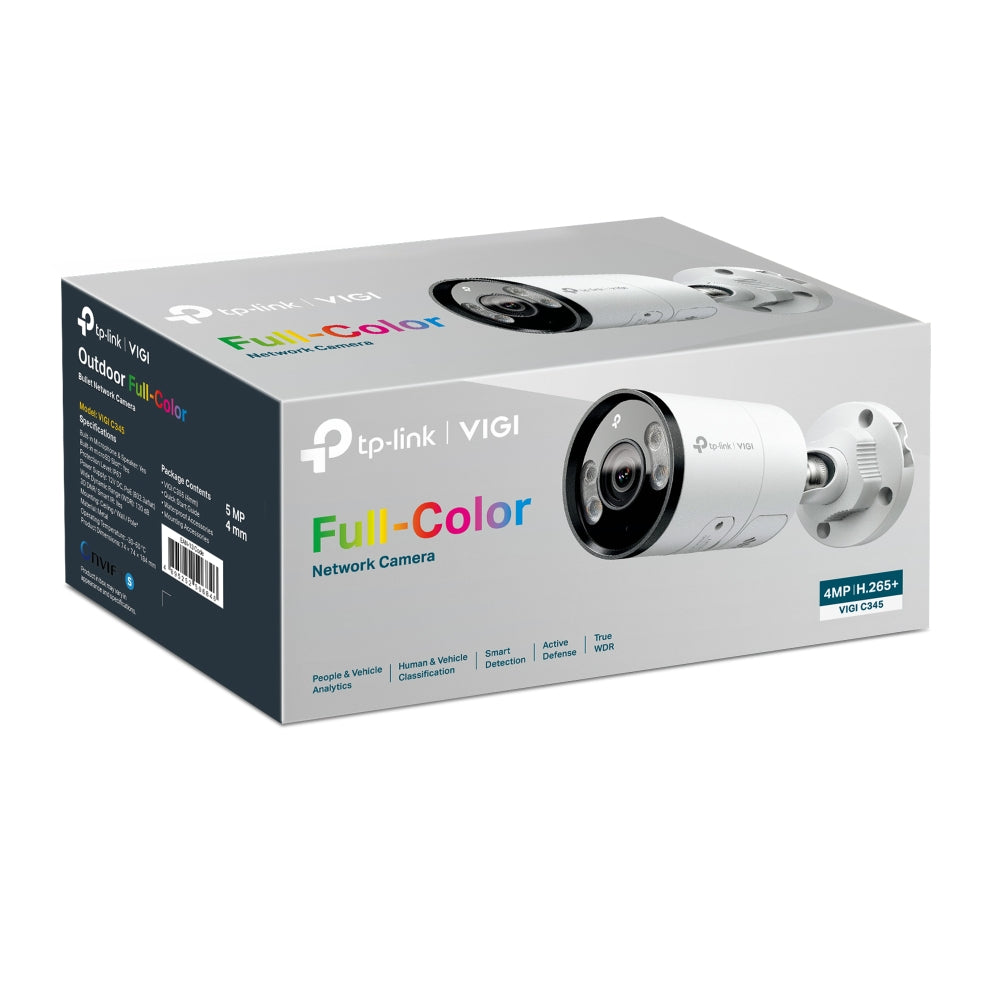

What's in the Box

• VIGI C345 Network Camera
• Waterproof Cable Attachments
• Mounting Accessories
• Quick Start Guide

Key Features

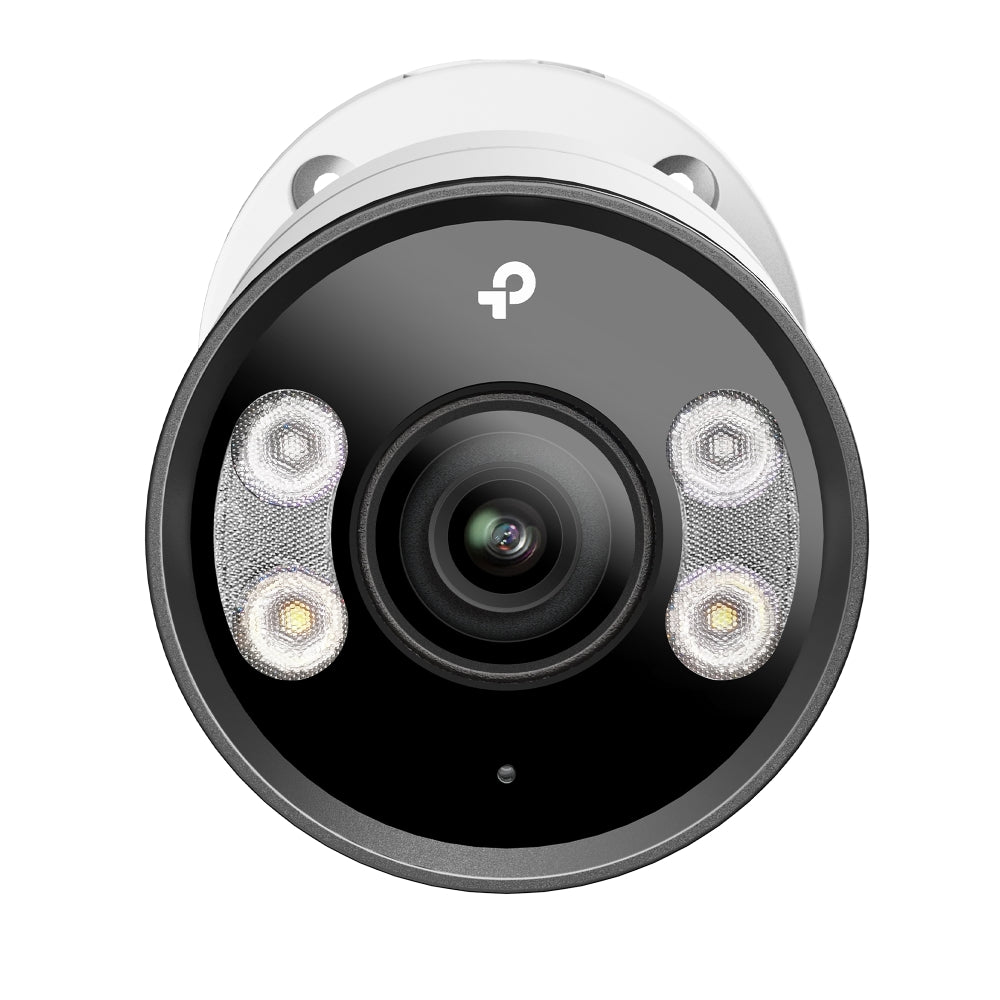

• 4MP Clarity with Full-Colour Night Vision: Records at 2688 × 1520 resolution, even in complete darkness using integrated white LEDs.
• AI-Enhanced Security: Detect, classify, and filter human and vehicle activity with precision.
• Advanced Smart Detection: Intrusion, line-crossing, loitering, object removal, and more.
• True WDR & Smart IR: Balanced image exposure and glare-free infrared performance.
• Two-Way Audio: Built-in microphone and speaker allow direct communication through the camera.
• Active Defense: White light flashing and audible alerts to deter potential threats.
• Varied Lens Options: Choose between 2.8 mm, 4 mm, or 6 mm focal lengths for tailored coverage.
• PoE or DC Powered: Supports Power over Ethernet (802.3af/at) and 12V DC input.
• IP67-Rated Durability: All-metal, weatherproof build for reliable outdoor deployment.
• Local Storage Capable: Supports MicroSD card up to 512 GB for onboard video recording.
• Secure Connectivity: HTTPS encryption, digest authentication, and IP filtering.

Technical Specifications

Camera & Optics

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Lens Options: Fixed 2.8 mm / 4 mm / 6 mm (F1.6)
• Field of View: Up to 118° Diagonal (2.8 mm)
• IR/White LED Range: Up to 30 m
• Manual Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

Video & Image

• Max Resolution: 2688 × 1520
• Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: Up to 30fps
• WDR: 120 dB True WDR
• Noise Reduction: 3D DNR
• Image Settings: Brightness, Contrast, WDR, ROI, OSD, Mirror, White Balance, Overexposure Prevention

Audio

• Communication: Two-Way Audio
• Built-in Mic & Speaker
• Audio Compression: G.711 alaw (64 Kbps)
• Noise Filtering: Enabled

Smart Detection & AI Analytics

• Smart Events: Human/Vehicle Detection, Intrusion, Region Entry/Exit, Loitering
• Basic Events: Motion, Scene Change, Tampering
• Event Response: White Light Flash, Audible Warning, Mobile Alerts

Networking

• Interface: 1 × RJ45 10/100M (PoE Supported)
• Protocols: TCP/IP, HTTPS, RTSP, ONVIF (Profile S)
• Remote Access: VIGI App, VMS, Web UI
• Web Browsers: Chrome, Firefox, Safari, Edge (latest versions)

Construction & Environment

• Material: Full Metal Body
• IP Rating: IP67
• Operating Temp: -30°C to 60°C
• Dimensions: 74 × 184 × 74 mm
• Weight: 0.525 kg
• Certifications: CE, FCC, IC, BSMI, KC, VCCI

Power & Storage

• Power Input: 12V DC ±5% or PoE
• Max Power: 10.7 W
• Local Storage: Up to 512 GB via MicroSD Card

Warranty Information

The TP-Link VIGI C345 comes with a 3-Year Limited Warranty, fully supported within Australia and New Zealand by TP-Link's authorized service channels for fast and efficient warranty handling.

Brand Overview

TP-Link is a world-renowned leader in networking and surveillance technologies. Its VIGI surveillance series integrates AI, robust hardware, and efficient software to provide cutting-edge security solutions for homes and businesses globally.

Practical Use Scenarios

• Retail Storefronts: Deter suspicious activity and interact with visitors using two-way audio.
• Driveways & Parking Areas: Monitor and classify vehicle movements day and night.
• Perimeter Security: Set up zone-based alerts to detect intrusions or loitering behavior.
• Warehouse Entrances: Full-colour night footage ensures clarity in dimly lit entry zones.
• Construction Sites: Maintain 24/7 visibility in rugged environments with weatherproof housing.

Datasheets & Downloads

• Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link VIGI C345 is certified to meet local compliance standards and built for the demanding conditions of the Australian and New Zealand environments. Featuring IP67 weatherproofing, PoE compatibility, and high storage capacity, this model is optimized for ANZ installations. All warranty services are handled locally through authorized TP-Link partners, ensuring dependable post-purchase support and easy product registration. Rest assured, your investment is protected with trusted, regional service infrastructure and distribution from official Australian and New Zealand TP-Link channels.

Frequently Asked Questions (FAQs) – TP-Link VIGI C345

Q1: Can the TP-Link VIGI C345 record in full-colour at night?
A1: Yes. The VIGI C345 features white LEDs that provide 24/7 full-colour footage, even in total darkness. (Product Code: VIGI C345)

Q2: What lens options are available for the VIGI C345?
A2: It offers 2.8 mm (wide-angle), 4 mm (standard), and 6 mm (narrow) fixed lenses to suit different viewing distances. (Product Code: VIGI C345)

Q3: Is the VIGI C345 weatherproof and suitable for outdoor use?
A3: Yes, the VIGI C345 is built with a metal housing and rated IP67 for dust and water protection, perfect for outdoor applications. (Product Code: VIGI C345)

Q4: How does the camera distinguish between people and vehicles?
A4: Through AI-driven Human & Vehicle Classification, it reduces false alerts by identifying only relevant movements. (Product Code: VIGI C345)

Q5: Does the TP-Link VIGI C345 support PoE?
A5: Absolutely. It supports 802.3af/at PoE for easier installation with a single cable carrying both data and power. (Product Code: VIGI C345)
