TP-Link VIGI 4K TiOC CCTV Kit – 8× S485PI 8MP 180° Panoramic Smart AI Cameras + NVR1008H-8P 8-Channel 4K PoE Network Video Recorder with HDD

Secure your premises with next-generation surveillance using the TP-Link VIGI 4K TiOC CCTV Kit, a complete high-performance solution combining AI-powered panoramic monitoring and intelligent video recording. Featuring eight VIGI S485PI 8MP Ultra HD cameras and the NVR1008H-8P 8-channel network video recorder, this system offers unmatched clarity, active deterrence, and seamless video management—all in one integrated package.

Whether you're monitoring a retail store, office, warehouse, or large outdoor space, this kit delivers expansive 180° views, advanced AI analytics, two-way audio, and intelligent storage capabilities. Designed for ease of use and built to endure harsh environments, the VIGI 4K TiOC Kit redefines proactive protection.

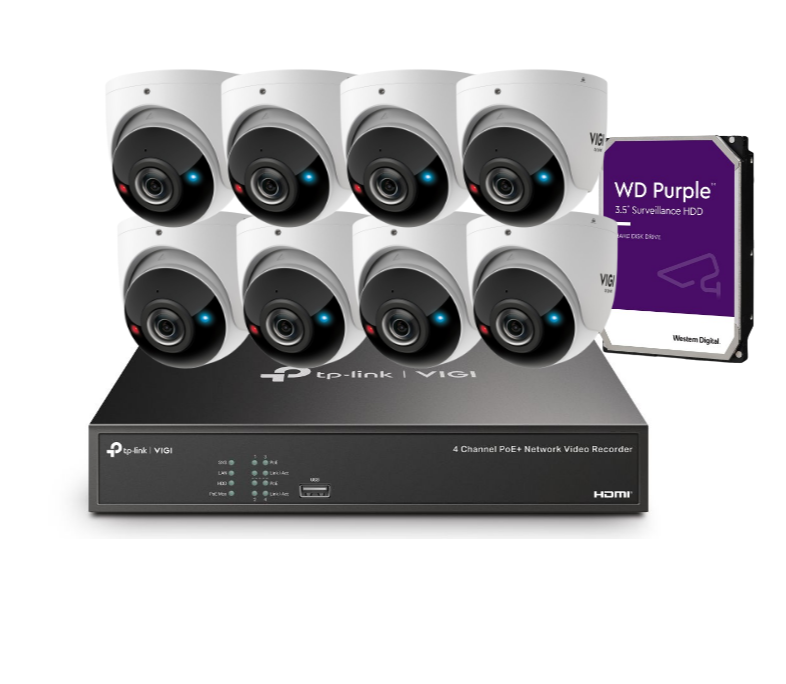

What’s Included in the Box:

• 8 × VIGI S485PI 8MP 180° Panoramic Cameras
• 1 × TP-Link NVR1008H-8P 8-Channel PoE Network Video Recorder (Choose your HDD below)
• Mounting hardware
• Power adapter
• Quick installation guide


Main Features – VIGI S485PI Cameras:

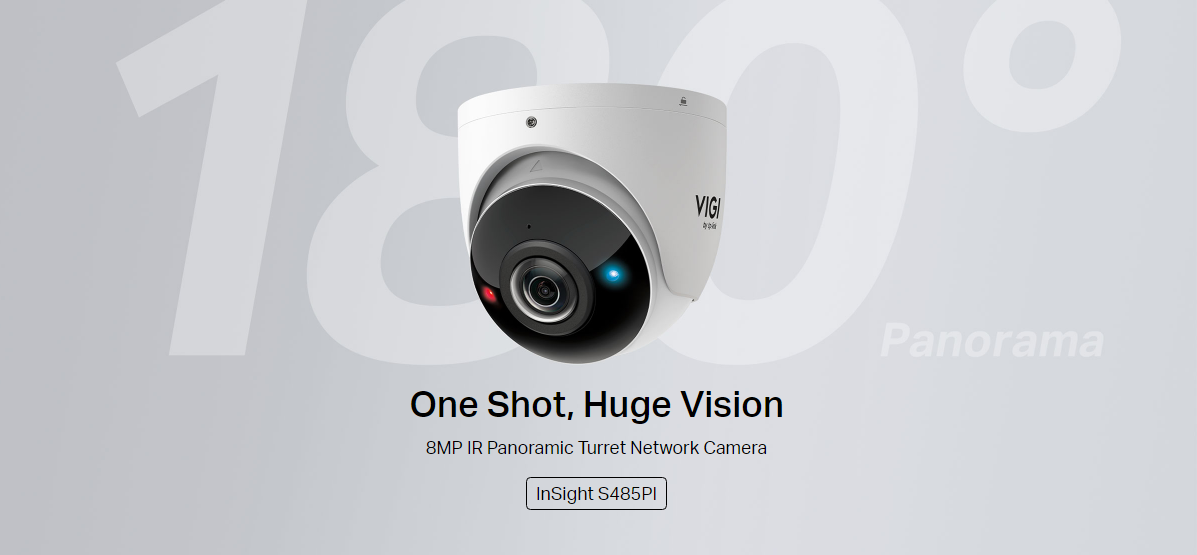

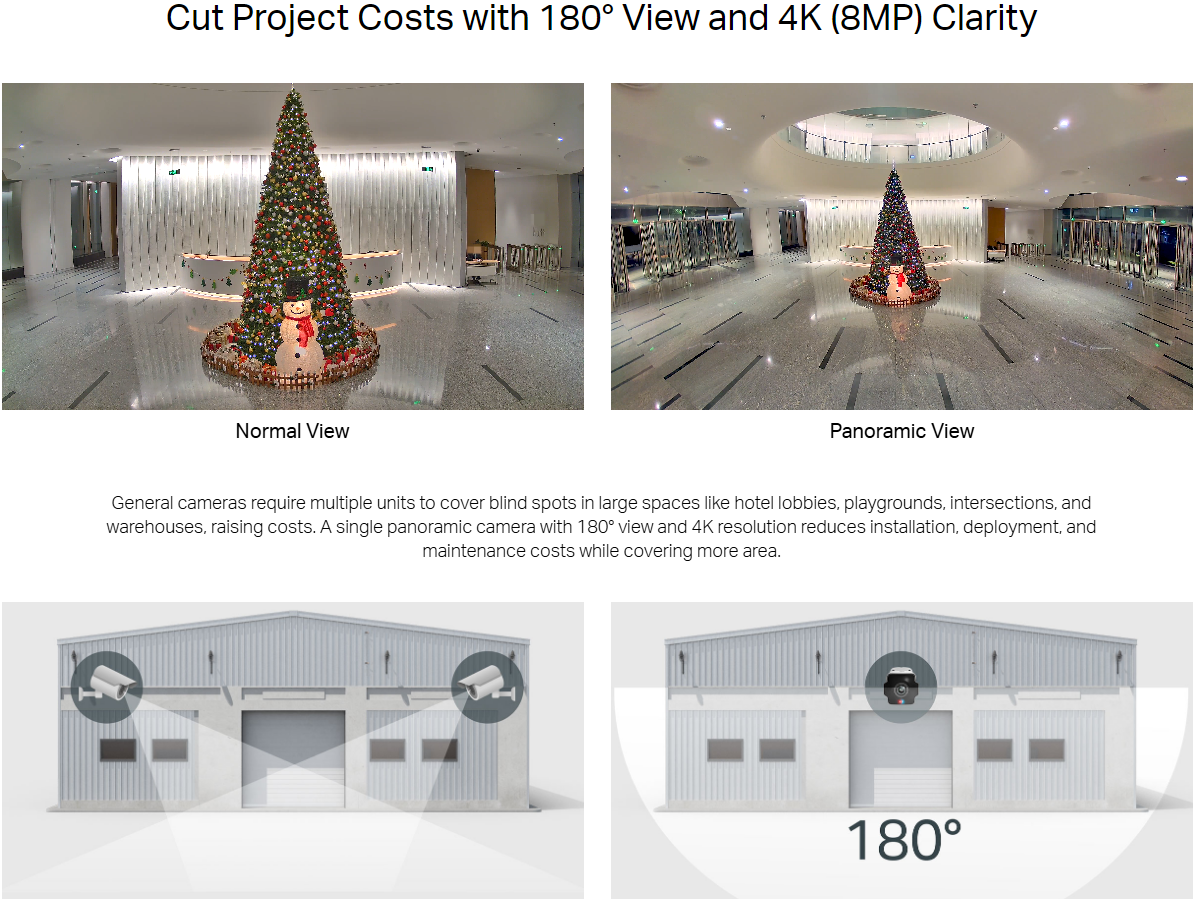

• Ultra-Wide 180° Panoramic View: Covers more area with fewer cameras, reducing blind spots.
• 8MP 4K Resolution: Crisp image clarity with 3840×2160 UHD detail.
• Smart IR Night Vision: Sees up to 20m (65.6 ft) in darkness with auto brightness control.
• AI-Powered Detection: Human/vehicle classification, intrusion, loitering, and scene change alerts.

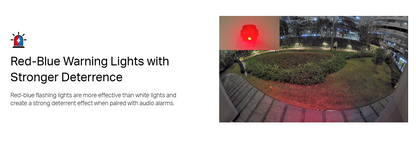

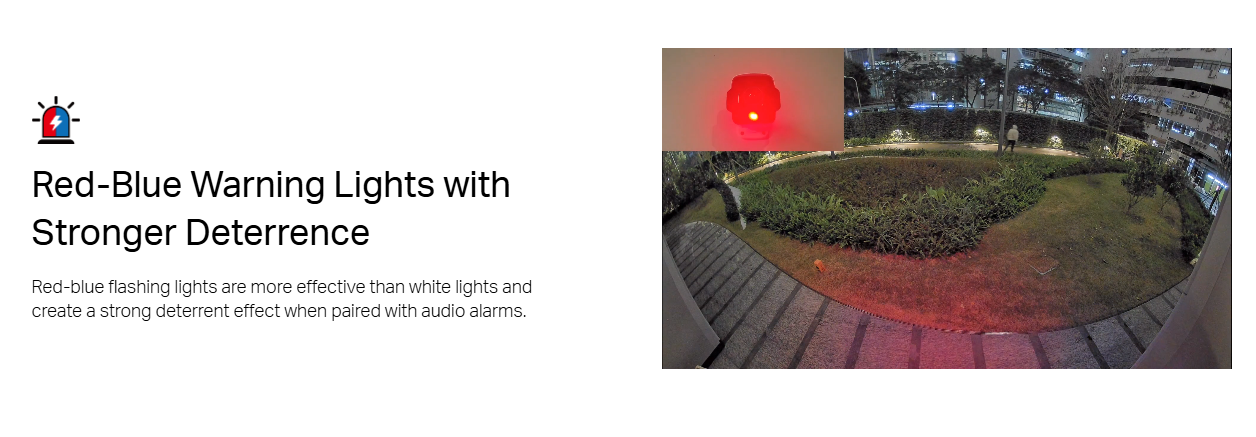

• Active Deterrence: Built-in red-blue warning lights and audio alarm to deter intruders.
• Two-Way Audio: Microphone and speaker built-in for live communication and deterrence.
• Edge Storage: microSD card slot supports up to 512GB for local backup.
• Rugged Design: IP67-rated waterproof and IK10 vandal-proof housing for harsh environments.
• Flexible Power: Supports both 12V DC and PoE (802.3at).

Main Features – TP-Link NVR1008H-8P:

• 8-Channel PoE Input: Power and connect all 8 included cameras directly via Ethernet.
• 4K HDMI Output: View footage in ultra-high resolution on compatible monitors.
• H.265+ Compression: Efficient storage and bandwidth usage without image quality loss.
• Auto Camera Initialization: Quickly integrates TP-Link VIGI cameras for fast deployment.
• Smart Playback: 4-channel playback with intelligent timeline filtering.
• ONVIF Support: Works with most third-party ONVIF-compliant IP cameras.
• Remote Access: View live or recorded video via VIGI App or VIGI Security Manager software.

Detailed Specifications:

VIGI S485PI Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Focal Length: 1.65mm Fixed
• Field of View: Horizontal: 180°, Vertical: 86°, Diagonal: 180°
• Max Resolution: 3840×2160 (8MP)
• Infrared Range: Up to 20m
• Audio: Built-in microphone and speaker, Audio I/O support
• Smart Detection: Human/Vehicle detection, scene change, loitering, object removal
• Storage: microSD slot (up to 512GB)
• Connectivity: RJ45 (10/100M Ethernet, PoE)
• Power: 12V DC or PoE (Max 21W)
• Protection: IP67 waterproof, IK10 impact-resistant
• Operating Temp: -30°C to 60°C

TP-Link NVR1008H-8P Recorder:

• Video Inputs: 8 channels
• Outputs: HDMI (4K), VGA
• Decoding Capability: Up to 8MP per channel, 16MP total
• Storage: 1 × HDD Bay with pre-installed HDD
• PoE Ports: 8 × 802.3af/at, Max 30W per port, 53W total power budget
• Network Interface: RJ45 10/100M Ethernet
• Remote Access: VIGI App (iOS & Android), VIGI Security Manager (PC)
• Compatibility: ONVIF support for 3rd-party cameras

Warranty Information:

The TP-Link VIGI 4K TiOC CCTV Kit is covered by a 3-year limited warranty. Customers in Australia and New Zealand enjoy dedicated local support and hassle-free service or replacement through authorized channels.

Brand Description:

TP-Link is a globally recognized provider of networking and security solutions, offering dependable, user-friendly, and cost-effective products. With a focus on innovation, TP-Link’s VIGI surveillance range is designed to deliver intelligent monitoring and proactive protection for businesses and commercial users.

SKU: VIGI-KIT-S485PI-NVR1008H-8P

Practical Use Scenarios:

• Retail Stores & Shopping Centres: Monitor shop floors and entrances with wide-angle coverage and real-time alerts.
• Warehouses & Distribution Hubs: Keep track of people, vehicles, and assets with edge recording and intrusion detection.
• Public Buildings & Schools: Enhance safety with scene change and loitering detection combined with two-way audio.
• Office Premises: Maintain access security and staff safety with AI classification and deterrent functions.
• Parking Lots: Use panoramic cameras and ANPR-ready NVR for monitoring vehicles and managing perimeter security.

Excellence for the Australian and New Zealand Market:

• Fully certified for compliance with Australian and New Zealand safety and performance standards.
• Weatherproof and vandal-proof ratings suitable for diverse ANZ climates.
• Supplied exclusively via authorized local distributors for product authenticity.
• Local technical support and warranty processing ensure faster resolution and service.
• Compatible with regional networking and infrastructure standards.

FAQs – TP-Link VIGI-KIT-S485PI-NVR1008H-8P

Q1: Does the VIGI-KIT-S485PI-NVR1008H-8P support 4K resolution?
A1: Yes, the VIGI S485PI cameras capture video in 8MP (4K), and the NVR supports 4K HDMI output for high-resolution display.

Q2: Can I use this kit outdoors?
A2: Absolutely. The VIGI S485PI cameras are IP67 waterproof and IK10 vandal-proof, perfect for harsh outdoor conditions.

Q3: Does the VIGI-KIT-S485PI-NVR1008H-8P support two-way audio?
A3: Yes, each camera includes a built-in microphone and speaker for live communication and deterrence.

Q4: How much storage can each camera hold locally?
A4: Each VIGI S485PI camera supports microSD cards up to 512GB for local edge recording.

Q5: Is the VIGI-KIT-S485PI-NVR1008H-8P compatible with third-party cameras?
A5: Yes, the NVR is ONVIF-compatible and supports integration with most third-party IP cameras.

Q6: How is power supplied to the cameras in the VIGI-KIT-S485PI-NVR1008H-8P?
A6: Cameras can be powered using the NVR’s built-in PoE ports or via 12V DC adapters.

Q7: Can I access the system remotely?
A7: Yes, you can access live and recorded footage remotely through the VIGI App or VIGI Security Manager software.

Q8: How many channels does the NVR in the VIGI-KIT-S485PI-NVR1008H-8P support?
A8: The NVR1008H-8P supports up to 8 channels, matching the 8-camera kit perfectly.

Q9: Is there support for AI analytics on all channels?
A9: Yes, the AI features like human/vehicle detection and scene change detection are available on each VIGI S485PI camera.

Q10: What kind of warranty does the VIGI-KIT-S485PI-NVR1008H-8P offer in Australia and New Zealand?
A10: It comes with a 3-year limited warranty supported locally through authorized distributors in ANZ.
