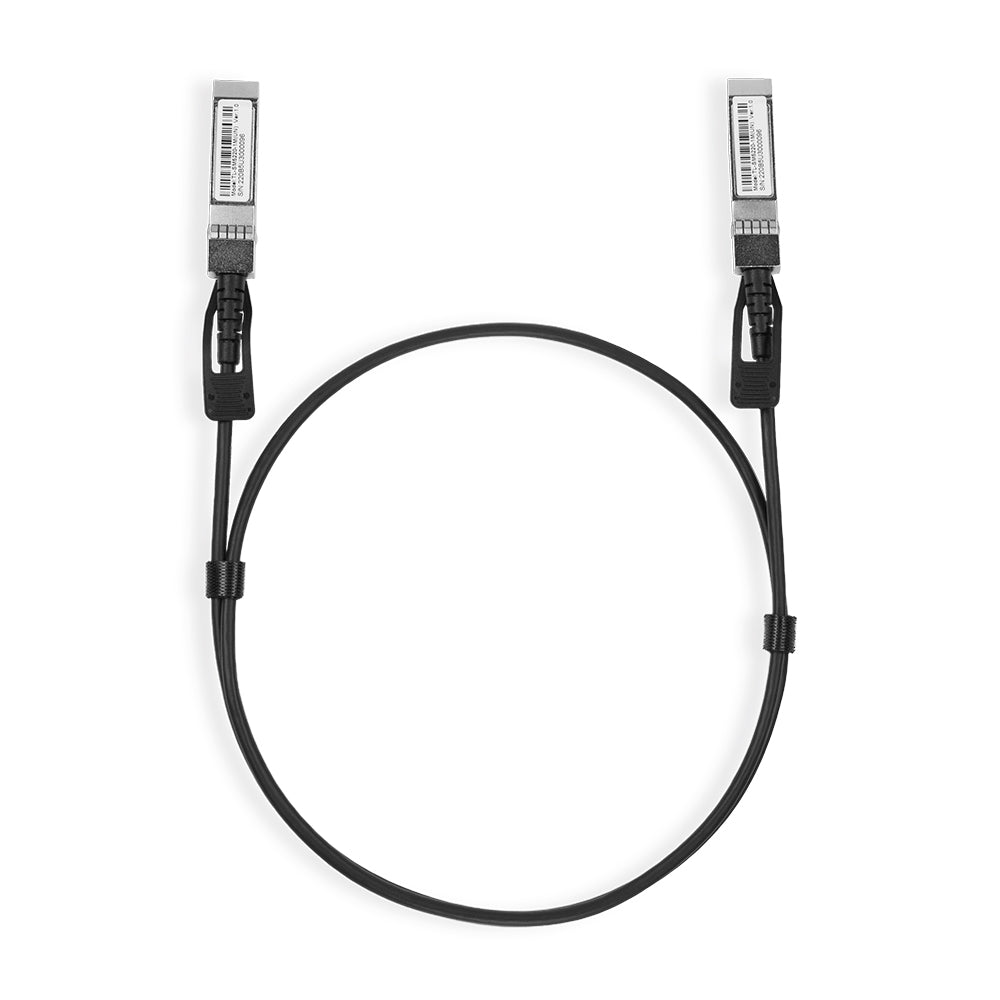

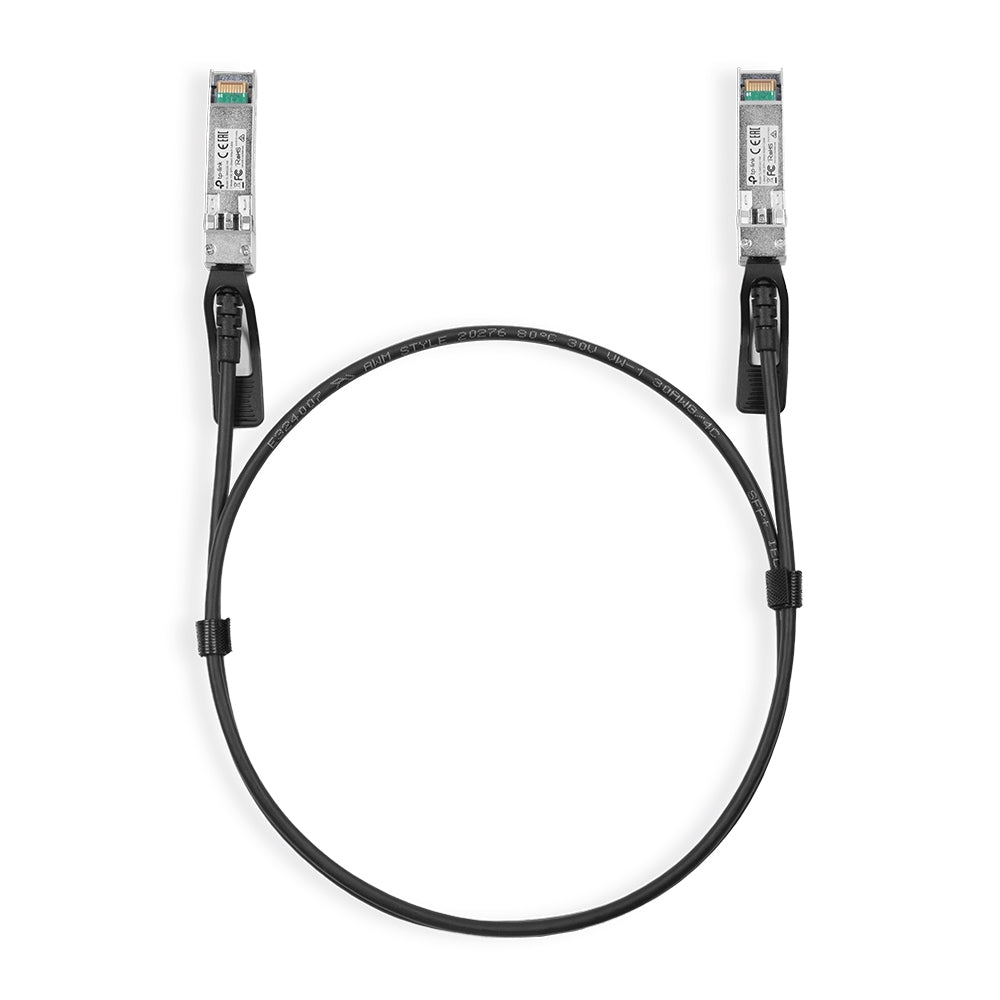

TP-Link TL-SM5220-1M | 1m 10G SFP+ DAC Cable | High-Speed, Low-Latency, Plug-and-Play Copper Twinax

The TP-Link TL-SM5220-1M is a 1-meter passive 10G SFP+ Direct Attach Copper (DAC) Cable, engineered for ultra-fast and cost-efficient 10 Gigabit Ethernet connections within racks and across short distances. Featuring SFP+ connectors on both ends, it enables plug-and-play deployment with virtually zero latency and minimal power consumption.

With a durable silver-plated copper conductor, the TL-SM5220-1M delivers consistent high-bandwidth throughput up to 10 Gbps, making it ideal for top-of-rack, mid-row, and end-of-row data center networking or enterprise switch interconnects.

What’s in the Box

• 1× TP-Link TL-SM5220-1M 10G SFP+ DAC Cable

• Installation Guide

Main Features

✅ Supports 10 Gbps Ethernet – Designed for ultra-fast backbone connections
✅ SFP+ Connectors at Both Ends – Compatible with standard 10G SFP+ ports
✅ 1 Meter Passive Copper Cable – Reliable transmission for short-reach applications
✅ Low Power, Low Latency – Ideal for data centers and high-speed server-switch links
✅ High-Quality Build – Silver-plated copper conductors and robust insulation
✅ Plug and Play – No configuration required
✅ Durable Construction – Engineered for consistent long-term operation

Detailed Specifications

Cable Type

• SFP+ Passive Twinax Direct Attach Copper (DAC)

Connector Type

• SFP+ to SFP+

Data Rate

• 10 Gbps

Maximum Cable Length

• 1 meter (3.28 ft)

Conductors

• Silver Plated Copper

Product Dimensions

• Plug: 2.26 × 0.53 × 0.34 in (57.5 × 13.55 × 8.55 mm)

• Cable Length: 39.37 in (1,000 mm)

Operating Environment

• Temperature: 0°C to 70°C (32°F to 158°F)

• Storage Temperature: -40°C to 80°C (-40°F to 176°F)

• Operating Humidity: 10%–90% RH, non-condensing

• Storage Humidity: 5%–90% RH, non-condensing

Warranty Information

Manufactures warrenty applied .

Brand Description

TP-Link Omada is renowned for delivering enterprise-grade networking solutions optimized for performance, scalability, and efficiency. The TL-SM5220-1M is a robust example of TP-Link’s commitment to cost-effective high-speed connectivity within modern infrastructures.

SKU

TL-SM5220-1M

Practical Use Scenarios

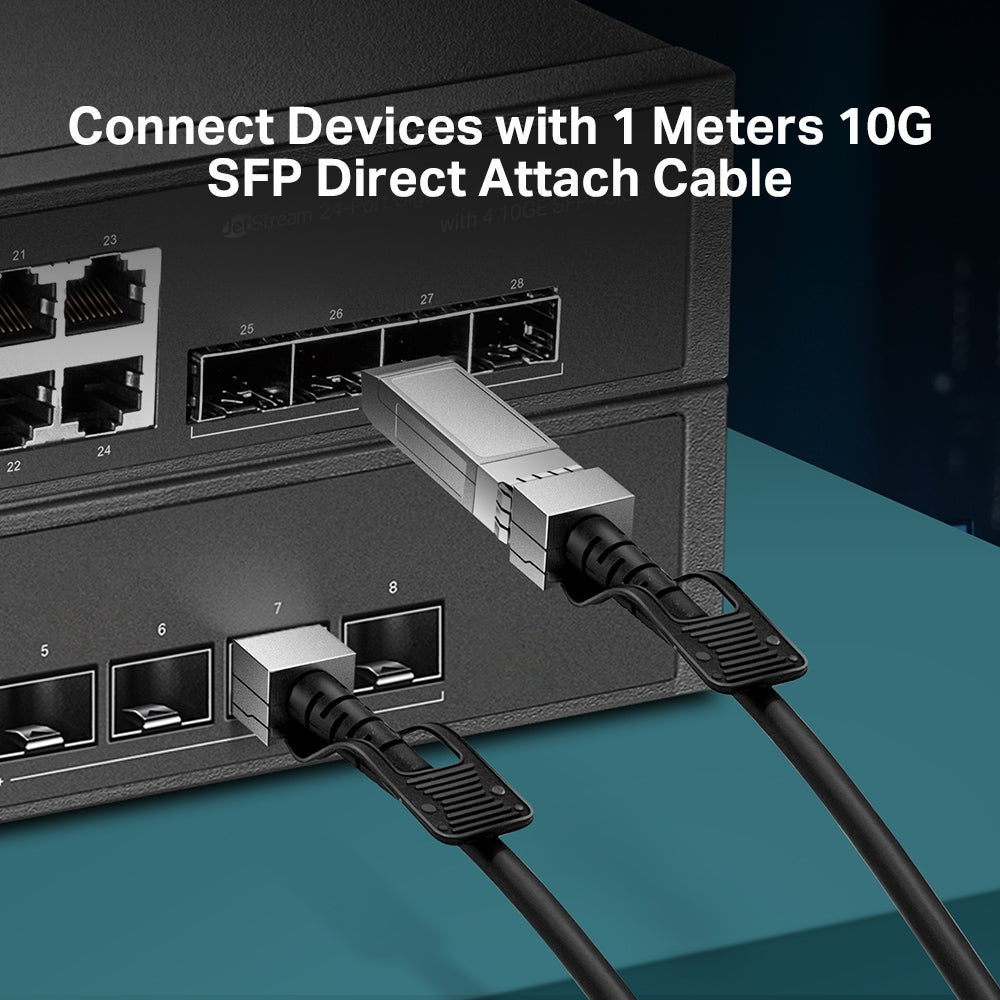

🏢 Data Center Rack Interconnects – Link servers, switches, and storage at 10Gbps speeds within a rack
🔌 Top-of-Rack Switching – Quick deployments between ToR switches and compute nodes
📡 High-Speed Aggregation – Connect 10G access ports to aggregation switches
💼 Enterprise Core Networking – Simplified intra-cabinet and inter-cabinet 10G links

Datasheets / Downloadable Resources

📄  TL-SM5220-1M

Excellence for the Australian and New Zealand Market

The TL-SM5220-1M is fully compliant with CE and FCC standards and is offered in Australia and New Zealand exclusively via TP-Link authorized distributors. It is tailored for ANZ power and environmental conditions, ensuring robust warranty support, reliable performance, and regulatory compliance.

 FAQs

Q1. What devices are compatible with TL-SM5220-1M? (TL-SM5220-1M)

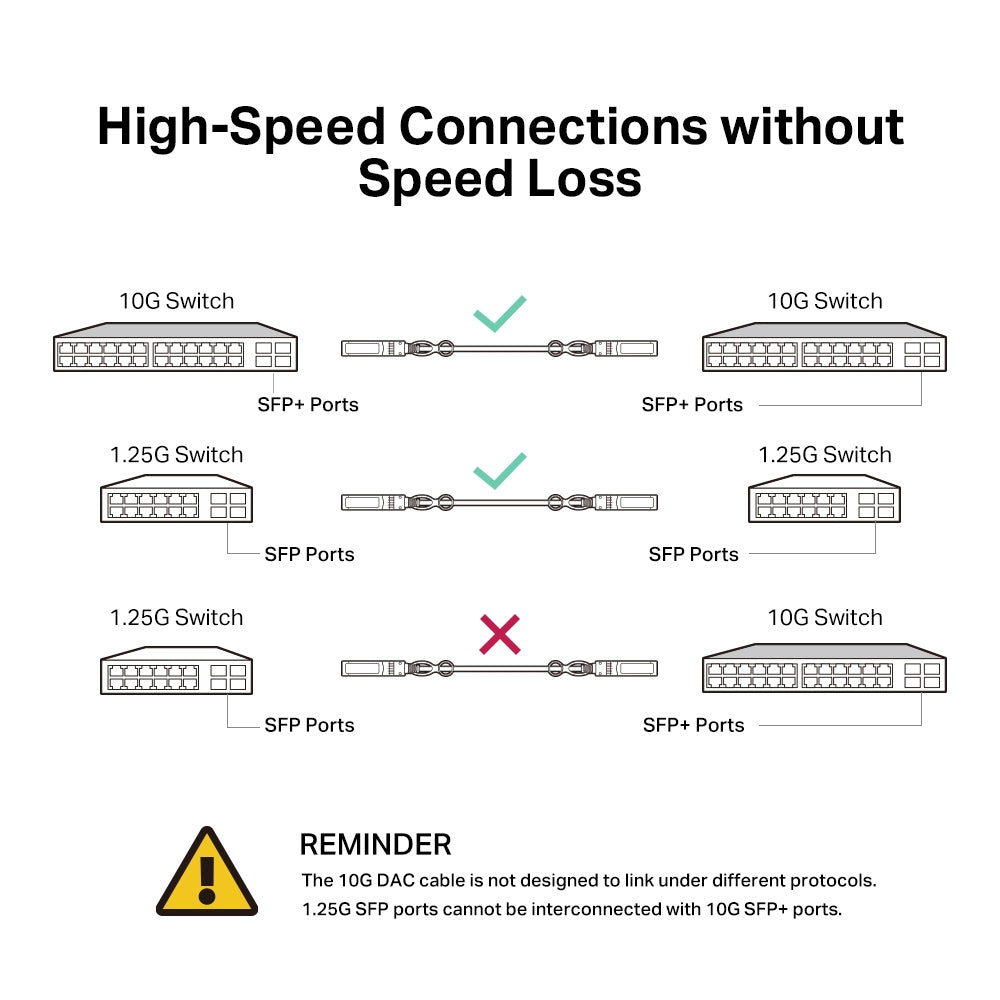

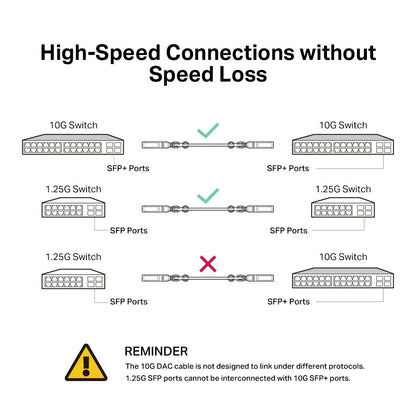

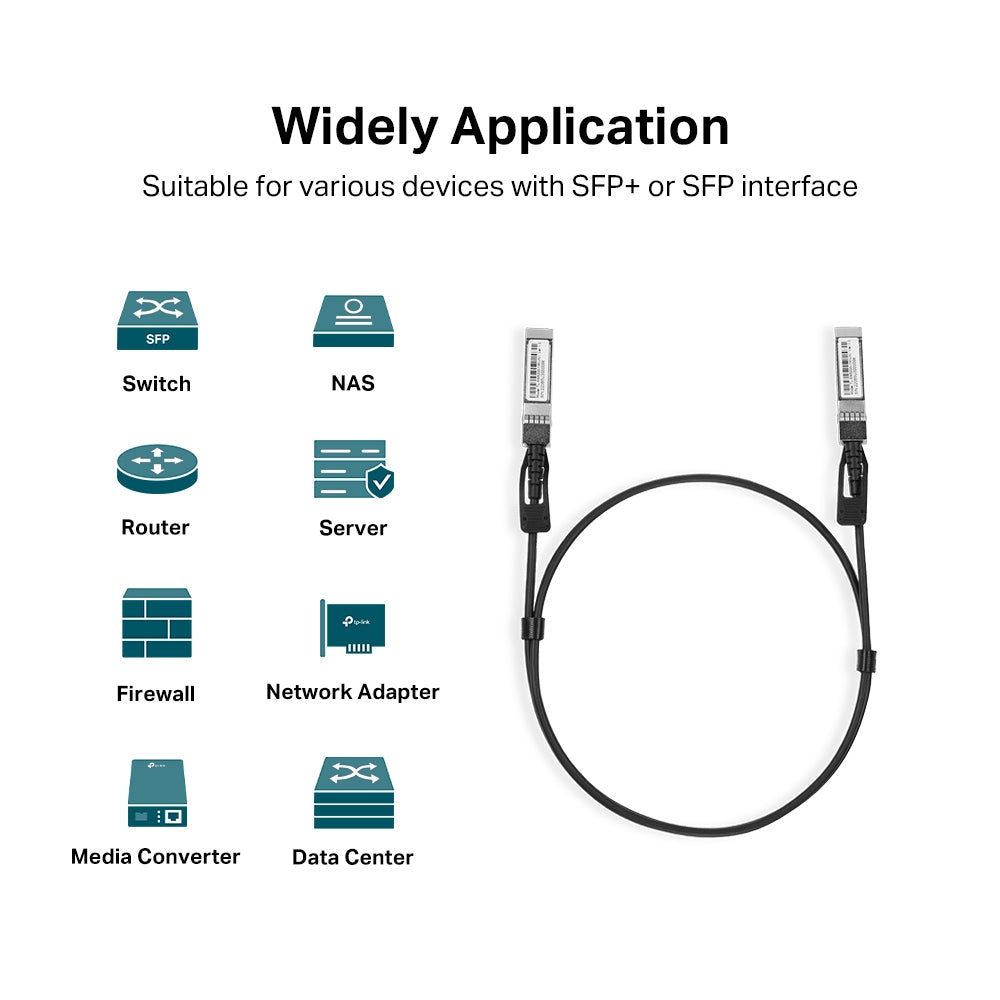

The cable works with any TP-Link or third-party network device that features SFP+ ports supporting passive DAC cables.

Q2. What is the maximum transmission speed of TL-SM5220-1M? (TL-SM5220-1M)
The TL-SM5220-1M supports data rates up to 10 Gbps, ideal for high-throughput applications.

Q3. How long is the TL-SM5220-1M cable? (TL-SM5220-1M)
The total length is 1 meter (39.37 inches), perfect for in-rack or adjacent device connections.

Q4. Does TL-SM5220-1M require external power? (TL-SM5220-1M)
No, it’s a passive DAC cable and does not require any external power source.

Q5. Can I hot-plug the TL-SM5220-1M? (TL-SM5220-1M)
Yes, the cable is hot-swappable, enabling easy deployment without network downtime.
