TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop PoE+ Switch | Versatile Networking, Long-Range PoE, Silent Operation

Experience reliable, flexible networking for small business and surveillance systems with the TP-Link TL-SL1311MP, an advanced 8-Port 10/100 Mbps + 3-Port Gigabit Desktop PoE+ Switch designed to deliver seamless connectivity and power distribution.

With 8 PoE+ ports capable of supplying up to 30 W per port, and a robust 124 W total PoE power budget, this switch easily powers IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.

Extend Mode provides data and power transmission distances of up to 250 metres, making it ideal for extensive surveillance installations or devices placed in hard-to-reach areas.

Security and network performance are enhanced via Isolation Mode, which isolates port traffic to prevent broadcast storms and boost security, while PoE Auto Recovery automatically reboots unresponsive devices to ensure stable operation.

With a compact fanless design, the TL-SL1311MP operates silently, making it perfect for noise-sensitive environments like offices, retail spaces, and hospitality venues.

A true plug-and-play solution, it requires no configuration for immediate deployment, offering cost-effective expansion for growing networks.

What's in the Box

• TP-Link TL-SL1311MP Switch

• Power Adapter

• Installation Guide

Main Features

✅ 8 PoE+ Ports for Flexible Device Deployment – Simplify network installation by powering PoE devices directly over Ethernet cables.

✅ 124 W Total PoE Budget – Sufficient power for multiple high-consumption devices like IP cameras and access points.

✅ Extend Mode for Long-Distance Connectivity – Reach up to 250 metres for data and power transmission, perfect for large premises.

✅ Isolation Mode – Enables one-click network segmentation to improve security and prevent network congestion.

✅ PoE Auto Recovery – Keeps your network stable by automatically rebooting non-responsive PoE devices.

✅ Silent Operation – Fanless design reduces power consumption and eliminates noise.

✅ Plug-and-Play Simplicity – Get connected instantly without technical configuration.

Detailed Specifications

Interfaces:

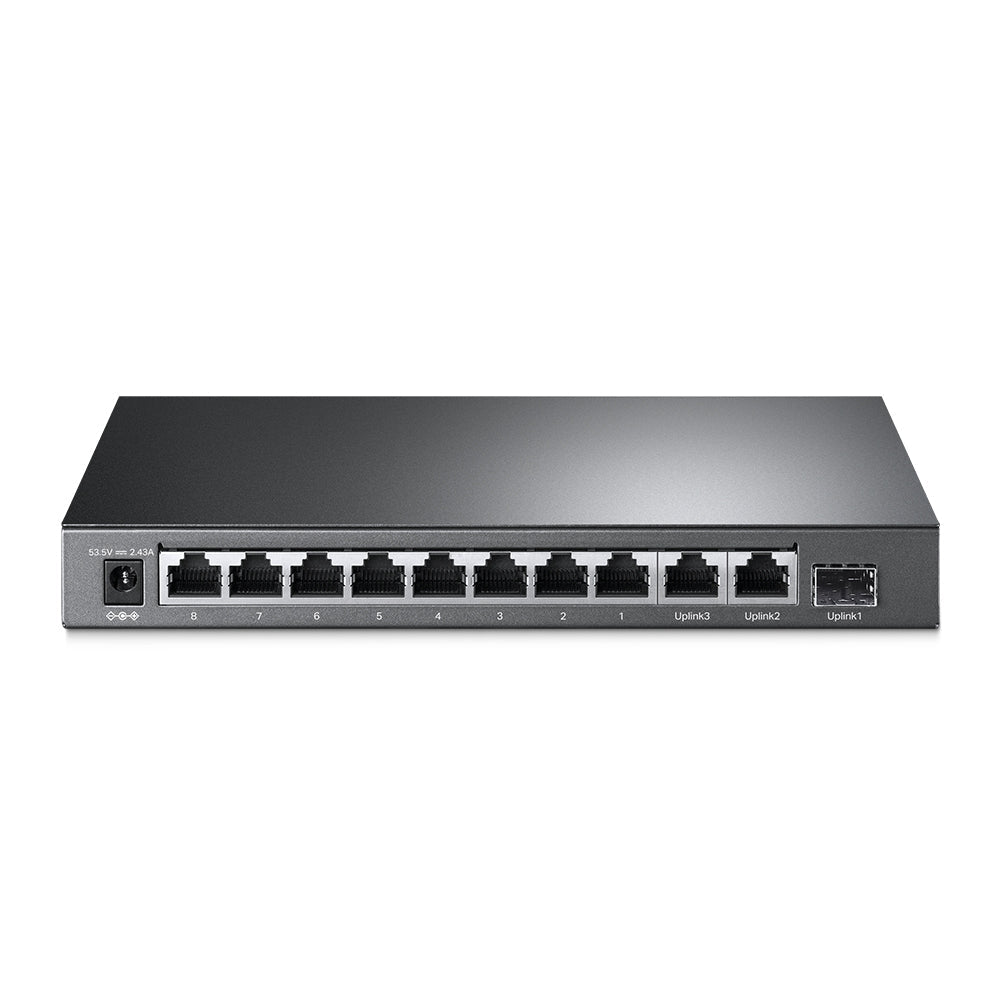

• 8 × 10/100 Mbps 802.3af/at PoE+ Ports

• 2 × Gigabit RJ45 Ports

• 1 × Gigabit SFP Port

• Auto Negotiation / Auto MDI/MDIX

PoE Ports:

• IEEE 802.3af/at compliant

• Max PoE power per port: 30 W

• Total PoE power budget: 124 W

• Extend Mode for up to 250 m

Performance:

• Switching Capacity: 7.6 Gbps

• Packet Forwarding Rate: 5.6544 Mpps

• MAC Address Table: 2K entries

• Jumbo Frame: 16 KB

Advanced Features:

• Extend Mode (ports 1–4 and 1–8)

• Isolation Mode (ports 1–8)

• PoE Auto Recovery (ports 1–8)

• IEEE 802.3x Flow Control

• MAC Address Auto-Learning and Aging

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in)

• Fan Quantity: Fanless

• Physical Security Lock: Yes

Power:

• External Power Adapter: 53.5 VDC / 2.43 A

• Max Power Consumption:

  • 5.95 W (no PD connected)

  • 140.92 W (with 124 W PD connected)

• Max Heat Dissipation:

  • 20.29 BTU/h (no PD connected)

  • 480.54 BTU/h (with 124 W PD connected)

Certifications: FCC, CE, RoHS

Environment:

• Operating Temperature: 0–40°C (32–104°F)

• Storage Temperature: -40–70°C (-40–158°F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

The TP-Link TL-SL1311MP comes with TP-Link’s standard warranty, ensuring dependable support and local service across Australia and New Zealand.

Brand Description

TP-Link is a globally trusted networking brand, delivering innovative solutions to power both professional and personal connectivity needs worldwide.

SKU

TL-SL1311MP

Practical Use Scenarios

• Surveillance Networks – Power IP cameras at extended distances for secure video monitoring.

• Retail Environments – Connect and power PoS systems, digital signage, and security devices.

• SME Networks – Simplify deployments with all-in-one data and power transmission.

• Hospitality – Perfect for powering APs and surveillance equipment discreetly and silently.

• Home Offices – Provides seamless connectivity for VoIP phones, cameras, and network devices.

Datasheets / Downloadable Resources

Download TP-Link TL-SL1311MP Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SL1311MP is manufactured to comply with Australian and New Zealand safety and quality standards, including CE, FCC, and RoHS certifications. Distributed via official channels, it ensures genuine product quality, local warranty support, and seamless operation in diverse business environments across Australia and New Zealand.

 FAQs

Q1. What is the total PoE power budget of the TL-SL1311MP? (TL-SL1311MP)
The TL-SL1311MP offers a total PoE budget of 124 W, delivering up to 30 W per port to support high-power devices.

Q2. Can the TL-SL1311MP support long-distance PoE connections? (TL-SL1311MP)
Yes! Extend Mode allows data and power transmission up to 250 metres, perfect for large-scale surveillance or remote installations.

Q3. Is the TL-SL1311MP difficult to set up? (TL-SL1311MP)
Not at all! The switch is plug-and-play and requires no advanced configuration, making deployment simple and quick.

Q4. What is Isolation Mode used for in the TL-SL1311MP? (TL-SL1311MP)
Isolation Mode segments traffic among ports to boost security and prevent broadcast storms, ensuring a safer and more stable network.

Q5. Is the TL-SL1311MP suitable for quiet environments? (TL-SL1311MP)
Absolutely. Its fanless design ensures silent operation, making it perfect for offices, retail spaces, and hospitality venues.
