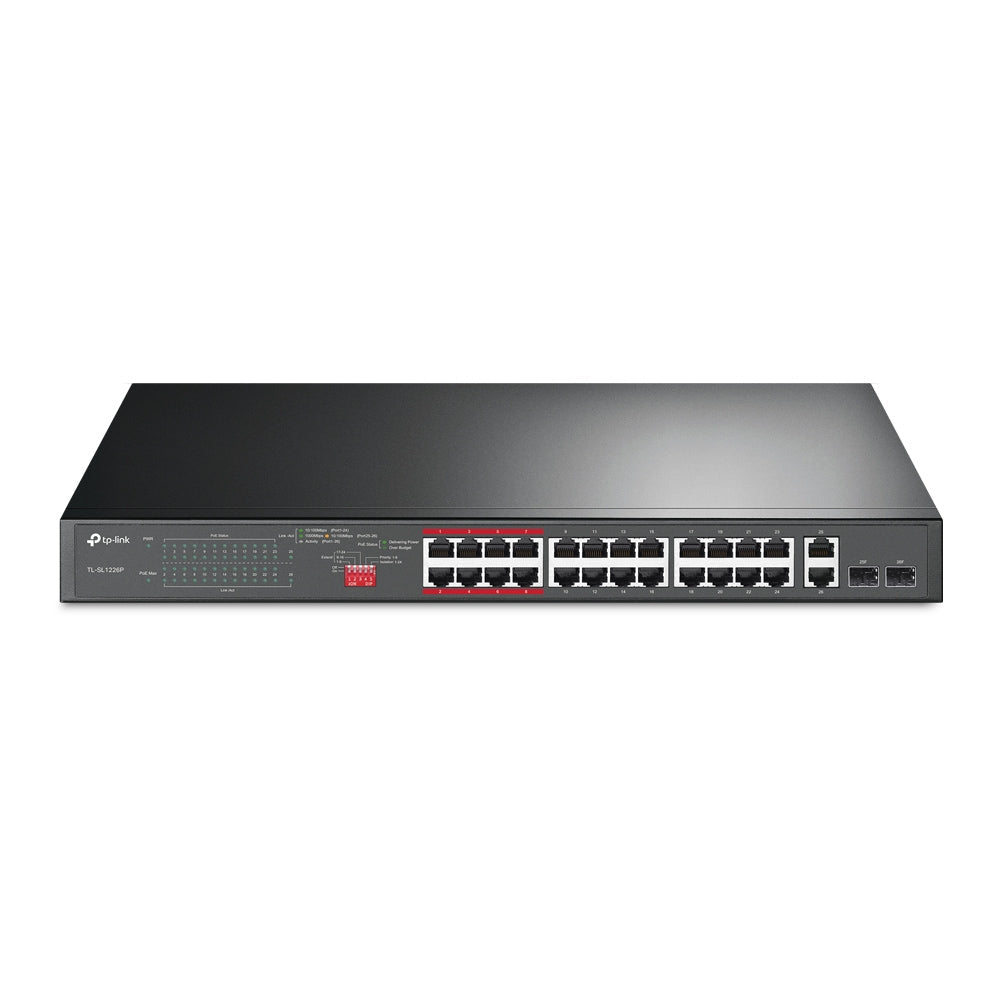

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch | High Power Budget, Long-Range PoE, Plug-and-Play

Power your network with simplicity and reliability using the TP-Link TL-SL1226P, a robust 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch engineered for high-demand environments like business offices, surveillance systems, and hospitality networks.

This high-performance switch offers 24 PoE+ ports, delivering up to 30W per port and a generous 250W total PoE power budget—perfect for powering IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at-compliant devices.

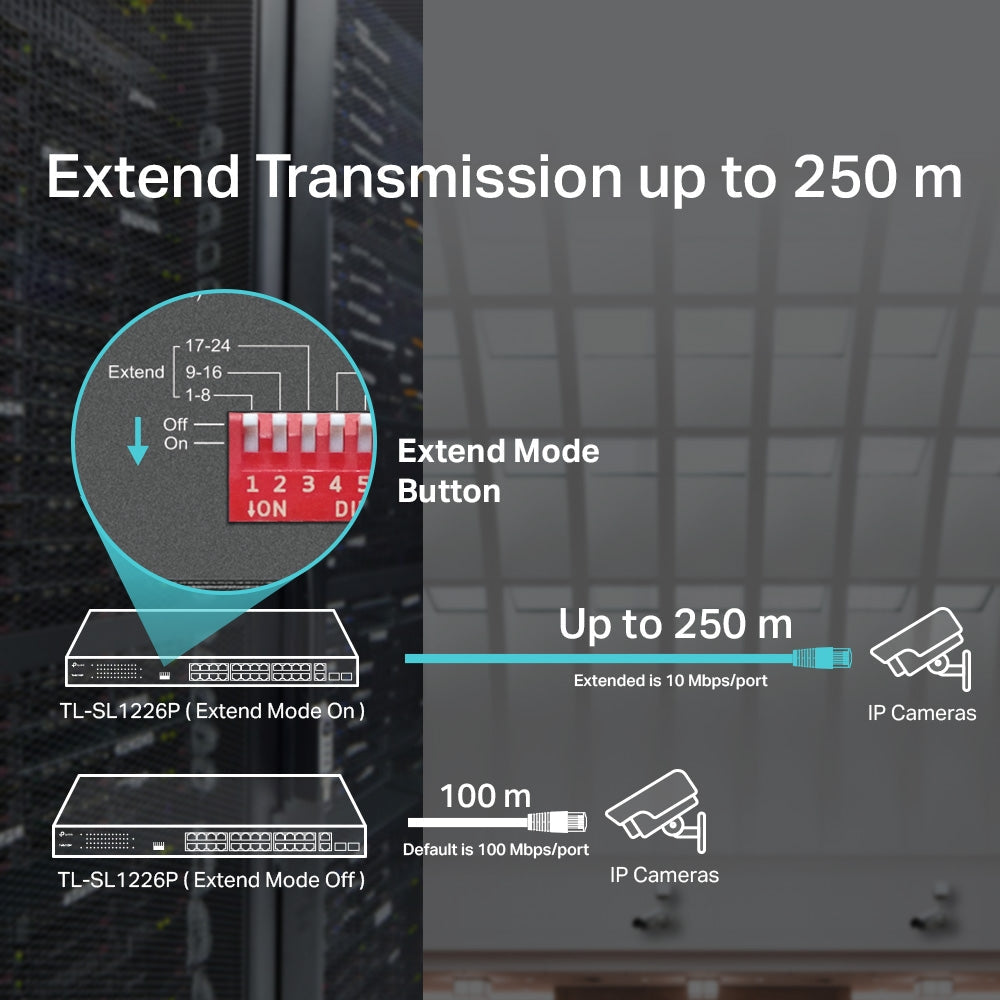

Thanks to Extend Mode, PoE data and power transmission reaches distances of up to 250 meters, making it ideal for expansive surveillance deployments without the need for costly network extenders.

The TL-SL1226P also includes innovative features like Priority Mode, ensuring critical devices connected to ports 1–8 receive optimal bandwidth and power, while Isolation Mode allows simple one-click traffic segmentation for higher security and performance across your network.

Engineered for convenience, this switch requires no configuration—simply plug in your devices for instant network expansion. Its rugged metal casing and efficient cooling with dual fans ensure stable, long-term operation even under heavy loads.

What's in the Box

• TP-Link TL-SL1226P Switch

• Power Cable

• Installation Guide

• Two mounting brackets and fittings

Main Features

✅ 24 PoE+ Ports for Ultimate Flexibility – Power IP cameras, wireless APs, and VoIP phones without separate power adapters.

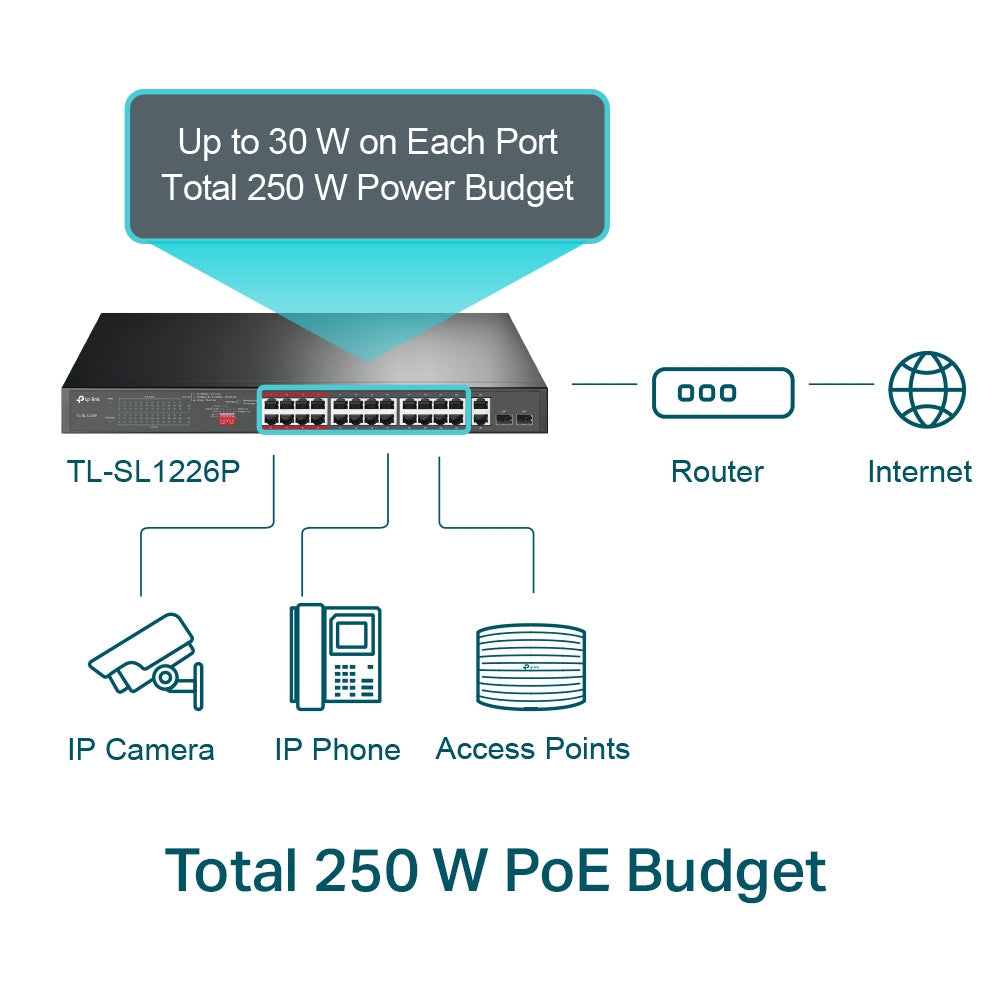

✅ 250W Total PoE Budget – High capacity ensures reliable support for multiple high-consumption devices simultaneously.

✅ Long-Range PoE Transmission – Extend Mode pushes power and data up to 250 meters for wide-area deployments.

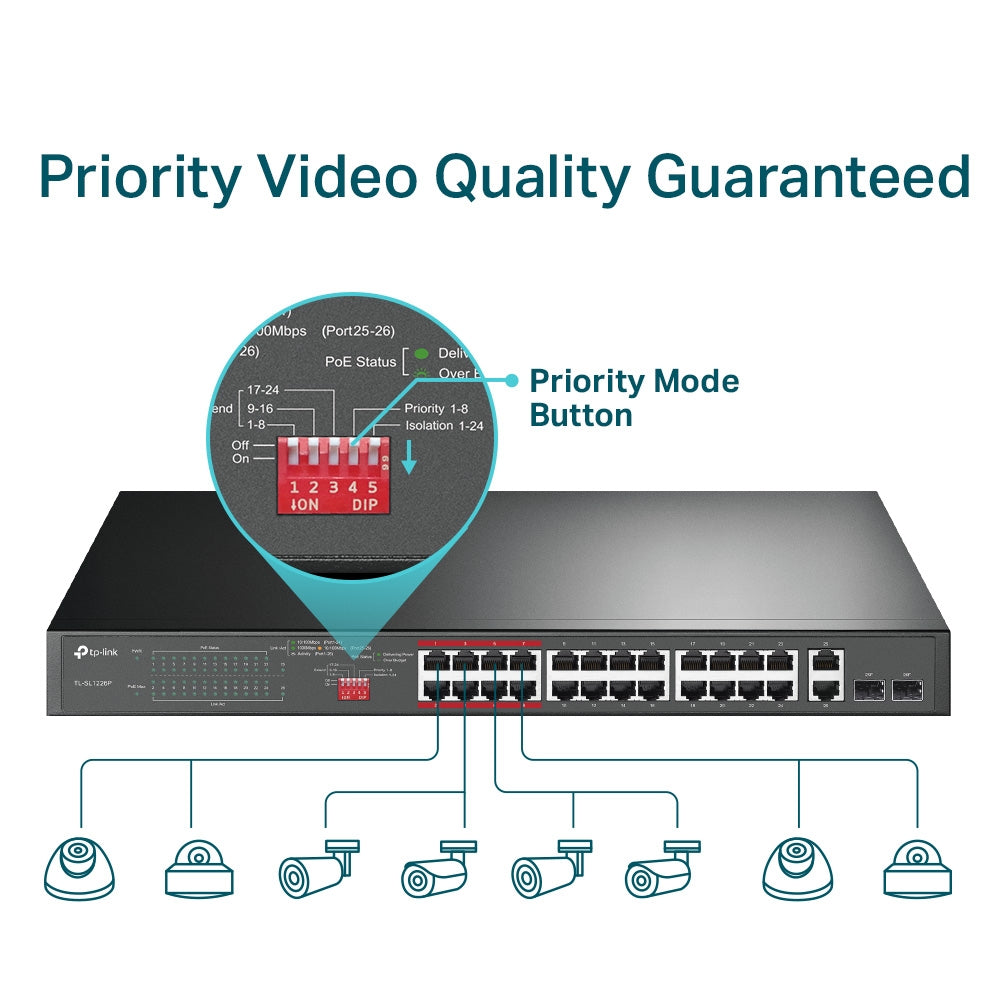

✅ Priority Mode – Guarantees bandwidth and power priority for sensitive applications like video monitoring on ports 1–8.

✅ Isolation Mode – Instantly segment network traffic with one click, enhancing security and performance.

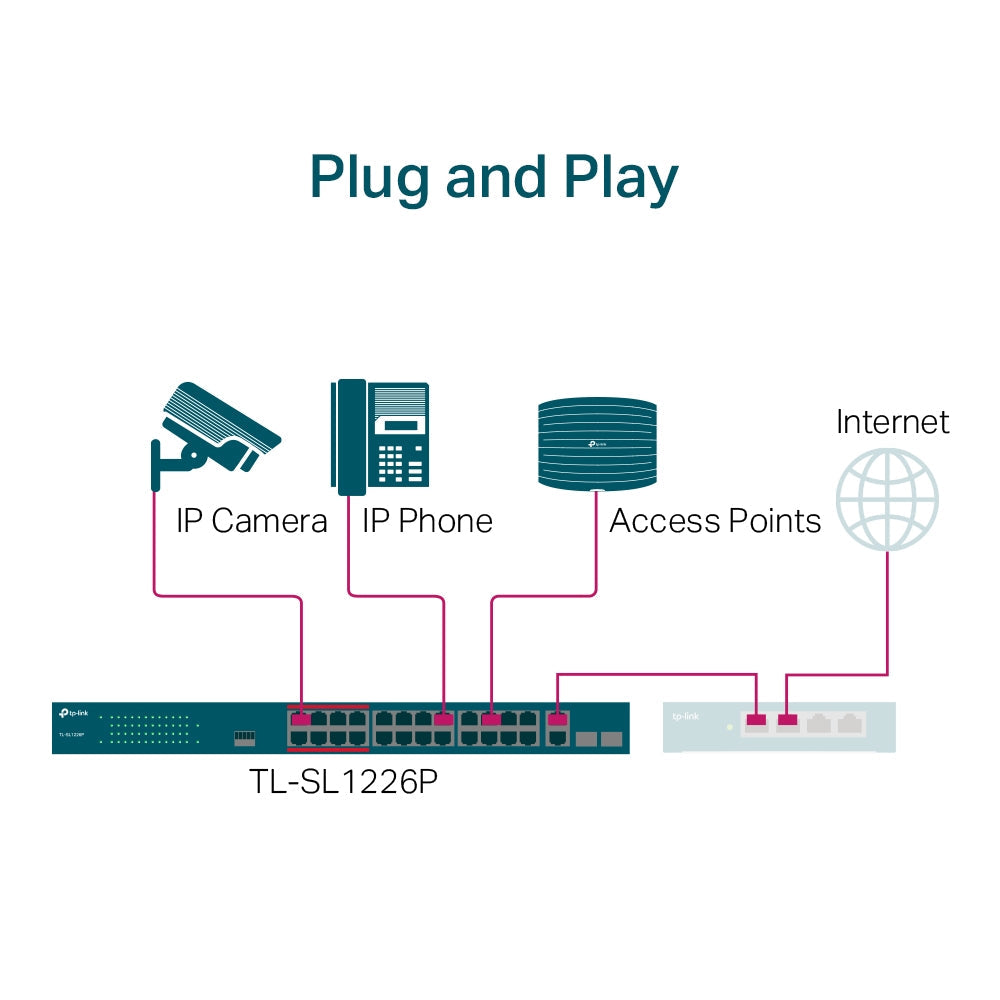

✅ Plug-and-Play Operation – Deploy the switch effortlessly with no configuration required.

✅ Silent Efficiency – Dual fans provide effective cooling while maintaining low noise levels.

Detailed Specifications

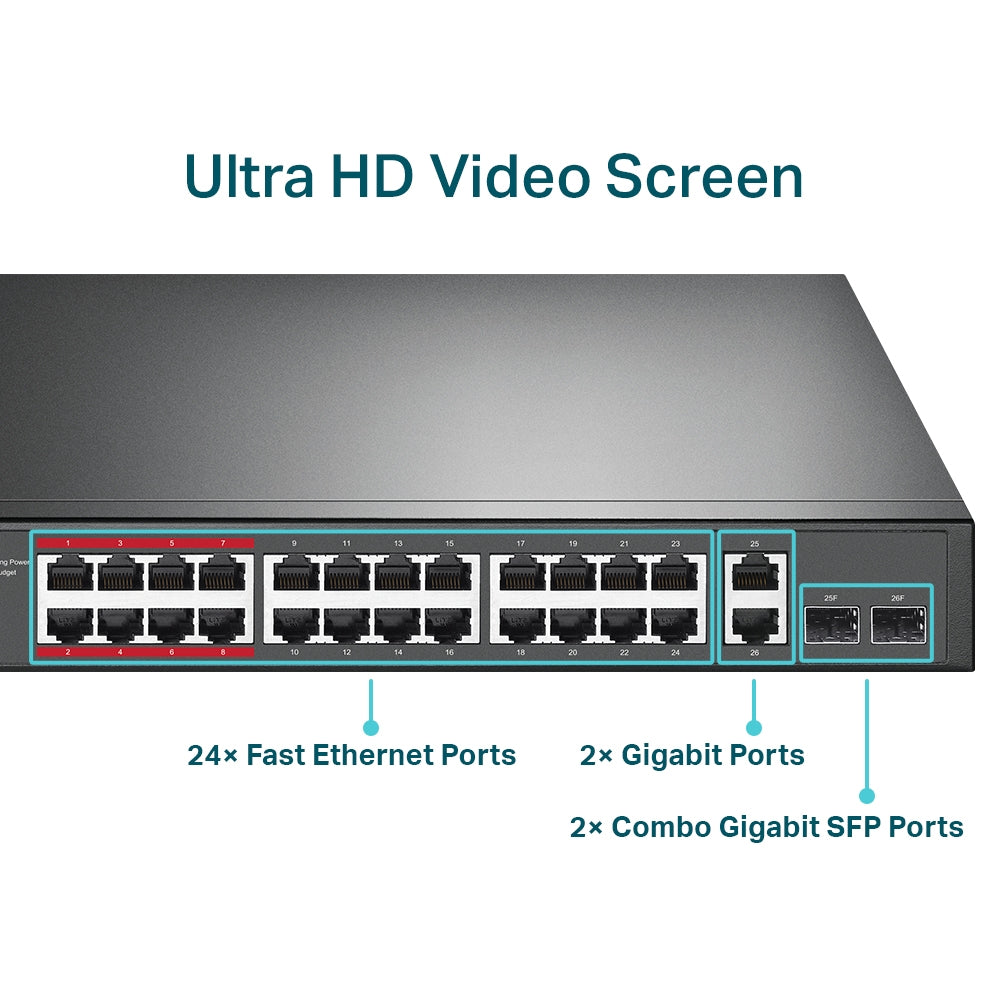

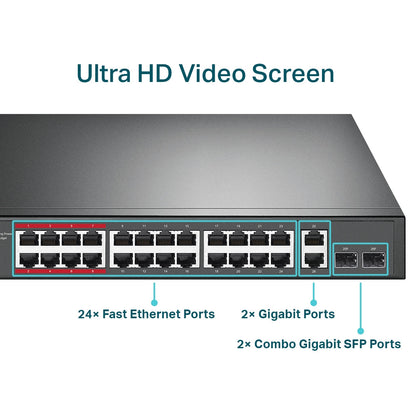

Interfaces:

• 24 × 10/100 Mbps PoE+ RJ45 Ports

• 2 × 10/100/1000 Mbps RJ45 Ports

• 2 × Combo Gigabit SFP Slots

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Ports 1–24 support IEEE 802.3af/at

• Max PoE power per port: 30W

• Total PoE power budget: 250W

• Extend Mode: Up to 250m

• PoE Auto Recovery: Yes

Performance:

• Switching Capacity: 8.8 Gbps

• Packet Forwarding Rate: 6.54 Mpps

• MAC Address Table: 8K entries

• Jumbo Frame: 10 KB

Advanced Features:

• Extend Mode for long-distance PoE transmission

• Priority Mode (Ports 1–8)

• Isolation Mode (Ports 1–24)

• PoE Auto Recovery

• PD Detection

• Intelligent Power Supply

• IEEE 802.3x Flow Control

• MAC address auto-learning and auto-aging

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

• Fan Quantity: 2 Fans

• Physical Security Lock: Yes

Power:

• Power Supply: 100-240 VAC, 50/60 Hz

• Max Power Consumption:

  • 14.81W (no PD connected)

  • 302.88W (with 250W PD connected)

• Max Heat Dissipation:

  • 50.35 BTU/h (no PD connected)

  • 1029.79 BTU/h (with 250W PD connected)

Certifications: CE, FCC, RoHS

Environment:

• Operating Temperature: 0–50°C (32–122°F)

• Storage Temperature: -40–70°C (-40–158°F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

The TL-SL1226P is backed by TP-Link’s limited warranty, with full local support in Australia and New Zealand through authorised channels, ensuring reliable service and peace of mind for professional deployments.

Brand Description

TP-Link is a trusted global leader in networking solutions, delivering innovative products that combine high performance, reliability, and user-friendly designs. From home networking to enterprise-grade infrastructure, TP-Link empowers connectivity worldwide.

SKU

TL-SL1226P

Practical Use Scenarios

• Surveillance Systems – Perfect for powering multiple IP cameras across large properties with extended PoE reach.

• Business Networks – Connect and power VoIP phones, wireless APs, and security devices in offices and retail.

• Warehouses & Industrial Facilities – Simplify network infrastructure for expansive spaces needing long-range connectivity.

• Hotels & Hospitality – Centralise power and data for guest Wi-Fi and in-room services with minimal cabling.

• Event Venues – Rapidly deploy temporary networks for cameras, access points, and displays without additional power wiring.

Datasheets / Downloadable Resources

Download TP-Link TL-SL1226P Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SL1226P complies with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Sourced exclusively through authorised distributors, it guarantees genuine products and full local warranty support. Built for reliability and high performance, it’s the perfect solution for demanding network deployments across Australia and New Zealand.

 FAQs

Q1. How far can PoE reach with the TL-SL1226P in Extend Mode? (TL-SL1226P)
The TL-SL1226P supports PoE data and power transmission up to 250 meters in Extend Mode—ideal for large-scale deployments like surveillance systems.

Q2. What is the maximum power budget of the TL-SL1226P? (TL-SL1226P)
It offers a total PoE power budget of 250W, allowing support for multiple high-power devices like PTZ cameras or wireless APs.

Q3. Does the TL-SL1226P require software configuration? (TL-SL1226P)
No! It’s plug-and-play, making it simple to deploy even for users without networking expertise.

Q4. Can I prioritise video traffic on the TL-SL1226P? (TL-SL1226P)
Yes, Priority Mode ensures that ports 1–8 receive bandwidth and power priority for latency-sensitive applications like video surveillance.

Q5. Is the TL-SL1226P suitable for commercial environments? (TL-SL1226P)
Absolutely. Its robust build, high PoE budget, and advanced features make it ideal for businesses, warehouses, hospitality, and large-scale surveillance projects.
