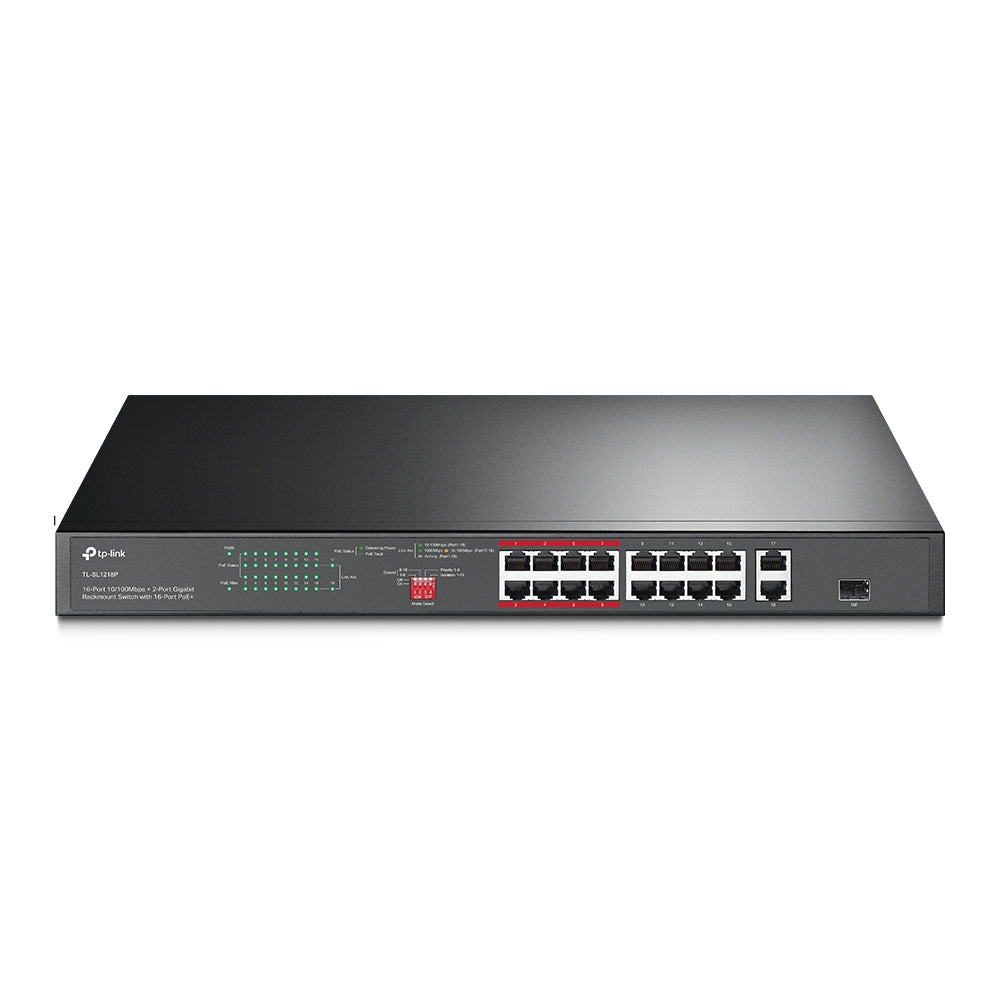

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit PoE+ Rackmount Switch | Efficient Power, Long-Range PoE, Hassle-Free Networking

Simplify and power your business network infrastructure with the TP-Link TL-SL1218P, a robust 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+, engineered for small and medium-sized enterprises, retail, hospitality, and surveillance applications.

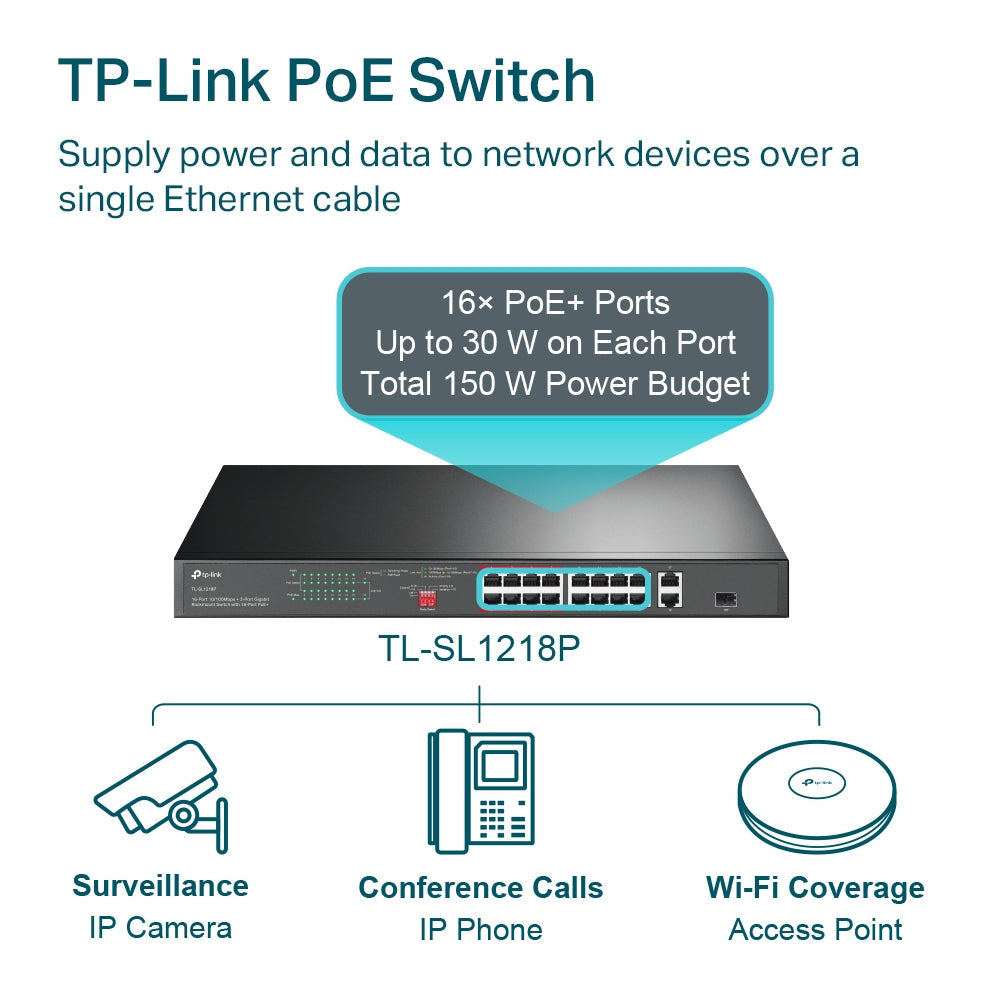

Equipped with 16 PoE+ ports, this switch provides up to 30W per port, supporting a total PoE power budget of 150W. Ideal for powering IP cameras, wireless access points, and VoIP phones, it eliminates the need for additional power cables, significantly reducing installation costs and complexity.

The Extend Mode feature enables data and power transmission up to 250 metres, making it the perfect solution for larger facilities or outdoor camera installations.

The TL-SL1218P is designed with Priority Mode on ports 1–8 to prioritise mission-critical devices such as video surveillance systems, ensuring smooth operation even during high traffic periods. Isolation Mode enhances network security by separating client traffic with a simple toggle switch, preventing broadcast storms and improving performance.

Boasting a rugged metal case, dual fans for cooling, and a plug-and-play design requiring no configuration, the TL-SL1218P delivers dependable performance in demanding environments.

What's in the Box

• TP-Link TL-SL1218P Switch

• Power Cable

• Installation Guide

• Two mounting brackets and fittings

Main Features

✅ 16 PoE+ Ports for Seamless Deployment – Connect and power PoE devices without extra wiring, saving time and costs.

✅ 150W Total PoE Power Budget – Sufficient power for numerous high-demand devices like PTZ cameras, APs, and phones.

✅ Extended PoE Reach – Transmit data and power up to 250 metres using Extend Mode for flexible installations.

✅ Priority Mode – Protects bandwidth and power for critical devices connected to ports 1–8.

✅ Isolation Mode – Instantly segment network traffic to boost security and reduce broadcast storms.

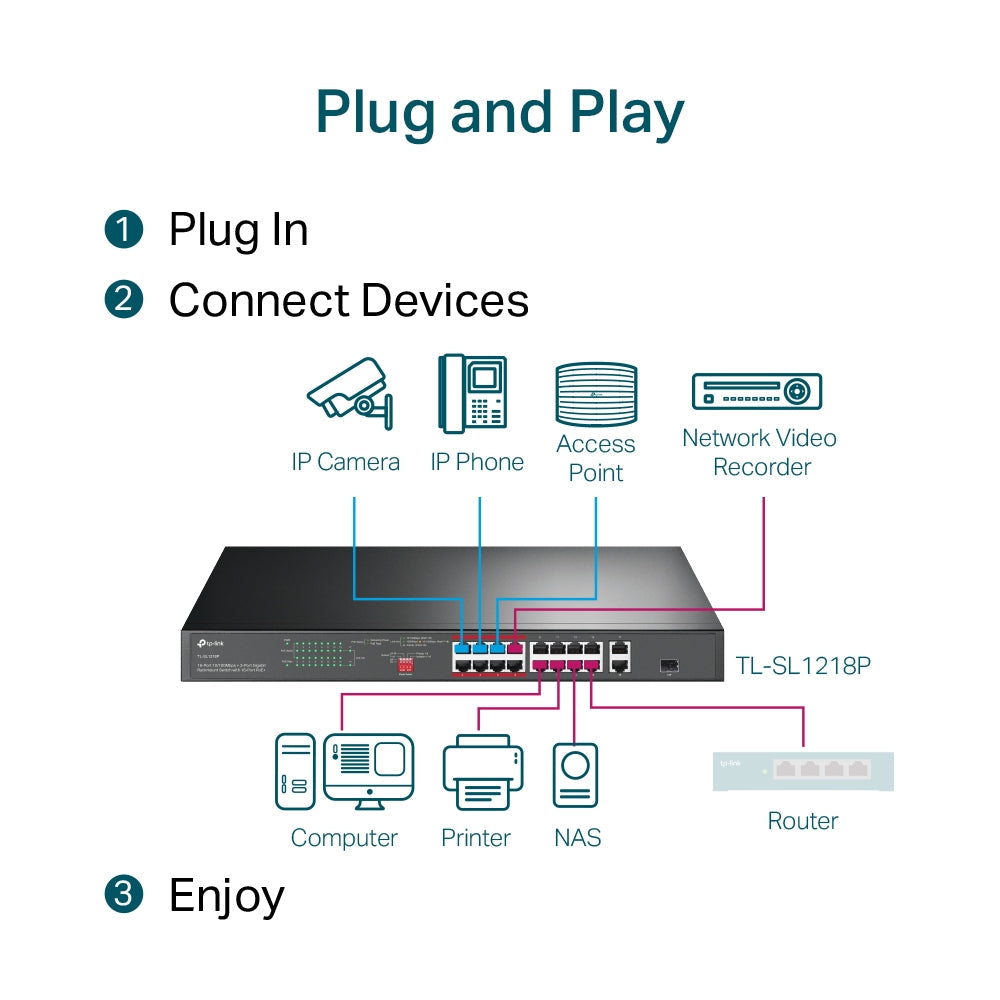

✅ Plug-and-Play Simplicity – No configuration required for immediate network expansion.

✅ Durable Build & Cooling – Metal enclosure and dual fans ensure reliability under heavy load.

Detailed Specifications

Interfaces:

• 16 × 10/100 Mbps PoE+ RJ45 Ports

• 2 × 10/100/1000 Mbps RJ45 Ports

• 1 × Combo Gigabit SFP Slot

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Ports 1–16 support IEEE 802.3af/at

• Max PoE power per port: 30W

• Total PoE power budget: 150W

• Extend Mode: Up to 250 metres

Performance:

• Switching Capacity: 7.2 Gbps

• Packet Forwarding Rate: 5.36 Mpps

• MAC Address Table: 8K entries

• Jumbo Frame: 10 KB

Advanced Features:

• Extend Mode for long-distance PoE transmission

• Priority Mode for critical traffic

• Isolation Mode for security and performance

• PoE Auto Recovery to automatically reboot unresponsive devices

• IEEE 802.3x Flow Control

• MAC address auto-learning and aging

Transmission Method: Store-and-Forward

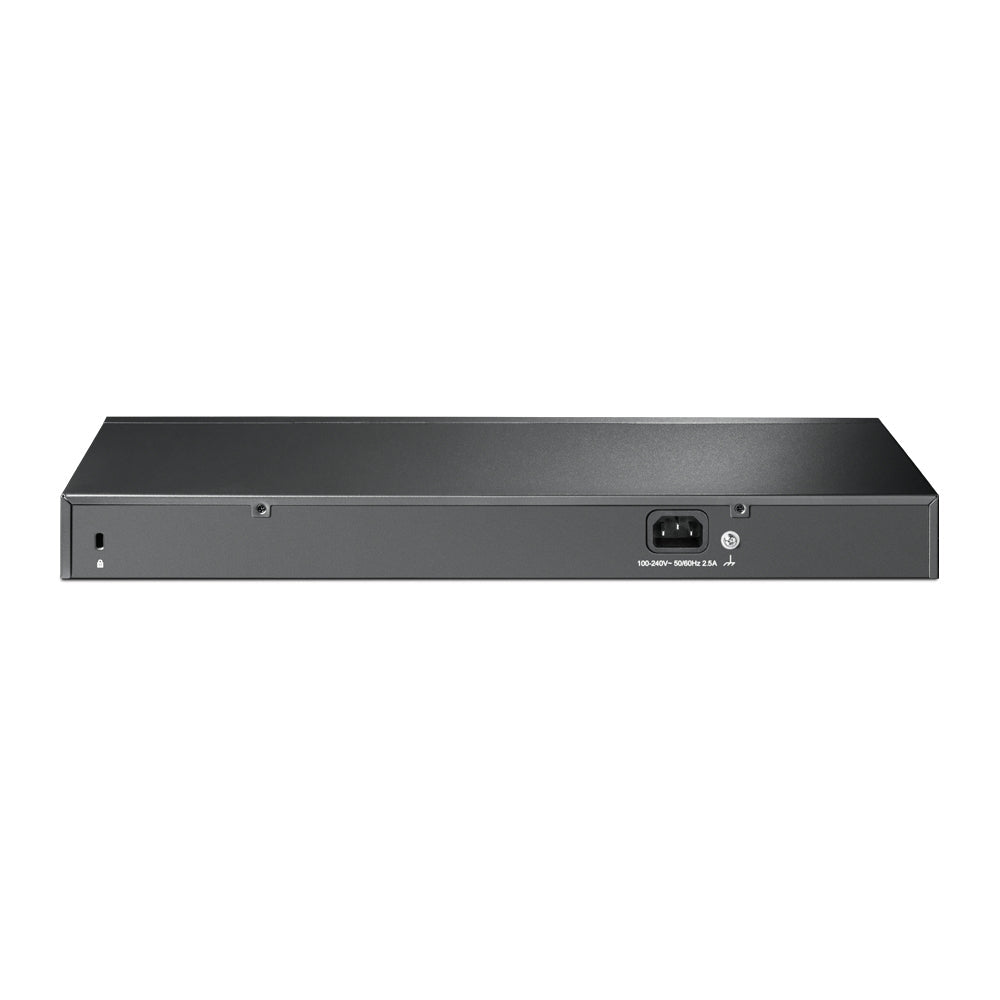

Physical:

• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

• Fan Quantity: 2 Fans

• Physical Security Lock: Yes

Power:

• Power Supply: 100–240V AC, 50/60 Hz

• Max Power Consumption:

  • 10.75W (no PD connected)

  • 172.8W (with 150W PD connected)

• Max Heat Dissipation:

  • 36.55 BTU/h (no PD connected)

  • 592.55 BTU/h (with 150W PD connected)

Certifications: CE, FCC, RoHS

Environment:

• Operating Temperature: 0–50°C (32–122°F)

• Storage Temperature: -40–70°C (-40–158°F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

The TP-Link TL-SL1218P comes with TP-Link’s standard warranty, ensuring dependable service and local support across Australia and New Zealand.

Brand Description

TP-Link is a global leader in networking solutions, dedicated to delivering innovative, reliable, and accessible products for home and business connectivity worldwide.

SKU

TL-SL1218P

Practical Use Scenarios

• Security Systems – Perfect for deploying IP cameras with long-distance cabling across large facilities.

• Retail Networks – Power PoS systems, digital signage, and IP phones efficiently without extra power wiring.

• SME Infrastructure – Consolidate network and power for smaller businesses with ease.

• Hospitality – Provide reliable power and data connectivity to APs and surveillance in hotels and resorts.

• Industrial Installations – Robust design makes it ideal for harsh environments and critical applications.

Datasheets / Downloadable Resources

Download TP-Link TL-SL1218P Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SL1218P fully complies with Australian and New Zealand standards, including CE, FCC, and RoHS certifications. Distributed via official channels, it ensures genuine product quality, local warranty support, and seamless integration for business applications across Australia and New Zealand.

 FAQs

Q1. How much PoE power does the TL-SL1218P provide in total? (TL-SL1218P)
The TL-SL1218P offers up to 150W of PoE power, supplying up to 30W per port to support high-power devices like PTZ cameras and wireless APs.

Q2. Can the TL-SL1218P power devices beyond 100 metres? (TL-SL1218P)
Yes! Activate Extend Mode to deliver data and power up to 250 metres for extended coverage in larger installations.

Q3. Does the TL-SL1218P require configuration to operate? (TL-SL1218P)
No configuration is needed. The switch is plug-and-play, making it quick and simple to deploy.

Q4. What is Isolation Mode on the TL-SL1218P used for? (TL-SL1218P)
Isolation Mode separates ports to enhance security, preventing devices from communicating directly and reducing broadcast storms.

Q5. Is the TL-SL1218P suitable for surveillance systems? (TL-SL1218P)
Absolutely! It’s ideal for surveillance, offering long PoE reach, high power budget, and features like Priority Mode to ensure stable video transmission.
