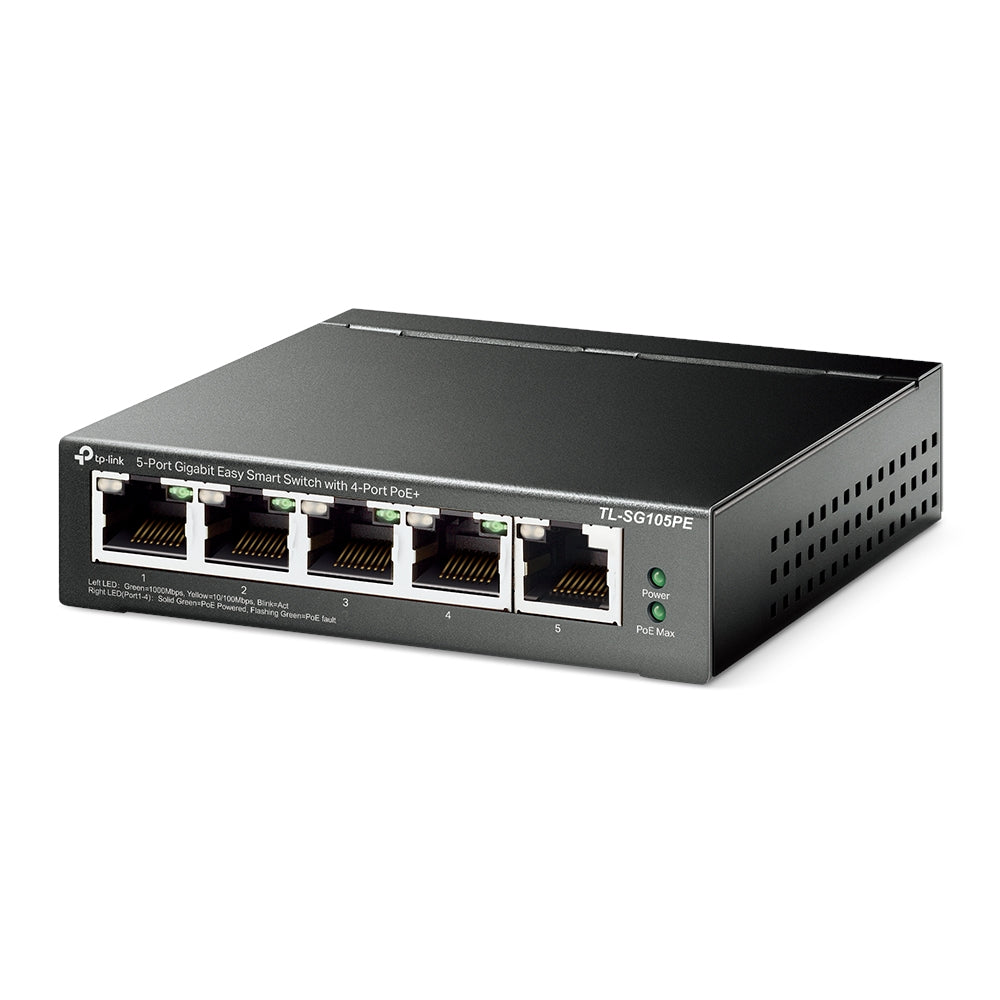

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ | Silent Fanless Design, 65W PoE Budget, VLAN & Web Management

Upgrade your small business, retail, or home network with the compact and capable TP-Link TL-SG105PE, a 5-Port Gigabit Easy Smart Switch offering powerful PoE+ capabilities in a space-saving, silent design.

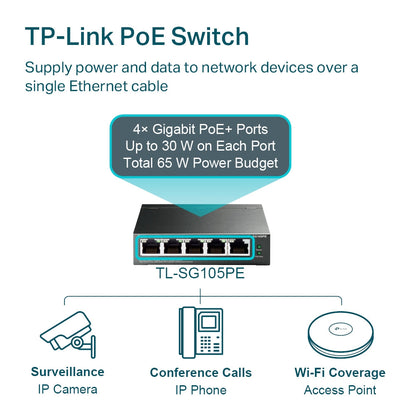

Equipped with four PoE+ ports delivering up to 30W per port and a total power budget of 65W, the TL-SG105PE allows you to power devices such as IP cameras, wireless access points, and VoIP phones using standard Ethernet cables—simplifying network deployment and saving on additional power cabling costs.

Packed with smart management features, this switch supports VLAN segmentation, IGMP Snooping for optimised multimedia traffic, traffic prioritisation via QoS, and PoE Auto Recovery, ensuring a stable and efficient network even during demanding applications. The web-based GUI and TP-Link’s Easy Smart Configuration Utility provide user-friendly configuration, making it perfect for businesses looking to enhance network control without complex administration.

Its fanless design ensures completely silent operation, ideal for noise-sensitive environments like offices, retail counters, or home workspaces.

What's in the Box

• TP-Link TL-SG105PE Easy Smart Switch

• Power Adapter

• Rubber Feet

• Installation Guide

Main Features

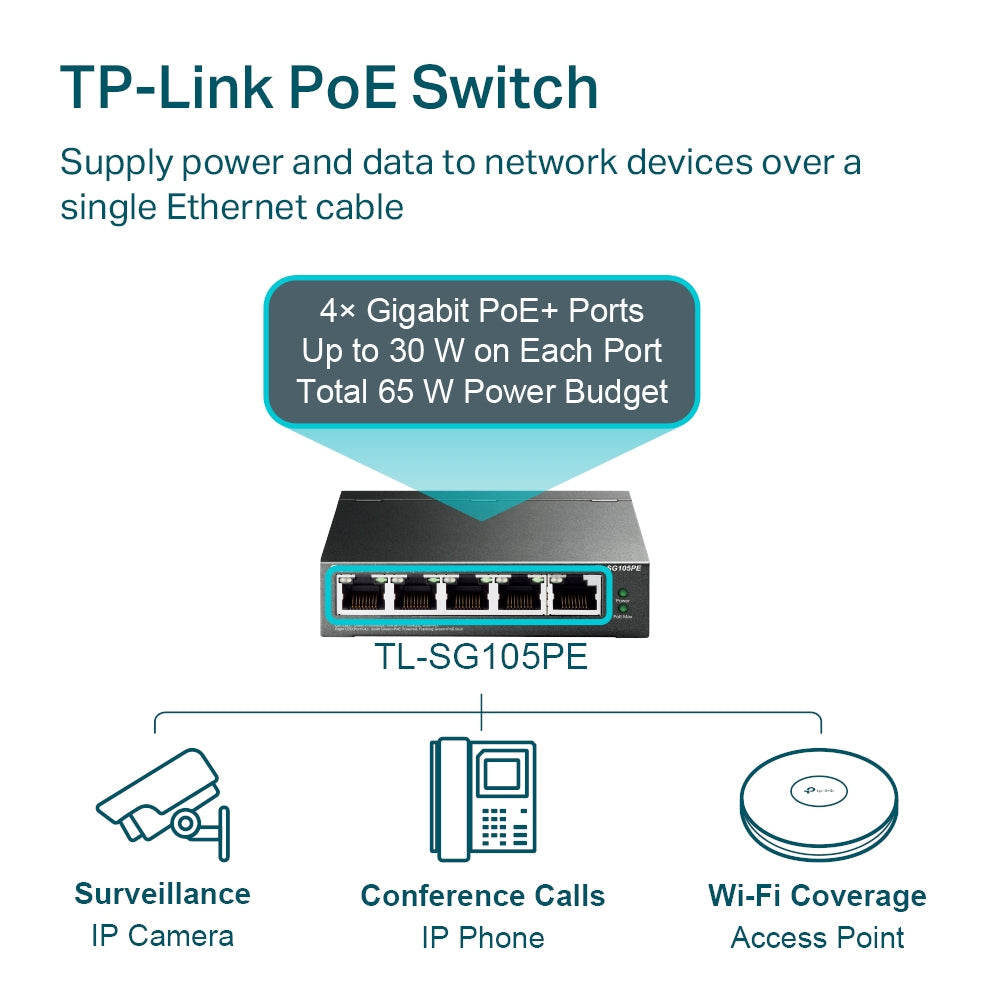

✅ 4 PoE+ Ports with 65W Budget – Power up to four PoE-enabled devices such as IP cameras, APs, or VoIP phones, delivering up to 30W per port for versatile deployments.

✅ Gigabit Speeds Across All Ports – Enjoy fast, stable connections on all five ports to support high-bandwidth business or multimedia applications.

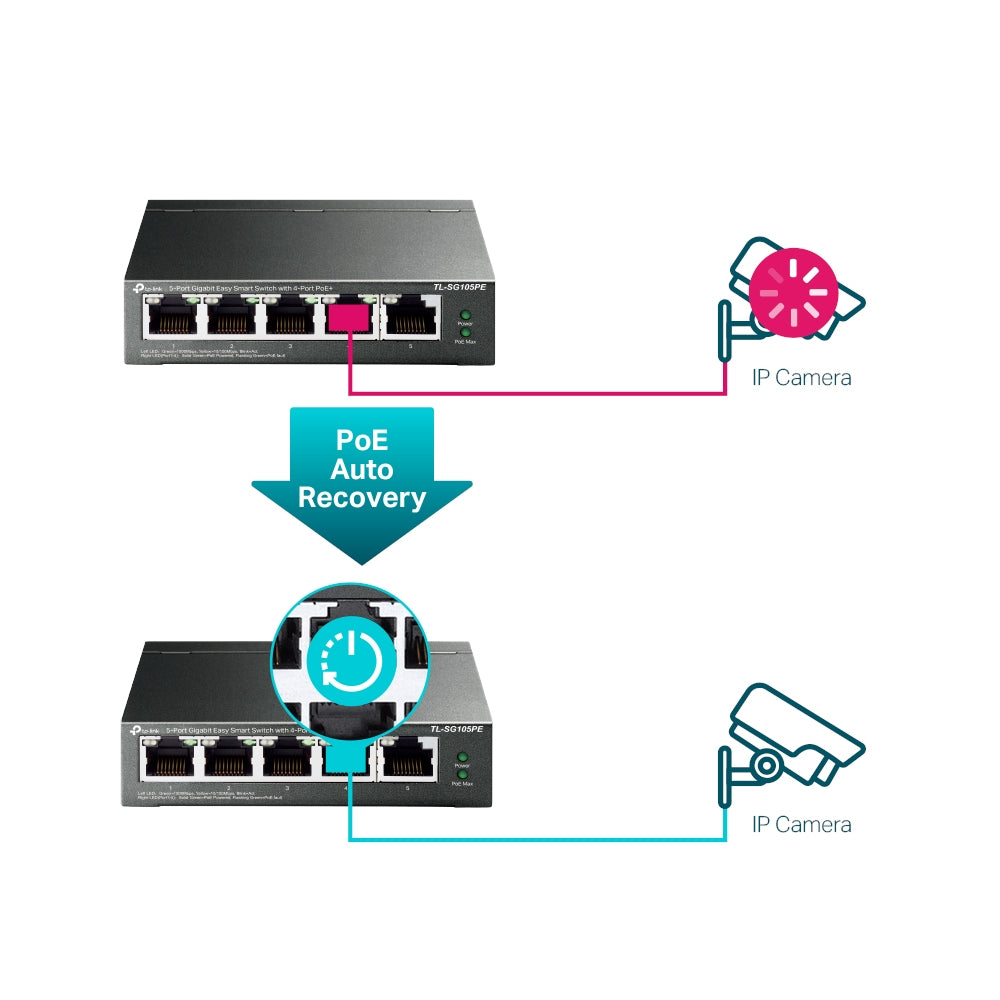

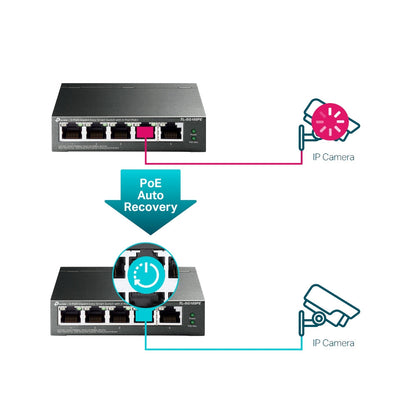

✅ PoE Auto Recovery – Automatically detects and reboots unresponsive PoE devices to maintain uninterrupted network operation without manual intervention.

✅ Silent Fanless Design – Operates silently, making it perfect for quiet environments like offices, stores, or home setups.

✅ Advanced L2 Features – VLAN, IGMP Snooping, static link aggregation, and QoS prioritisation ensure performance, efficiency, and security.

✅ Compact and Durable Build – Small metal housing fits easily on desks or shelves while providing professional-level durability.

Detailed Specifications

Interfaces:

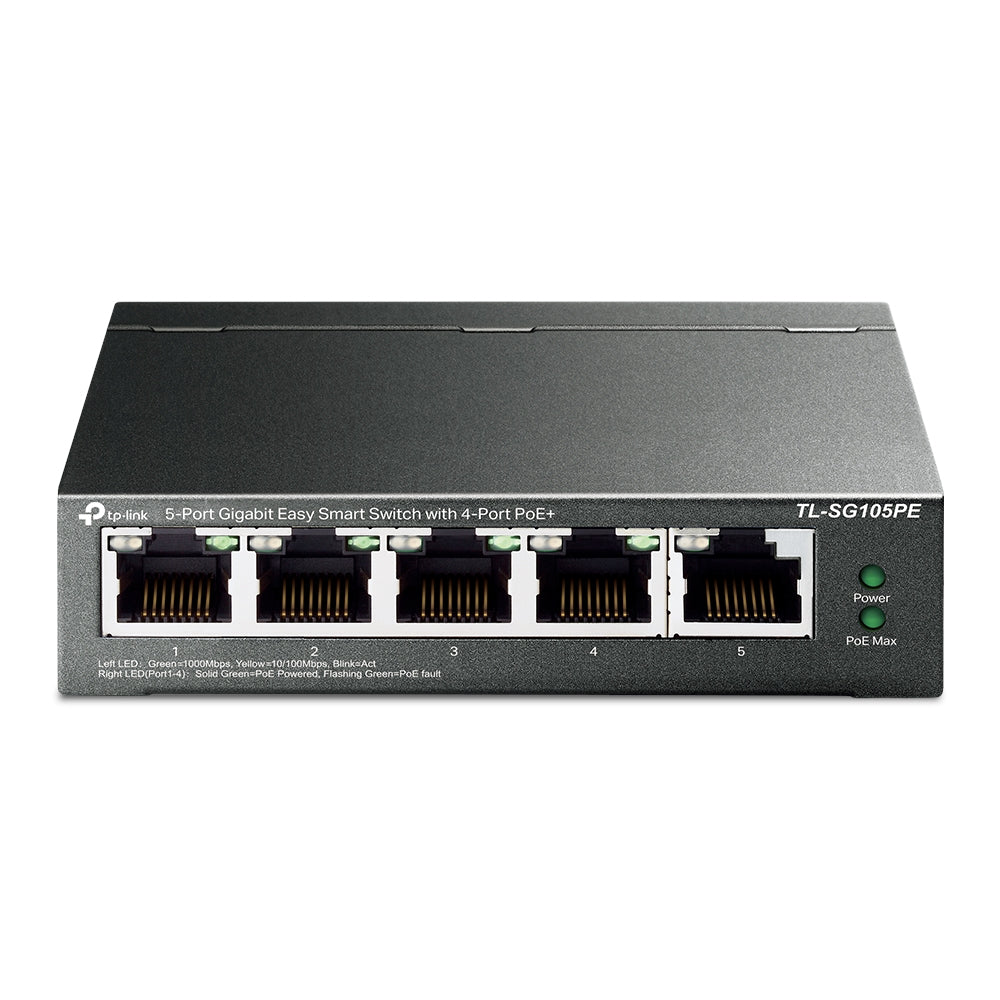

• 5 × 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Standard: IEEE 802.3af/at compliant

• PoE+ Ports: Ports 1–4

• Total PoE Budget: 65W

• PoE Auto Recovery: Yes

• Extend Mode (up to 250m): Yes

Performance:

• Switching Capacity: 10 Gbps

• Packet Forwarding Rate: 7.44 Mpps

• MAC Address Table: 2K entries

• Packet Buffer Memory: 1.5 Mb

• Jumbo Frame: 16 KB

Quality of Service (QoS):

• Port-based/802.1p/DSCP prioritisation

• 4 priority queues

• Rate limiting

• Storm control

Layer 2 Features:

• IGMP Snooping v1/v2/v3

• Static link aggregation

• Port mirroring

• Cable diagnostics

• Loop prevention

VLAN:

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

Management Features:

• Web-based GUI

• Easy Smart Configuration Utility

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 99.8 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

• Fan Quantity: Fanless

• Mounting: Desktop or wall-mountable

• Surge Protection: ±6kV

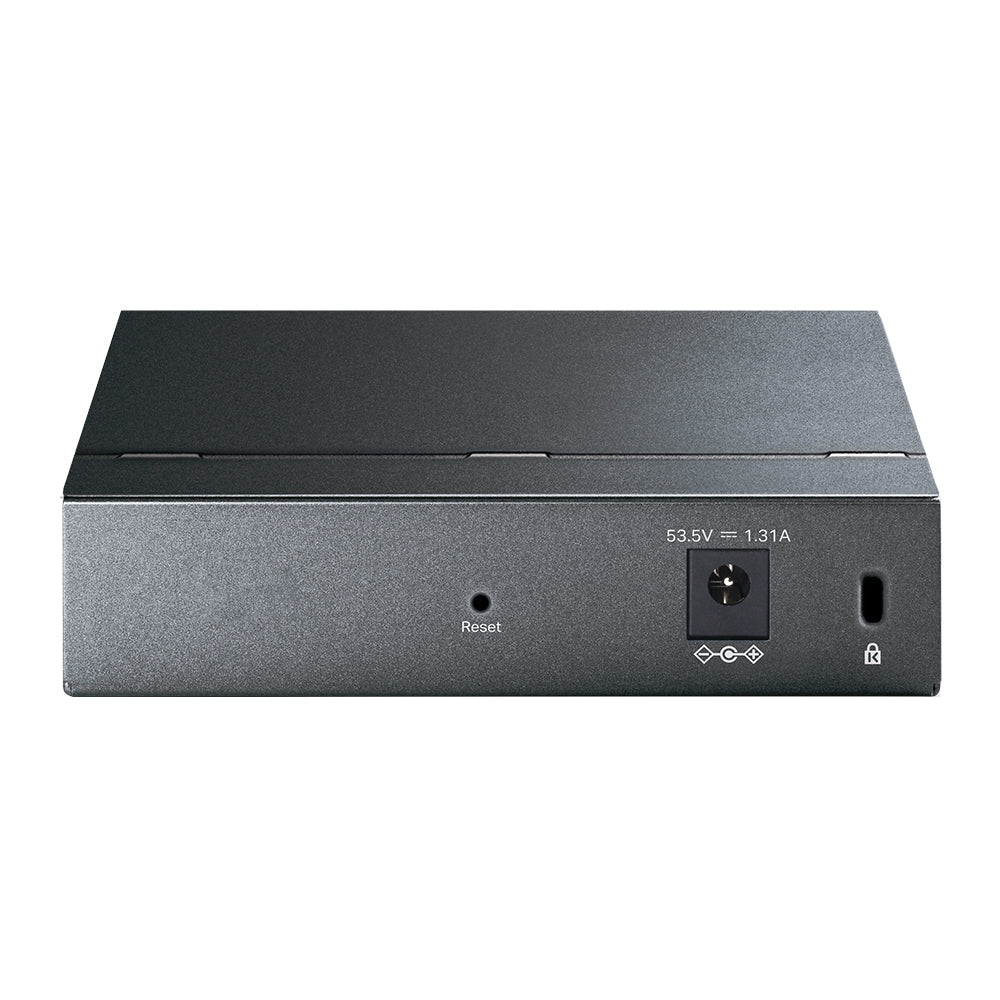

Power Supply: External Power Adapter (53.5 VDC / 1.3 A)

Max Power Consumption:

• 4.5 W (no PD connected)

• 75.2 W (with 65W PD connected)

Heat Dissipation:

• 15.4 BTU/h (no PD connected)

• 256.3 BTU/h (with 65W PD connected)

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 95% RH non-condensing

System Requirements: Compatible with Microsoft® Windows® for running Utility

Warranty Information

The TP-Link TL-SG105PE is backed by a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty handling through authorised TP-Link channels for reliable assistance and peace of mind.

Brand Description

TP-Link is a leading global provider of networking solutions, trusted for delivering high-performance, reliable products for both consumers and businesses. The Easy Smart series represents TP-Link’s mission to provide enterprise-level features with simple, intuitive management, ensuring flexible, secure, and scalable network solutions.

SKU

TL-SG105PE

Practical Use Scenarios

• Small Surveillance Networks – Power and manage up to four IP cameras with PoE+ capability, ideal for offices, retail stores, or homes.

• Retail & Hospitality – Provide power and connectivity for access points, VoIP phones, and POS systems without separate power supplies.

• Home Offices & Studios – Quiet, fanless operation makes it perfect for professional home networks needing smart management and PoE support.

• Small Business Networks – Implement VLANs for network segmentation and prioritise critical traffic like VoIP and video streams.

• Remote Installations – Use Extend Mode for PoE connections up to 250 meters, ideal for cameras or APs placed at longer distances.

Datasheets / Downloadable Resources

Download TP-Link TL-SG105PE Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SG105PE fully complies with Australian and New Zealand regulatory standards, including certifications such as FCC, CE, and RoHS. Exclusively sourced through authorised channels, it guarantees genuine hardware and full warranty support locally. Engineered for reliable operation under diverse conditions, the TL-SG105PE is the perfect choice for business or professional networking across Australia and New Zealand.

FAQs

Q1. How many PoE devices can the TL-SG105PE power simultaneously? (TL-SG105PE)
The TL-SG105PE can power up to four PoE or PoE+ devices at once, with a total PoE power budget of 65W and up to 30W per port.

Q2. Does the TL-SG105PE support VLAN configurations for network segmentation? (TL-SG105PE)
Yes! The TL-SG105PE supports MTU, port-based, and 802.1Q tag VLANs for flexible and secure network segmentation.

Q3. Can the TL-SG105PE be managed remotely via the cloud? (TL-SG105PE)
The TL-SG105PE offers local web-based management and utility-based configuration but is not integrated with TP-Link’s Omada SDN cloud platform.

Q4. Is the TL-SG105PE silent during operation? (TL-SG105PE)
Absolutely! The TL-SG105PE features a fanless design, ensuring completely silent operation—perfect for quiet office and retail environments.

Q5. Does the TL-SG105PE support long-distance PoE transmission? (TL-SG105PE)
Yes! The TL-SG105PE includes Extend Mode, allowing PoE transmission distances of up to 250 meters for flexible installations.
