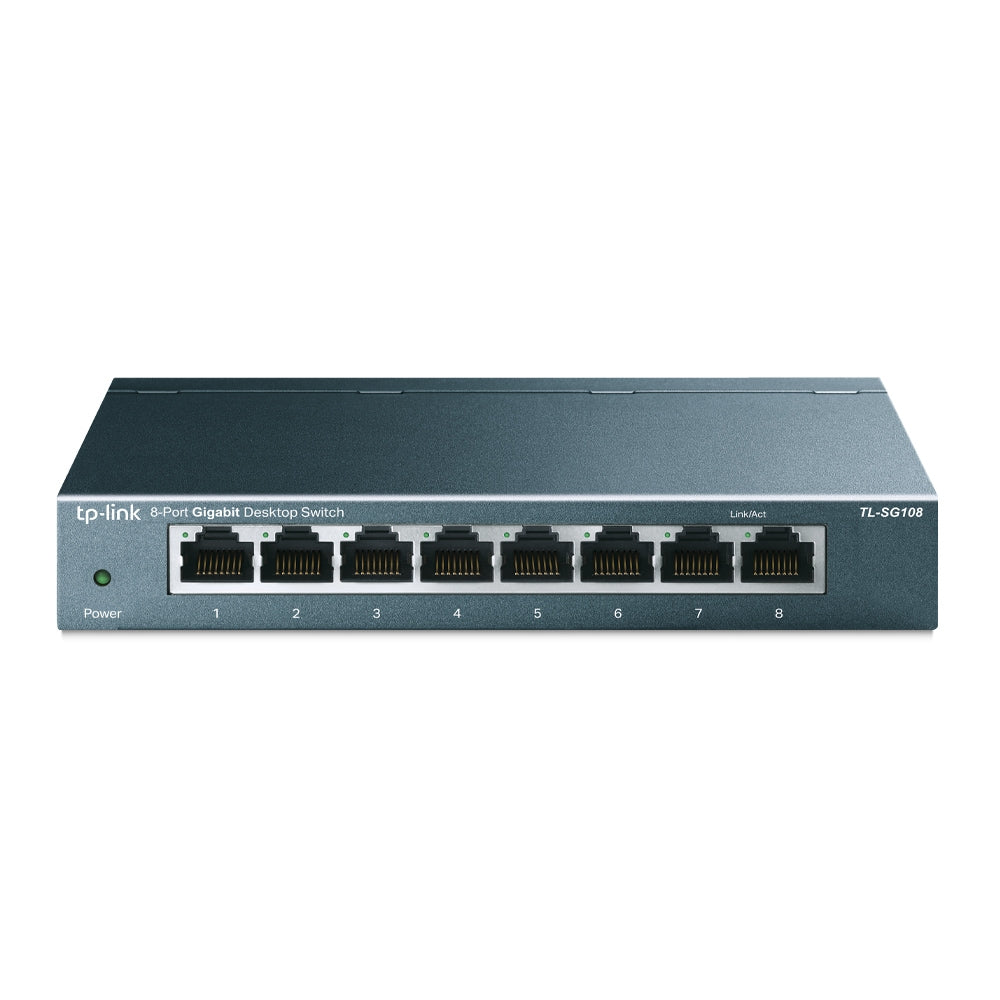

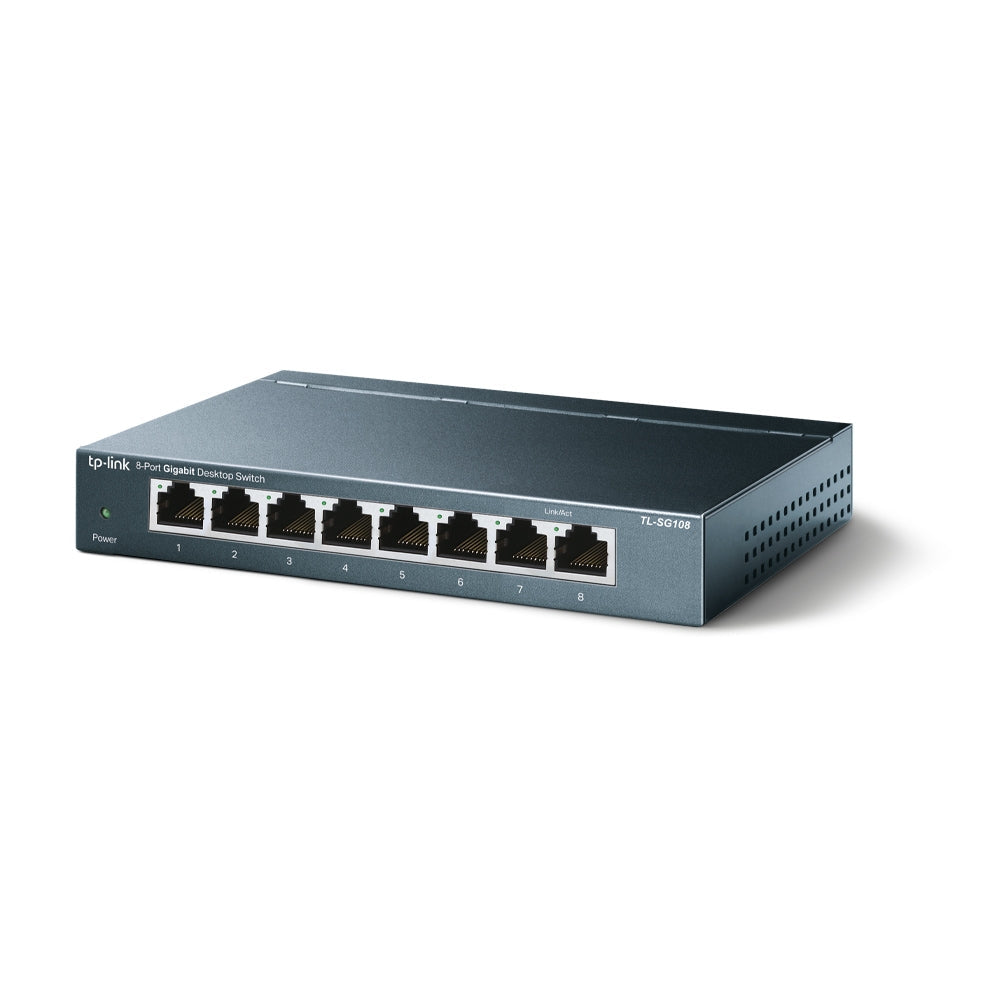

TP-Link TL-SG105/TL-SG108 5-Port/8-Port Gigabit Switch

Name: TP-Link TL-SG105/TL-SG108 5-Port/8-Port Gigabit Switch
Brand: CCTV Tradie
SKU: TL-SG108 V8NET-1

TP-Link TL-SG105/TL-SG108 5-Port/8-Port Gigabit Switch

$50.94 AUD

~~$134.64 AUD~~ $50.94 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Ports 5 port 8 port

Overview
The TP-Link TL-SG105 and TL-SG108 are compact, desk-mountable Gigabit switches designed to enhance your network performance effortlessly. With 5 or 8 non-PoE Gigabit Ethernet ports, these switches offer reliable, high-speed connectivity for your home or small office network. Housed in a durable steel case and featuring a fanless design, they provide silent operation and robust durability. The TL-SG105 and TL-SG108 are perfect for those looking to expand their network with a simple, cost-effective, and energy-efficient solution.

Key Features

5/8 Gigabit Ports: Offers 10/100/1000Mbps speeds for rapid data transfer, supporting bandwidth-intensive applications.
Fanless Design: Ensures quiet operation, making it ideal for noise-sensitive environments.
Durable Steel Case: Provides excellent protection for internal components, ensuring a long-lasting and reliable performance.

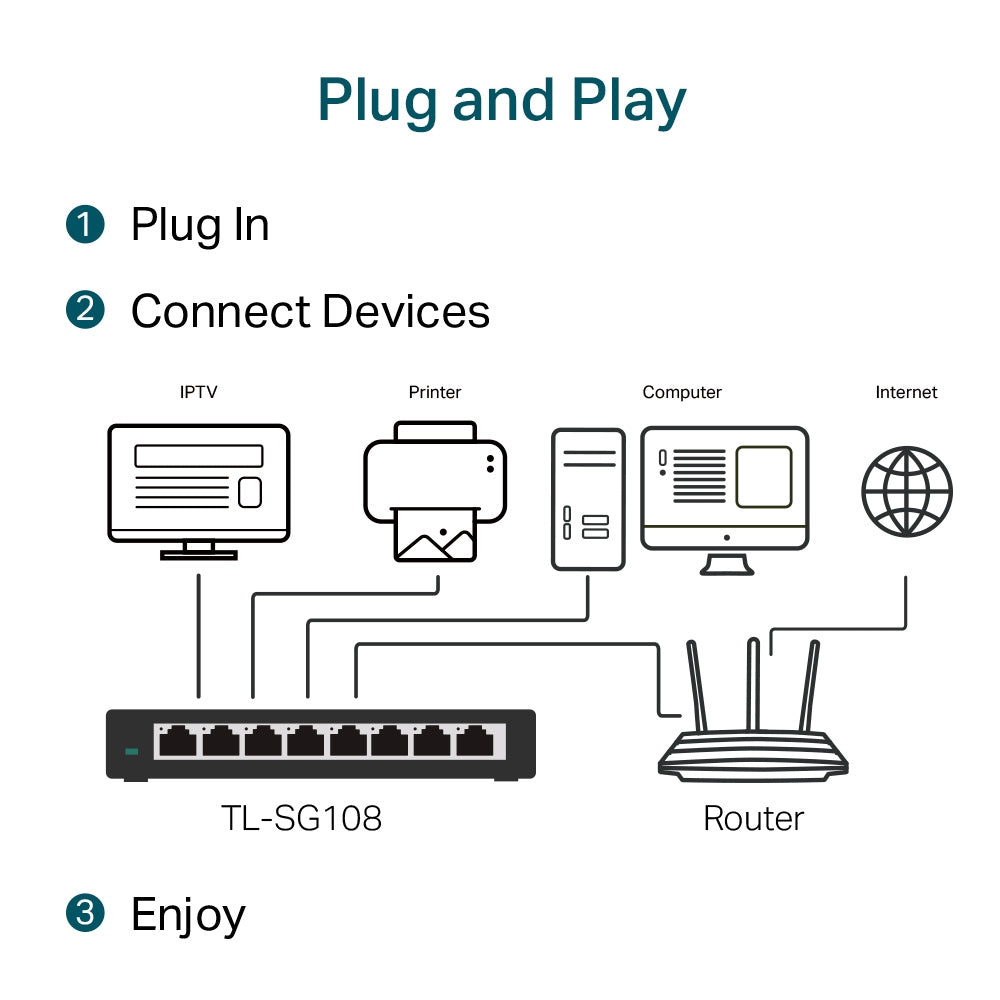

Plug & Play: Easy setup with no configuration required. Simply connect your devices and start enjoying high-speed connectivity.
Energy-Efficient Technology: Automatically adjusts power consumption based on link status and cable length, reducing energy use without compromising performance.
Auto MDI/MDIX: Eliminates the need for crossover cables, making setup straightforward.

Specifications

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface:
- TL-SG105: 5× 10/100/1000Mbps RJ45 Ports
- TL-SG108: 8× 10/100/1000Mbps RJ45 Ports
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (maximum 100m)
Forwarding Mode: Store-and-Forward
Power Supply: 5V DC Power Supply Unit (included)
Dimensions:
- TL-SG105: 3.9 × 3.1 × 1.0 in. (100 × 98 × 25 mm)
- TL-SG108: 6.2 × 4.0 × 1.0 in. (158 × 101 × 25 mm)
Fanless: Yes

Performance

Switching Capacity:
- TL-SG105: 10Gbps
- TL-SG108: 16Gbps
Packet Forwarding Rate:
- TL-SG105: 7.4Mpps
- TL-SG108: 11.9Mpps
MAC Address Table: 2K
Jumbo Frame: 10KB

Environment

Operating Temperature: 0°C~~40°C (32°F~~104°F)
Storage Temperature: -40°C~~70°C (-40°F~~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~90% RH non-condensing

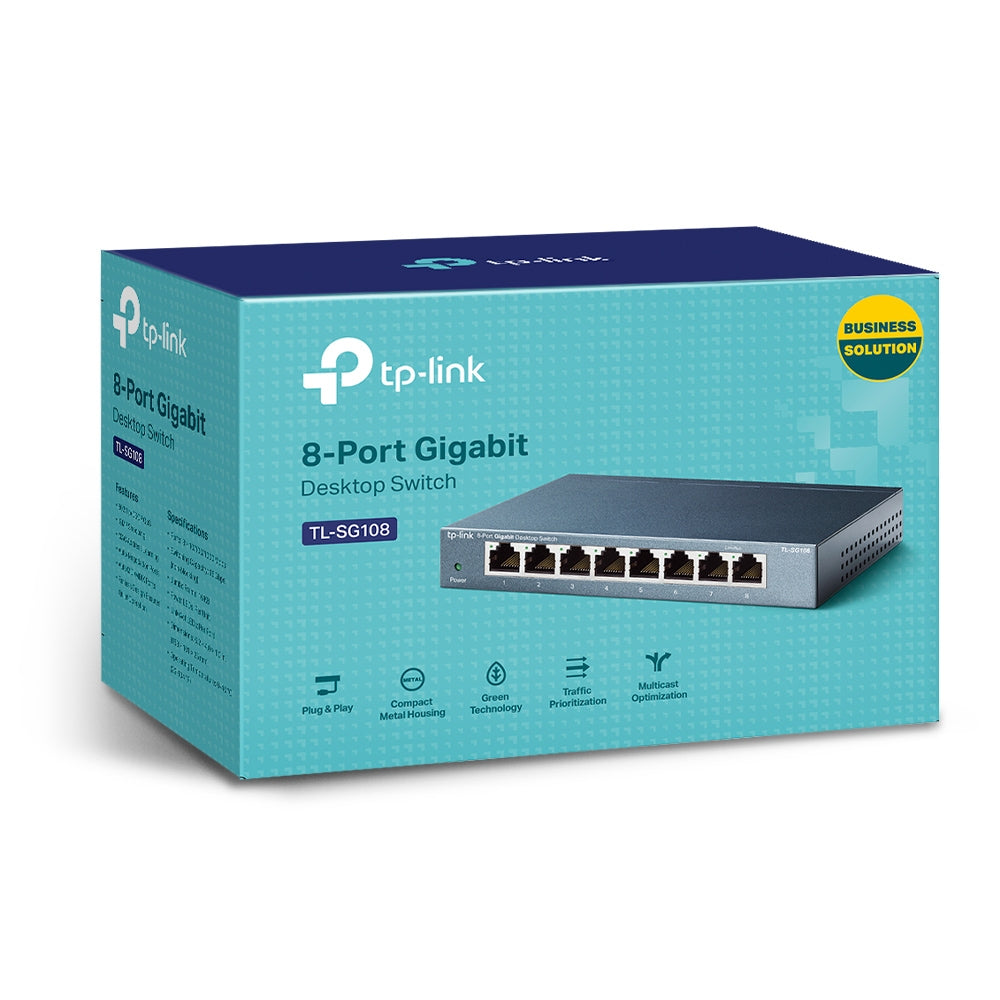

Package Contents

TL-SG105/TL-SG108 Gigabit Switch
Power Adapter
Installation Guide

The TP-Link TL-SG105 and TL-SG108 Gigabit switches are perfect for small office or home office use, providing fast and stable network connections with minimal energy consumption. Their simple setup, reliable performance, and durable construction make them an excellent choice for expanding your wired network infrastructure.

Specifications

Category	Specifications
Hardware Features
Standards and Protocols	IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p
Interface	8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator	System Power, Link/Act indicators per port
Dimensions (W x D x H)	6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Max Power Consumption	2.77 W (220V/50Hz)
Max Heat Dissipation	9.45 BTU/h
Performance
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	4K
Packet Buffer Memory	1.5 Mb
Jumbo Frame	16 KB
Software Features
Advanced Features	Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping
Transfer Method	Store and Forward
Others
Certification	CE, FCC, RoHS
Package Contents	8-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
Environment	Operating Temperature: 0°C~~40°C (32°F~~104°F)
	Storage Temperature: -40°C~~70°C (-40°F~~158°F)
	Operating Humidity: 10% ~ 90%, non-condensing
	Storage Humidity: 5%~90% non-condensing
