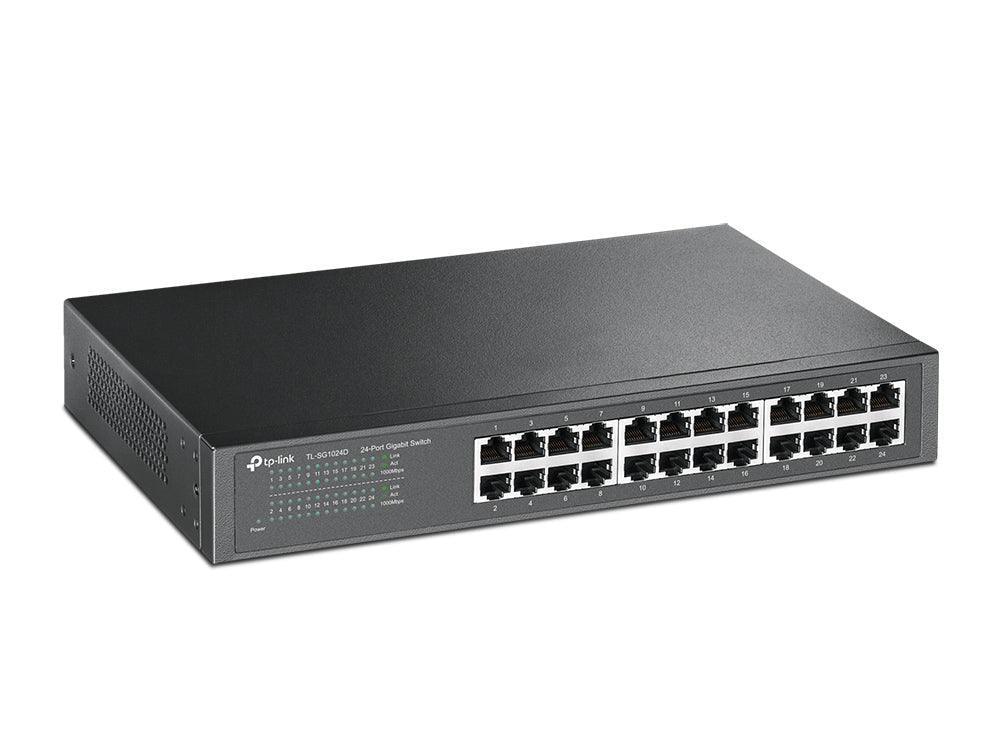

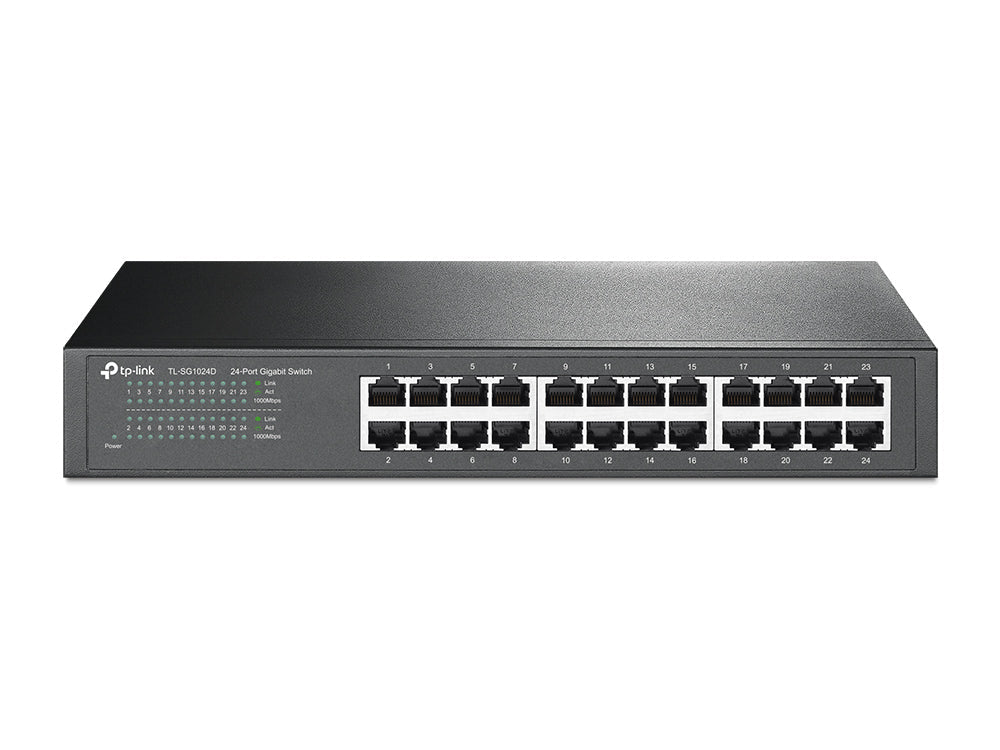

TP-Link TL-SG1024D 24-Port Gigabit Switch

Overview
The TP-Link TL-SG1016D and TL-SG1024D are high-performance Gigabit Ethernet switches designed to deliver fast and reliable network connectivity for both small and medium-sized businesses. With 16 or 24 Gigabit RJ-45 ports, these switches provide seamless, non-blocking data transfer with a maximum switching capacity of up to 48Gbps. Both models are equipped with TP-Link's energy-efficient technology, which helps reduce power consumption and minimize environmental impact, making them eco-friendly choices.

Key Features

• 16/24 Gigabit Ports: Each port supports 10/100/1000Mbps speeds with auto-negotiation and auto MDI/MDIX, eliminating the need for crossover cables and ensuring compatibility with a variety of network devices.
• Energy-Efficient Technology: TP-Link's innovative Green Technology reduces power consumption by automatically adjusting power usage based on link status and cable length, helping to lower energy costs.
• Non-Blocking Architecture: Forward and filter packets at full wire-speed for maximum throughput, ensuring a smooth and efficient network experience.
• 10KB Jumbo Frame: Enhances performance for large file transfers, making it ideal for multimedia and file-sharing applications.
• IEEE 802.3x Flow Control: Provides reliable data transfer with flow control for full duplex mode and backpressure for half duplex mode.
• Plug & Play Installation: Easy setup with no configuration required. Auto MDI/MDIX and auto-negotiation simplify installation and ensure optimal performance.

Hardware Specifications

• Standards and Protocols: IEEE 802i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Interfaces:
  • TL-SG1016D: 16× 10/100/1000Mbps RJ45 Ports
  • TL-SG1024D: 24× 10/100/1000Mbps RJ45 Ports
• Forwarding Mode: Store-and-Forward
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (max 100m)
  • 100BASE-TX/1000BASE-T: UTP category 5, 5e, or above cable (max 100m)

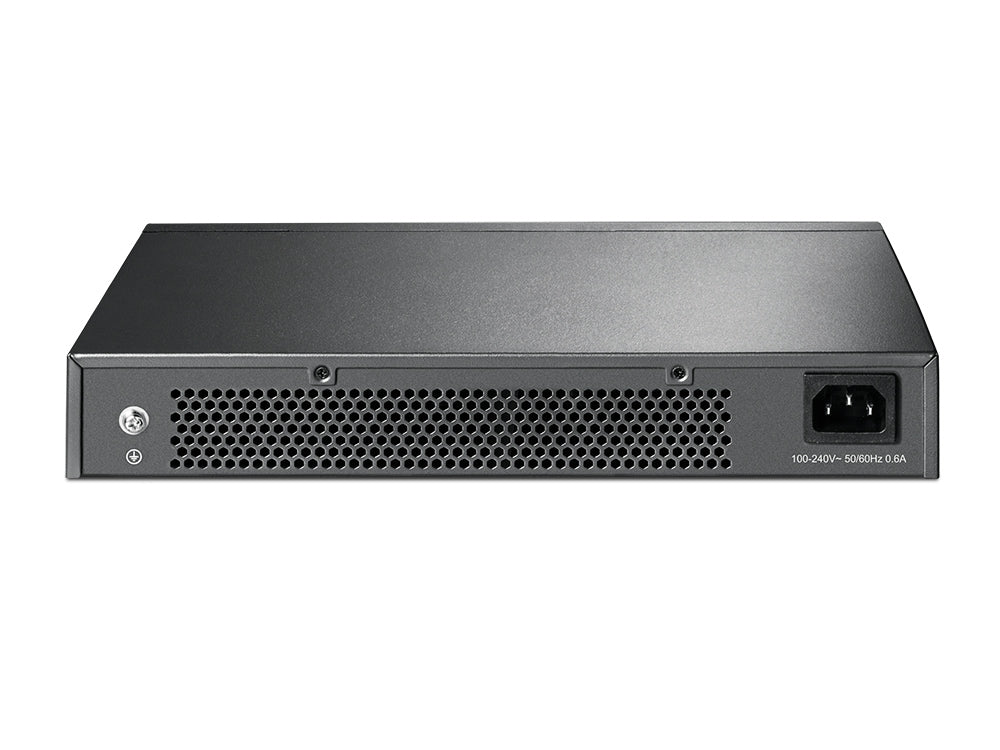

• Power Supply: 100-240VAC, 50/60Hz
• Green Technology: Yes
• 802.1p/DSCP QoS: Yes
• LED Indicators: Power, 1000Mbps, Link/Act
• Dimensions: 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
• Fanless Design: Ensures silent operation

Performance Specifications

• Switching Capacity:
  • TL-SG1016D: 32Gbps
  • TL-SG1024D: 48Gbps
• Packet Forwarding Rate:
  • TL-SG1016D: 23.8Mpps
  • TL-SG1024D: 35.7Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• Max Power Consumption:
  • TL-SG1016D: 9.95W (220V/50Hz)
  • TL-SG1024D: 13.78W (220V/50Hz)
• Max Heat Dissipation:
  • TL-SG1016D: 33.93 BTU/h
  • TL-SG1024D: 46.99 BTU/h

Environmental Specifications

• Operating Temperature: 0°C40°C (32°F104°F)
• Storage Temperature: -40°C70°C (-40°F158°F)
• Operating Humidity: 10%~90% RH non-condensing
• Storage Humidity: 5%~90% RH non-condensing

Compliance and Certifications

• CE, FCC, RoHS

Package Contents

• TL-SG1016D/TL-SG1024D Gigabit Switch
• Power Adapter
• Installation Guide

The TP-Link TL-SG1016D and TL-SG1024D switches are ideal for businesses looking to upgrade to Gigabit speed with minimal investment. Their energy-efficient design, high performance, and ease of use make them excellent choices for enhancing network infrastructure.
