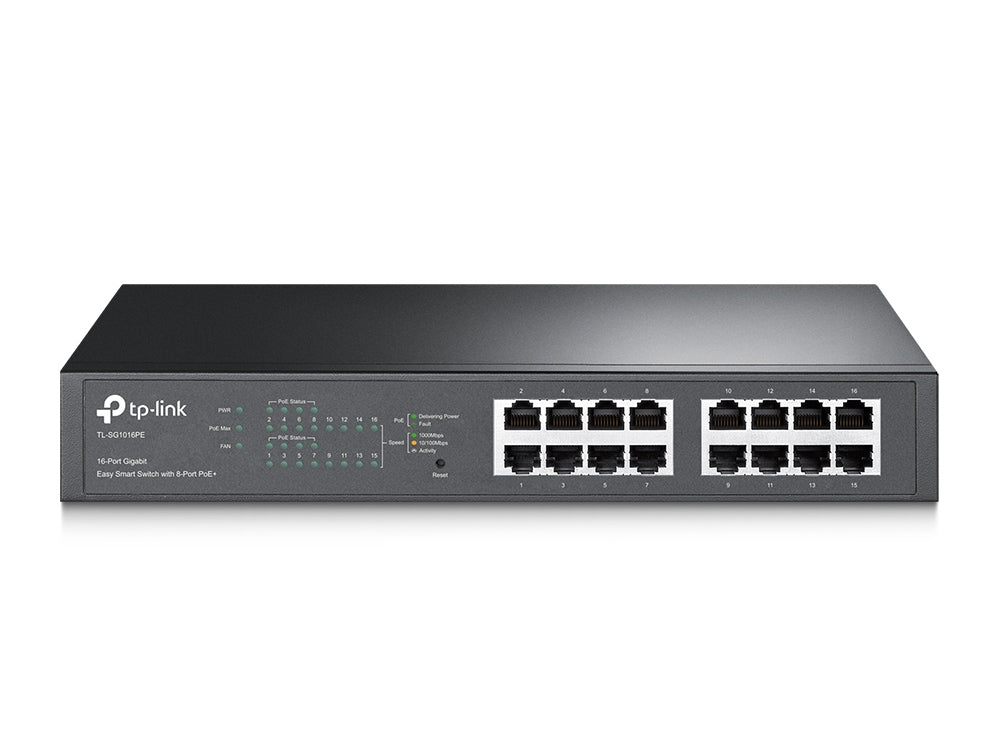

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ | 110W PoE Budget, Web Management, Ideal for SMB Networks

Upgrade your business or home network with the TP-Link TL-SG1016PE, a versatile 16-Port Gigabit Easy Smart PoE Switch designed for seamless integration into small-to-medium business, office, or surveillance applications. Equipped with 8 PoE+ ports supporting up to 30W each, this switch powers IP cameras, wireless access points, and VoIP phones over a single Ethernet cable, significantly reducing deployment complexity and installation costs.

With a total PoE budget of 110W, the TL-SG1016PE offers intelligent power allocation to ensure stable operation of critical devices. Advanced Layer 2 features like VLAN segmentation, IGMP Snooping, and QoS ensure smooth data, voice, and video traffic even in demanding network environments.

Easy to install and manage, the switch features both plug-and-play simplicity and a web-based management interface for advanced configuration and monitoring. Its compact rackmountable metal chassis, robust design, and quiet fan cooling make it a reliable choice for professional network installations.

What's in the Box

• TP-Link TL-SG1016PE Easy Smart PoE Switch

• Power Cord

• Rackmount Kit

• Rubber Feet

• Installation Guide

Main Features

✅ 8 PoE+ Ports with 110W Budget – Power PoE devices like IP cameras, wireless APs, and VoIP phones directly over Ethernet cables, with up to 30W per port.

✅ Gigabit Connectivity – All 16 ports support Gigabit speeds for high-performance network connectivity.

✅ PoE Auto Recovery – Automatically detects and reboots unresponsive PoE devices, maintaining network stability without manual intervention.

✅ Advanced Layer 2 Features – VLAN, IGMP Snooping, link aggregation, and loop prevention enhance network efficiency and security.

✅ Web-Based Management – Configure and monitor your network with an intuitive web GUI and Easy Smart Configuration Utility.

✅ Flexible Deployment – 13" and 19" rack-mountable design allows easy installation in diverse environments.

✅ Durable Construction – Solid metal chassis with efficient fan cooling ensures stable operation in professional deployments.

Detailed Specifications

Interfaces:

• 16 × 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation / Auto MDI/MDIX

PoE Ports:

• Standard: IEEE 802.3at compliant (up to 30W per port)

• PoE+ Ports: Ports 1-8

• Total PoE Budget: 110W

• PoE Auto Recovery: Yes

Performance:

• Switching Capacity: 32 Gbps

• Packet Forwarding Rate: 23.8 Mpps

• MAC Address Table: 8K entries

• Packet Buffer Memory: 4.1 Mb

• Jumbo Frame: 9 KB

Quality of Service (QoS):

• Port-based/802.1p/DSCP prioritisation

• 4 priority queues

• Rate limiting

• Storm control

Layer 2 Features:

• IGMP Snooping v1/v2/v3

• Link aggregation

• Port mirroring

• Cable diagnostics

• Loop prevention

VLAN:

• Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

Management Features:

• Web-based GUI

• Easy Smart Configuration Utility

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)

• Fan Quantity: 1

• Mounting: 13" and 19" rack-mountable

• Surge Protection: ±6kV

Power Supply: 100–240V AC, 50/60 Hz

Max Power Consumption:

• 14.7W (no PD load)

• 131.4W (with 110W PD load)

Heat Dissipation:

• 50.2 BTU/h (no PD load)

• 448.4 BTU/h (with 110W PD load)

Certifications: FCC, RoHS

Environmental Specifications:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®

Warranty Information

The TP-Link TL-SG1016PE is backed by a limited manufacturer warranty. Customers in Australia and New Zealand enjoy local support and warranty service through authorised TP-Link channels for dependable assistance and peace of mind.

Brand Description

TP-Link is a globally recognized leader in networking solutions, renowned for delivering high-performance, reliable, and user-friendly products for both home and business applications. The Easy Smart series showcases TP-Link’s commitment to making enterprise-grade networking accessible, blending powerful features with simplified management tools for flexible network deployments.

SKU

TL-SG1016PE

Practical Use Scenarios

• Small Business Networks – Connect and power PoE devices like IP cameras, phones, and wireless APs in offices or retail spaces.

• Surveillance Systems – Power up to 8 cameras directly through Ethernet cables, with PoE Auto Recovery for added reliability.

• Retail & Hospitality – Enable secure, segmented networks for guest Wi-Fi, payment terminals, and security cameras.

• Home Offices & Studios – Quiet operation and advanced management features make it perfect for professional-grade home networking.

• Warehouses & Industrial Environments – Handle PoE deployments in environments requiring rugged, reliable performance.

Datasheets / Downloadable Resources

Download TP-Link TL-SG1016PE Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link TL-SG1016PE fully complies with Australian and New Zealand regulatory standards, including certifications such as FCC and RoHS. Sourced exclusively through authorised distribution channels, this model guarantees genuine hardware and comprehensive local warranty support. Designed for dependable performance under diverse conditions, the TL-SG1016PE is the ideal solution for networking deployments across Australia and New Zealand.

 FAQs

Q1. How many PoE devices can the TL-SG1016PE power simultaneously? (TL-SG1016PE)
The TL-SG1016PE can power up to 8 PoE or PoE+ devices simultaneously, delivering a total PoE power budget of 110W and up to 30W per port.

Q2. Does the TL-SG1016PE support VLAN configurations for network segmentation? (TL-SG1016PE)
Yes! The TL-SG1016PE supports MTU, port-based, and 802.1Q tag VLANs, allowing for secure and efficient network segmentation.

Q3. Can the TL-SG1016PE be managed remotely via the cloud? (TL-SG1016PE)
The TL-SG1016PE features web-based and utility-based management but does not integrate with TP-Link’s Omada SDN cloud platform. It offers local smart management.

Q4. Is the TL-SG1016PE suitable for silent operation in office environments? (TL-SG1016PE)
The TL-SG1016PE includes a fan for cooling, which produces some noise, making it better suited for network closets or areas where low noise is not critical.

Q5. Is the TL-SG1016PE rack-mountable? (TL-SG1016PE)
Yes! The TL-SG1016PE includes rackmount hardware and fits both 13” and 19” racks for flexible installation options.
