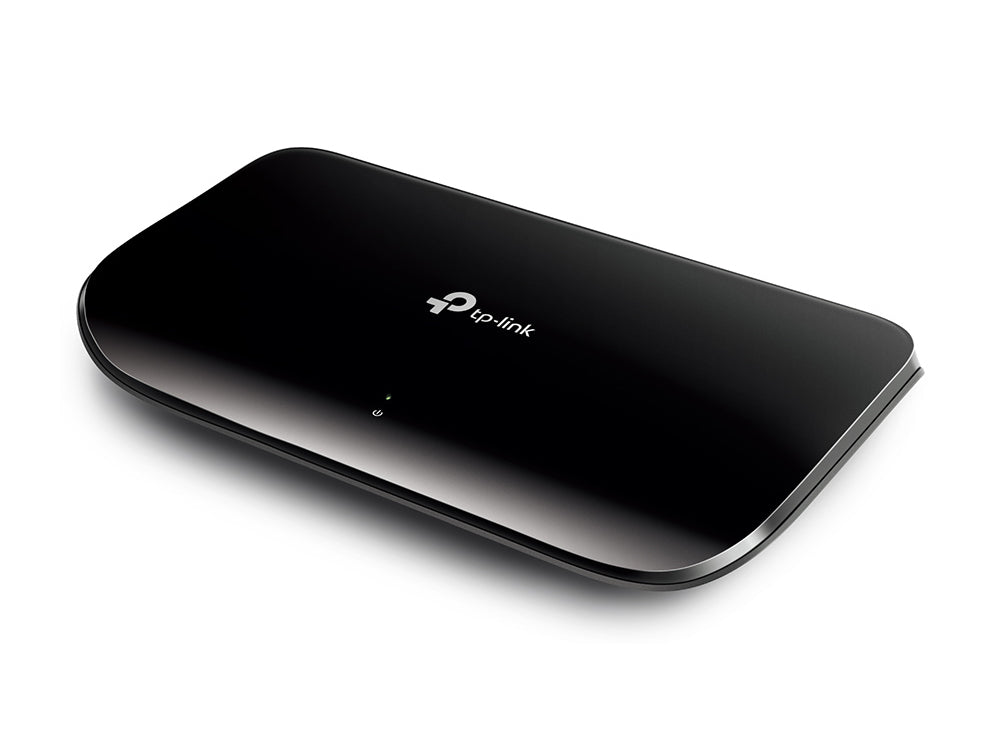

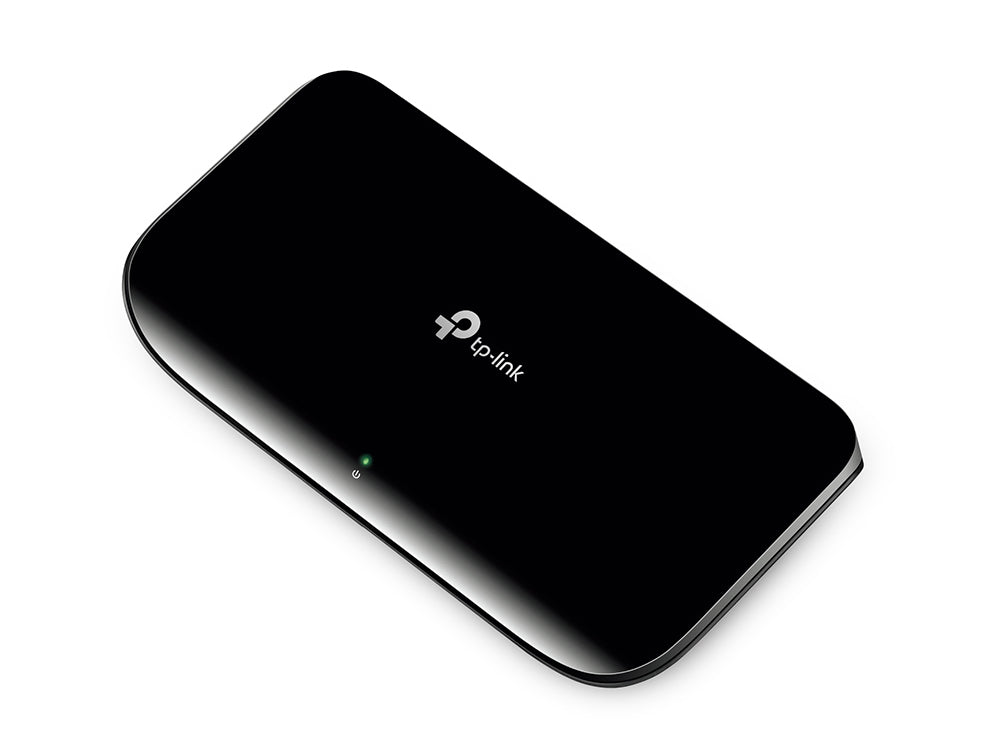

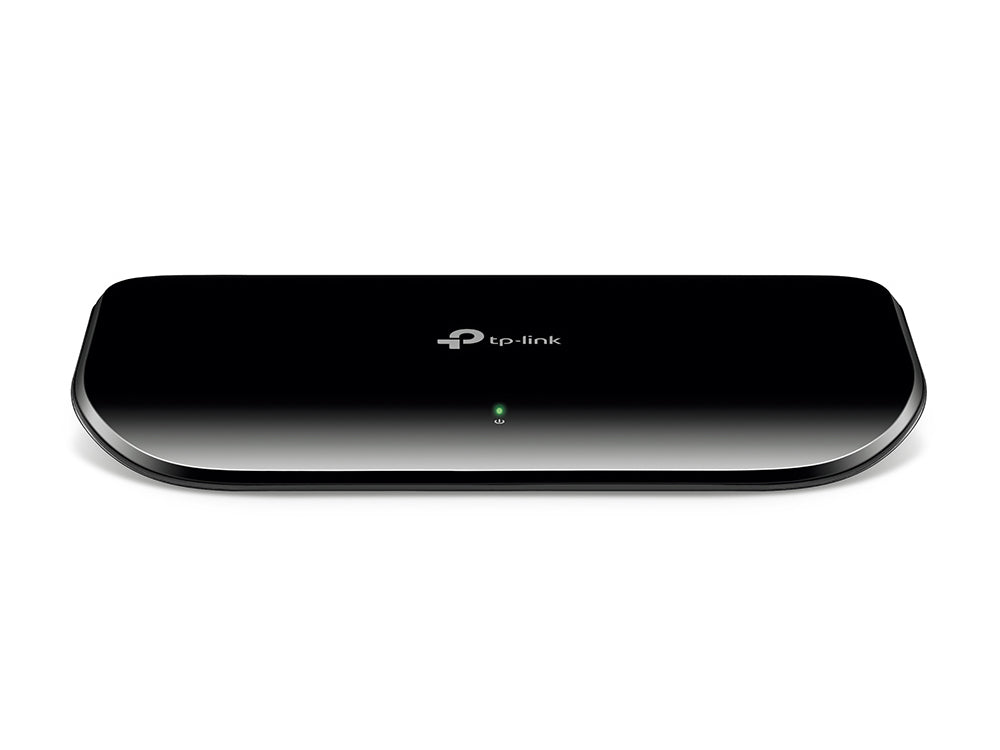

TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch | Green Ethernet | Plug & Play | Compact Plastic Housing

The TP-Link TL-SG1008D 8-Port Gigabit Desktop Switch is the perfect networking solution for home users, small offices, and anyone seeking fast, energy-efficient connectivity. Designed with 8 auto-negotiation 10/100/1000 Mbps ports, the TL-SG1008D provides a simple and reliable way to expand wired networks with full Gigabit speeds.

Engineered for quiet and efficient operation, this switch features a fanless, compact plastic housing and supports wall-mount or desktop setup. TP-Link’s Green Ethernet technology significantly reduces power usage without compromising performance, making it a smart choice for environmentally conscious users.

With IEEE 802.3x flow control, QoS support (for v7 and above), and plug-and-play functionality, the TL-SG1008D offers a seamless, high-performance experience for media streaming, file sharing, gaming, and more.

What's in the Box

• TL-SG1008D 8-Port Gigabit Desktop Switch

• Power Adapter

• Installation Guide

Main Features

✅ 8× Auto-Negotiation Gigabit Ports – All ports support auto MDI/MDIX and 10/100/1000 Mbps speeds
✅ Green Ethernet Technology – Automatically reduces power consumption based on link status and cable length
✅ Plastic Enclosure – Lightweight and durable housing with wall-mount support
✅ Silent Operation – Fanless design is ideal for noise-sensitive environments
✅ Plug and Play – No software configuration or setup required

Detailed Specifications

Hardware:

• Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x

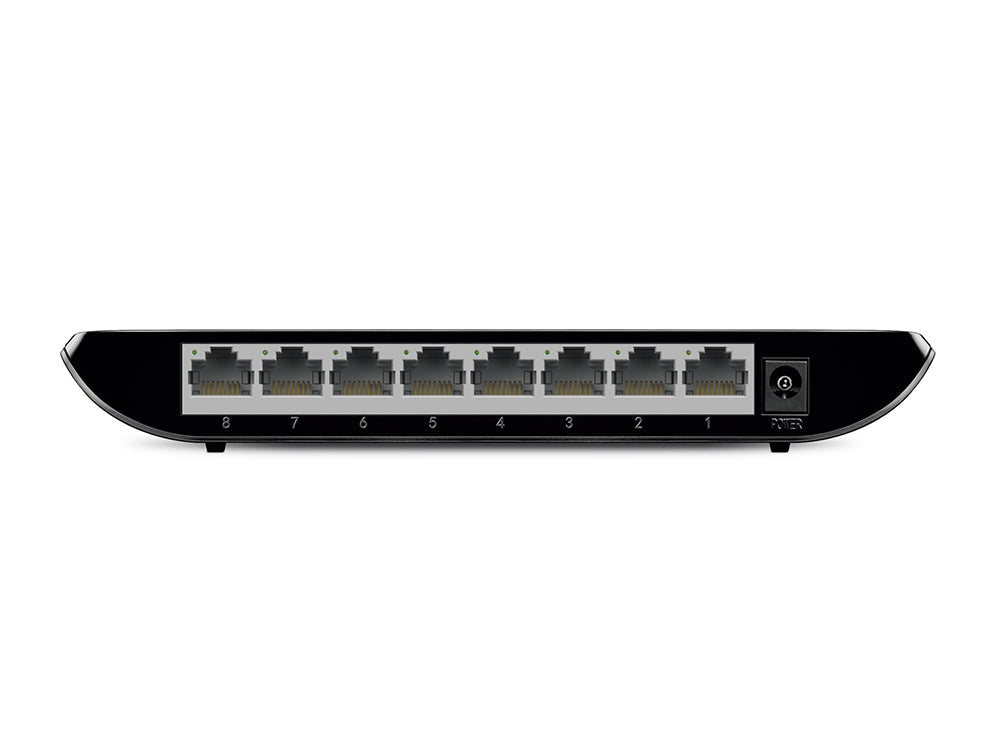

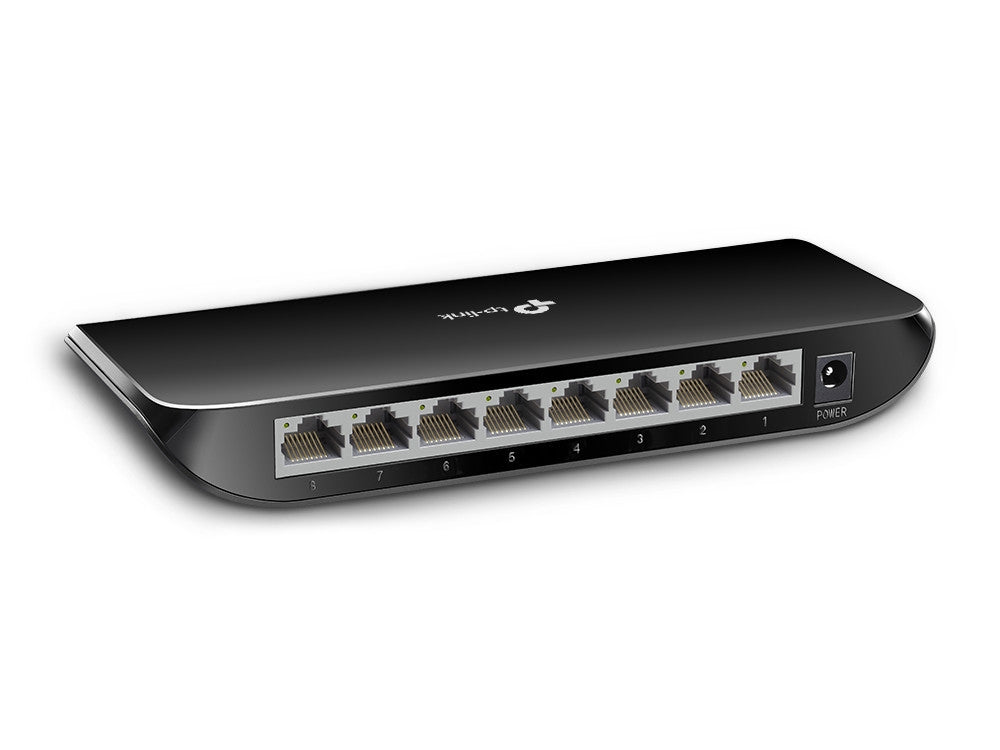

• Ports: 8 × 10/100/1000 Mbps RJ45 (Auto MDI/MDIX)

• Power Supply: External Adapter (5V DC / 0.6A)

• Dimensions: 7.1 × 3.5 × 1.0 in (180 × 90 × 25.5 mm)

• Housing: Plastic

• Max Power Consumption: 4.63W

• Max Heat Dissipation: 15.80 BTU/h

Performance:

• Switching Capacity: 16 Gbps

• MAC Address Table: 4K

• Jumbo Frame: 15 KB

• Transmission Method: Store-and-Forward

Software Features:

• Green Ethernet Technology

• IEEE 802.3x Flow Control

• Back Pressure

• 802.1p/DSCP QoS (available on V7 and later models)

Certifications:
FCC, CE, RoHS

Environment:

• Operating Temperature: 0–40 °C (32–104 °F)

• Storage Temperature: -40–60 °C (-40–140 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is a globally recognized leader in networking products, offering award-winning solutions with exceptional value and reliability. Whether for home or professional environments, TP-Link products are known for their robust performance and energy efficiency.

SKU

TL-SG1008D

Practical Use Scenarios

• Home Networking – Expand wired connectivity to smart TVs, desktop PCs, gaming consoles, or media centers

• Small Business Applications – Reliable solution for connecting printers, IP phones, or NAS devices

• Remote Workstations – Stable wired access for video calls, file sharing, and productivity tools

• Gaming Setups – Reduce latency for competitive gaming with dedicated Gigabit LAN ports

Datasheets / Downloadable Resources

TP-Link TL-SG1008D Product Page

Excellence for the Australian and New Zealand Market

The TL-SG1008D meets Australian and New Zealand regulatory compliance standards and is distributed exclusively via certified and authorized local channels. It supports environmentally friendly Green Ethernet practices and is covered under the regionally supported manufacturer warranty, ensuring seamless access to support and service.

FAQs

Q1. Is the TL-SG1008D fanless and silent in operation? (TL-SG1008D)
Yes, the TL-SG1008D is fanless and completely silent, making it ideal for noise-sensitive environments.

Q2. Can the TL-SG1008D be mounted on a wall? (TL-SG1008D)
Yes, the switch has a wall-mountable plastic casing, allowing flexible installation options.

Q3. Does the TL-SG1008D require software configuration? (TL-SG1008D)
No, it's a plug-and-play device. Simply connect your devices, and the switch handles the rest automatically.

Q4. Is the TL-SG1008D compatible with 802.1p/DSCP QoS? (TL-SG1008D)
Yes, models version 7 and later support QoS for traffic prioritization, ideal for video and voice applications.

Q5. What is the difference between TL-SG1008D and TL-SG1008? (TL-SG1008D)
The TL-SG1008D features a compact plastic case, while the TL-SG1008 has a metal housing suitable for rack mounting. Both offer 8 Gigabit ports with similar performance.
