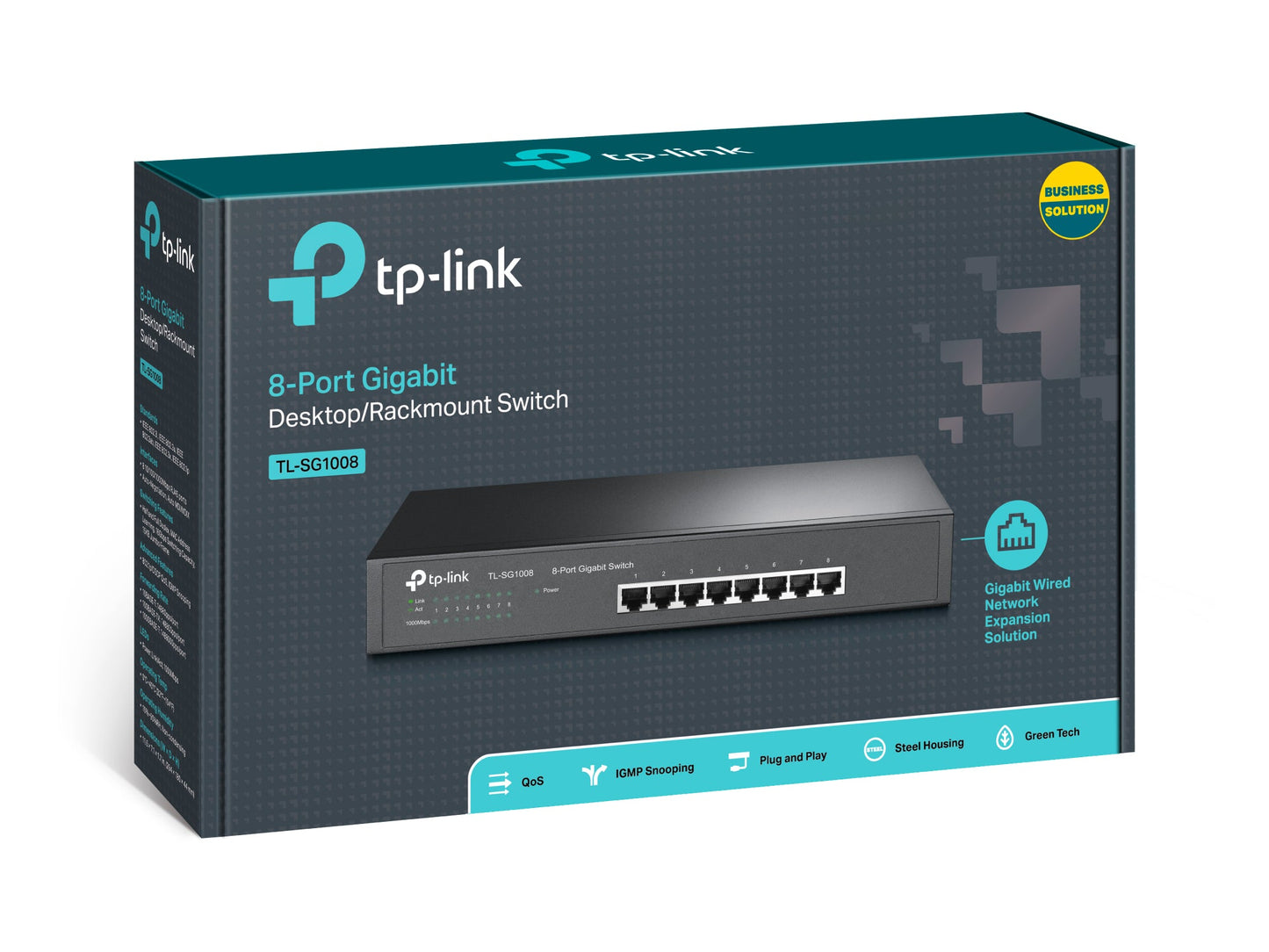

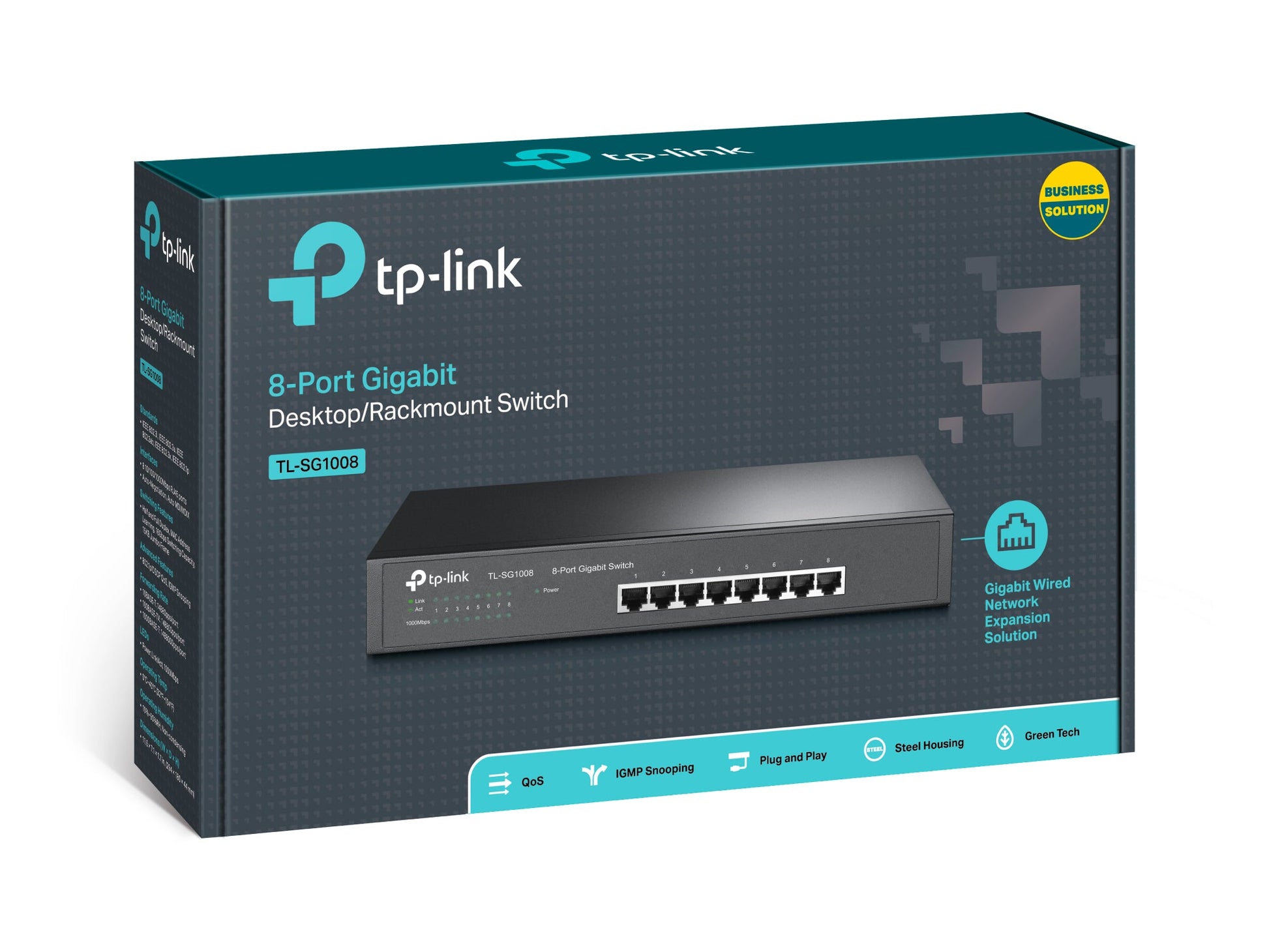

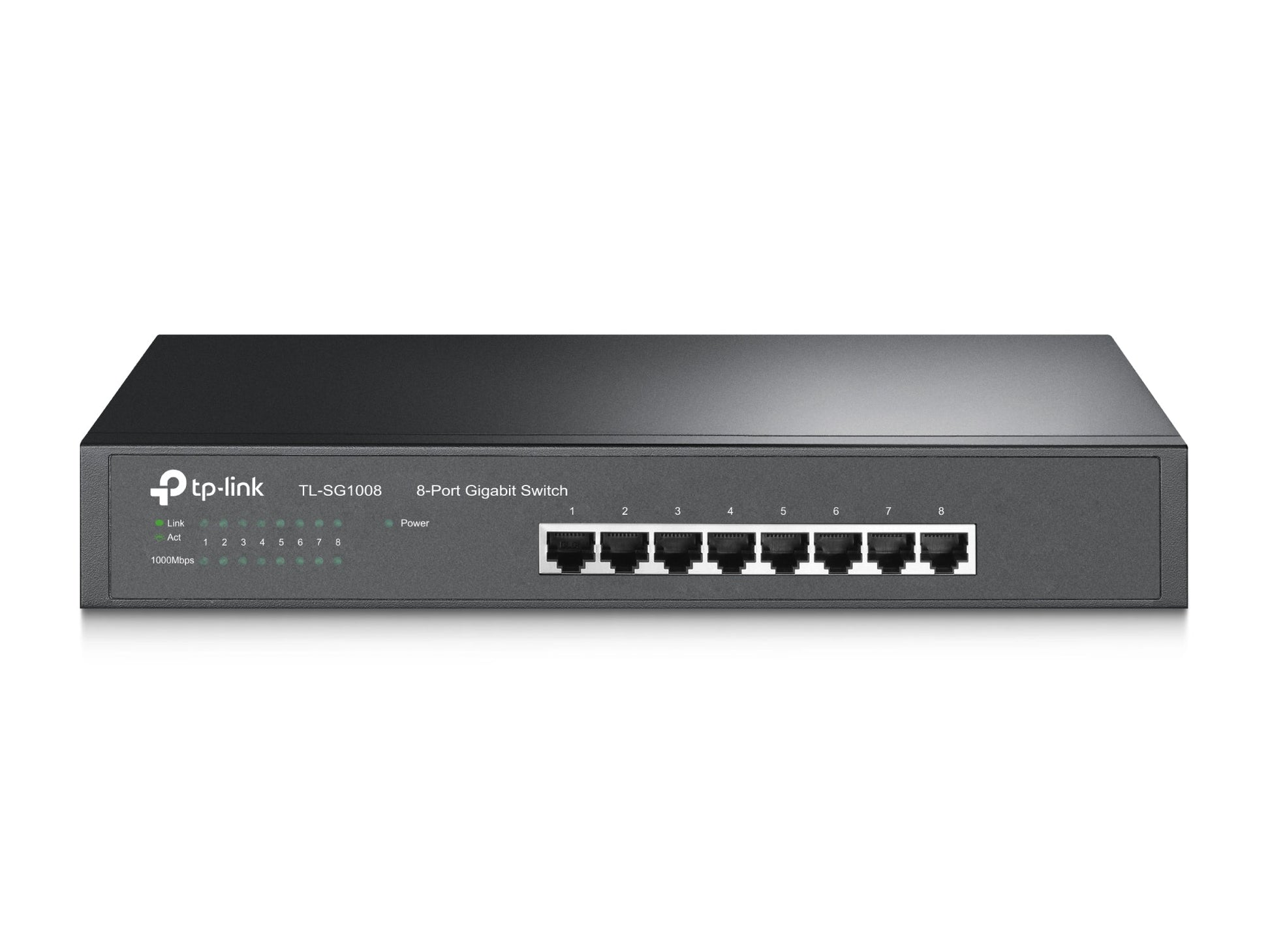

TP-Link TL-SG1008 8-Port Gigabit Desktop/Rackmount Switch | Plug-and-Play High-Speed Networking

The TP-Link TL-SG1008 is a versatile 8-Port Gigabit Desktop/Rackmount Switch designed to deliver reliable, high-speed Ethernet connectivity for home offices, small businesses, or enterprise workgroups. With support for auto-negotiation, auto MDI/MDIX, and QoS for latency-sensitive traffic, this switch ensures seamless operation and optimized data performance across connected devices.

Engineered with a robust steel housing, this switch fits perfectly into both desktop and rack-mounted installations. It requires no configuration, offering true plug-and-play simplicity for any non-blocking network expansion.

Whether you're upgrading to Gigabit for faster file transfers, building a surveillance backbone, or simply improving network performance, the TL-SG1008 offers the reliability, flexibility, and performance you need—at an excellent value.

What's in the Box

• TP-Link TL-SG1008 8-Port Gigabit Switch

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ 8× Gigabit Ethernet Ports – All ports support 10/100/1000 Mbps auto-negotiation for flexible and high-speed network expansion.

✅ Rackmount or Desktop Installation – Standard 13" steel case includes mounting brackets for 19" rack compatibility.

✅ IEEE 802.1p/DSCP QoS Support – Ensures smooth, prioritized traffic for latency-sensitive tasks like VoIP or video streaming.

✅ Fanless Design – Silent operation ideal for noise-sensitive environments such as offices, retail counters, and studios.

✅ Energy Efficient – Consumes only 4.3W maximum, ideal for reducing power usage and long-term operating costs.

✅ Plug-and-Play Setup – No software or configuration required; ready to go out of the box.

Detailed Specifications

Hardware:

• Ports: 8 × 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)

• Standards: IEEE 802.3i/u/ab/x, IEEE 802.1p

• Power Supply: 100–240V AC, 50/60Hz

• Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

• Mounting: 13” rackmount steel case (rack brackets for 19" included)

• Fanless for quiet operation

• Max Power Consumption: 4.3W

• Max Heat Dissipation: 14.67 BTU/h

Performance:

• Switching Capacity: 16 Gbps

• Packet Forwarding Rate: 11.9 Mpps

• MAC Address Table: 4K entries

• Jumbo Frame: 16 KB

• Transmission Method: Store-and-Forward

Software Features:

• MAC address auto-learning and auto-aging

• IEEE 802.3x Flow Control

• QoS with 802.1p/DSCP for traffic prioritization

Certifications: FCC, RoHS

Environment:

• Operating Temp: 0–40 ℃ (32–104 ℉)

• Storage Temp: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is a globally trusted provider of networking solutions for homes and businesses. Recognized for their reliability and innovation, TP-Link products empower connectivity for millions of users worldwide.

SKU

TL-SG1008

Practical Use Scenarios

• Home Offices – Upgrade internet speeds for seamless video calls and online productivity.

• Retail Point-of-Sale – Connect POS terminals, printers, and security systems securely.

• Surveillance Installations – Use as a backbone switch for connecting multiple IP cameras.

• Workgroup Networking – Expand access for teams working with shared file servers and NAS units.

• Education and Training Rooms – Create a cost-effective network for classrooms or labs.

Datasheets / Downloadable Resources

TP-Link TL-SG1008 Product Page & Resources

Excellence for the Australian and New Zealand Market

The TL-SG1008 meets all relevant Australian and New Zealand compliance standards and is sourced exclusively via authorized local distributors. This guarantees buyers genuine product quality, NDSS-aligned performance expectations, and access to direct regional warranty support.

FAQs

Q1. Can the TL-SG1008 be mounted in a server rack? (TL-SG1008)
Yes. The TL-SG1008 features a standard 13-inch rackmount steel chassis and includes brackets for 19” rack compatibility.

Q2. Does the TL-SG1008 support QoS for video or VoIP? (TL-SG1008)
Yes. It supports 802.1p/DSCP QoS to prioritize latency-sensitive traffic such as video streaming and VoIP.

Q3. Is the TL-SG1008 plug-and-play? (TL-SG1008)
Absolutely. No configuration is required—just plug it in, and it works right away.

Q4. How much power does the TL-SG1008 consume? (TL-SG1008)
It has a maximum power consumption of 4.3W, making it a highly energy-efficient option.

Q5. Is the TL-SG1008 suitable for quiet work environments? (TL-SG1008)
Yes. Its fanless design ensures silent operation, ideal for offices, conference rooms, and classrooms.
