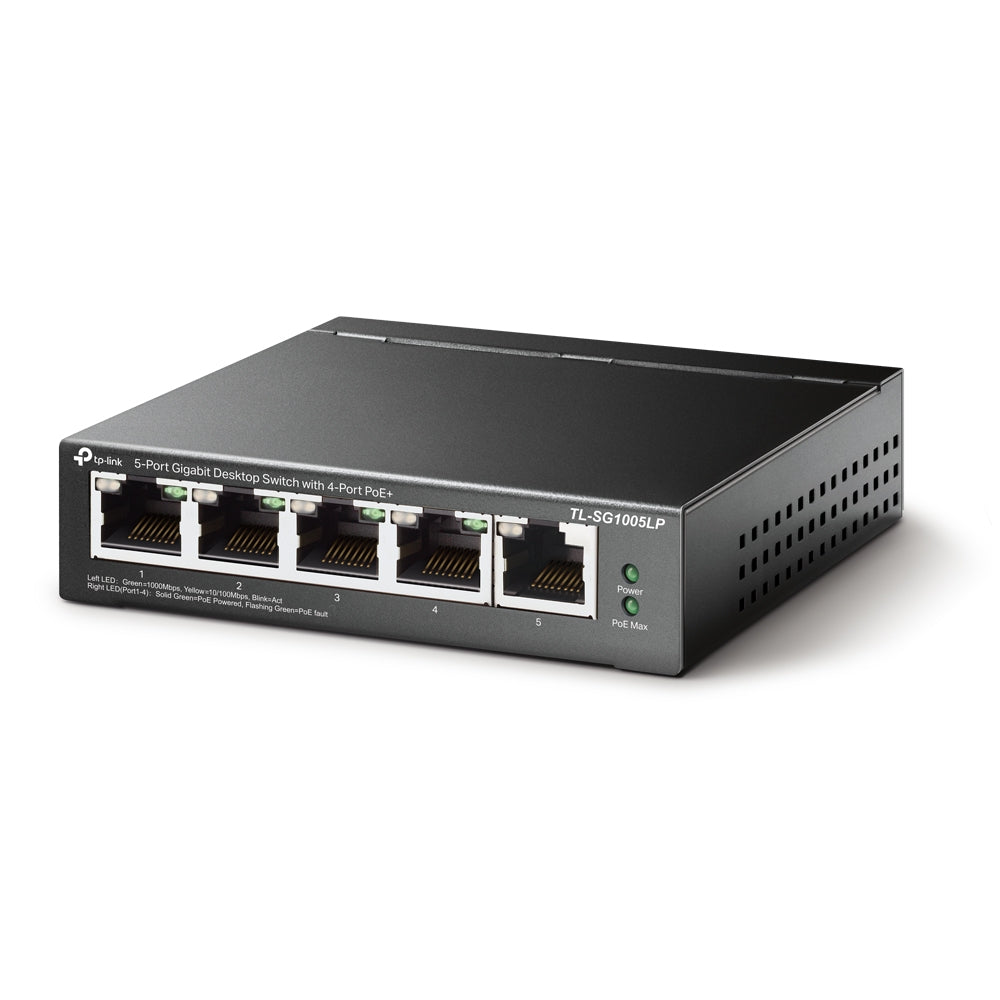

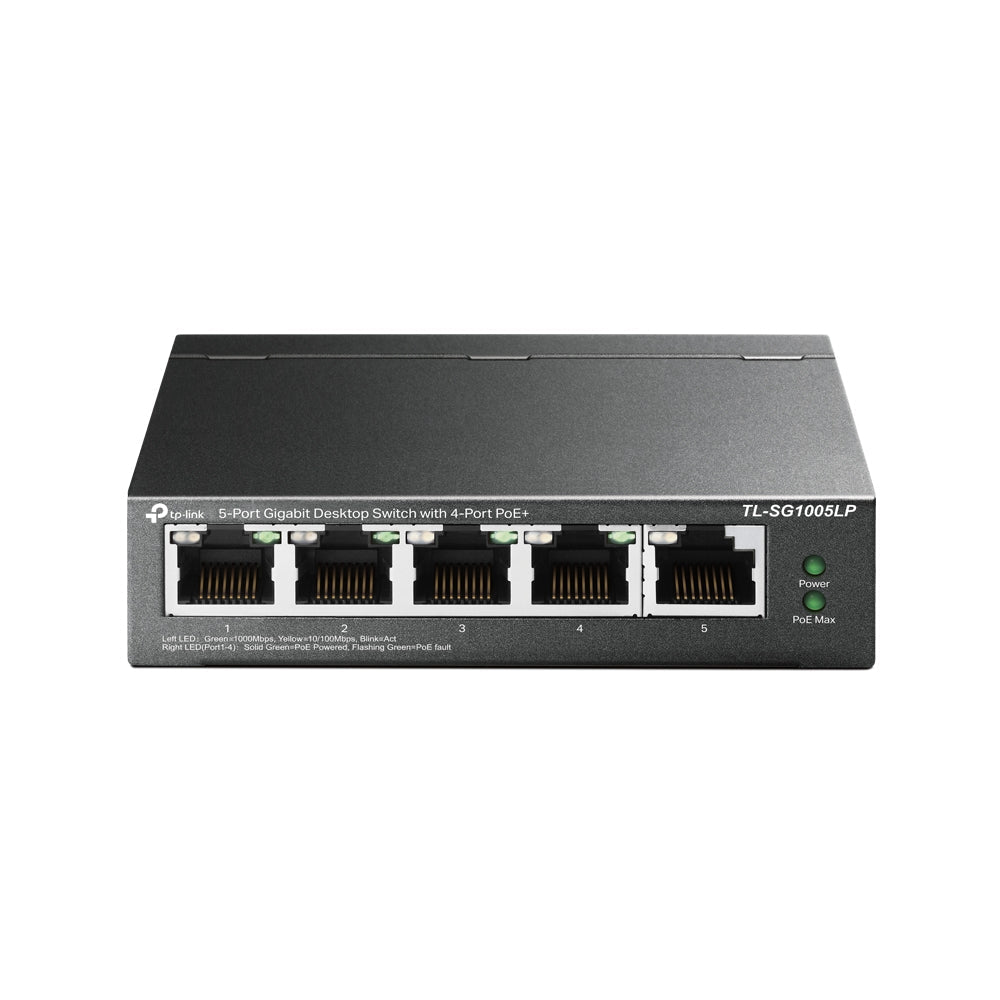

TP-Link TL-SG1005LP 5-Port Gigabit PoE Switch

TP-Link TL-SG1005LP 5-Port Gigabit PoE Switch

$124.32 AUD
$236.74 AUD $124.32 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
POE budget Type

Overview
The TP-Link TL-SG1005LP is a 5-port Gigabit PoE switch designed to provide both power and data transmission over a single Ethernet cable. Ideal for small offices and home offices, this desk-mountable switch features a robust steel case for durability and a compact design that fits seamlessly into any environment. With four of its five ports supporting PoE+ (Power over Ethernet Plus), it delivers a total power budget of 40W, making it perfect for powering IP cameras, access points, and other PoE-compatible devices.

Key Features

  • 5 Gigabit Ethernet Ports: 5x 10/100/1000Mbps ports ensure fast and reliable data transfer. Four of these ports support PoE+, providing both power and data through a single cable.

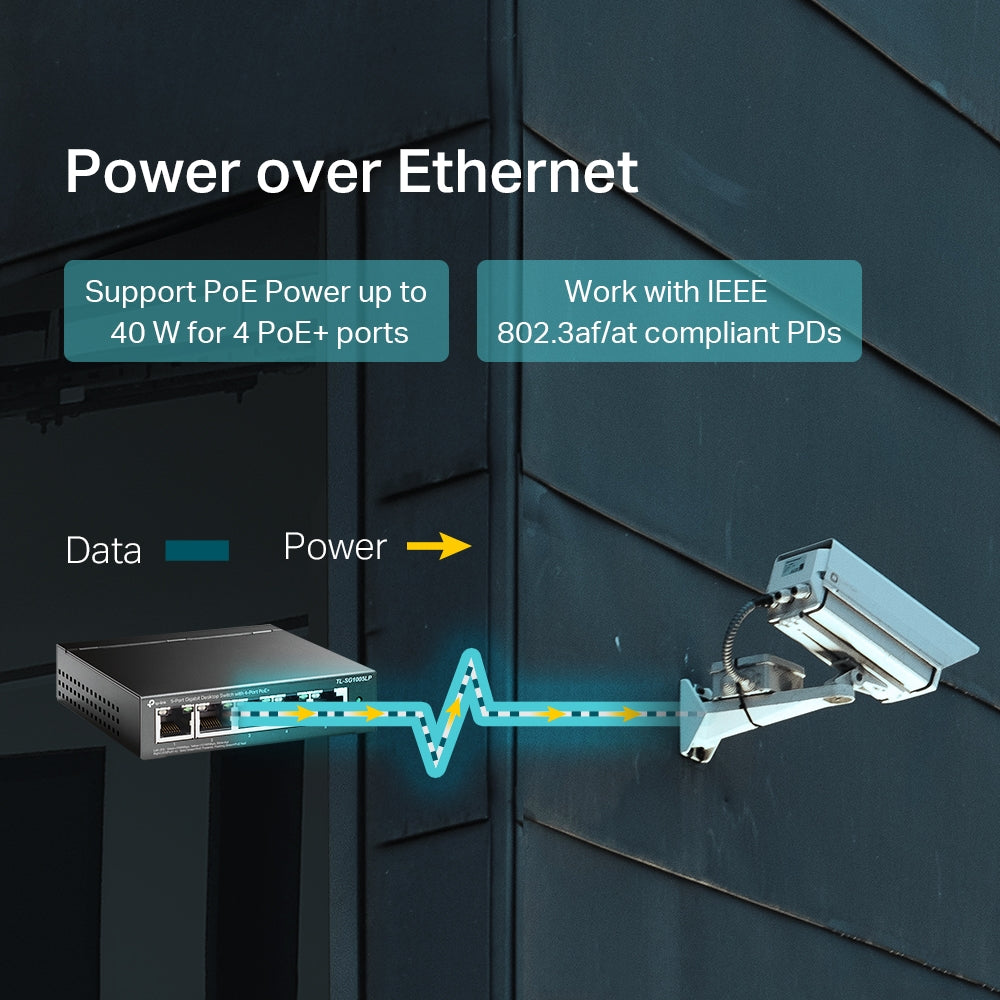

  • PoE+ Support: Supports IEEE 802.3af/at standards, delivering up to 30W per port with a total PoE power budget of 40W, ideal for powering IP cameras, wireless access points, and other PoE-compatible devices.
  • Compact and Durable Design: Housed in a sturdy steel case, the TL-SG1005LP is built to last and can be easily desk-mounted for convenient placement.

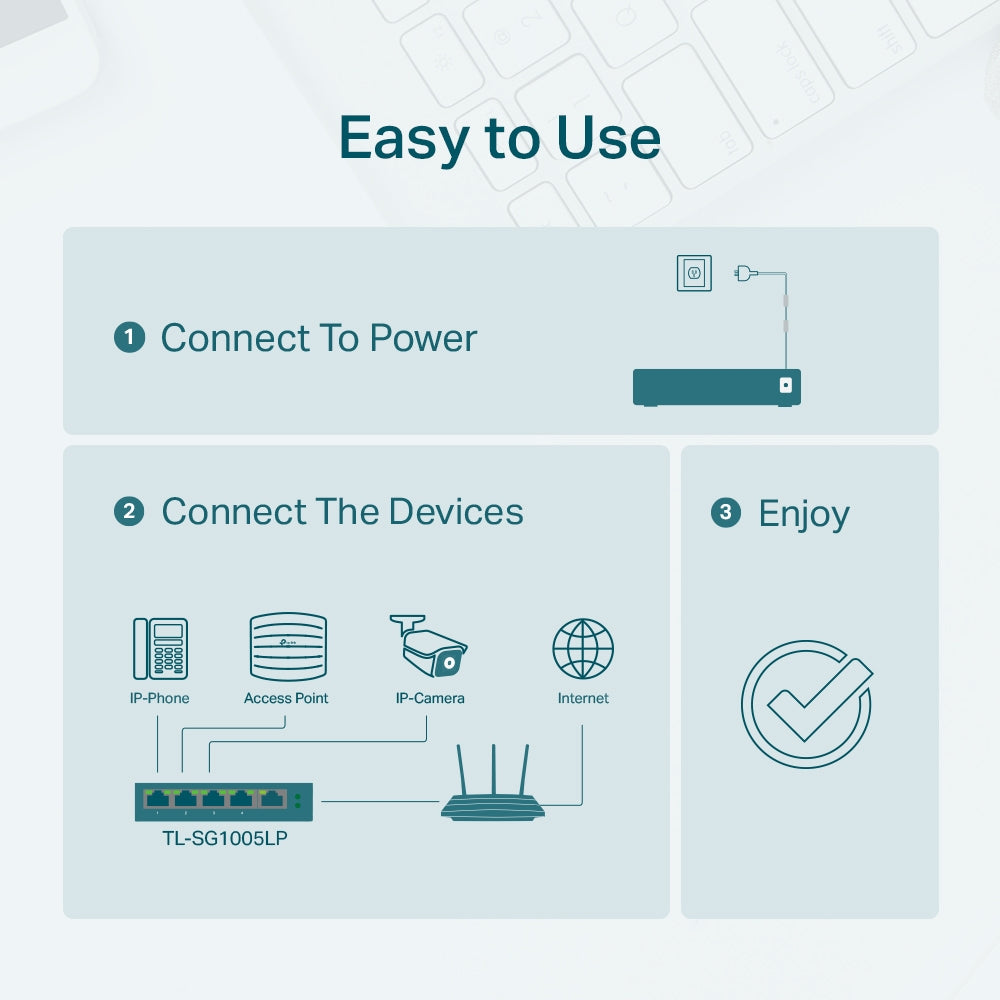

  • Plug & Play: Easy installation with no configuration required, allowing for a quick and hassle-free setup.
  • Power Supply Unit Included: Comes with a 53.5V DC power adapter, ensuring a reliable power supply for connected devices.

Specifications

  • Ports:
    • 5x 10/100/1000Mbps RJ45 ports (4 PoE+)
  • PoE Power Budget: 40W (53.5V DC)
  • PoE Standard: IEEE 802.3af/at compliant
  • Power Output per Port: Up to 30W per port
  • Case: Steel
  • Mounting: Desk mount
  • Dimensions: Compact design for versatile placement
  • Power Supply: Includes 53.5V DC Power Supply Unit (PSU)

Package Contents

  • TL-SG1005LP 5-Port Gigabit PoE Switch
  • 53.5V DC Power Adapter
  • Installation Guide

Applications
The TL-SG1005LP is perfect for small to medium-sized network setups, providing reliable and cost-effective PoE solutions. It’s ideal for use in IP surveillance, VoIP, and wireless AP deployment, offering seamless power and data delivery over Ethernet cables.

Specifications

Category Feature Details
Hardware Features Interface - 5× 10/100/1000Mbps RJ45 Ports<br>- AUTO Negotiation<br>- AUTO MDI/MDIX
Network Media - 10BASE-T: UTP category 3, 4, 5 cable (max 100m)<br>- EIA/TIA-568 100Ω STP (max 100m)<br>- 100BASE-TX: UTP category 5, 5e cable (max 100m)<br>- EIA/TIA-568 100Ω STP (max 100m)<br>- 1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m)<br>- EIA/TIA-568 100Ω STP (max 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) - Standard: 802.3 af/at compliant<br>- PoE Ports: Ports 1–4<br>- Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions (W x D x H) 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption - 4.12 W (220/50 Hz, no PD connected)<br>- 47.5 W (220/50 Hz, with 40 W PD connected)
Max Heat Dissipation - 14.05 BTU/h (no PD connected)<br>- 161.98 BTU/h (with 40 W PD connected)
Software Features Advanced Features - Compatible With IEEE 802.3af/at Compliant PDs<br>- Mac Address Auto-Learning And Auto-Aging<br>- IEEE 802.3x Flow Control<br>- 802.1p/DSCP QoS<br>- IGMP Snooping
Transfer Method Store-And-Forward
Others Certification FCC, CE, RoHS
Package Contents - TL-SG1005LP<br>- Power Adapter<br>- Installation Guide
Environment - Operating Temperature: 0–40 ℃ (32–104 ℉)<br>- Storage Temperature: -40–70 ℃ (-40–158 ℉)<br>- Operating Humidity: 10–90% RH non-condensing<br>- Storage Humidity: 5–90% RH non-condensing
