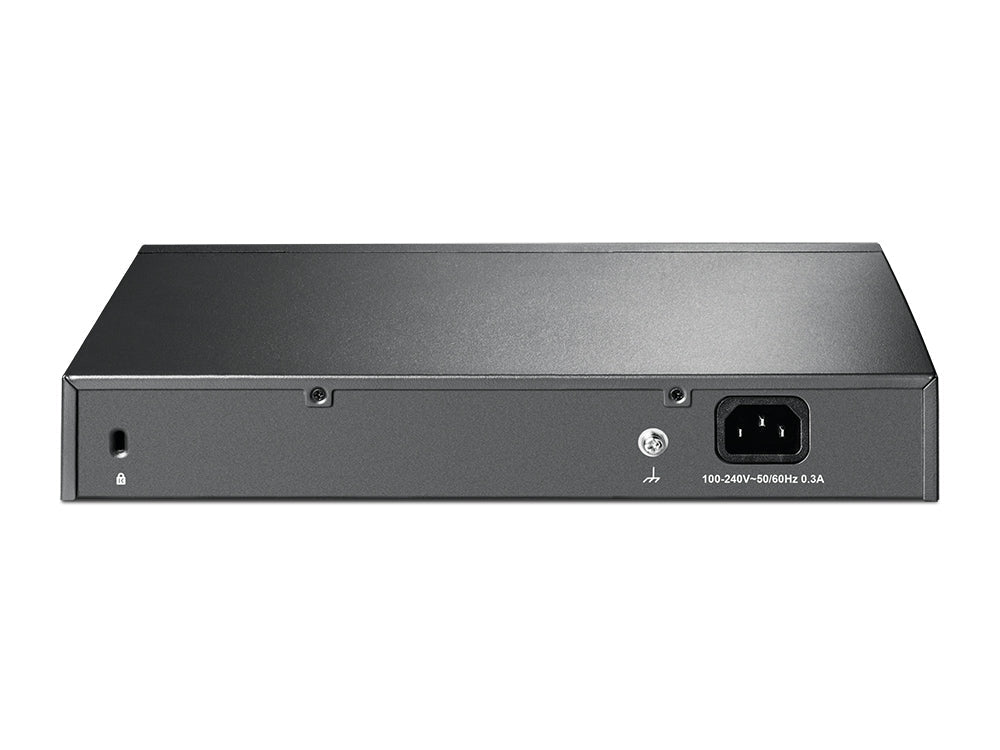

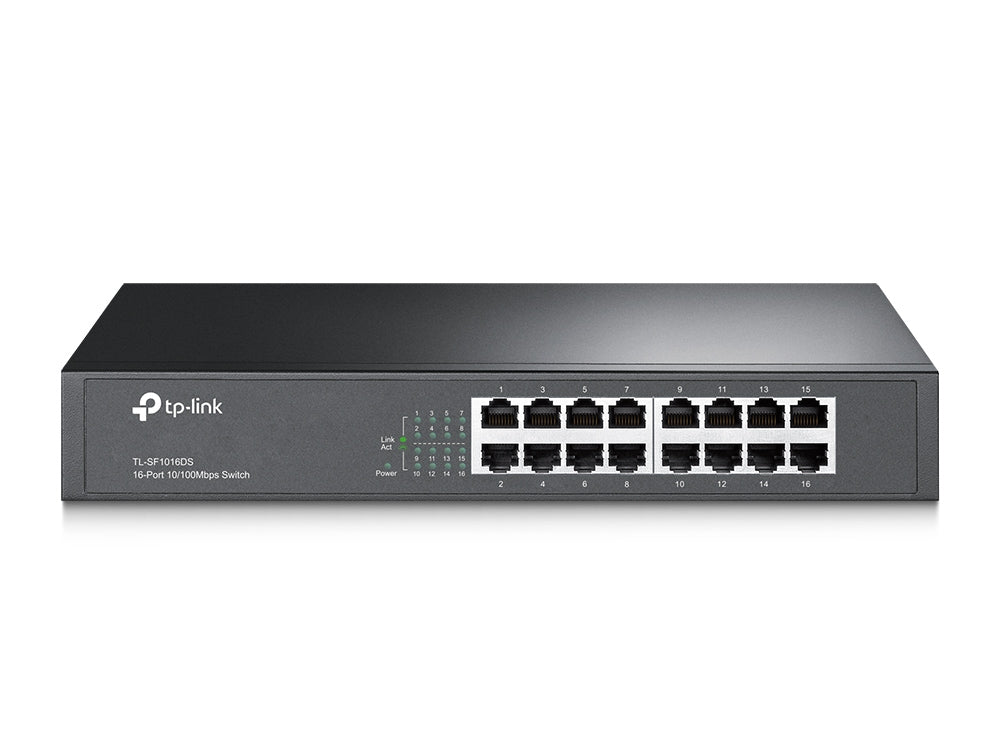

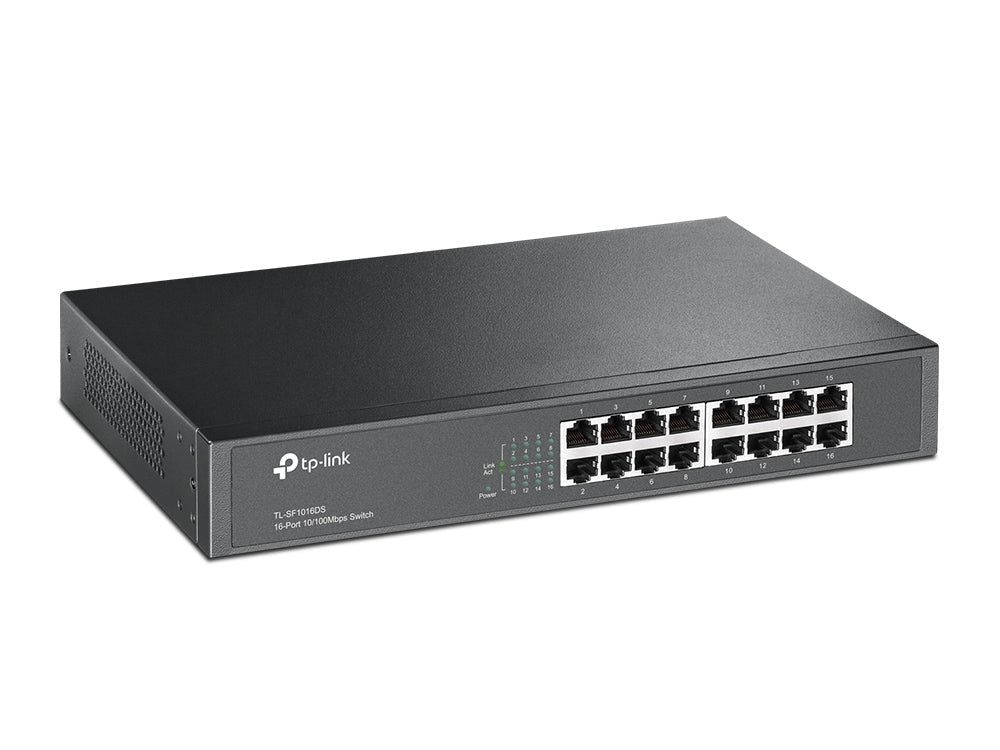

TP-Link TL-SF1016DS | 16-Port 10/100Mbps Desktop/Rackmount Switch | Fanless | Energy-Efficient | End of Life

The TP-Link TL-SF1016DS is a compact, energy-efficient 16-Port Fast Ethernet Desktop/Rackmount Switch, engineered for seamless small business and office LAN expansion. This unmanaged switch delivers stable 10/100Mbps performance on all ports, while utilizing Green Ethernet technology to significantly reduce power consumption—by up to 75%.

Designed with a standard 13-inch steel enclosure, the TL-SF1016DS fits both desktop and rackmount installations. Its fanless architecture ensures silent operation, making it perfect for noise-sensitive environments such as libraries, classrooms, or studios.

Note: This model is End of Life (EOL) and no longer in active production, making it suitable for legacy installations or replacement scenarios where backward compatibility is key.

What's in the Box

• TL-SF1016DS 16-Port Fast Ethernet Switch

• Power Cord

• Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ 16× 10/100 Mbps RJ45 ports with auto-negotiation
✅ Auto MDI/MDIX — no crossover cables required
✅ Green Ethernet technology — reduces power draw up to 75%
✅ Fanless design — completely silent operation
✅ Compact 13-inch steel housing for rack or desktop
✅ Plug and play — no configuration required

Detailed Specifications

Hardware Features

• Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

• Interface: 16× 10/100 Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX)

• Power Supply: 100–240V AC, 50/60Hz

• Max Power Consumption: 2.1W

• Max Heat Dissipation: 7.03 BTU/h

• Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

• Mounting: Rack or Desktop

• Fan Quantity: Fanless

• Physical Security Lock: Yes

Performance

• Switching Capacity: 3.2 Gbps

• Packet Forwarding Rate: 2.38 Mpps

• MAC Address Table: 8K

• Buffer Memory: 2 Mb

• Transmission Method: Store-and-Forward

Warranty Information

Manufactures warrenty applied .

Brand Description

TP-Link is a global leader in networking equipment, offering reliable, cost-effective solutions for homes and businesses. All TP-Link switches are crafted with high-quality components and certified for use in Australia and New Zealand.

SKU

TL-SF1016DS

Practical Use Scenarios

• 🏢 Small Office LAN Expansion – Add more wired connections without increasing your energy bills

• 🏫 Classroom Networks – Silent operation suitable for learning environments

• 🧑💼 Legacy Infrastructure Upgrades – Maintain compatibility with existing 10/100Mbps equipment

• 🏠 Home AV & IoT Setups – Easily manage multiple wired devices

• 📦 Retail POS & Surveillance Systems – Provide stable LAN access for terminals and DVRs

Datasheets / Downloadable Resources

TP-Link TL-SF1016DS

Excellence for the Australian and New Zealand Market

The TL-SF1016DS complies with RCM certification and is fully suitable for the Australian and New Zealand networking environments. Though now End of Life, it was originally sourced via authorized ANZ distribution channels, ensuring full compliance with local electrical and safety standards. Any warranty support is handled via TP-Link Australia or New Zealand directly.

 FAQs

Q1. Is TL-SF1016DS still available for purchase? (TL-SF1016DS)
No, the TL-SF1016DS is marked as End of Life, though limited stock may remain with some retailers.

Q2. Can TL-SF1016DS be rack-mounted? (TL-SF1016DS)
Yes, it includes rackmount brackets and fits a standard 13-inch rack.

Q3. Does TL-SF1016DS support plug-and-play? (TL-SF1016DS)
Yes. No configuration is required—simply connect your devices and go.

Q4. What’s the power consumption of TL-SF1016DS? (TL-SF1016DS)
The switch has a maximum power draw of 2.1W, making it highly energy-efficient.

Q5. Is TL-SF1016DS compliant with Australian standards? (TL-SF1016DS)
Yes. It meets RCM certification and was distributed through authorized local channels in Australia and  New Zealand.
