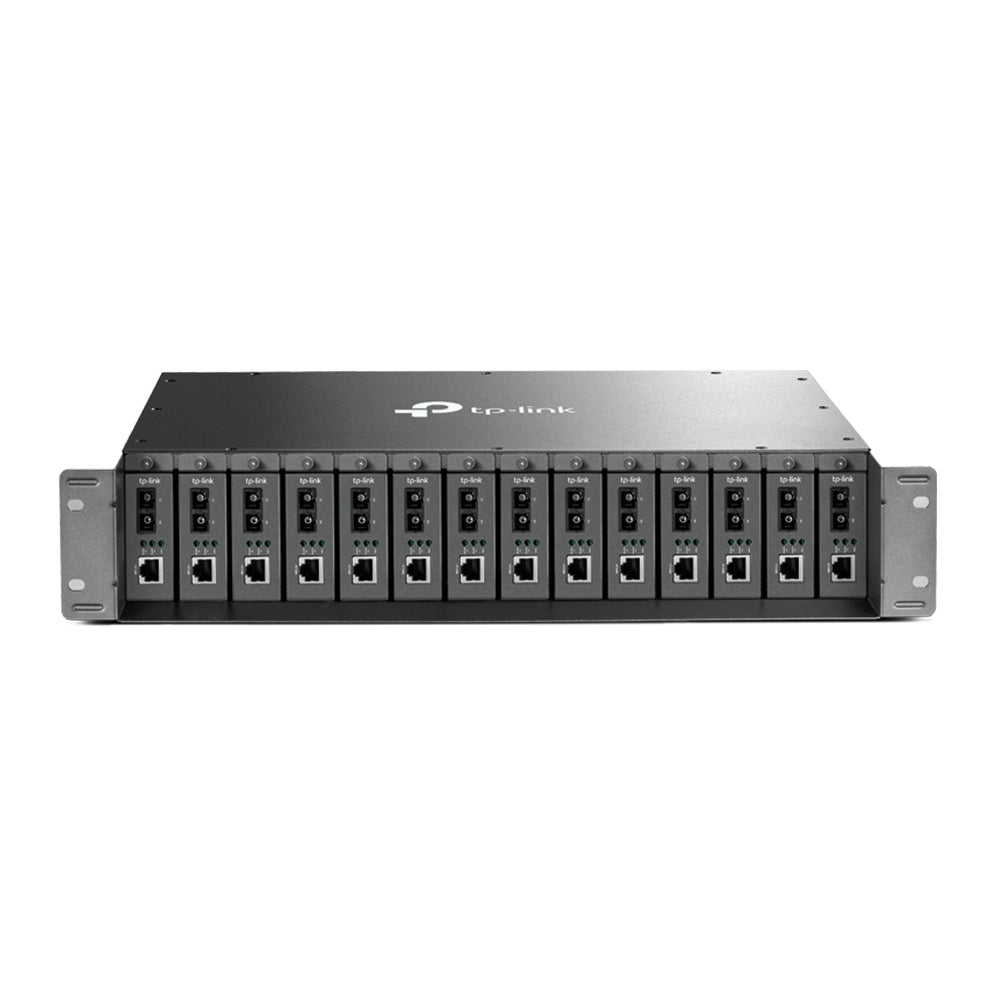

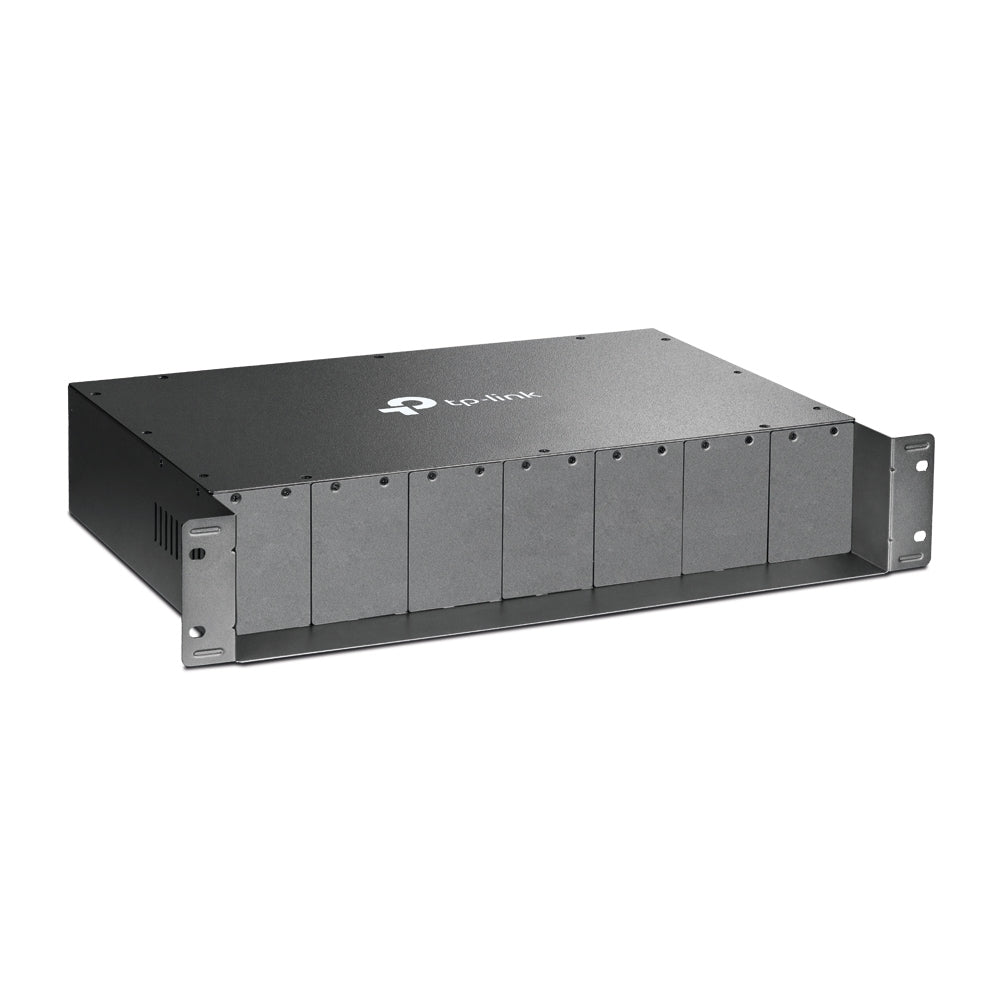

TP-Link TL-MC1400 | 14-Slot Rackmount Media Converter Chassis with Redundant Power Support

The TP-Link TL-MC1400 is a high-density 14-slot rackmount chassis specifically designed for housing up to 14 TP-Link media converters in a centralized, organized, and easily managed environment. Ideal for enterprise networks, data centers, and telecommunications infrastructure, this 19-inch 2U standard rack chassis delivers enhanced system reliability, power efficiency, and ventilation.

Featuring dual cooling fans, hot-swappable slots, and redundant power supply support, the TL-MC1400 ensures non-stop operation and easy maintenance. Whether you're building a fiber backbone or expanding your metro Ethernet network, this modular chassis provides the professional-grade solution you need.

What’s in the Box

• 1× TL-MC1400 14-Slot Rackmount Chassis

• Built-in Cooling Fans (x2)

• Power Cable

• Installation Guide

Main Features

✅ Houses up to 14 Media Converters – Consolidate your fiber network modules into a single 19-inch 2U chassis

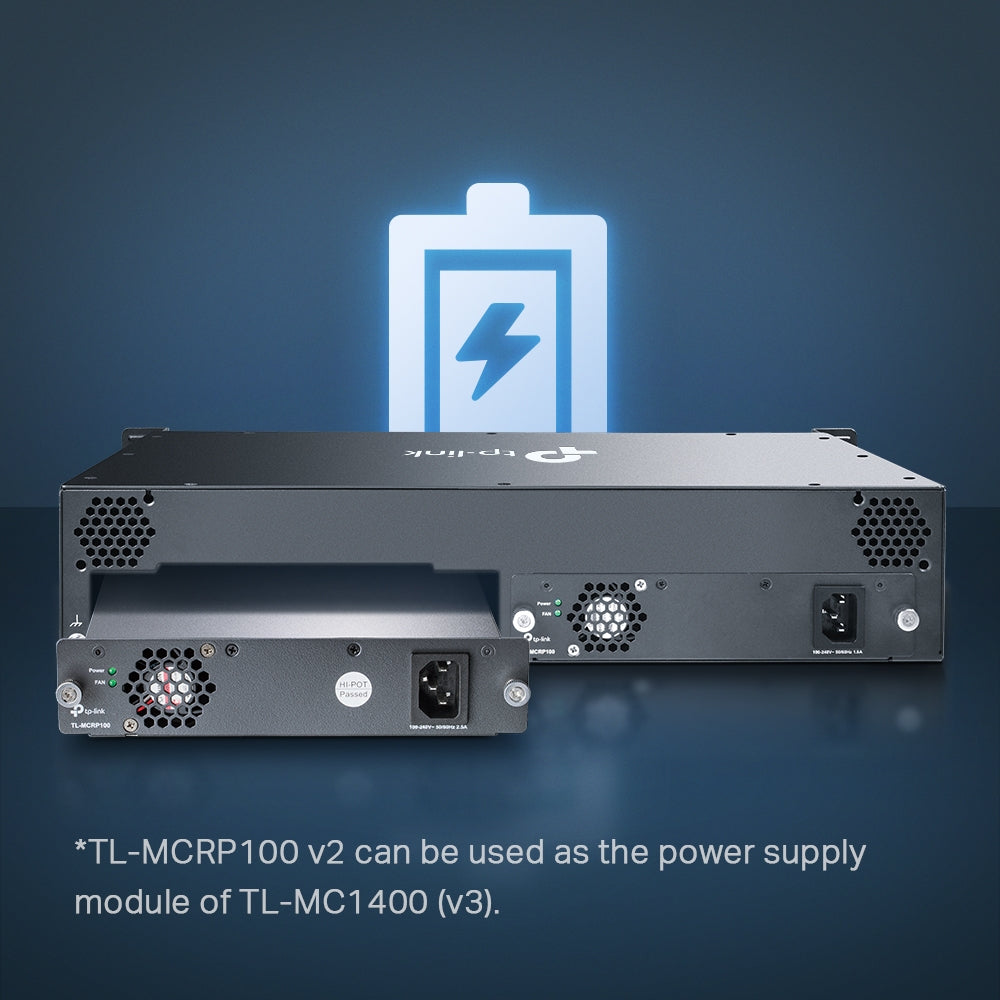

✅ Redundant Power Supply Support – Optional backup PSU keeps your system running even if the primary fails

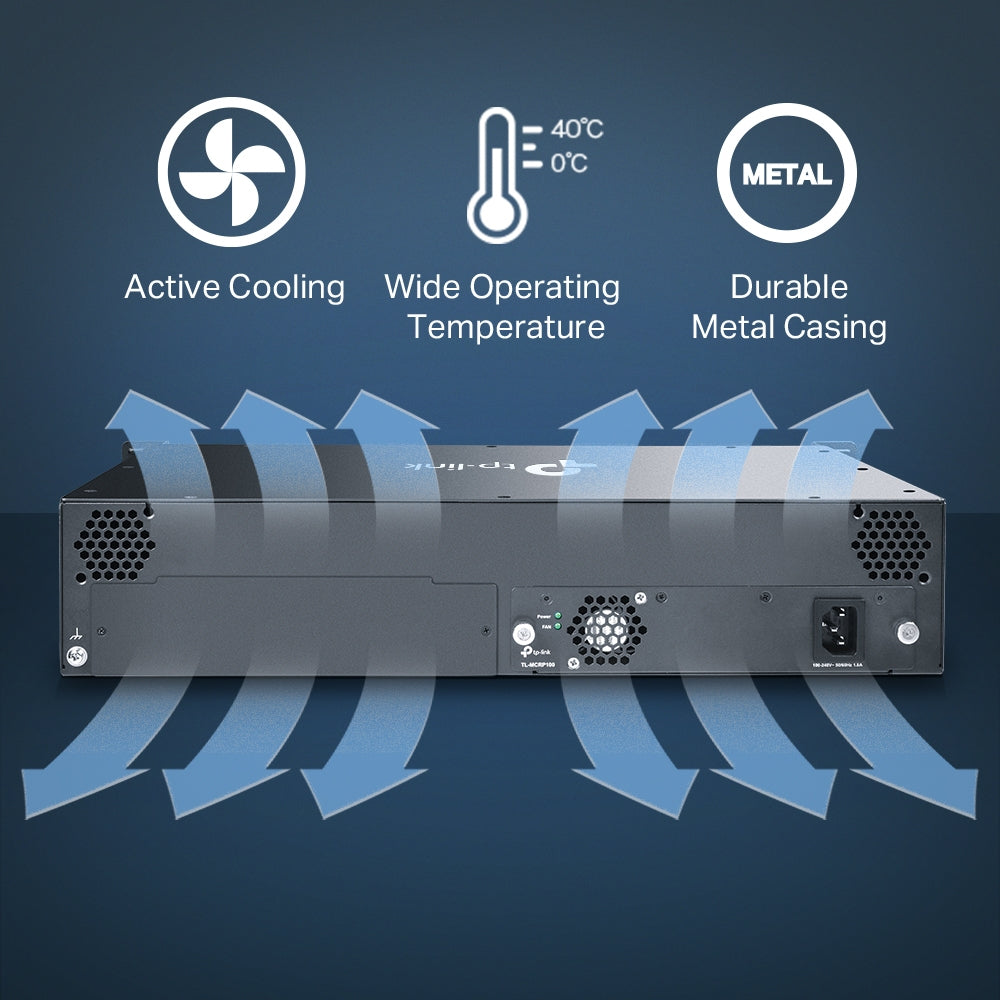

✅ Dual Cooling Fans – Enhanced thermal management for 24/7 operation
✅ Hot-Swappable Design – Replace converters or PSU modules without interrupting network service
✅ Universal Compatibility – Designed for TP-Link media converters including models like MC210CS, MC220L, MC100CM, etc.

Detailed Specifications

Form Factor

• 19-Inch Rackmount, 2U Height

Slot Capacity

• 14 media converter bays

Power Supply

• Input: 100–240V AC, 50/60Hz

• Output: 14× 9V DC / 0.6A

• Redundant Power Support: Yes (optional module)

Cooling System

• 2× Built-in Fans

Dimensions

• 482 × 358 × 86 mm (19.0 × 14.1 × 3.4 in)

Hot-Swappable Support

• Yes (converter modules and power supplies)

Environmental Conditions

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90% RH, non-condensing

• Storage Humidity: 5% to 90% RH, non-condensing

Warranty Information

Includes TP-Link’s manufacturer warranty, with full support and warranty handling available through authorized channels in Australia and New Zealand.

Brand Description

TP-Link is a trusted global provider of networking products. The TL-MC1400 aligns with their enterprise-grade hardware offerings, enabling efficient and resilient fiber optic deployment across campus, metro, and business networks.

SKU

TL-MC1400

Practical Use Scenarios

🏢 Enterprise Networking Closets – Mount up to 14 converters in a single chassis to simplify cable management
🌐 Data Center Infrastructure – Ideal for large-scale fiber deployments in collocated server environments
🏙 Metro Fiber Access Points – Supports multiple media converter types in fiber-to-the-building rollouts
🛠 Managed Service Providers – Easy swap and service of fiber links without system downtime

Datasheets / Downloadable Resources

📄Product datasheet

Excellence for the Australian and New Zealand Market

The TL-MC1400 is distributed via authorized TP-Link ANZ partners, ensuring that it meets regional compliance requirements and RCM standards. Designed for reliable 24/7 operation, this chassis is optimized for enterprise-grade deployments in the Australian and New Zealand telecommunications and IT sectors. Full warranty and technical support are handled locally by TP-Link Australia and New Zealand.

FAQs

Q1. How many media converters can the TL-MC1400 support? (TL-MC1400)
The TL-MC1400 can house up to 14 TP-Link media converters, offering centralized power and management.

Q2. Does the TL-MC1400 support redundant power supplies? (TL-MC1400)
Yes, the TL-MC1400 supports optional redundant power modules to ensure uninterrupted operation in case of PSU failure.

Q3. Are the converter modules in the TL-MC1400 hot-swappable? (TL-MC1400)
Yes, both the media converters and power supply units are hot-swappable, ensuring minimal downtime.

Q4. Which media converters are compatible with TL-MC1400? (TL-MC1400)
The chassis is compatible with most TP-Link converters including MC100CM, MC210CS, MC220L, MC200CM, MC112CS, MC111CS, and more.

Q5. What kind of cooling system does the TL-MC1400 use? (TL-MC1400)
It features two built-in fans for enhanced ventilation and long-term system stability.
