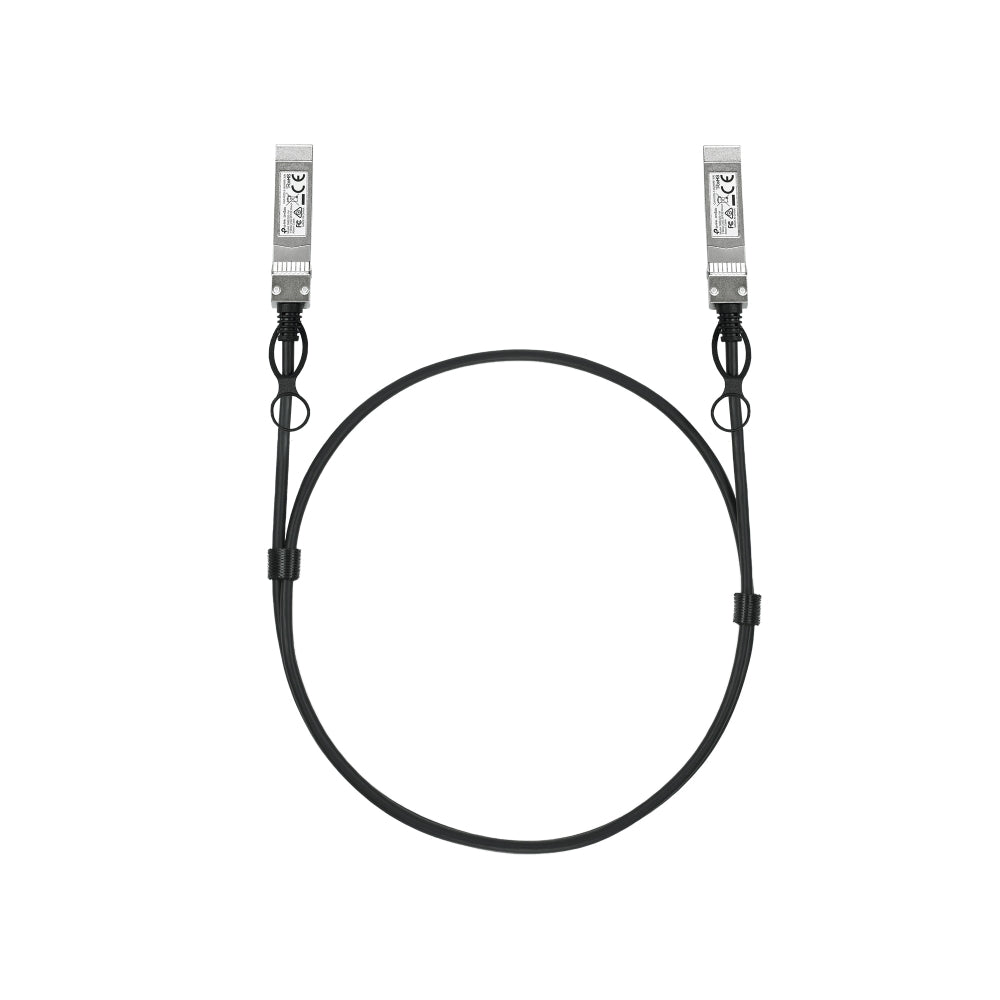

TP-Link SM6220-1M | 1m 25G SFP28 DAC Cable | High-Speed Passive Interconnect for Short-Range Networking

The TP-Link Omada SM6220-1M is a 1-meter passive 25G SFP28 Direct Attach Cable engineered for ultra-fast server-to-switch interconnects and short-distance high-bandwidth networking. With SFP28 connectors on both ends and support for 1G, 10G, and 25G data rates, it offers flexible deployment options across modern data centers, enterprise cores, and edge networks.

Constructed using 30AWG silver-plated copper, this DAC cable ensures minimal signal attenuation, excellent thermal reliability, and energy-efficient performance without the need for active components. It’s a hot-swappable, plug-and-play solution that simplifies installation and minimizes downtime in critical infrastructures.

What’s in the Box

• 1× TP-Link SM6220-1M 25G SFP28 Direct Attach Cable

• Installation Guide

Main Features

✅ Supports 25G/10G/1G Speeds – Ideal for flexible networking with backward compatibility
✅ SFP28 Connectors on Both Ends – Standardized form factor ensures broad compatibility
✅ 1 Meter Length – Perfect for top-of-rack deployments or server-rack interconnects
✅ Passive Copper Design – No power consumption, reduces heat and complexity
✅ 30AWG Silver-Plated Copper Conductors – Reliable signal transmission and low interference
✅ Hot Swappable & Plug-and-Play – No configuration or downtime required
✅ Compact, Durable Build – Ideal for high-density rack environments
✅ Wide Operating Range – Ensures performance across various temperature and humidity levels

Detailed Specifications

Connector Type

• SFP28 to SFP28

Data Rate

• 25 Gbps / 10 Gbps / 1 Gbps

Cable Type

• Passive Direct Attach Copper (DAC)

Conductor Material

• Silver-Plated Copper

Wire Gauge

• 30 AWG

Minimum Bend Radius

• 22.5 mm

Cable Length

• 1 meter (39.37 in)

Product Dimensions

• Plug: 2.26 × 0.53 × 0.34 in (57.5 × 13.55 × 8.55 mm)

Operating Temperature

• 0°C to 70°C (32°F to 158°F)

Storage Temperature

• -40°C to 85°C (-40°F to 185°F)

Operating Humidity

• 10% to 90% RH, non-condensing

Storage Humidity

• 5% to 90% RH, non-condensing

Warranty Information

Manufactures warrenty applied .

Brand Description

TP-Link Omada delivers professional-grade networking solutions with exceptional reliability and performance. Designed for data-intensive workloads, the SM6220-1M DAC is an efficient way to meet the demands of today’s 25G-capable infrastructure.

SKU

SM6220-1M

Practical Use Scenarios

🏢 Server-to-ToR Switch Links – Connect 25G-capable servers to top-of-rack switches
🌐 High-Speed Aggregation – Use in switch uplinks for bandwidth scaling
🖥️ Cloud and Virtualized Infrastructure – Reduce latency in edge deployments
🛠️ Storage Area Networks (SANs) – Efficient for high-throughput storage communication

Datasheets / Downloadable Resources

📄SM6220-1M datasheet

Excellence for the Australian and New Zealand Market

The TP-Link SM6220-1M complies with global certifications including FCC, CE, and RoHS, and is sourced exclusively via authorized distributors across Australia and New Zealand. Its plug-and-play functionality, low-power design, and direct warranty support make it a robust, region-optimized solution for advanced enterprise networking.

 FAQs

Q1. What speeds are supported by the TP-Link SM6220-1M? (SM6220-1M)
The SM6220-1M supports 25 Gbps, 10 Gbps, and 1 Gbps data rates for flexible usage across various applications.

Q2. Is the SM6220-1M hot-swappable? (SM6220-1M)
Yes, the SM6220-1M is fully hot-swappable, allowing installation and removal without powering down the device.

Q3. Can I use the SM6220-1M with any SFP28 port? (SM6220-1M)
Yes, it’s designed for use with industry-standard SFP28 ports and is also backward compatible with SFP+.

Q4. Does the SM6220-1M require any external power? (SM6220-1M)
No, it is a passive DAC cable and draws power directly from the device's port.

Q5. What is the minimum bend radius for the SM6220-1M? (SM6220-1M)
The minimum bend radius is 22.5 mm, ensuring flexibility without compromising signal integrity
