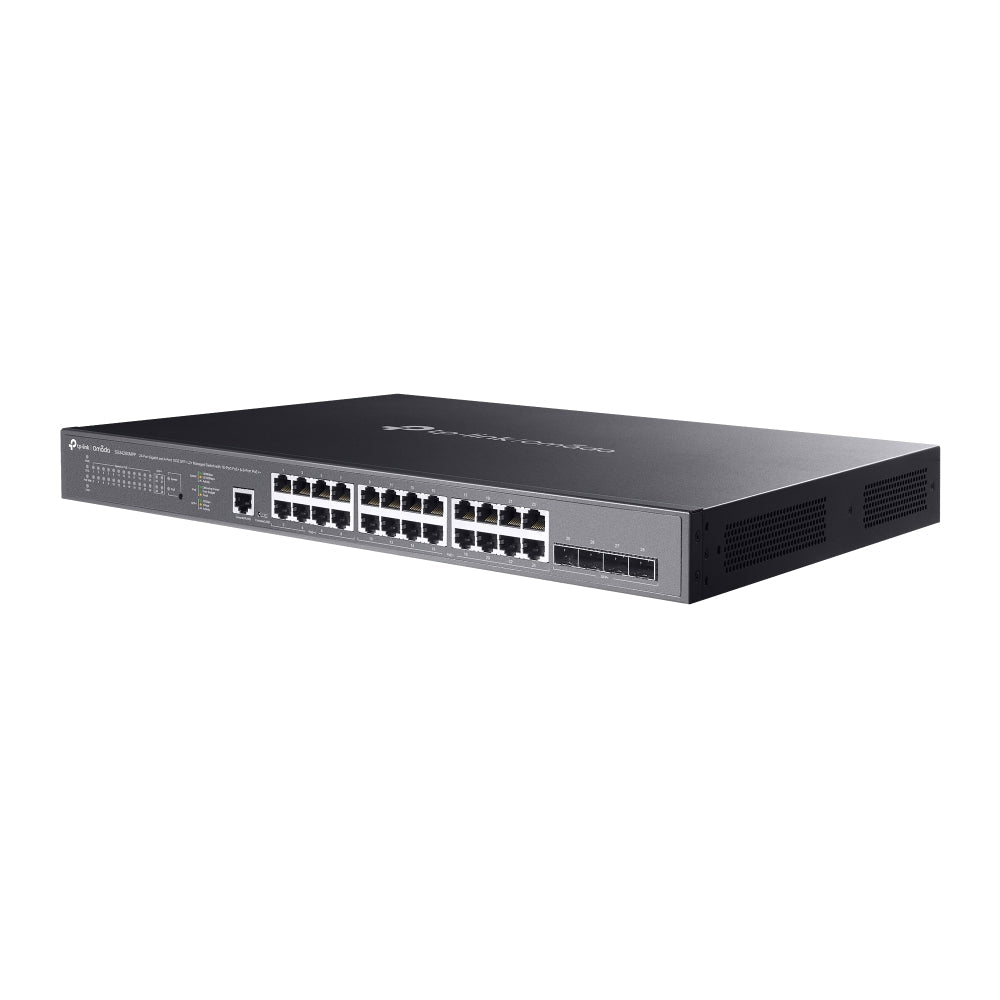

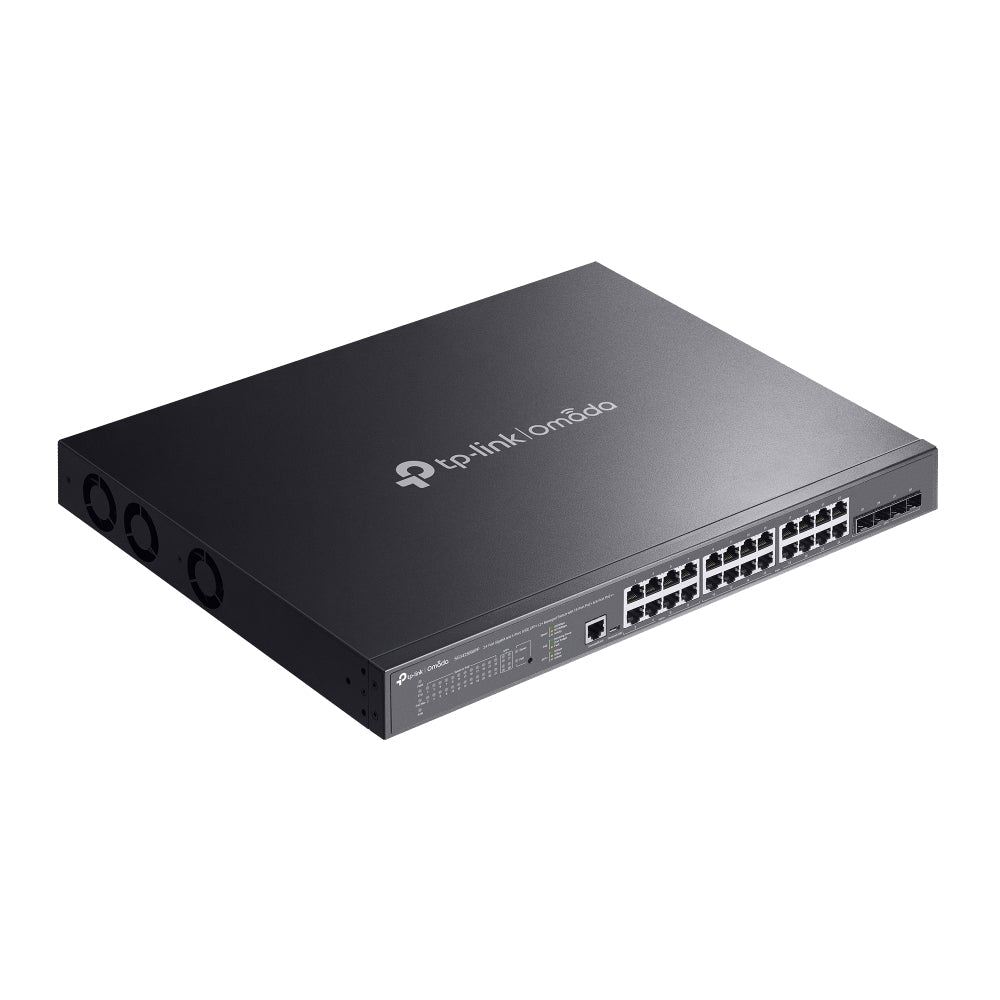

TP-Link SG3428XMPP – Omada 24-Port Gigabit & 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Elevate your enterprise network infrastructure with the TP-Link SG3428XMPP, a high-performance L2+ managed switch that expertly blends multi-gigabit connectivity with powerful PoE capabilities. Equipped with 8× PoE++ ports delivering up to 90 W per port and 16× PoE+ ports supporting up to 30 W each, this switch effortlessly powers the latest WiFi 6/6E access points, IP cameras, and high-power IoT devices, all while ensuring reliable data transmission.

With 4× 10G SFP+ uplink slots, the SG3428XMPP supports blazing-fast backbone connectivity for demanding enterprise, hospitality, or campus environments. It offers a 500 W total PoE budget, ample to fuel a wide range of devices without additional power injectors.

Seamlessly integrated into the Omada SDN ecosystem, the switch provides centralized cloud management, zero-touch provisioning, and intelligent monitoring for simplified deployment and operation. Enterprise-grade L2/L2+ features, robust security controls, and extensive QoS capabilities make the SG3428XMPP the perfect backbone for modern, scalable networks.

What's Included in the Box

• SG3428XMPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

Main Features

✅ Powerful PoE++ and PoE+ Capabilities

• 8× PoE++ ports (up to 90 W each) ideal for high-power devices like WiFi 6E APs and PTZ cameras

• 16× PoE+ ports supporting up to 30 W per port

• Total PoE budget of 500 W

✅ 10G High-Speed Uplinks

• 4× 10 Gbps SFP+ slots ensure seamless high-bandwidth connections to aggregation or core switches.

✅ Enterprise-Class Switching Performance

• 128 Gbps switching capacity with 95.23 Mpps packet forwarding rate for non-blocking performance.

✅ Advanced Layer 2 and Layer 3 Features

• Supports Static Routing, VLANs, Multicast management, and powerful security controls for efficient network segmentation and protection.

✅ Omada SDN Integration

• Cloud-based management, zero-touch provisioning, and unified network monitoring simplify operations for multi-site deployments.

✅ Robust Security

• Extensive ACLs, IP-MAC-Port Binding, DHCP Snooping, Storm Control, and 802.1X authentication ensure a secure network environment.

✅ Durable, Rack-Mountable Design

• Rugged metal chassis and efficient cooling ensure long-term reliability in demanding enterprise installations.

Detailed Specifications

• Ports & Interfaces:

  • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)

  • 4× 10G SFP+ Slots

  • 1× RJ45 Console Port

  • 1× Micro-USB Console Port

• PoE Capabilities:

  • PoE++ Ports: Ports 1–8, up to 90 W per port

  • PoE+ Ports: Ports 9–24, up to 30 W per port

  • Total PoE Power Budget: 500 W

• Performance:

  • Switching Capacity: 128 Gbps

  • Packet Forwarding Rate: 95.23 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

• Power & Cooling:

  • Max Power Consumption: 605.5 W (with 500 W PD connected)

  • Max Heat Dissipation: 2064.96 BTU/hr

  • Fan Quantity: 3

• Layer 2 and Layer 3 Features:

  • 128 IPv4/IPv6 interfaces

  • 48 static routes

  • Static and dynamic ARP

  • DHCP Server and Relay

  • Link Aggregation (Static and LACP)

  • Spanning Tree Protocol (STP, RSTP, MSTP)

  • Loopback Detection

  • 802.3x Flow Control

  • Port Mirroring

• L2 Multicast:

  • IGMP Snooping (v1/v2/v3)

  • MLD Snooping (v1/v2)

  • Multicast VLAN Registration (MVR)

  • Multicast Filtering: 256 profiles, 16 entries per profile

• Quality of Service (QoS):

  • 8 priority queues

  • 802.1p CoS/DSCP priority

  • Bandwidth control

  • QoS remarking

• Security:

  • IP-MAC-Port Binding (512 entries)

  • DHCP Snooping

  • ARP Inspection

  • IPv4/IPv6 Source Guard

  • DoS Defend

  • Static/Dynamic Port Security (up to 64 MACs per port)

  • Broadcast/Multicast/Unicast Storm Control

  • 802.1X Authentication

  • AAA (including TACACS+)

  • HTTPS and SSH secure management

• VLAN Support:

  • Up to 4,000 VLAN groups

  • MAC VLAN: 30 entries

  • Protocol VLAN: 16 templates

  • Private VLAN, GVRP

  • VLAN VPN (QinQ)

  • Voice VLAN

• ISP Features:

  • L2PT (Layer 2 Protocol Tunneling)

  • DLDP

  • PPPoE ID Insertion

  • ERPS (Ethernet Ring Protection Switching)

  • 802.3ah Ethernet OAM

  • DDM

  • sFlow

• Management:

  • Web-based GUI

  • CLI via console, Telnet, SSH

  • SNMP v1/v2c/v3, RMON (1, 2, 3, 9)

  • Omada Cloud-Based Controller

  • Zero-Touch Provisioning

  • Cable Diagnostics

  • Dual Image and Dual Configuration

• Environment:

  • Operating Temperature: 0–40 ℃ (32–104 ℉)

  • Storage Temperature: -40–70 ℃ (-40–158 ℉)

  • Operating Humidity: 10–90% RH non-condensing

• Certifications: CE, FCC

Warranty Information

• Manufacturer’s Limited Warranty

About TP-Link Omada

The TP-Link Omada SDN platform unifies network management into a single, scalable system. From cloud-based oversight to remote troubleshooting, Omada ensures seamless, secure operations for multi-site deployments and enterprise-grade networks.

SKU

SG3428XMPP

Practical Use Scenarios

• WiFi 6 Deployments: Power high-performance APs effortlessly with PoE++ capabilities.

• IP Surveillance Systems: Deliver robust power to high-power PTZ cameras via 90W PoE++.

• Enterprise Networks: Flexible VLAN and security features ensure segmented and secure networking.

• Hospitality & Retail: Provide stable, high-speed connectivity for IoT devices, digital signage, and POS systems.

Datasheets or Downloadable Resources

Download SG3428XMPP Datasheet

Excellence for the Australian and New Zealand Market

The SG3428XMPP complies with all applicable standards for Australia and New Zealand, ensuring seamless integration into regional networks. Sourced exclusively through authorized channels, it comes with local warranty coverage and technical support for peace of mind in professional deployments.

FAQs (SG3428XMPP)

Q1: What’s the maximum PoE output per port on the SG3428XMPP?
A1: The SG3428XMPP provides up to 90 W per PoE++ port and up to 30 W per PoE+ port. (SG3428XMPP)

Q2: How many total PoE watts does the SG3428XMPP support?
A2: It offers a total PoE budget of 500 W, sufficient for mixed deployments of high-power and standard devices. (SG3428XMPP)

Q3: Does the SG3428XMPP support cloud management?
A3: Absolutely! It integrates with Omada SDN, allowing centralized cloud management and zero-touch deployment. (SG3428XMPP)

Q4: Is the SG3428XMPP suitable for video surveillance?
A4: Yes! The high PoE budget and 10G uplinks make it perfect for handling high-bandwidth IP cameras and NVR systems. (SG3428XMPP)

Q5: How many VLANs can the SG3428XMPP handle?
A5: It supports up to 4,000 VLAN groups, ideal for complex network segmentation
